ECT-SET100
Please contact us for pricing
The ECT-SET100 is a versatile, high-throughput automatic tenoning solution built to accommodate a wide range of material sizes and thicknesses. With its durable chain-track feeding, power-adjustable motor, flexible feed speeds, and optional quick-change spindle system, it is ideal for efficient and precise woodworking applications.

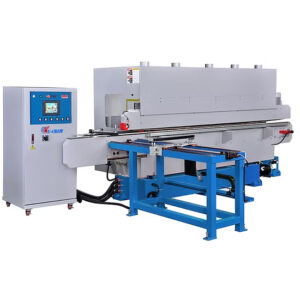

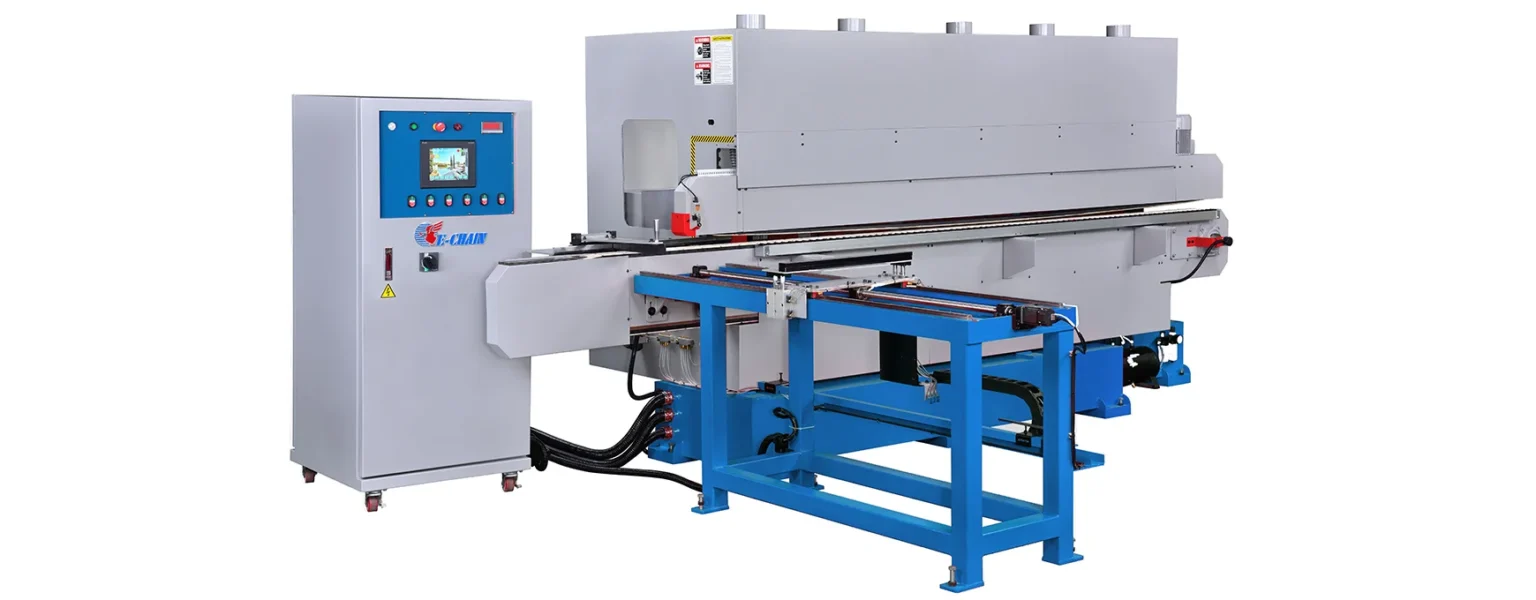

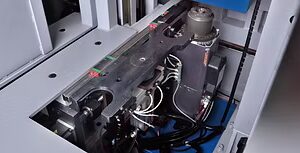

Automatic Single End Tenoner – ECT-SET100
The ECT-SET100 represents advanced tenoning automation, engineered to handle a variety of panel lengths with precision and efficiency. It supports continuous feed operations and offers the option for high-speed spindle integration.
Key Features
- Designed for panels with a length of 100 mm or more, ensuring flexible handling of diverse workpiece sizes.
- Capable of processing materials up to 100 mm in thickness, accommodating robust tenoning requirements.
- Utilizes a chain track feed system for smooth and reliable workpiece advancement through the machine.
- Powered by a 3 hp (optional 5 hp) motor, delivering the performance needed for precise and consistent tenoning operations.
- Offers a variable feed speed range of 5–25 m/min, adapting to different material types and production needs.
- Optional HSK spindle system enables quick-change tooling and supports high-frequency spindle motors for rapid setup and enhanced productivity.
Description
| SPECIFICATION | |
| Max. working thickness | 100mm |
| Working length | 100mm and over |
| Feed Chaintrack | |
| Motor horse power | 3(5)hp |
| Feed speed | 5-25m/min |
| Distance between dogs | 400(300/200)mm or without dogs |
| Moulding Unit 1 (equipped with jumping function) | |
| Motor horse power | 7.5(10)hp |
| Spindle speed | 4500-8000(10000)rpm |
| Spindle diameter | 40mm |
| Cutter diameter | 190-250mm |
| Moulding Unit 2 | |
| Motor horse power | 10hp |
| Spindle speed | 4500-6000(10000)rpm |
| Spindle diameter | 40mm |
| Cutter diameter | 190-250mm |
| Profile Sanding Unit | |
| Motor horse power | 3hp x 3pcs |
| Spindle speed | 0-1800rpm |
| Weight | |
| N.W. | 4250kg |
| G.W. | 4600kg |
| Dimensions | |
| Machine size | 4110x1620x1900mm |
| Packing size | 4230x1600x2120mm |
