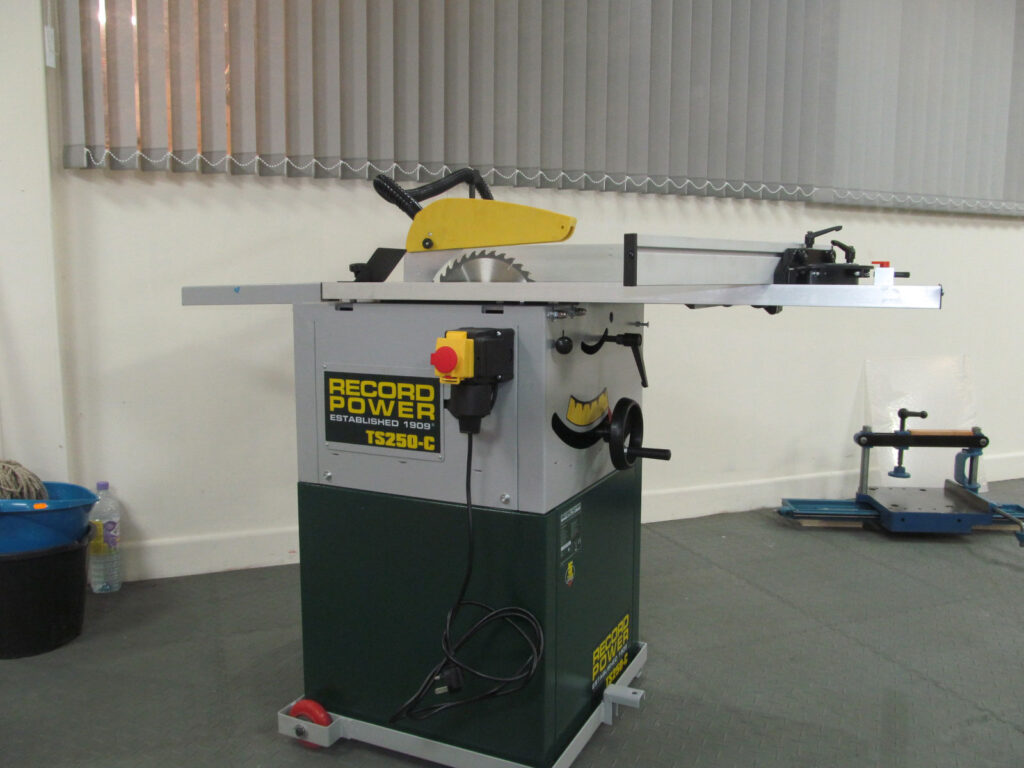

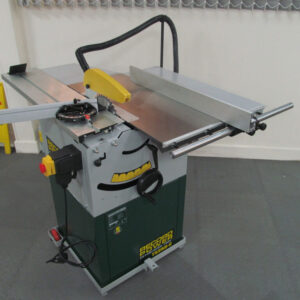

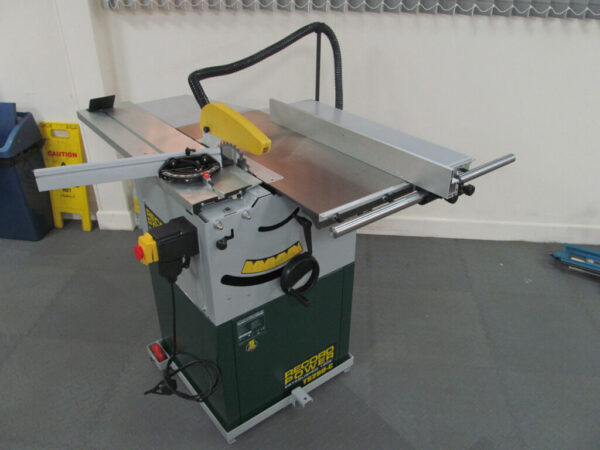

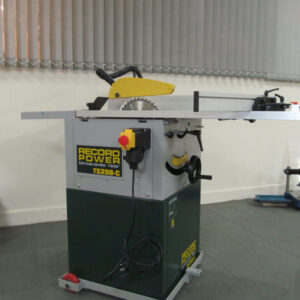

Record Power TS250C-PKA Cabinet saw
Please contact us for pricing
The Record Power TS250C-PKA is a high-quality cabinet saw built for precision, strength, and smooth operation. Designed with serious furniture makers and cabinet builders in mind, it offers exceptional performance in a compact footprint. The heavy-duty cast iron table ensures stability and accuracy, while the 2 hp induction motor provides quiet, consistent power. With its robust sliding beam, solid rip fence, and precise rack and pinion adjustment, this saw delivers industrial-grade results for the small workshop or professional tradesperson.
Description
Technical Specifications:
- Motor Power: 2 hp induction motor
- Blade Diameter: 250 mm (10″)
- Max Cutting Depth: 80 mm
- Blade Bore: 30 mm
- Blade Speed: 4000 RPM
- Max Width (Blade to Fence): 600 mm
- Table Height: 890 mm
- Overall Dimensions (L x W x H): 1100 x 1000 x 1040 mm
- Weight: 91 kg
- Extraction Ports: 30 mm upper / 100 mm lower
- Frame: Welded steel cabinet with cast iron table
- Sliding Beam Stroke: 610 mm

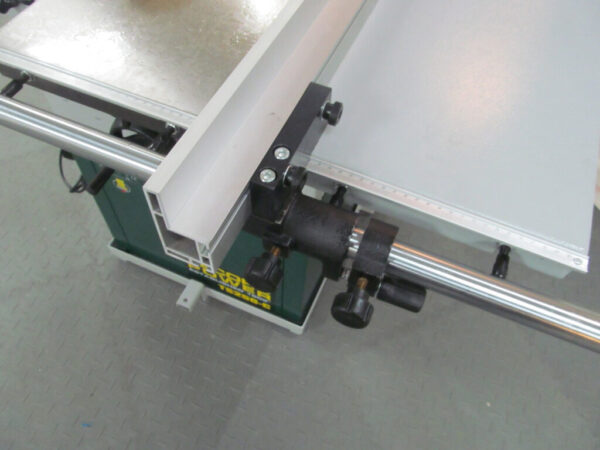

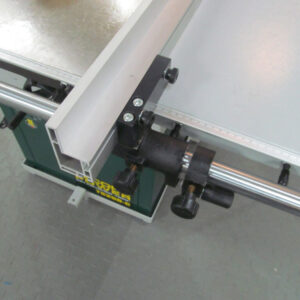

- Fence: Heavy-duty cast mount with micro-adjustment
- Rise & Tilt: Rack and pinion system with separate handles for precision adjustment
- Construction: Cast iron saw unit with machined trunnions for accuracy

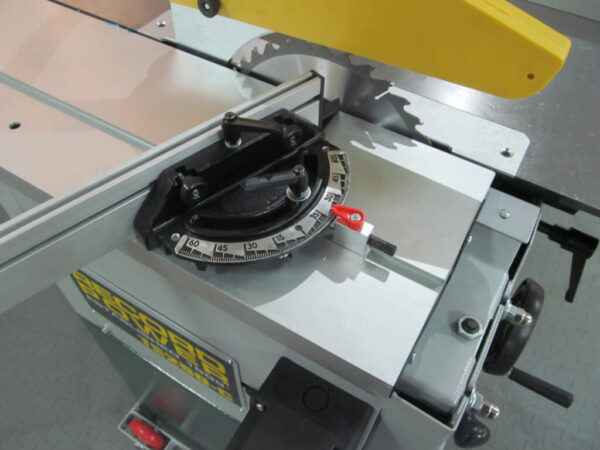

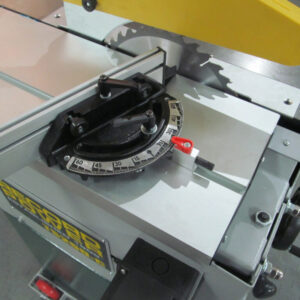

- Includes mitre fence
