Robland Z500 M
Please contact us for pricing

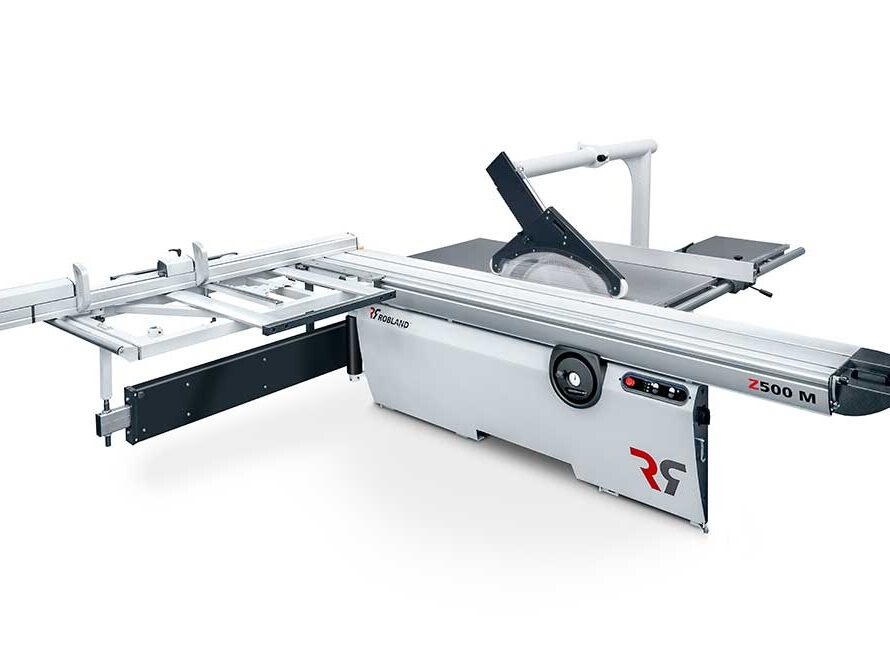

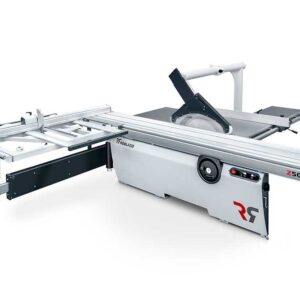

The Robland Z500 M is a high-capacity sliding table panelsaw designed for heavy-duty industrial use. With its 500 mm main blade, powerful 7.5 hp motor, and robust cast-iron construction, it delivers exceptional cutting depth and performance on large solid timber or composite panels. The 3200 mm sliding table runs smoothly on hardened steel guides, ensuring long-term accuracy and effortless material handling.
Description
Technical Specifications:
- Sliding table length: 3200 mm anodised aluminium
- Main saw blade diameter: 500 mm
- Max cutting depth at 90°: 175 mm
- Max cutting depth at 45°: 125 mm
- Main motor power: 7.5 hp
- Scoring blade diameter: 120 mm
- Scoring motor power: 0.75 hp
- Main blade speed: 3000 / 4000 / 5000 RPM
- Scoring speed: 7000 RPM
- Blade tilt range: 0–45°
- Rip capacity: 1380 mm
- Table dimensions: 1530 x 700 mm
- Table height: 840 mm
- Dust extraction port: 120 mm
- Separate motors for main and scoring saws
- Heavy-duty cast-iron frame
- CE compliant safety features
