General Description

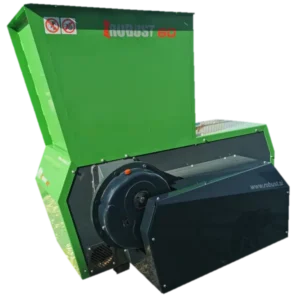

The Robust SD60 Heavy Duty Wood Shredder
It’s used in the woodworking industry, recycling, biomass production, and waste wood processing. It can accept a variety of inputs including:
Capacity: approx 1 – 4m3/h = 1 to 4 tons per hour
Features
- BOVER_BASIC intelligent control system
- Power set (electric motor, reduction gear and belt transmission)
- Filling hopper
- Hydraulic pressure unit
- Robust and adjustable

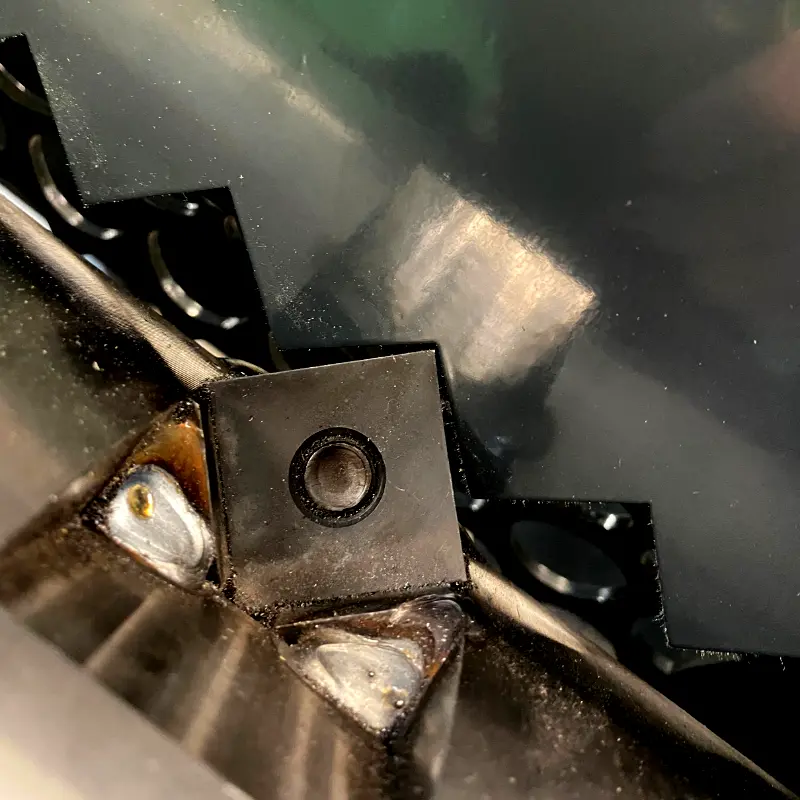

- Hardened knives with four cutting edges with an extended service life
- Hardened cleaning knives
- Hardened cutting racks

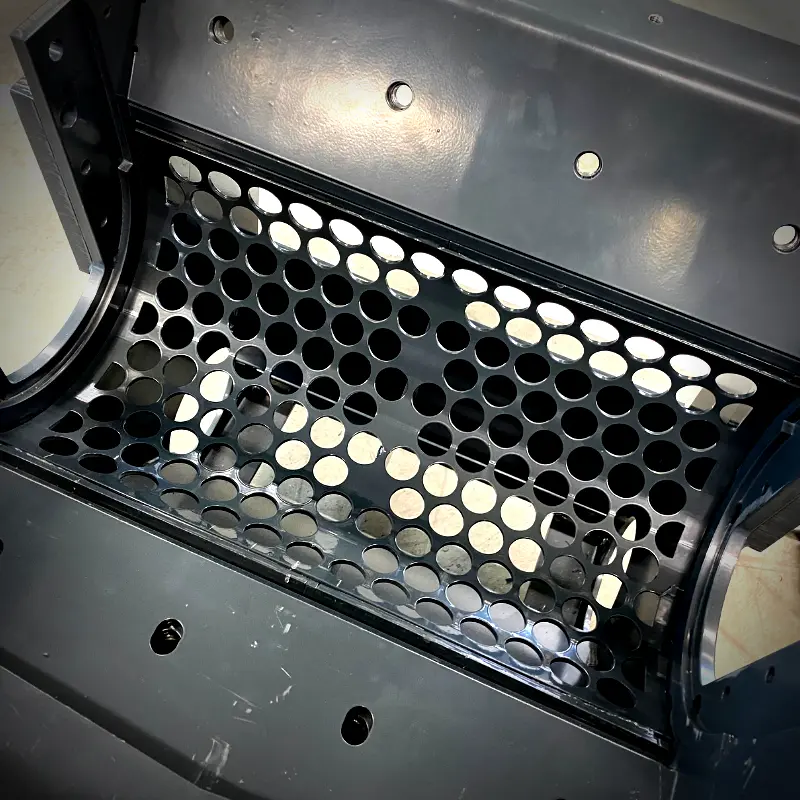

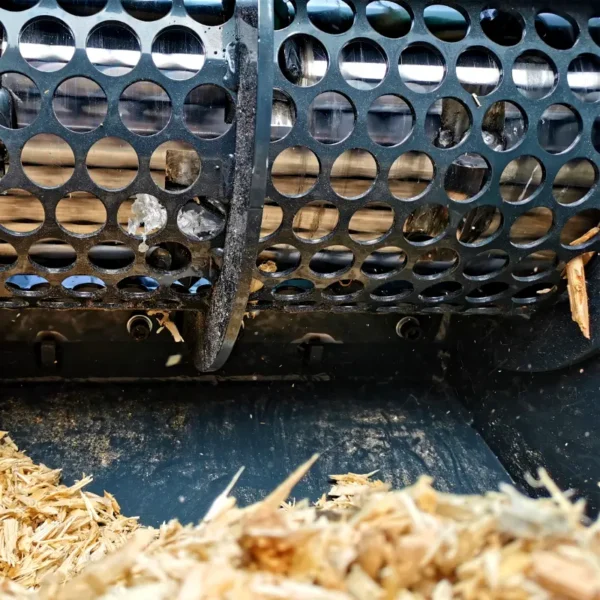

- HARDOX sieve
- The engine start-up is controlled by the star/triangle system
Key Technical Specifications
Below is a summary of main specs gathered from datasheets and sales listings. As with all industrial machinery, actual performance depends heavily on input material, screen size, maintenance, etc.
Parameter |
Typical Value / Range |
Power / Motor |
15 kW or 18.5 kW |
Rotor (Cutting Shaft) |
Length: ~ 550 mm
Diameter: ~ 222 mm |
Number of Cutting Knives |
14 knives |
Screen / Sieve (Hole Size / Granulation) |
Typical screen hole sizes from 10 mm up to ~30 mm depending on configuration |
Throughput / Capacity |
Up to ~4 m³/h (depending on material & screen) |
Feed / Hopper Opening |
~ 946 mm × 567 mm for some variants
Some specs list ~ 1445 mm × 1345 mm for a different variant in catalog listing |

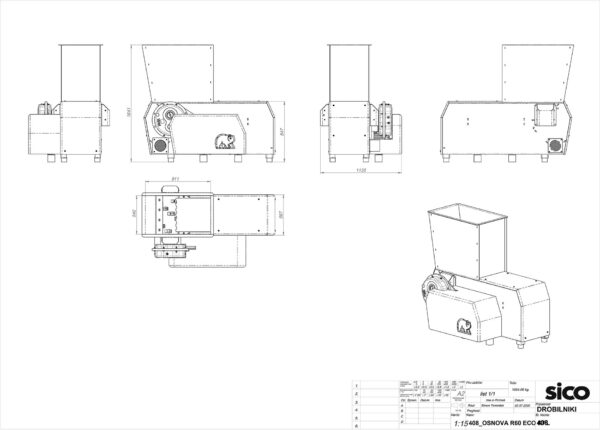

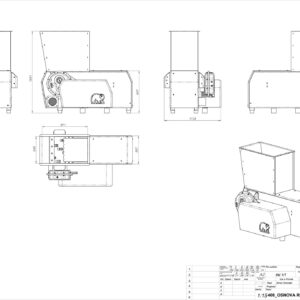

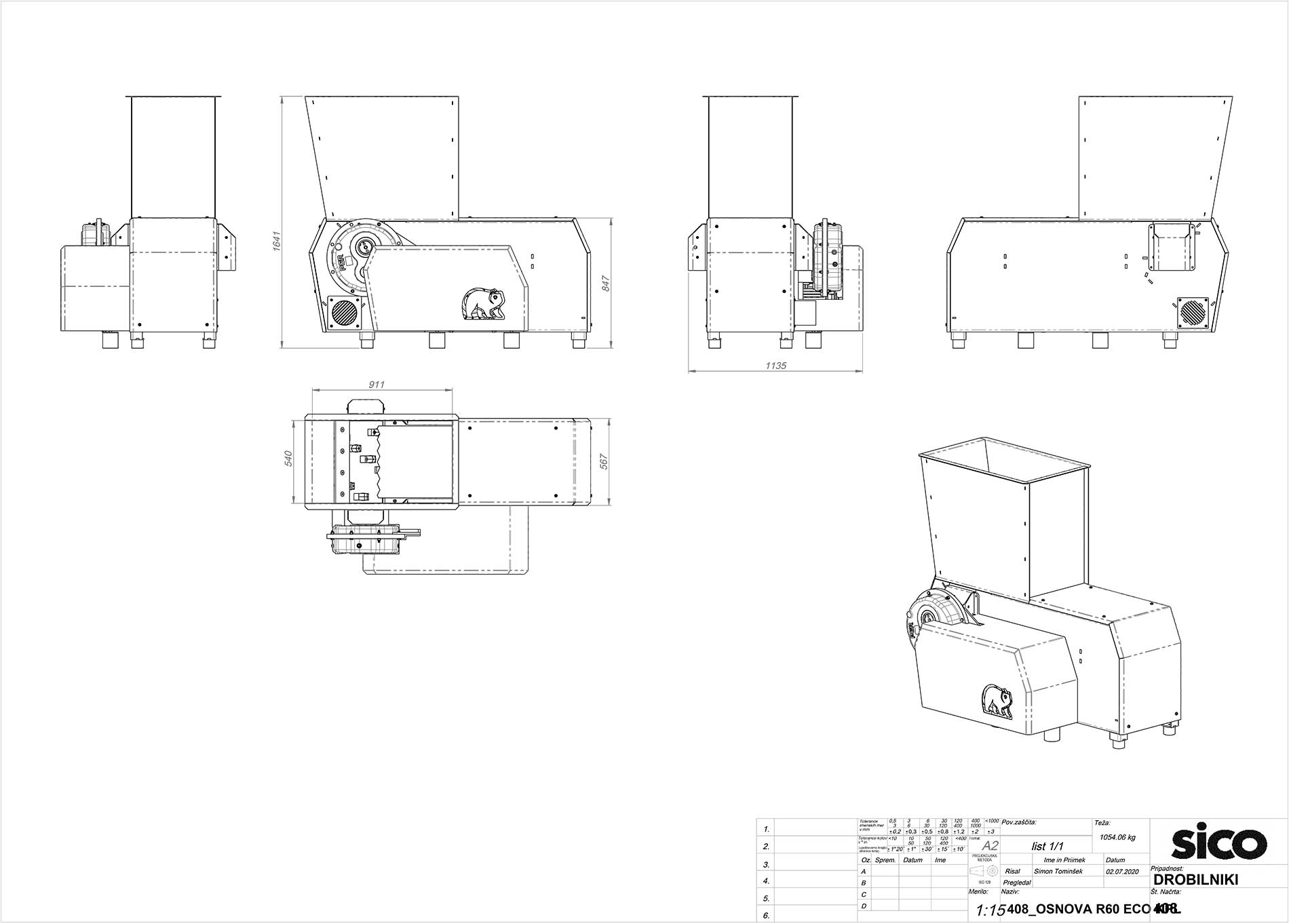

Weight / Dimensions |
Weight ~ 1,250 kg for a standard version
Dimensions (HxW×L) ~ 1,670 × 1,120 × 1,880 mm (for one configuration) A |
Start / Drive / Controls |
Electric drive with reduction gear + belt transmission
Motor start controlled via star/delta (star/triangle) system
Uses BOVER_BASIC intelligent control system |
Other features / Components |
Hardened knives with four cutting edges for longer life
Hardened cleaning knives & counter-knives
HARDOX sieve (wear-resistant)
Hydraulic pressure / pusher unit (to feed materials |
