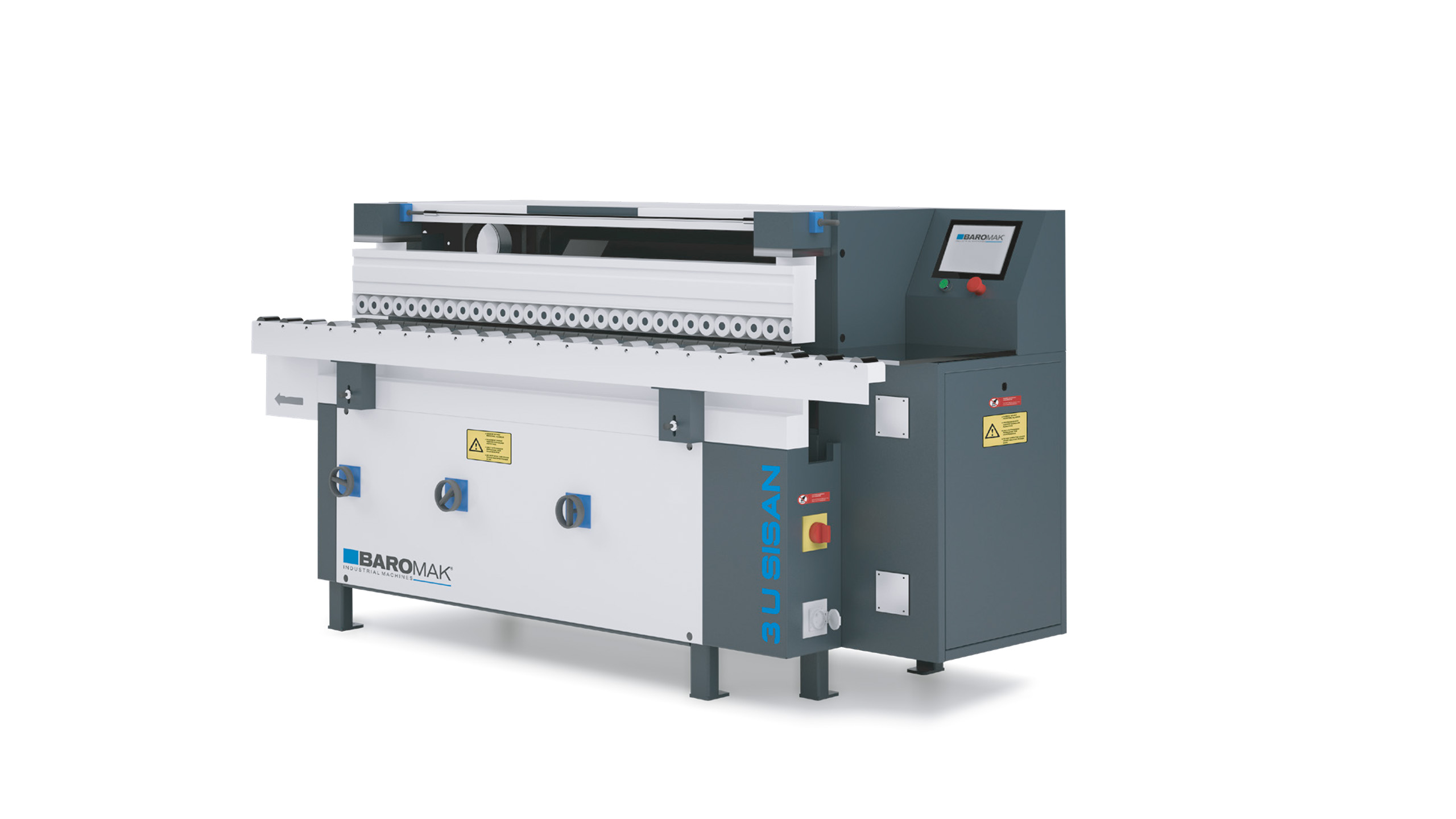

The 3U SISAN Automatic Edge Sanding Machine is designed for precise and consistent edge sanding of panels, doors and furniture components. Equipped with three independently adjustable stations, including one belt roller unit and two brush rollers, the machine delivers uniform edge finishing with excellent surface quality. Each station features its own oscillation system driven by an independent motor, reducing sanding marks and ensuring smooth, even results across different materials and profiles.
Built for efficiency and operator convenience, the 3U SISAN features a 10 inch touchscreen control panel with a user friendly interface for quick setup and adjustment. The automatic thickness adjustment system and inverter controlled conveyor allow accurate control of sanding pressure and speed, improving finishing quality and productivity. High quality Schneider electrical components and German Hermes sanding materials ensure durability and reliable performance, making the machine suitable for continuous production in modern woodworking environments.
Please answer the questions below, tick the relevant boxes, and submit the form for a detailed machine quotation.
Working width from 110 mm and above
Working thickness from 5 mm to 42 mm
Three independently adjustable sanding stations

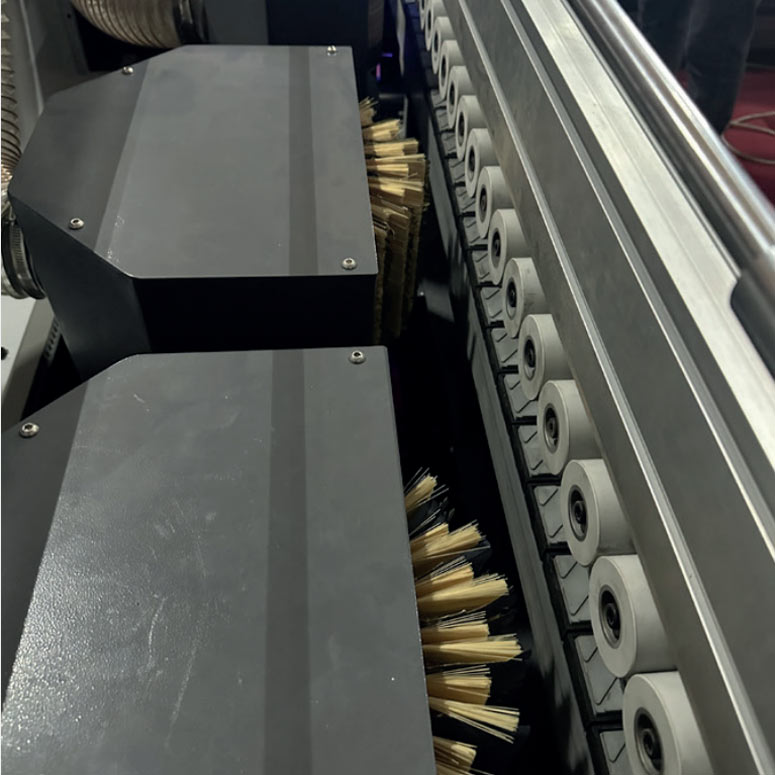

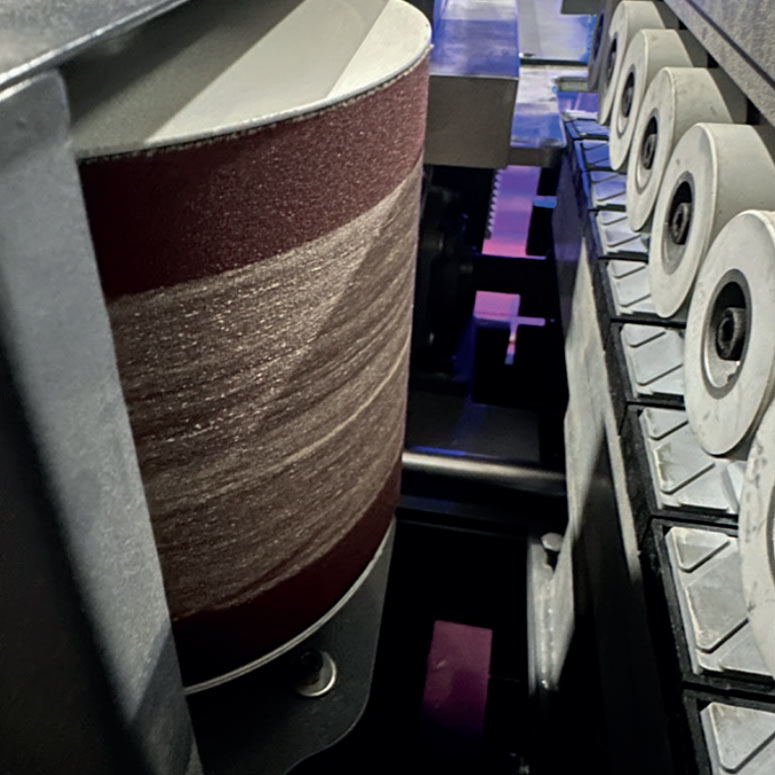

Belt roller unit with two brush roller units
Independent oscillation motors on each station
Inverter controlled conveyor speed
Total installed power 4.29 kW
Voltage 380 V, 50 Hz, three phase
Machine dimensions 2240 x 800 x 1200 mm
Total machine weight 540 kg
No product videos available.
We make the ordering process as easy as possible, firstly after we review your enquiry we will be in touch to ensure the machine you have enquired about is the most suitable for your needs, then we would provide a quote for the machine plus delivery to your business premises. We provide fantastic aftercare support and can also provide maintenance and repairs on machines after they’ve been installed. Just ask the team member during your interactions.
