BrikStar EK 20
Please contact us for pricing
Test your material before you buy it

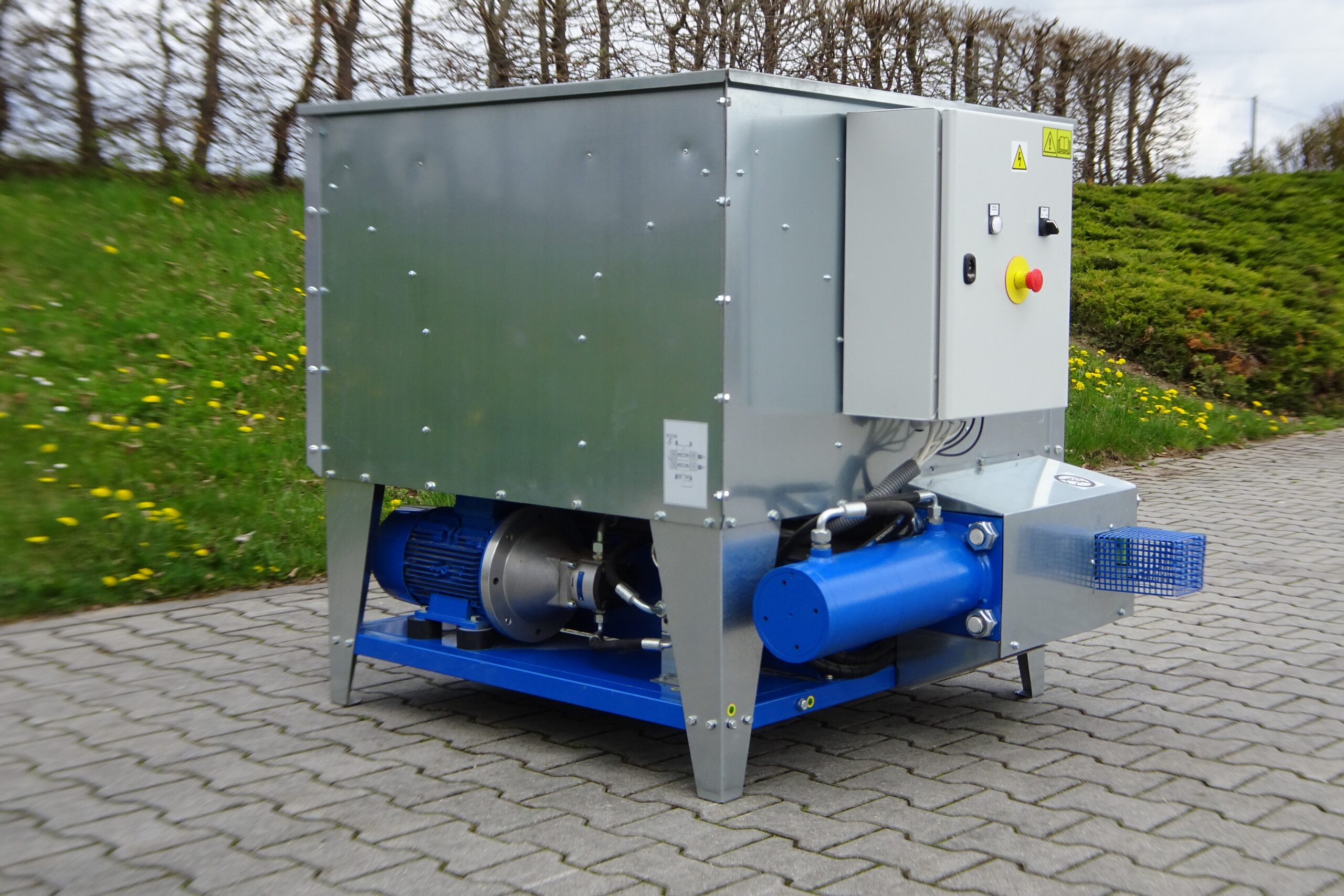

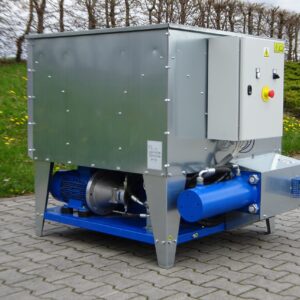

The BrikStar EK-20 is a hydraulic briquette press designed for small workshops or smaller operations. It’s meant to take combustible waste (woodworking waste, sawdust, shavings, dry chips etc.), compress it into briquettes which then can be burned in solid fuel boilers/stoves or used as fuel.
It helps in reducing waste volume, making storage and transport easier & cheaper, improving safety and dust control, and recovering value from waste streams.
- Output up to 25 kg/h

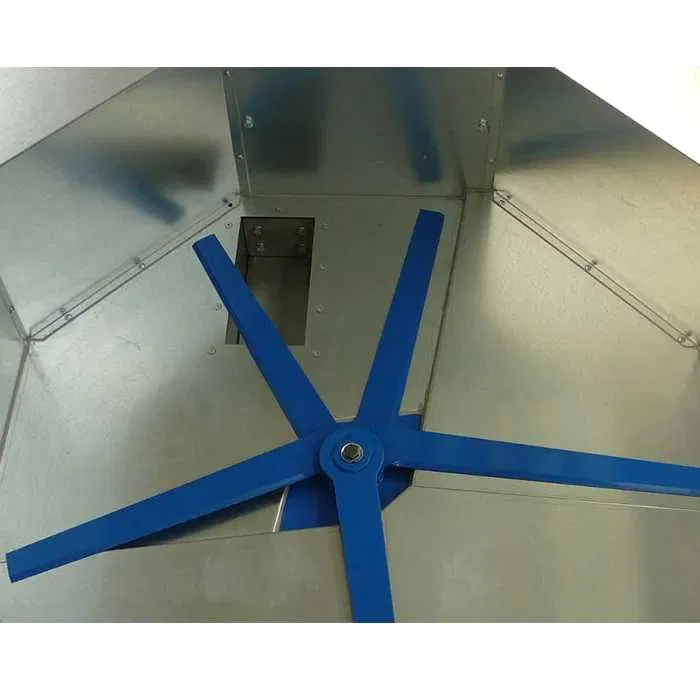

- Hopper volume 0.6 m 3
- Suitable for pressing carpentry waste
- Simple operation, low consumption, safe operation
The BrikStar EK-20 is a hydraulic briquette press designed for small workshops or smaller operations. It’s meant to take combustible waste (woodworking waste, sawdust, shavings, dry chips etc.), compress it into briquettes which then can be burned in solid fuel boilers/stoves or used as fuel.
It helps in reducing waste volume, making storage and transport easier & cheaper, improving safety and dust control, and recovering value from waste streams.
- Output up to 25 kg/h
- Hopper volume 0.6 m 3
- Suitable for pressing carpentry waste
- Simple operation, low consumption, safe operation
| Attributes | Value |
|---|---|
| Output / Throughput |
~10-30 kg/hr depending on material type and density. Some sources say “up to ~25 kg/h.” |
| Electric / Motor Power |
Installed input ~2.4 kW. The hydraulic pump motor is ~2.2 kW. |
| Briquette Shape / Size |
Cylindrical briquettes, 62 mm diameter; lengths around 20-30 mm. |
| Permissible Moisture Content of Input Material |
Around 8-15 % (by weight) moisture. Some sources say up to 12 % for optimal performance. |
| Density of the Briquettes |
~900-1100 kg/m³ (depending on material) solid density. |
| Working Pressure |
Max pressure ~180 bar. |
| Operating Environment |
Ambient temperature +5 to +35 °C; oil working temperature up to ~60 °C |
| Noise Level |
Approximately 75 dB. |
| Power Supply |
400 V (standard three‐phase) supply; electrical elements protection IP54. |
| Machine Weight |
Around 385 kg. |
| Hopper / Feed Volume |
Hopper capacity ~ 0.6 m³ for material feed. |
