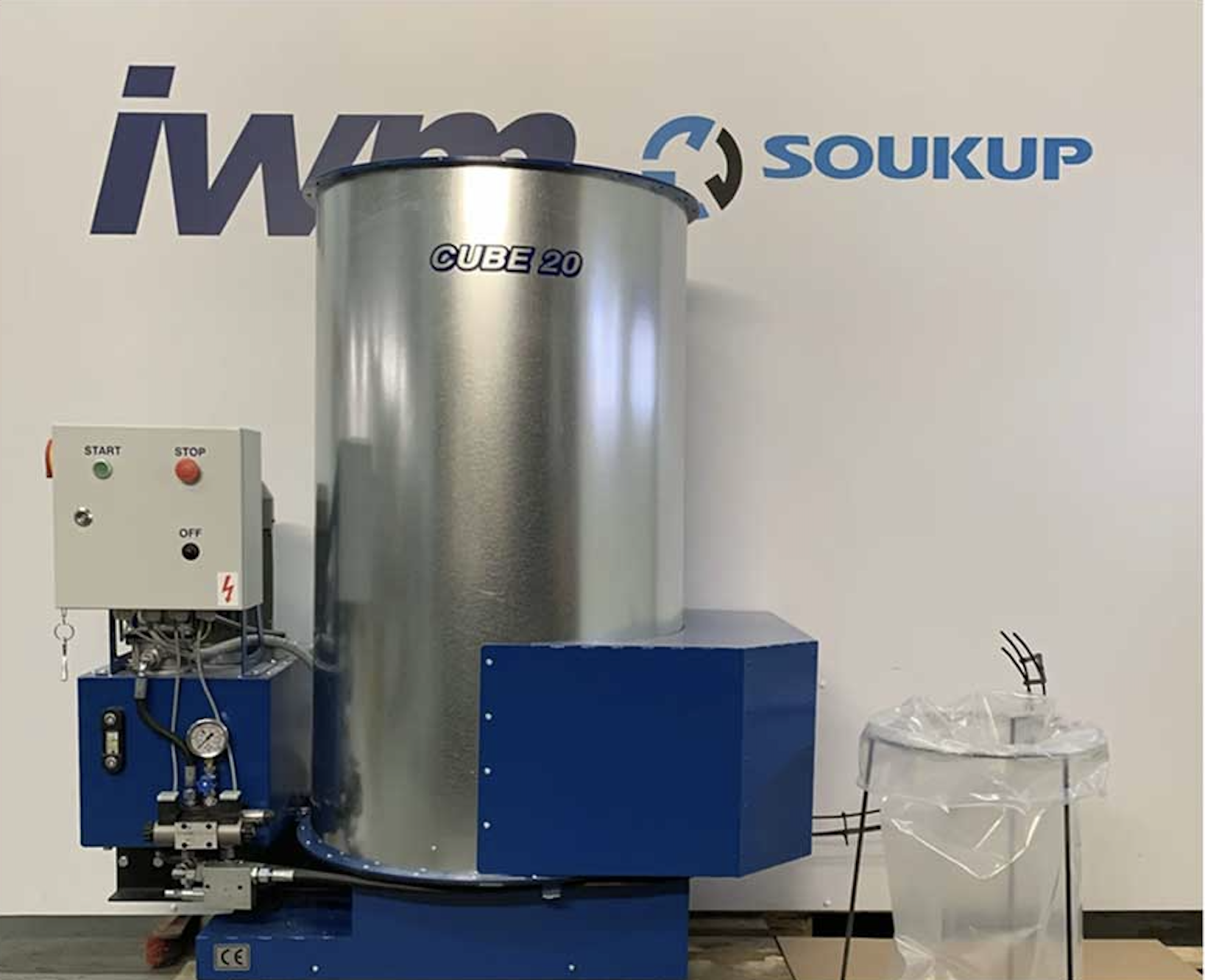

Falach 20XL Briquette Machine

Process your wood shavings and sawdust into renewable energy by using the Falach Cube 20XL Briquette Machine. Available in Single Phase and 3 Phase.

With the recent Clean Air Strategy announcement by the government and the drive to reduce landfill, briquette machines are coming to the forefront. With fuel cost rising the Cube 20XL Briquette Machines will turn your wood shavings, chips and dust into carbon neutral briquettes eliminating the cost of skips and sending your waste to landfill. It has become one of our best sellers within the joinery industry as it is compact, economical and affordable.

Specification

• Dimensions – 125 (L) – 74 (W) – 145 cm (H)
• Briquette size – 30×30×30 mm
• Press capacity – 10 – 25 kg/hr.
• Weight of press – 233 kg
• Hopper volume – 0,75 m3
• Pump motor input – 2,2 kw
• Power consumption – 1,1 kw/hr.
• Oil cooler – No
• Operation – continuously
• Max. Moisture – 15%
• Specific weight of briquette – 900 – 1100 kg/m3
• Maximum noise level – 68 dB
• Available in Single Phase
• This machine is 3 phase 16 amp
• The equivalent level of acoustic pressure at the operator’s post does not exceed 70,0 dB ( 68 dB ).
