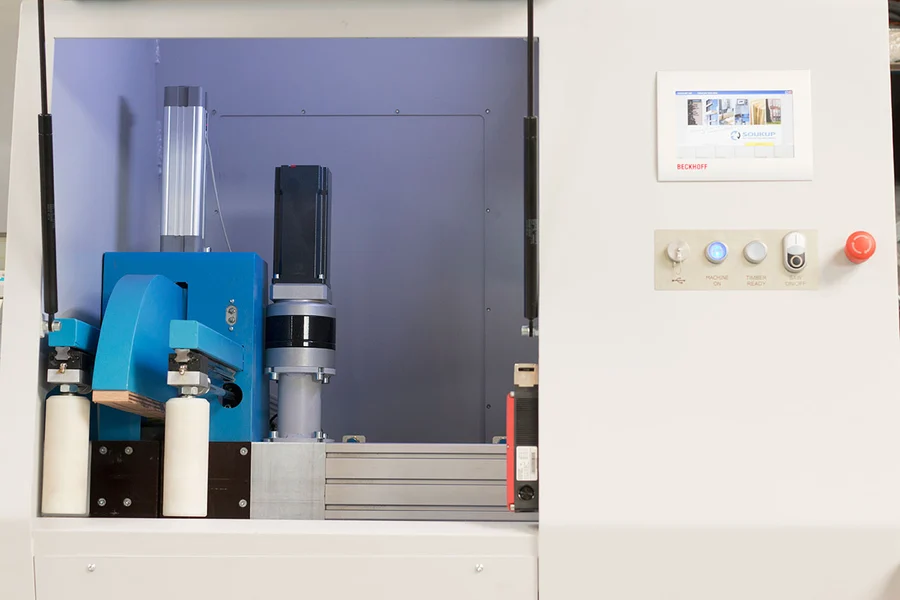

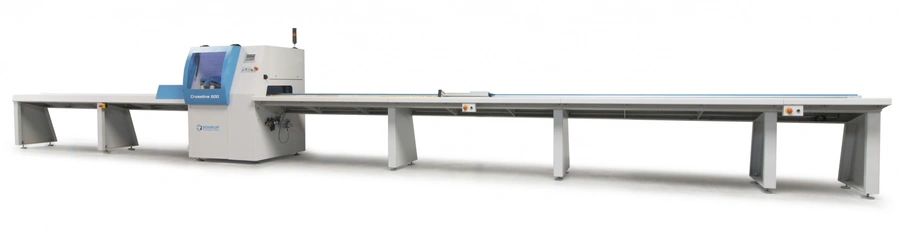

The Crossline 500 automatic cross cut saw has a ø500 mm saw blade. Fed via a servo driven electronic loading pusher, the saw is robust and efficient. There is a static unloading table where cut pieces are automatically placed. As well as standard cutting, the Crossline 500 can also be programmed to cut in pairs increasing your workshop efficiency further.
Soukup Crossline 500 (500M) Cross Cut Saws
Please contact us for pricing
Features
- Fast and efficient crosscutting
- Automatic workflow
- Manual cutting list
- Automatic material measuring
- Servo driven electronic loading

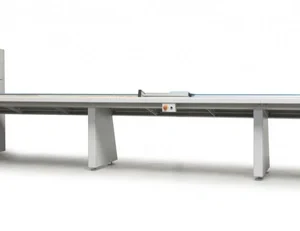

- Static unloading table
Description
Crossline 500M

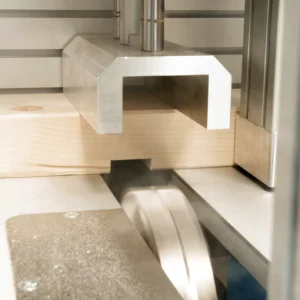

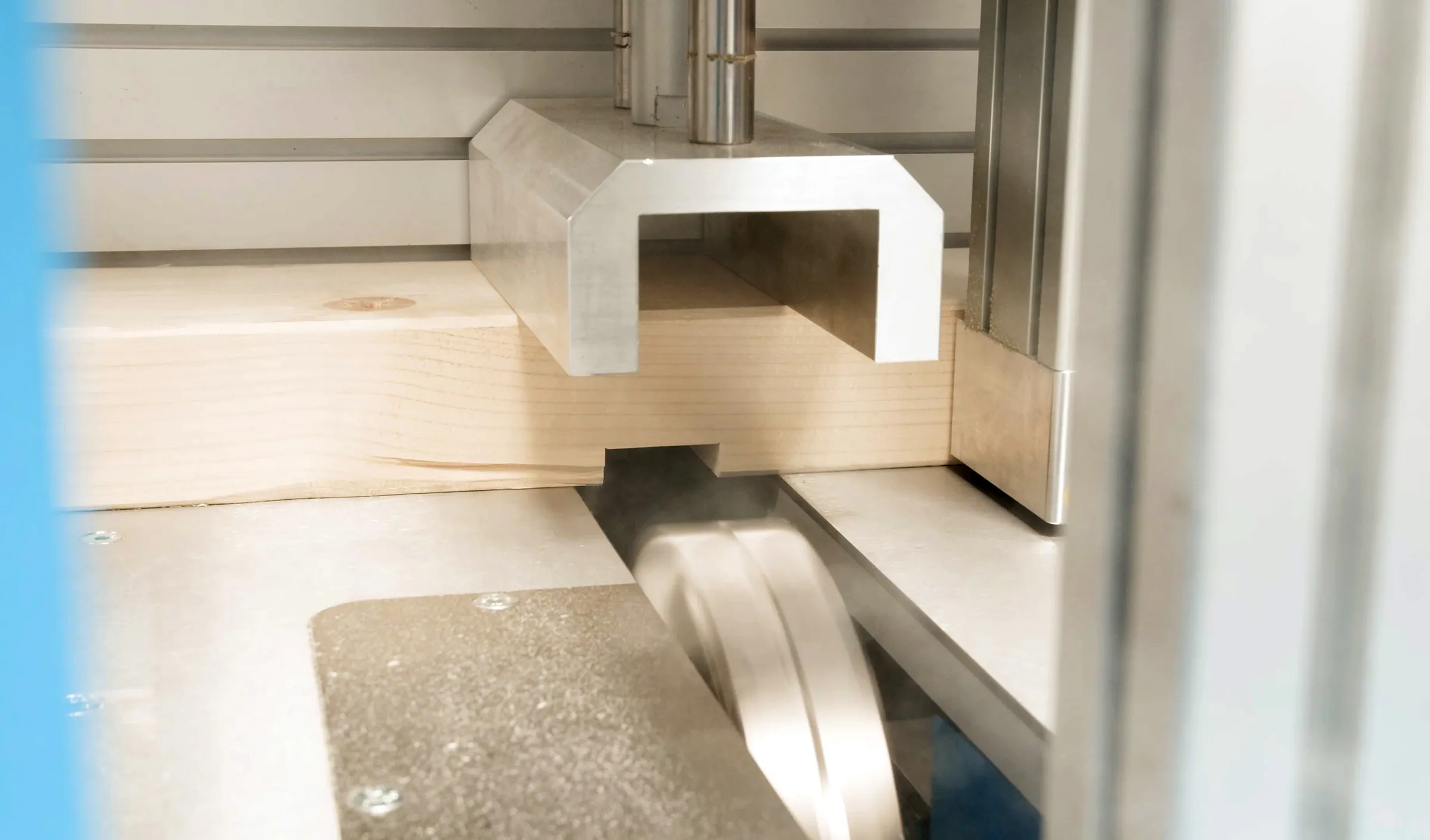

The basic Crossline 500 model can be supplemented with a grooving module, which is used mainly during prefabrication to position the studs in the panel construction precisely. The data for the location of the groove can be obtained in BTL format from the design program or entered in the WorkCreator program.
Width of the groove max 60 mm (according to tools).
Technical data
| Crossline 500 (500M) | |
|---|---|
| Saw blade diameter | 500 mm |
| Cut angle | 90° |
| Material lenght | 6000 mm (9000, 12000) |
| Max. cutting height | 120 mm |
| Feed speed | 0 – 60 m/min |
| Saw blade motor | 7,5 kW (10 HP) |
| Tolerance | 0,5 mm/m |
| Dust extraction | 100 + 120 mm |

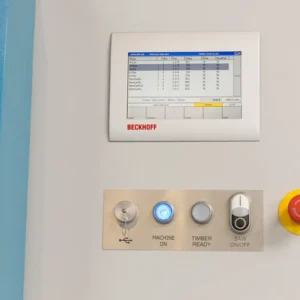

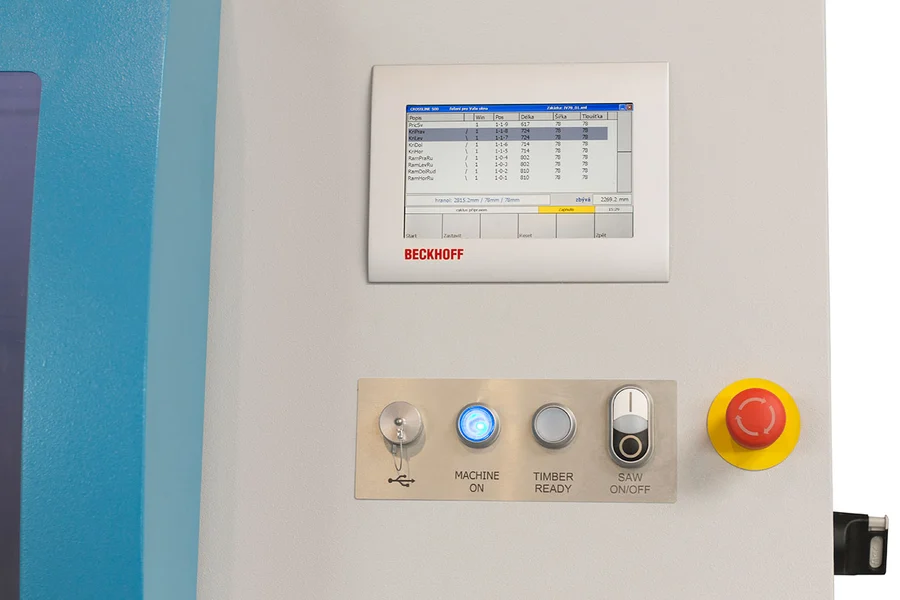

| Touch screen control | 10˝ |
| Lenght | 11960 mm |
| Width | 1210 mm |
| Height | 1590 mm |
