Soukup Crossline 500m Cross Cut Saw
Please contact us for pricing
Test your material before you buy it

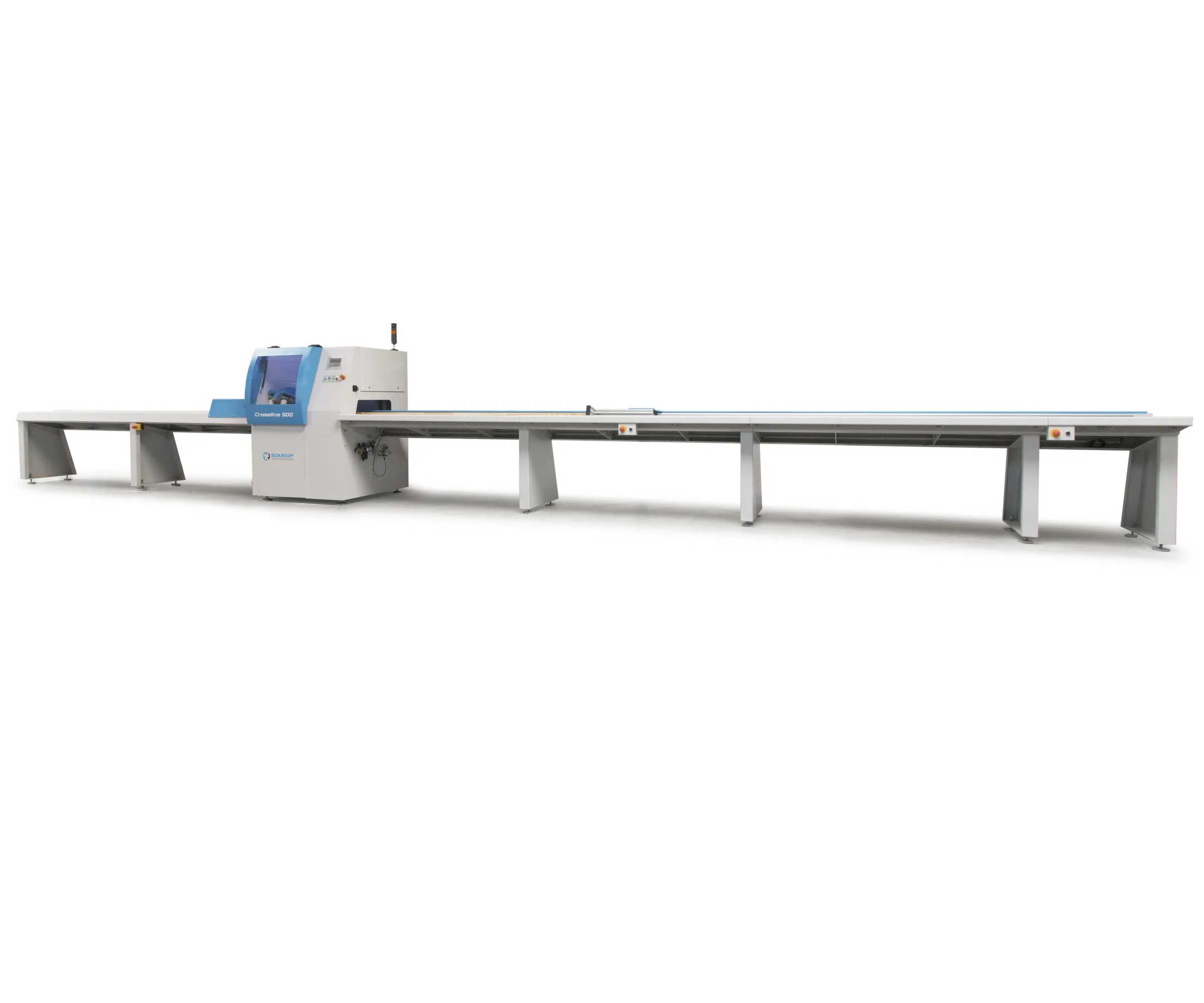

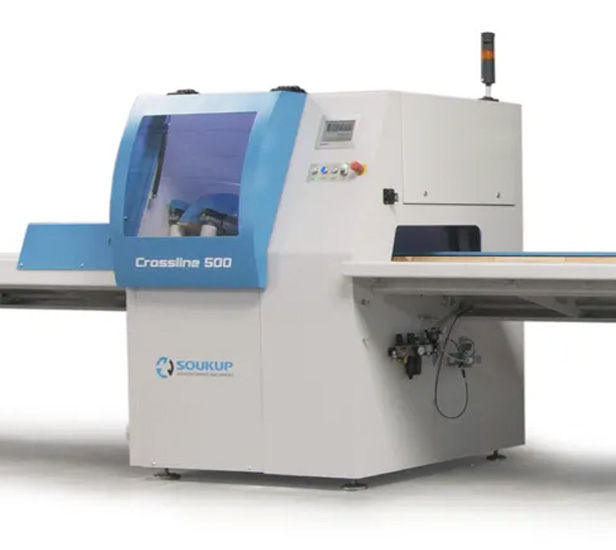

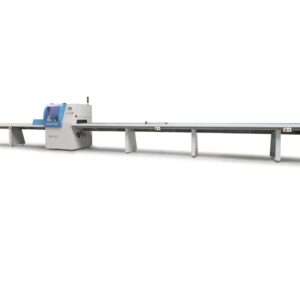

The Soukup Crossline 500M cross cut saw is a robust and efficient automatic crosscut saw equipped with a Ø500 mm blade and a servo-driven electronic loading pusher for smooth and precise material handling. Cut pieces are automatically placed onto a static unloading table, ensuring a seamless workflow. In addition to standard cutting, the Crossline 500M can be programmed to cut in pairs, further increasing workshop productivity and accuracy.

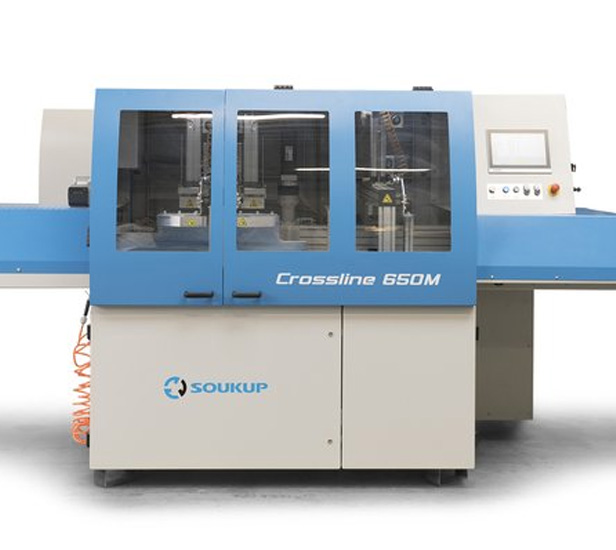

The Crossline 650M builds on this performance with the addition of an integrated grooving module, making it ideal for combining truss production with wall panel cutting. This feature allows for precise positioning of studs within timber structures. Thanks to its advanced functionality and flexibility, the Crossline 650M offers an efficient, all-in-one solution and serves as a practical alternative to complex machining centres used in the prefabrication of wood-based panels.
| Crossline 500M | |
|---|---|
| Saw blade diameter | 500 mm |
| Cut angle | 90° |
| Material lenght | 6000 mm (9000, 12000) |
| Max. cutting height | 120 mm |
| Feed speed | 0 – 60 m/min |
| Saw blade motor | 7,5 kW (10 HP) |
| Tolerance | 0,5 mm/m |
| Dust extraction | 100 + 120 mm |
| Touch screen control | 10˝ |
| Length | 11960 mm |
| Width | 1210 mm |
| Height | 1590 mm |
Features
- Fast and efficient crosscutting
- Automatic workflow
- Manual cutting list
- Automatic material measuring
- Servo driven electronic loading
- Static unloading table
- Grooving module
