Soukup Framer Modular
Please contact us for pricing
Framer Modular is a component-based framing and assembly table designed for off-site panel construction. It’s the ideal solution for those who prefer a “do-it-yourself” approach, with engineered components that are flat-packed and bolt-assembled to reduce transport and installation costs. The system provides a flexible, fully customisable wall panel assembly station that’s both efficient and user-friendly.
Designed to deliver outstanding performance, the Framer Modular offers the perfect balance of efficiency, accuracy, and affordability. Its modular design allows workshops to expand and adapt their setup using a range of components and accessories to meet specific production needs. This DIY delivery and assembly system helps optimise upfront investment while maintaining the robust, precision-engineered panel assembly technology that Soukup is known for.
The Framer Modular is supplied as a kit with optional accessories can be assembled in various configurations to support the production of Panel lengths at 6, 9.4, and 12.8 meters and Panel widths from 400 to 3000 mm. And with optional extensions, up to 3800 mm at a working height of 700mm.
Description
The Framer Modular System comprises:
- Expandable Supporting Frame Structure
- Customizable Tabletop Elements
- Framing and Assembly Accessories

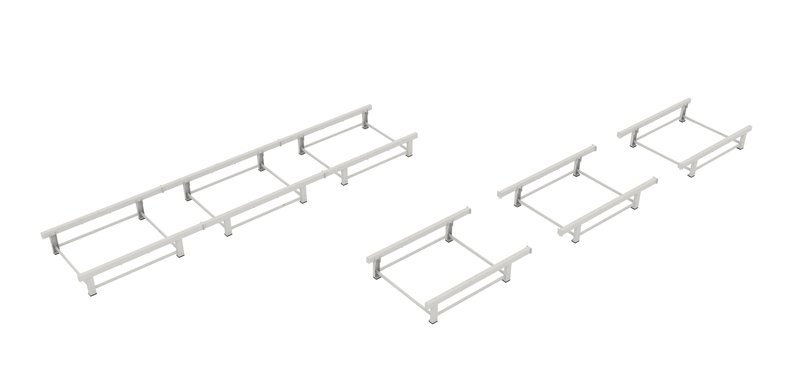

Expandable Supporting Frame Structure

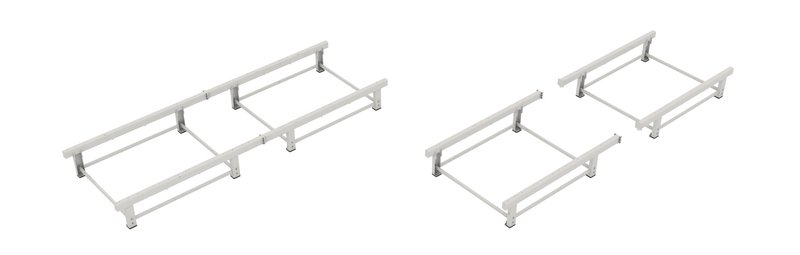

6-meter Table Configuration: Consists of 2 End Modules
9.4-meter Table Configuration: Consists of 2 End Modules + 1 Center Module
12.8-meter Table Configuration: Consists of 2 End Modules + 2 Center Modules

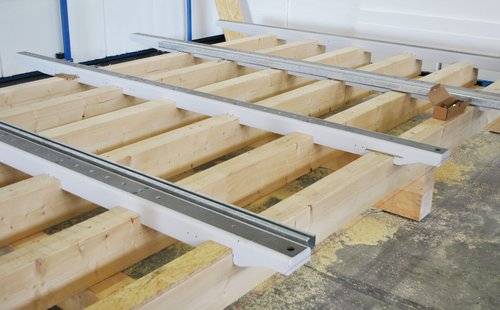

DIY: Build your own supporting frame structure with KVH structural timber according to our instruction manual
Customizable Tabletop Elements

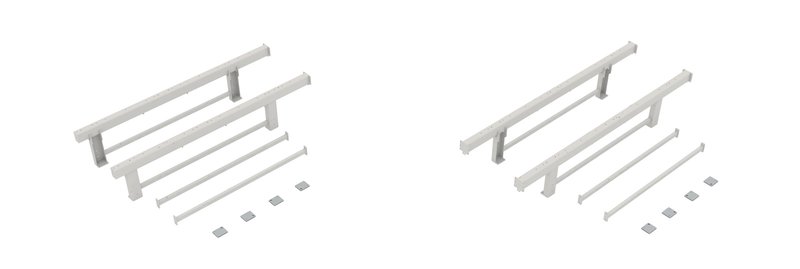

Crossbars and Fences

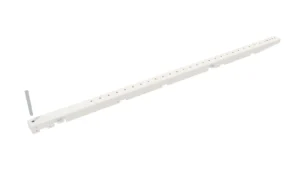

- Steel Crossbar 3500 mm:
Available slots for Pneumatic Clamps

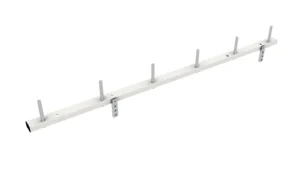

Required at every 1140mm - Reference Fence with 6 Pins:

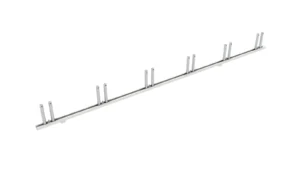

3000mm length with stop pins, creating a perpendicular working surface - C-Profile with 12 Adjustable Pins:
3000mm length with adjustable stop pins for accurate floor and ceiling element assembly

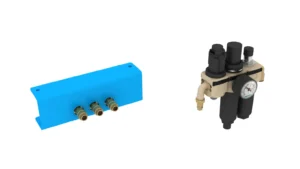

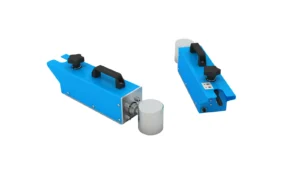

Pneumatic Clamps
- Movable units, each with its own pneumatic control and mechanical lock for anchoring
- A clamping stroke of 125 mm and a working force of 1200 N (6 bar)
- Connected to an Air Pressure Regulation Unit, each distributor supports up to 3 pneumatic clamp units.

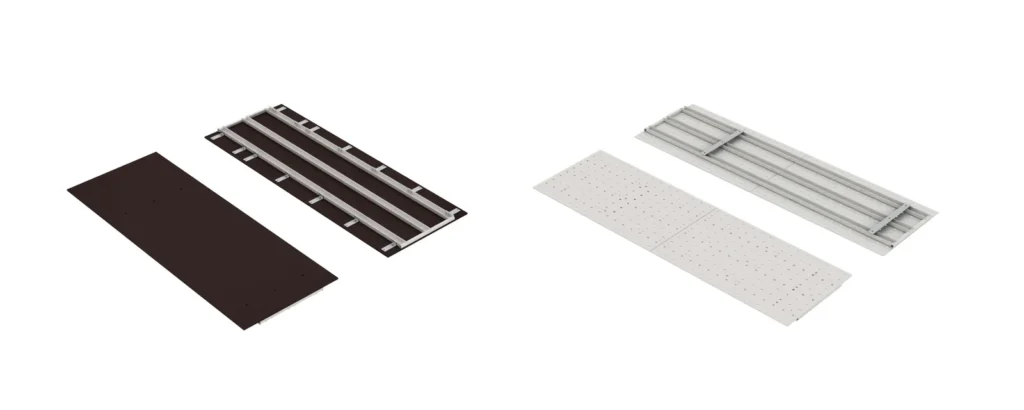

Tabletop Panels
- Replaceable waterproof Plywood Panel mounted on a robust steel frame.
Field Dimensions: 1000×3000 mm - Heavy Duty Steel Raster Board, enabling flexible clamping unit positions on the board, mounted on a robust steel frame
Field dimensions: 1000×3000 mm x 8 mm thick plate
Framing and Assembly Accessories

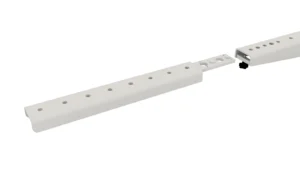

- Crossbar Beam Extension 800 mm

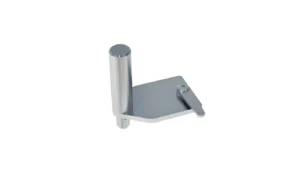

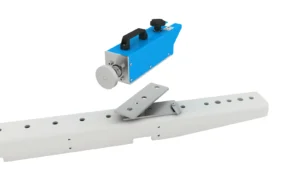

Removeable Beam Extensions, allowing a total Crossbar length of 3800 mm for panels up to 3800 mm - Swivel Plate for Pneumatic Clamp
Rotational clamping support for building sloped and angled panels - Stop for Raster Board
Position adjustable pins providing flexible frame stops
