Soukup Crossline 650 Automatic Angle Cross Cut Saw
Please contact us for pricing
The Soukup Crossline 650 is a high-performance CNC cross-cutting centre designed for precision, speed, and efficiency in timber manufacturing. Engineered for industrial timber processors, it automates the cutting process with outstanding accuracy, reducing labour costs while increasing productivity.

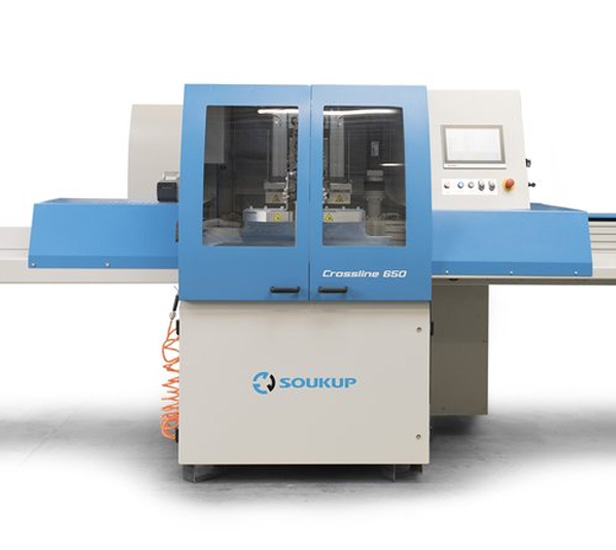

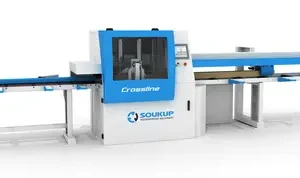

Soukup Crossline 650 – CNC Cross-Angle Cutting Centre
Crossline 650
Automatic crosscut saw Crossline 650 is mainly intended for the production of trusses and is also used in furniture production, where we work with cutting angles.

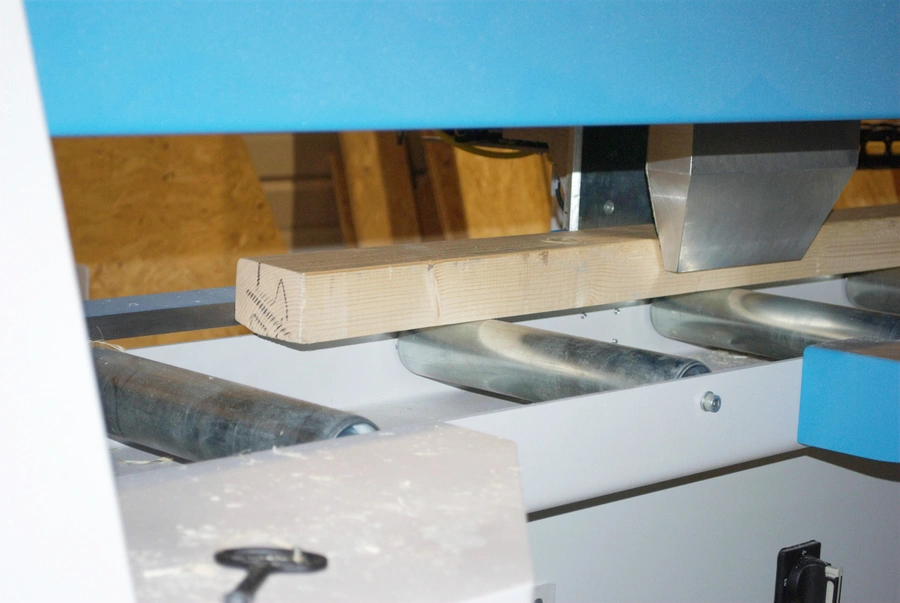

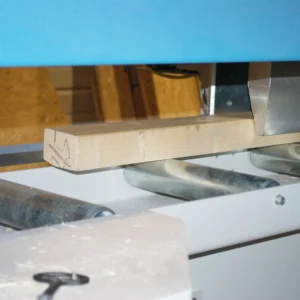

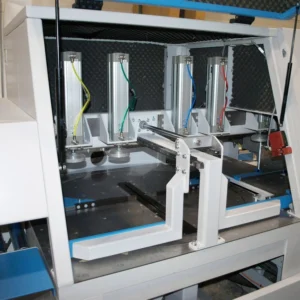

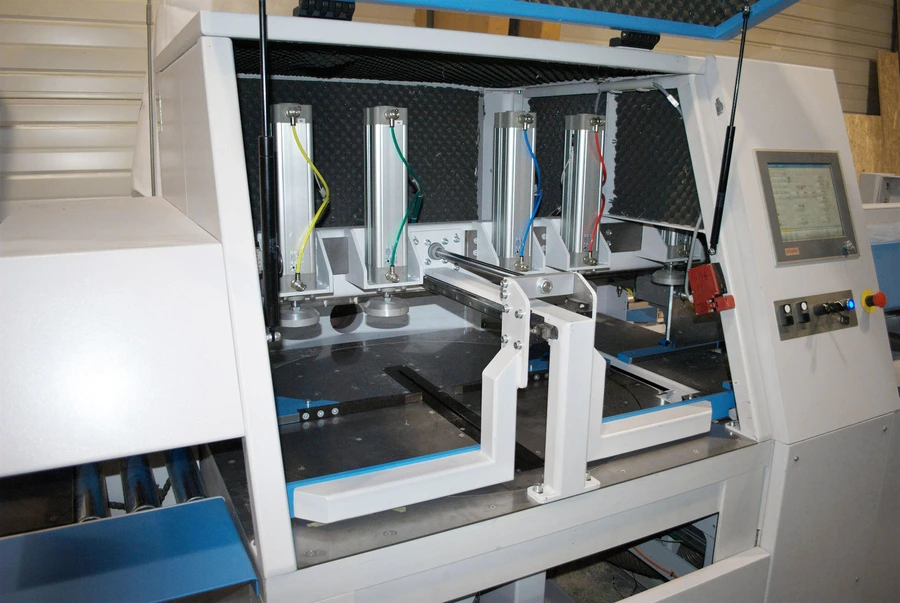

The machine is equipped with a turntable with a ø650 mm sawblade facilitating angled cuts of ± 70°. The material is inserted into the machine by a servo-driven electronic pusher. The head of the material is automatically detected as it is pushed into the machine. The cutting accuracy is ensured by two upper and two side pneumatic clamps with individual control and adjustment. After the material is positioned, clamped, and the saw angle set, the saw blade automatically rises to perform the cut. After cutting, the material is released and pushed to the outfeed table.
The machine can work manually or automatically, linked to data from WorkCreator or third-party software providing BTL files.
Key Benefits of the Soukup Crossline 650
-
High Precision Cutting – CNC-controlled cross-cutting ensures consistent accuracy on every component
-
Large Cutting Capacity – handles lengths up to 6.5m with ease, ideal for long timber sections
-
Optimised Productivity – fast processing speeds and minimal setup time for high-volume production
-
Flexible Applications – perfect for manufacturing timber windows, doors, trusses, and frame components
-
Reduced Waste – intelligent programming optimises timber usage, cutting costs and improving efficiency
-
Robust Build – European-engineered machine built for durability and long service life
The machine is equipped with a turntable with a ø650 mm sawblade facilitating angled cuts of ± 70°. The material is inserted into the machine by a servo-driven electronic pusher. The head of the material is automatically detected as it is pushed into the machine. The cutting accuracy is ensured by two upper and two side pneumatic clamps with individual control and adjustment. After the material is positioned, clamped, and the saw angle set, the saw blade automatically rises to perform the cut. After cutting, the material is released and pushed to the outfeed table.
Timber Truss Production
The Crossline 650 is perfectly suited to timber truss production, where speed, accuracy, and reliability are critical. By automating cross-cutting with CNC precision, it ensures every timber section is cut to the exact specification, minimising errors and reducing material waste. This makes it a valuable asset for truss manufacturers looking to improve throughput and consistency.
Offsite Timber Frame Applications
With the rise of offsite timber frame construction, the Crossline 650 provides the accuracy and speed required for pre-fabricated building components. It allows manufacturers to cut large timber elements quickly and consistently, supporting efficient offsite assembly and reducing build times on-site.
Easy To Integrate With Production Lines

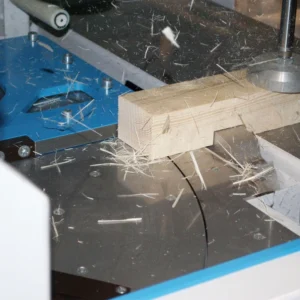

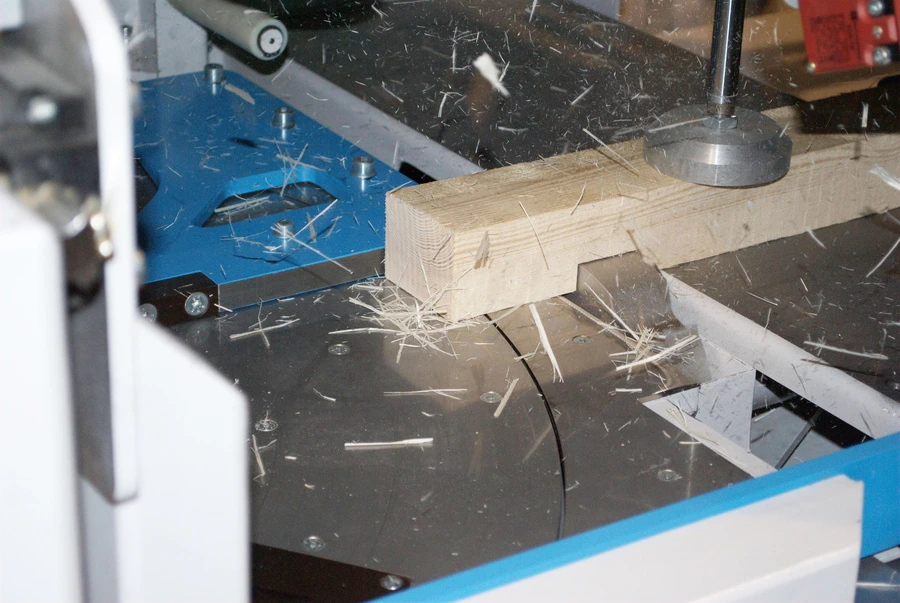

Once the wood is in place, clamped, and the cutting angle is set, the blade rises automatically to cut the material. After the cutting job is complete, the article automatically moves from the cutting zone to the outfeed table.
The machine is versatile as it can be used in both manual or automatic mode. For automation, data can be controlled via WinCreator or your existing third party software (Must be BTL format). The Crossline 650G can seamlessly fit into your current operation. It can be integrated with production lines using conveyors and manipulators.
