US Concepts INC. Specialist Stair Machinery
Please contact us for pricing
Test your material before you buy it
Description
IWM are the UK Agents for the specialist machinery manufacturer US Concepts, who produce a unique range of stair machinery and handrail machines. They work closely with customers to tailor each machine to individual production needs.

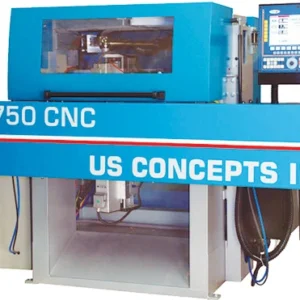

To make operation as simple as possible—even for operators of any skill level—the CNC unit is preprogrammed for most stair routing applications. However, the CSR-750CNC still retains full capability for custom programming using standard CNC codes. The operator simply selects the stair style, enters the rise, run and number of stairs, inserts the pair of boards and presses Start.
As the stair machinery takes over, two high-speed router motors simultaneously rout both left and right stringers with a dovetail bit. As an added advantage, the machine is also capable of cutting open-horse stringers and open stringers with 45° riser relief.
Additional Information
- Heavy Duty construction with Cast iron arms and walls

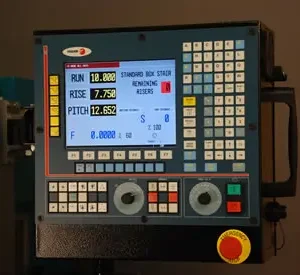

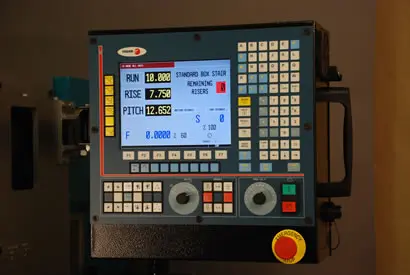

- FAGOR CNC 8055i/A 3-axes package
- Standard programs:
- Standard Box Step with Round Nose
- Blunt Nose with Rake or Straight Riser
- Open Pan Rout with partial Riser or no Riser
- Temporary Stair Rout
- Center Open Horse Cut

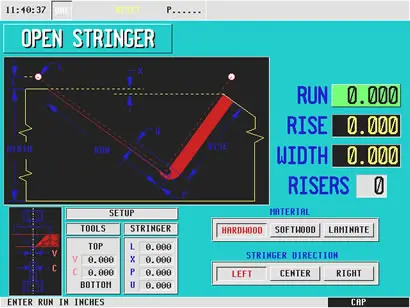

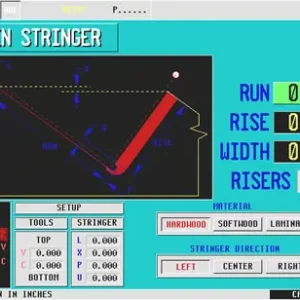

- Open Stringer cut with 45° Riser relief
- Two 5HP High speed router motors
- Two adjustable speed drive controllers
- Automatic board advance every cycle
- Networking, and remote data entry and supervision
- Max material width 12″
- Material thickness: ¾” – 3-1/2″
- Tool shank capacity ¾”
- Max. feed speed 300 FPM
- Communication ports: RS232, USB, network
- Machine dimensions 94″L x 60″D x 64″H
- Weight approx. 4200 lbs
- Dust outlet 8″
