Falach 70

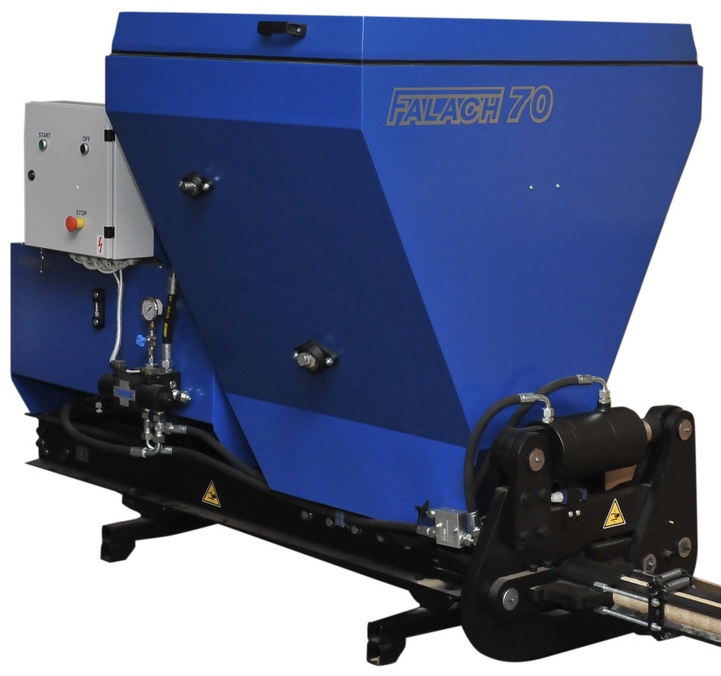

Falach 70 Briquette Machine
IWM Falach Briquette Machines have established themselves as the UK’s Leading Choice of Hydraulic Briquette Machines converting wood waste and other materials into renewable energy briquettes which have been Certified to meet the “Clean Air Strategy” producing same heat as Coal and no Air Pollutants.
Features
- 60-80 Kilos Per Hour Production
- 70mm Dia Briquettes
- Dimensions L x W x H 222 – 120 – 151cm
- Weight of Press: 840kgs
- Hopper Volume: 0.75 m3
- Pump motor input: 7.5 KW
- Power consumption: 4.9 KW/hour
- Oil cooler: No
- Operation: Continuous
- Auto Reverse Vertical Agitator: Yes
- Automatic Switch-out: Yes
- Make noise level: 68dB
- This machine is 3 phase 32 amp
IWM Falach Briquette Machines have established themselves as the UK’s Leading Choice of Briquette Machines , “Tested & Certified” to meet the Governments “Clean Air Strategy” converting your wood waste into renewable energy high energy briquettes producing same caloric heat as coal without any air pollutants.
IWM 5 Bag Carousel Units All our machines can be fitted with an optional Five Bag Carousel unit that will collect all your briquettes and separate them into different bags. 5 Bag Carousel Unit for Falach 70 £1480
Our Falach Briquette machines have many unique design features that are approved by customers.
- Funnel-shaped Hopper
- Chromed Piston and Press Chamber
- Electrical Interlocked Lid
- Hydraulic Cooler
IWM Falach Briquette Machines have a unique funnel-shaped hopper that allows the wood waste material to fully load into the hydraulic Chromed Piston to manufacture solid briquettes. Falach Briquette Machines are fitted with a Vertical Agitator to ensure that any waste materials are fully loaded into the pressing chamber to produce sturdy briquettes. As opposed to the horizontal agitators that are found in other woodworking machines that do not fully load the pressing chamber and produce softer briquettes.
Falach Briquette Machines are fitted with a Hardened Chromed Piston and Press Chamber. The Result of Chromed Piston itself is hard-wearing compared to a steel piston, and a chamber that are prone to wear.
The electrical interlocked lid allows to fill the machine hopper manually and provides a total safe working environment for operators with the added advantage preventing clouds of dust when filling the hopper from extraction bags into the atmosphere.
The Automatic 5 Bag Carousel Unit collects the briquettes into 5 Bags each holding 20/25 Kilos and offers a perfect storage solution as the briquettes can be placed into easy to handle bags that can be sealed to keep damp air away. These bags can also be easily stored on top of one another for convenience.
