Salvamac Classic 50 Cross Cut Saw

Classic 50 Cross Cut Saw

Salvamac Classic 50 Cross Cut Saw

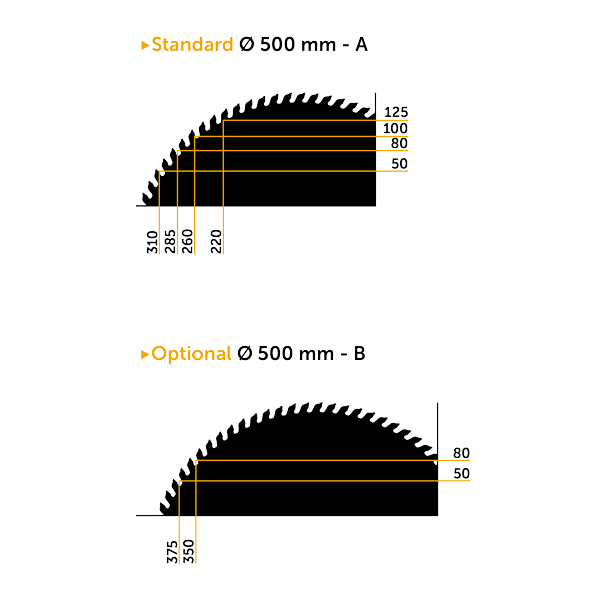

The Classic 50 is made from reinforced steel. Has a blade diameter of 500mm, power of 5.5kw and a rotation speed of 2800rpm. Recommended for use with wood up to a max of 125mm thick and 310mm wide.

Features

  • Blade Motor Power – kW 5,5
  • Diameter of saw blade/shaft – 500 mm / 35 mm
  • Saw spindle rotation speed – 2800 rpm
  • Sawdust extraction – 1-120 mm / 1-100 mm
  • Voltage – V 400/50 Hz 3~
  • Compressed air supply pressure – 6-8 bar
  • Working height – 900+-20 mm

Floor Anchoring

Solid anchoring to the floor with special flanged steel feet with fixing hole.

Ergonomic Position

Two-handed safety manual control to start the cutting is located in ergonomic position.

Cutting Speed

Cutting speed adjustable by pneumatic trimmer on the machine.

Pneumatic Hood

Upper pneumatic hood to block the pieces with electro-pneumatic management.

Sliding Bearings

Pressure beam movement system through the new sliding bearings with double anti-dust protection and automatic lubrication.

CE Rule

Machine and electrical equipment according to CE standards.

Talk to iWM about this machine

Whether you’re ready to fill out an enquiry form or would like to ask a few questions, fill out this enquiry form and we will get back to you.


    Classic 50 Cross Cut Saw

    Machine Gallery

    Classic 50 Cross Cut Saw Machine

    Machine Videos
