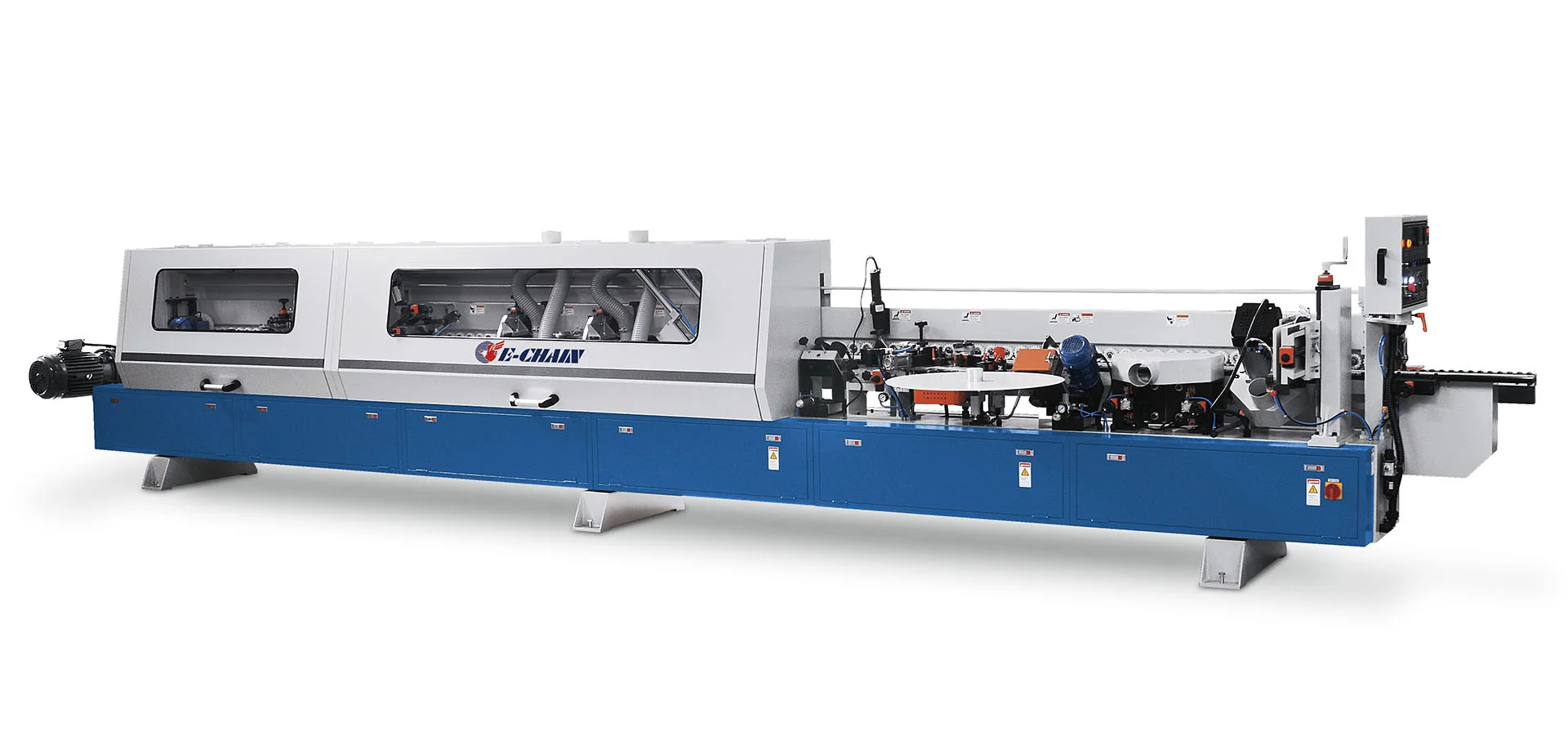

Automatic Edge Banding Machine ECE-750J

Main Saw Unit, 1st and 2nd Moulding Units, Gluing Device, Banding Strip Grooving, and Pressure Rollers

Main Saw Unit: Equipped with a chipping saw, tiltable from 30° to 45°.

Moulding Unit: Features a planning cutterhead.

Gluing Device: Includes one angled (fixed at 45°) and one vertical gluing device.

Pressure Rollers: Equipped with three vertical rollers and two angled rollers.

Centralized Operation Panel

The operation panel allows for quick switching between partially inclined edge and straight edge cutting by simply turning a selection switch. The partially inclined edge machining mechanism moves forward or backward based on the operator’s selection, eliminating the need for further adjustments and significantly enhancing machining efficiency.

Front and Rear End Trimming Units, Top and Bottom Trimming Units, Top and Bottom Corner Rounding Trimming Units, Front and Rear Corner Rounding Trimming Units

Top and Bottom Trimming: Straight knife cutterhead (x2).

Top and Bottom Corner Rounding Trimming: 1.5R profiled cutterhead (x2).

Front and Rear Corner Rounding Trimming: 1.5R profiled cutterhead (x2).

Scraping Units and Buffing Units

Top Scraping: Straight knife scraper (x1) and 1.5R profiled scraper (x1).

Bottom Scraping: 1.5R profiled scraper (x1).

    Working length range 160 mm ~ up
    Working width range 75 mm ~ up
    Working thickness range 10~25 mm
    Banding strips thickness 0.4~2 mm
    Feed speed 10~21 m/min
    Net weight 3070 kgs
    Gross weight 3570 kgs
    Machine size (mm) 8500 x 1300 x 1540 mm
    Packing size (mm) 8700 x 1060 x 1800 mm
    Banding strips ABS, PVC, solidwood
    Glue EVA (hot-melt glue)
