Soukup Hydraulic Frame Press Fp Series

Hydraulic Frame Press

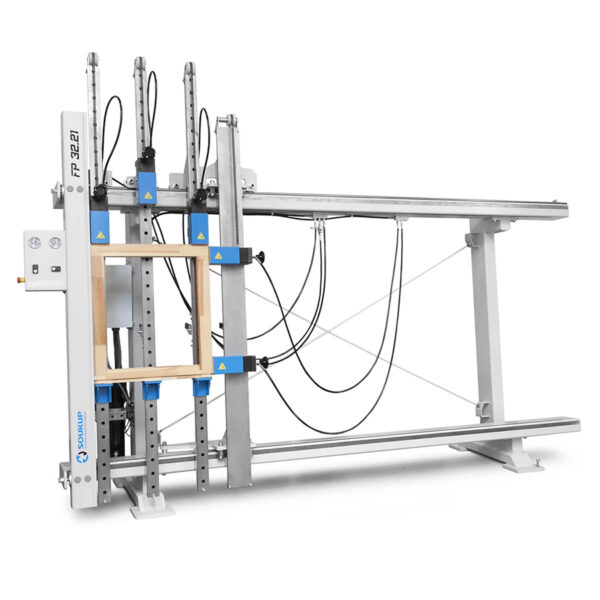

Soukup Hydraulic Frame Press FP Series

A frame press for gluing rectangular frames with three vertical clamps and a lateral clamp with two pistons.

A frame clamp for gluing rectangular frames with three vertical beams and the lateral beam with two cylinders. The design of vertical beams enables to get closer to one another and allows gluing of very small frames. The frame press is electrically operated. The vertical beams are completed with locking pins, counterweight on chain for easier handling with pistons. FP-S 32.21 (3200x2100mm) upon request: FP-S 25.18 (2500x1800mm) FP-S 40.26 (4000x2600mm)

  • hydraulic clamping pistons (2000kg, 150mm stroke)
  • 3 vertical clamps each with 1 piston (middle clamping piston fitted with a valve)
  • self-locking pin for vertical clamps
  • counterweights for easier handling
  • 1 lateral clamp with 2 pistons
  • common electrically powered pressurising pump


  • complete vertical clamp with a hydraulic cylinder for a central pump
  • swivelling plate for bevelled frames
  • front thrust for edge glued panels and laminating scantlings
