Spectra
Soukup Spectra CNC Working Centre
CNC working centre SPECTRA covers whole spectrum of machining operations of straight or curved pieces for windows and doors. The machine is intended as a small working centre for full machining of four knock down components at the same time or as amendment to the angular machining centre for milling and drilling operations, rebate change profiling etc.
Multifunctional CNC working centre for:
- full machining of windows and doors components
- milling and drilling operations on profiled components
The SPECTRA’s robust machine construction, powerful drive units, intelligent user-friendly software and perfect ergonomics jointly contribute to meeting the customer’s highest expectations regarding performance and flexibility.
Spectra In Addition To An Angular Machining Centre
The connection of a separate SPECTRA machine to an angular machining centre is an indelicate combination of performance and complete machining of window and door components. While the angular center efficiently performs tenoning and profiling operations, the SPECTRA machine will drill or mortise muntin bars joints and do milling operations for hardware, hinges, door lock etc. Composition of the machine enables to make arched structures. Machine is dedicated to work from top and back side, with aggregates also to both heads of components. Intuitive control of the machine is provided by a Beckhoff PC with 15” touch screen which uses data from WinCreator or third-party software where machining and all macros are defined. Spectra can be linked to the main angular machine from which identification labels can be printed out allowing the drilled pieces to be scanned and processed at the next stage.
Spectra As A Multifunctional CNC Working Centre

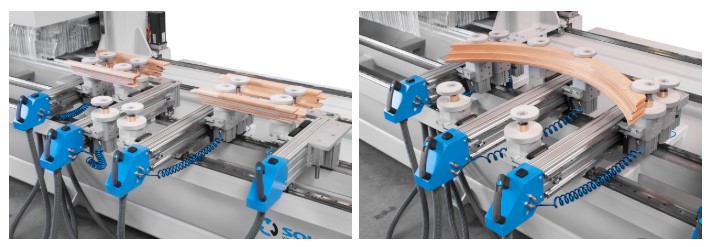

The machine SPECTRA can independently provide full machining of windows and doors components and is an ideal solution for manufacturers looking for bespoke projects. The machine is equipped with 4 working tables with clamps for machining up to 4 pieces at the same time. The machine is easily set to do also arches, where the original solution makes this work easier and reliable. The CNC working features enable making different rebates on one piece to make opening/fixed glazing or inward/outward opening.
Spectra In Addition To An Angular Machining Centre
Machine Configuration:
- 8/9,5 kW main electro spindle
- fixed position for working aggregates in 90°
- multifunctional drilling head
- 2 horizontal milling units
- 3 working tables with 4 pneumatic clamps
- 6 positions linear toolchanger
Spectra As A Multifunctional CNC Working Centre
Machine Configuration:
- 8/9,5 kW main electro spindle
- C-axis for working aggregates
- multifunctional drilling head
- 2 horizontal milling units
- 4 working tables with 10 pneumatic clamps
- 12 positions carousel toolchanger
