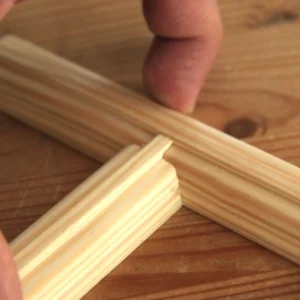

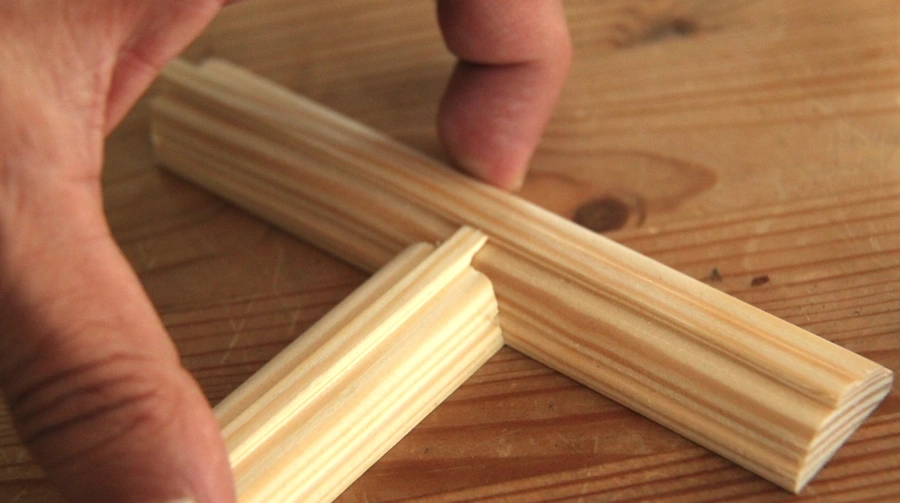

The PME 100 End Scriber is compact, sturdy and built to last. This machine will end scribe the end of your timber beads quickly and efficiently.
Price from: From: £7500.00+VAT
  • Descripton
  • Specification
  • Gallery
  • Enquire

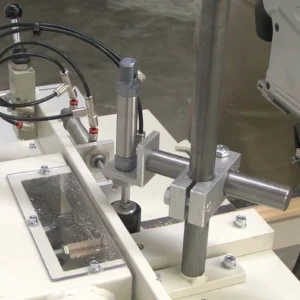

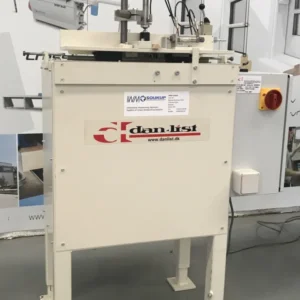

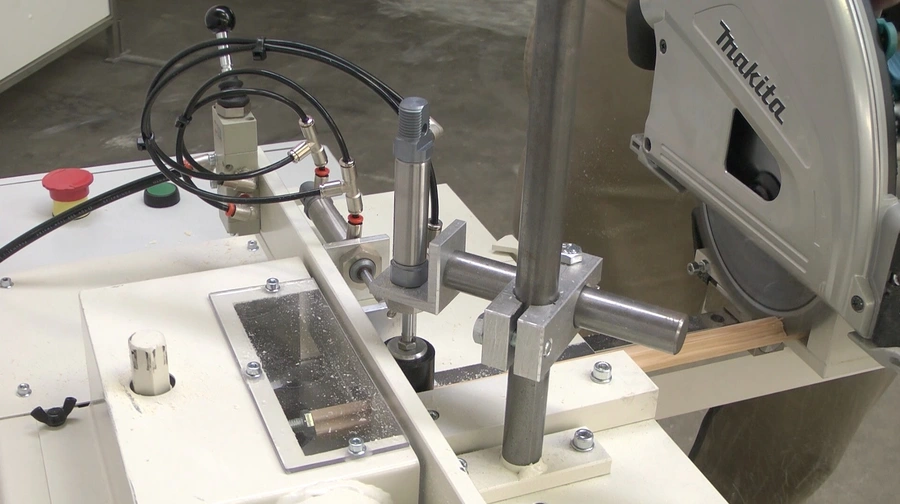

The DanList PME 100 Enscriber is a compact machine, built on a solid frame. A manually operated machine with a pneumatic clamping system ensuring that the work piece is kept in place during the work cycle. It has two routers, one on the left (anticlockwise) and one on the right (Clockwise)
  • The PME 100 has been made for reversed profiling of cross cut timber and the profiling is done by moving the table with the work piece sideways. The two router bits ensures a tear free cut.

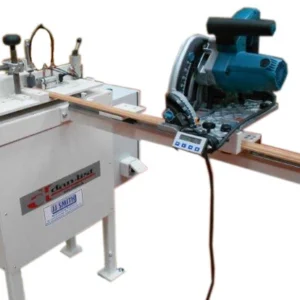

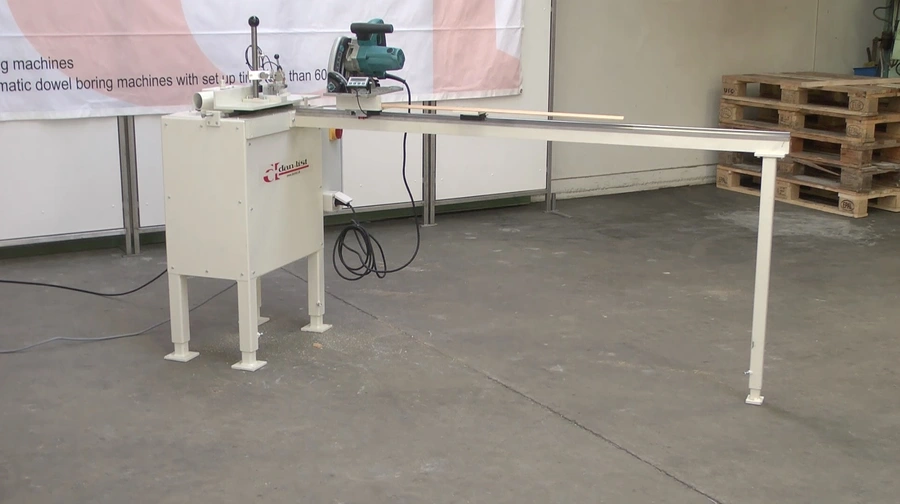

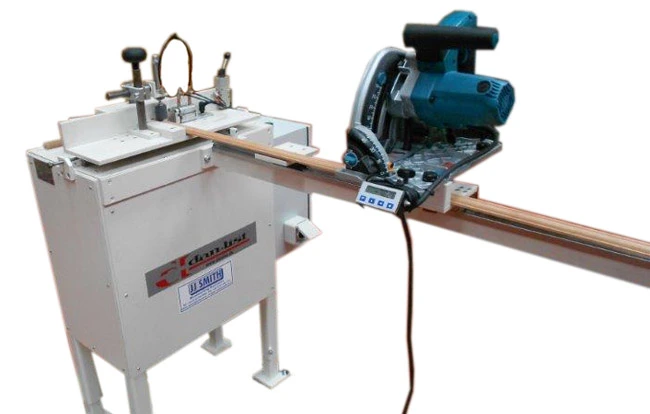

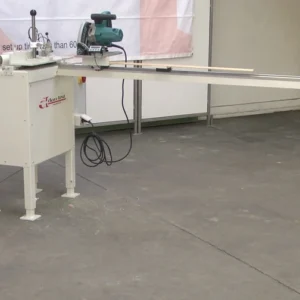

  • The PME 100 can be supplied with a 90 degree cut off saw.

  • This machine comes complete with a two year guarantee

  • Height of routing.   max                         Depending on profile/tooling   Approx 90mm
  • Width of routing.    max                         Depending on profile/tooling    Approx 90mm
  • Distance between routers                      Depending on profile/tooling   Approx 120mm
  • Shaft diameter                                          10mm (shank)
  • Length of shaft                                          30mm
  • Diameter of router                                   30mm - 40mm - 50mm   depending on width of the profile
  • Total height of router                              55mm
  • Collets for router cutter                          ER25

  • 2 motors for routing 1.0 kW, 400V,  1800 rpm one motor clockwise and one anti clockwise
  • Pneumatic clamping cylinder
  • Safety Guard
  • Emergency Stop.
