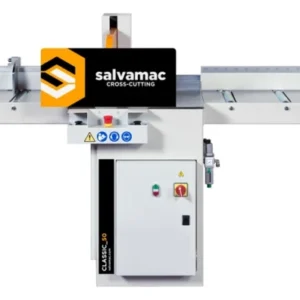

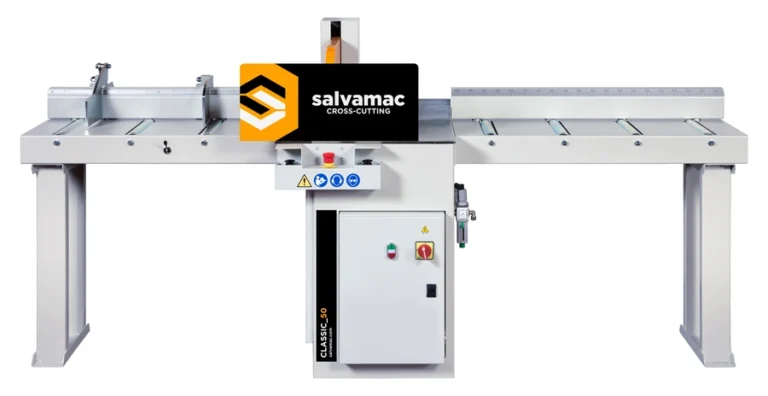

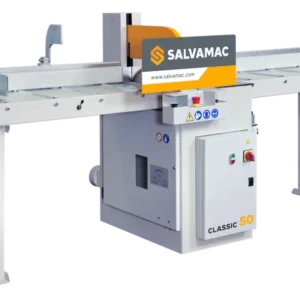

Salvamac Classic 50 Cross Cut Saw

Salvamac Classic 50 Cross Cut Saw

Price from: P.O.A
  • Descripton
  • Specification
  • Gallery
  • Videos
  • Enquire
The Classic 50 is made from reinforced steel. Has a blade diameter of 500mm, power of 5.5kw and a rotation speed of 2800rpm. Recommended for use with wood up to a max of 125mm thick and 310mm wide.

Features and benefits

Floor anchoring

Solid anchoring to the floor with special flanged steel feet with fixing hole.

Ergonomic position

Two-handed safety manual control to start the cutting is located in ergonomic position.

Cutting speed

Cutting speed adjustable by pneumatic trimmer on the machine.

Pneumatic hood

Upper pneumatic hood to block the pieces with electro-pneumatic management.

Sliding bearings

Pressure beam movement system through the new sliding bearings with double anti-dust protection and automatic lubrication.

CE rule

Machine and electrical equipment according to CE standards.

Technical features

Blade diameter

500 mm

Saw spindle rotation speed

2800 rpm

Voltage

V400/50 hz

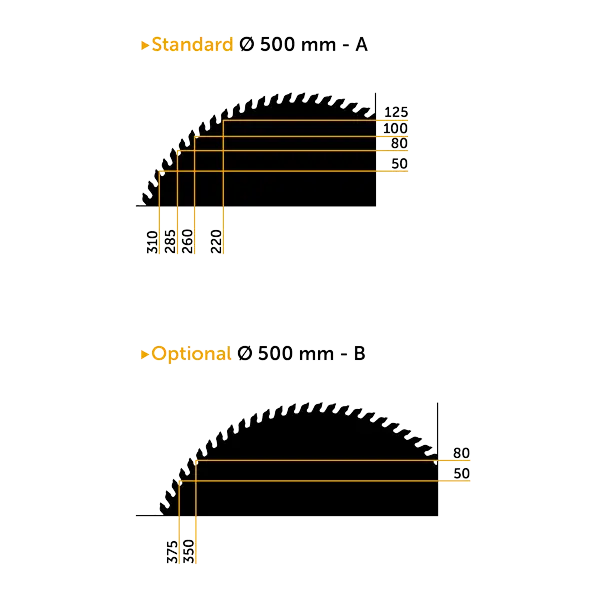

Max cutting capacity

125 mm (with 220 mm wide)

Saw dust extraction

1 x 120 mm, 1 x 100 mm

Electric system

3 phases

Max cutting capacity

310 mm (with 50 mm thick)

Compressed air supply pressure

6-8 bar

Working height

900 mm +- 20 mm

Blade motor power

5,5 Kw

Air consumption per cycle

7 nl

Color

RAL 7035 – RAL 1007

Features and benefits

CLASSIC_40 CLASSIC_50 CLASSIC_60
Blade motor power kW 3,0 kW 5,5 kW 9,2
Diameter of saw blade/shaft 400 mm / 30 mm 500 mm / 35 mm 600 mm / 35 mm
Saw spindle rotation speed 2800 rpm 2800 rpm 2750 rpm
Sawdust extraction 1-120 mm / 1-100 mm 1-120 mm / 1-100 mm 2-140 mm
Voltage V 400/50 Hz 3~ V 400/50 Hz 3~ V 400/50 Hz 3~
Compressed air supply pressure 6-8 bar 6-8 bar  6-8 bar
Working height  900+-20 mm  900+-20 mm  900+-20 mm
