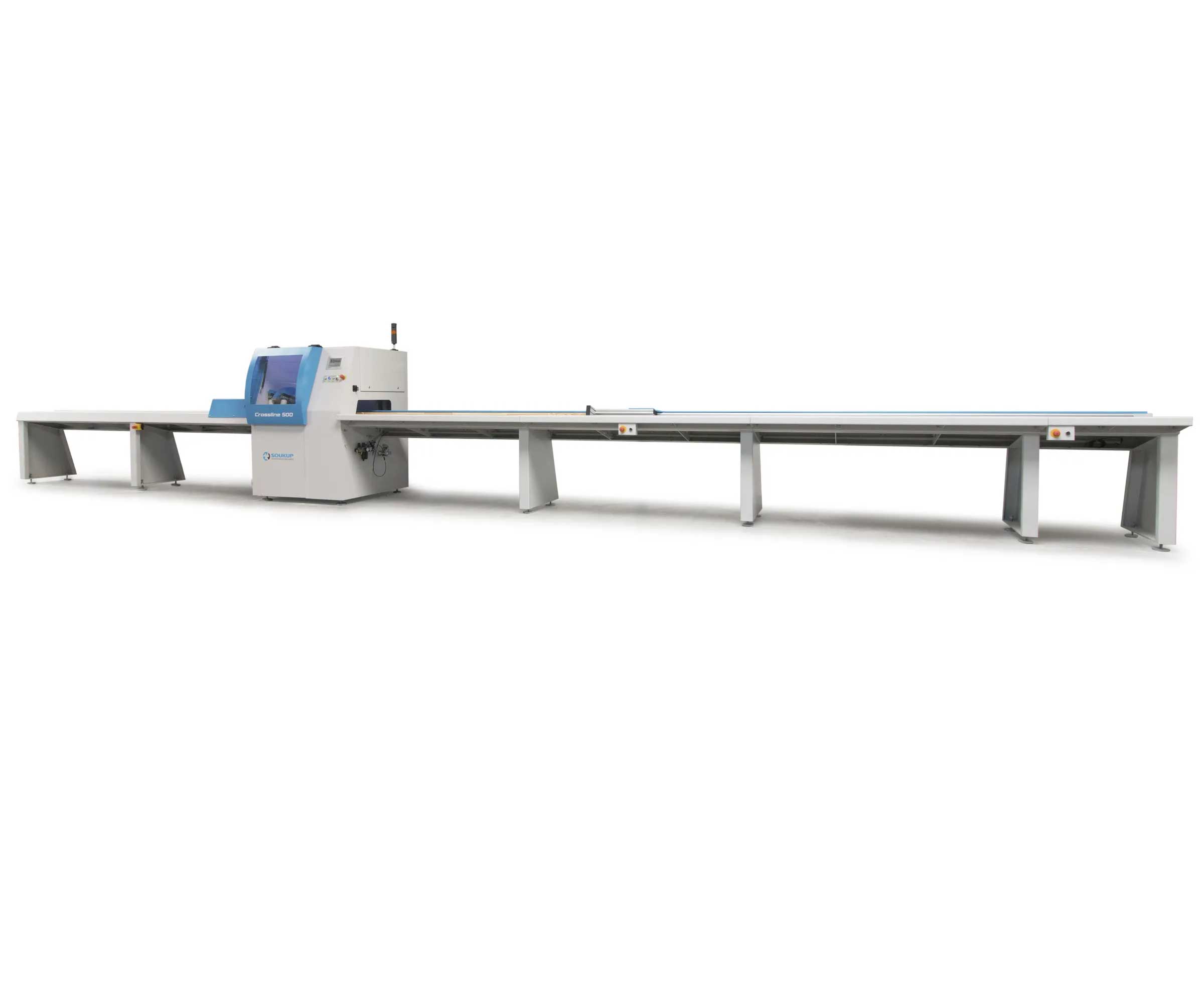

  • Soukup Crossline 500 cross cut saw with extended infeed and outfeed conveyor tables on a white background

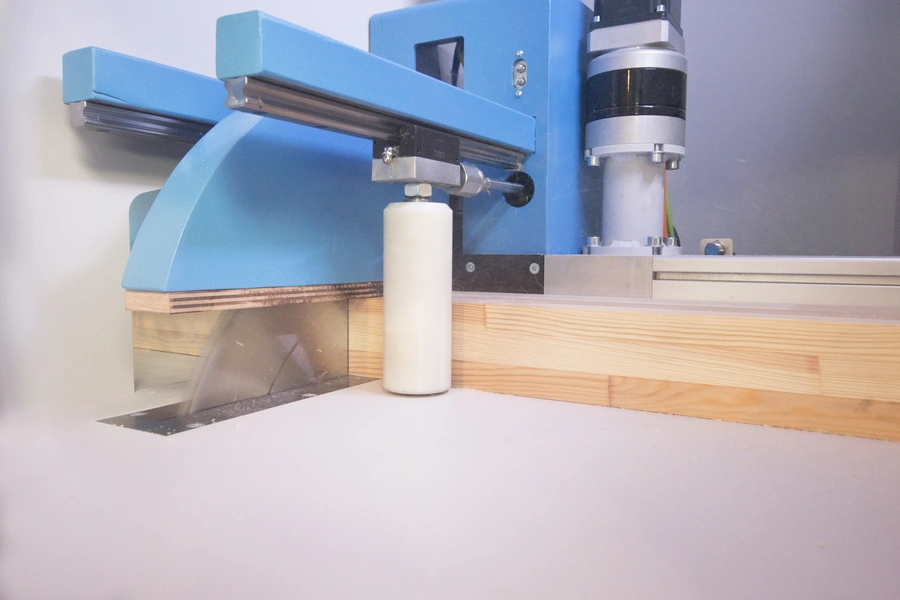

  • Blue Soukup Crossline 500m cross cut saw cutting through a pine timber plank with dust visible

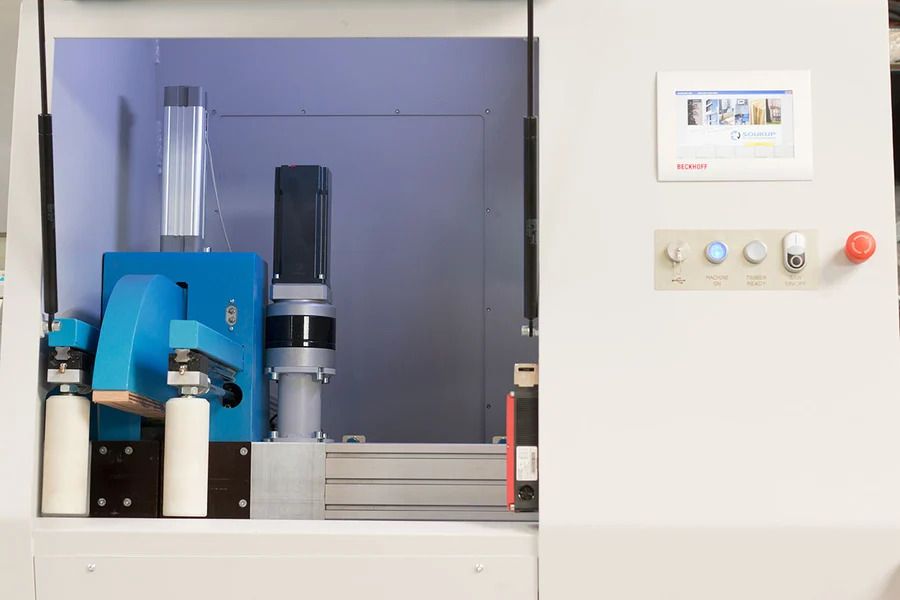

  • Soukup Crossline 500m cross cut saw with blue cutting head, pneumatic cylinder, and Beckhoff control panel with emergency stop button

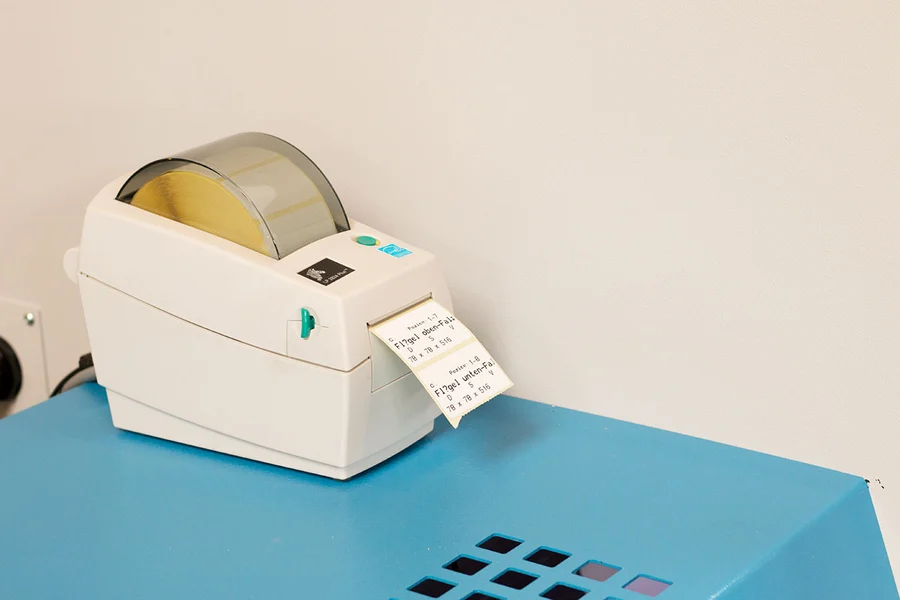

  • A white Zebra label printer sitting on a blue surface, printing two small labels with text and numbers

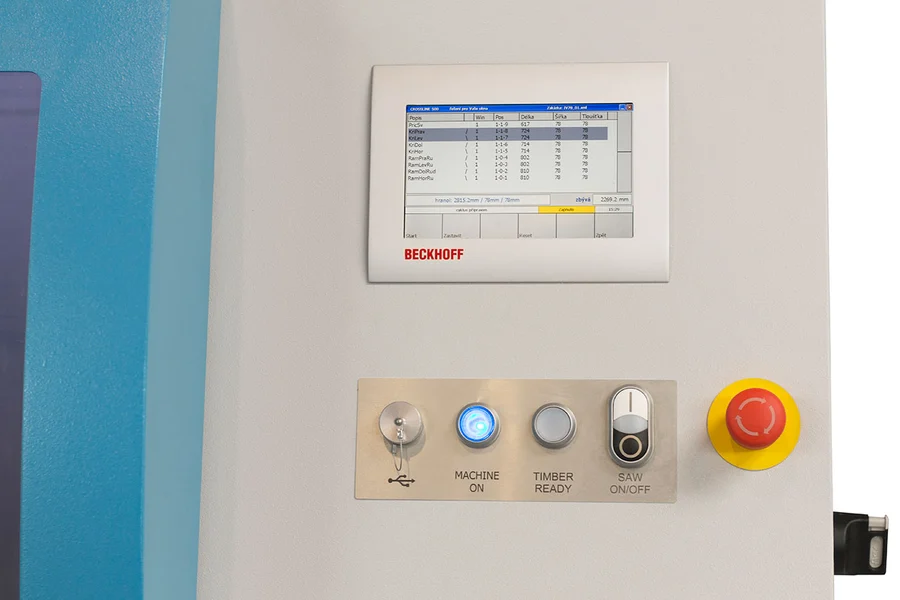

  • Beckhoff touchscreen control panel on a cross cut saw with Machine On, Timber Ready, Saw On/Off buttons and a yellow emergency stop

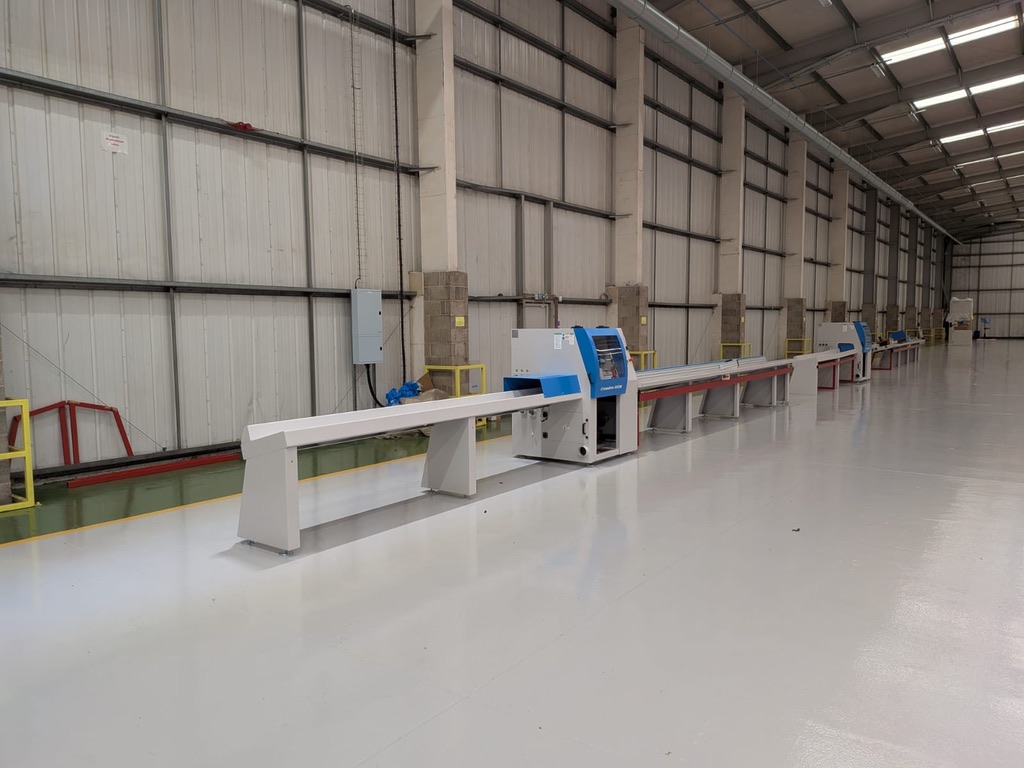

  • Soukup Crossline 500m cross cut saw mounted on a long white feed rail inside a large industrial warehouse

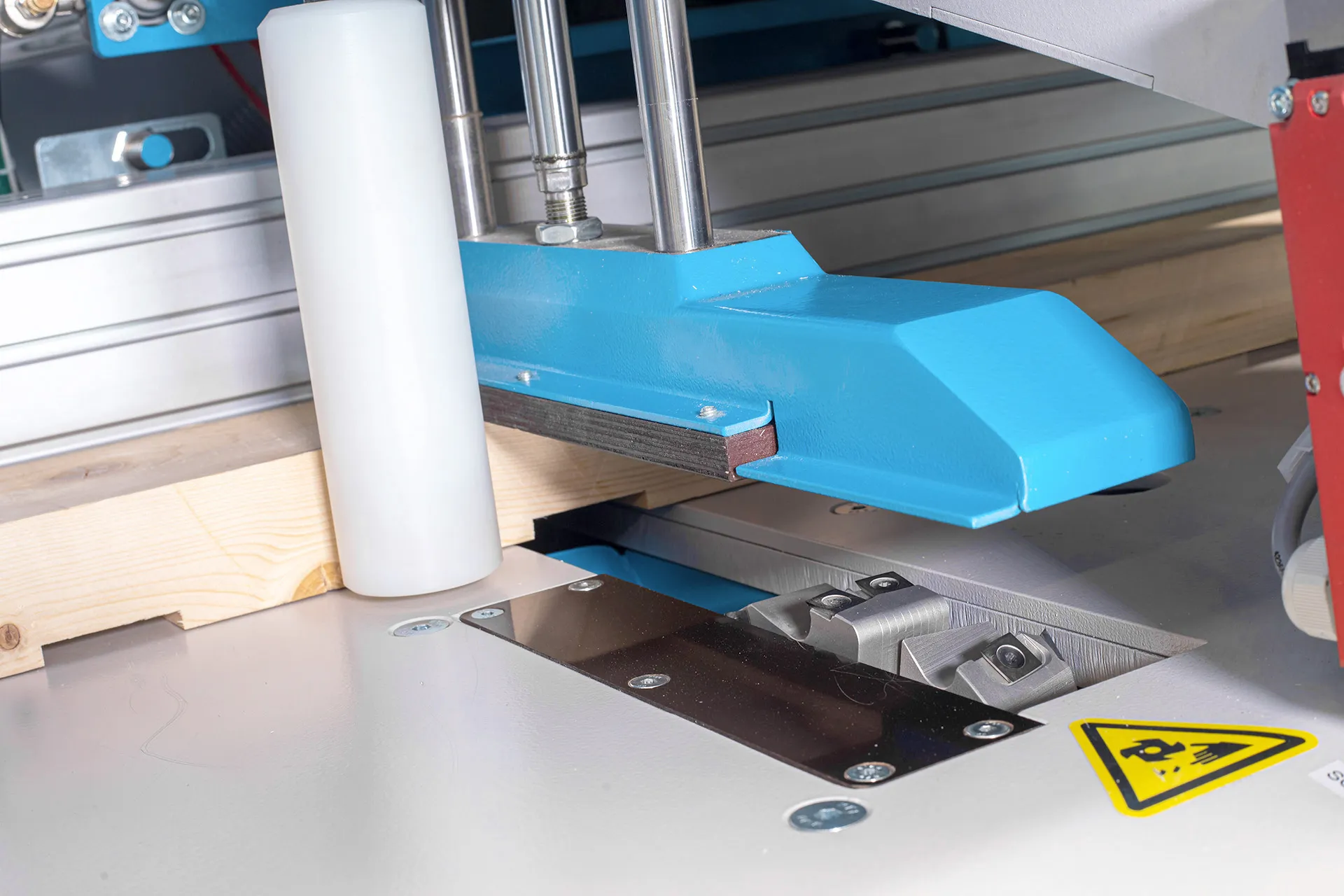

  • Close-up of a Soukup Crossline 500m cross cut saw blade assembly cutting a timber workpiece, with a hazard warning sticker visible

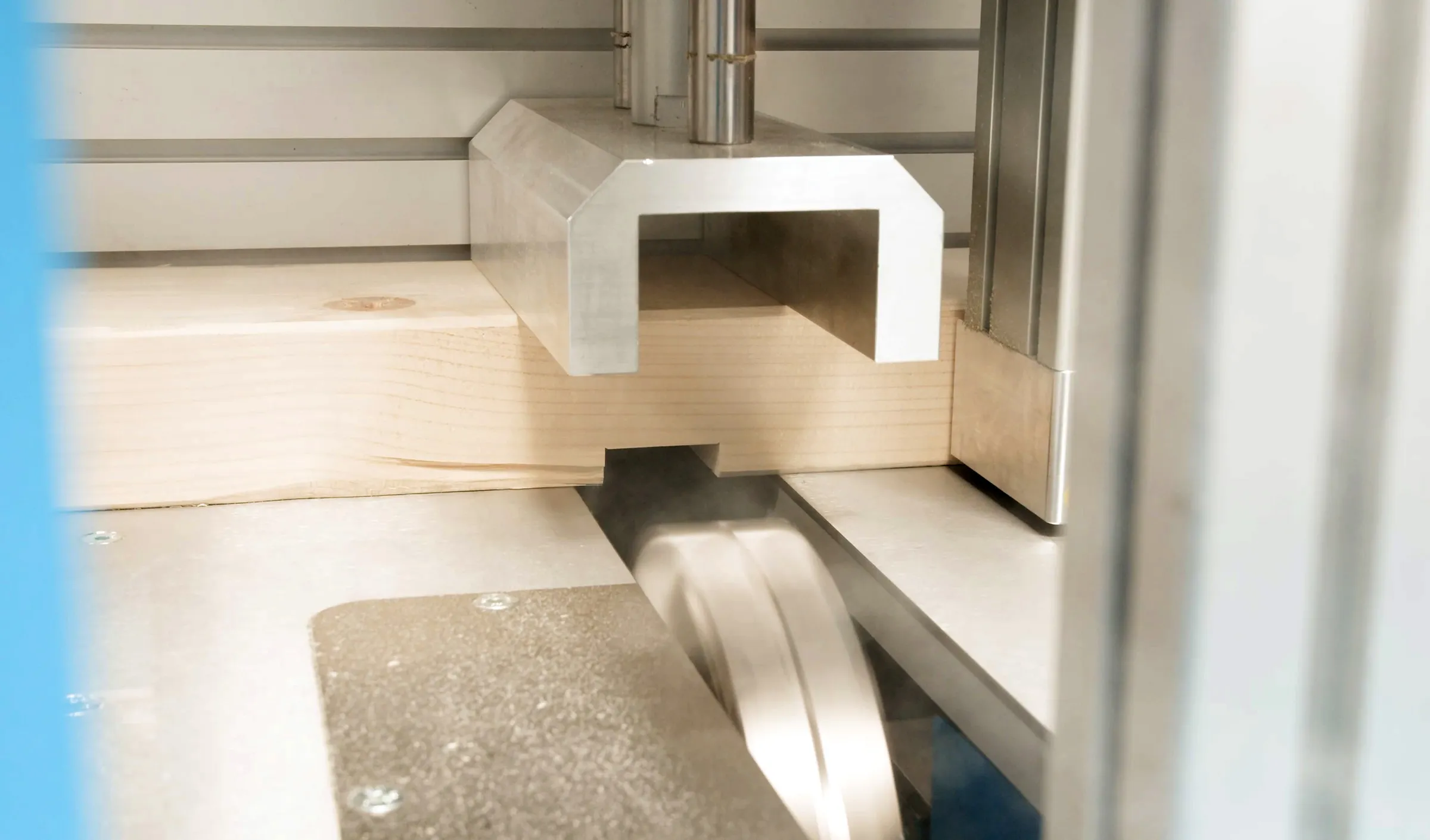

  • Close-up of a Soukup Crossline 500m cross cut saw blade cutting through a pale timber beam within a metal frame

    Soukup Crossline 500m Cross Cut Saw

    Soukup · Timber Window & Door
    A servo-driven automatic crosscut saw for workshops that need to process cutting lists accurately and repeatedly at volume. Built for square crosscutting of structural and engineered timber up to 120 mm section height.

    Typically chosen by

    • Timber frame manufacturers who need to process cutting lists accurately and repeatedly without hand-measuring every piece
    • Structural timber workshops stepping up from manual or semi-automatic crosscutting to reduce bottlenecks in component preparation
    • Off-site construction businesses where dimensional tolerance across long lengths directly affects assembly accuracy on site
    Get expert advice
    Book a free demo
    Before you commit

    See it run on your own material

    Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
    Book a free demo

    Key specification considerations

    Saw Blade Diameter
    500 mm
    Max. Cutting Height
    120 mm
    This is the maximum depth of cut at 90°; confirm that your largest section timber falls within this limit before specifying.
    Feed Speed
    0–60 m/min
    Variable feed speed allows the machine to be dialled to material size and cut frequency, which affects both cycle time and finish quality.
    Length Tolerance
    0.5 mm/m
    On a 6 m length this equates to a maximum positional error of 3 mm — relevant if your downstream assembly or joinery relies on close component fit.
    See full specifications
    SpecificationValueNotes
    Saw Blade Diameter
    500 mm
    Cut Angle
    90°
    This model cuts square only; if angled crosscuts are required, consider the Soukup Crossline 650 Automatic Angle Cross Cut Saw.
    Material Length (Standard)
    6,000 mm
    Material Length (Extended Options)
    9,000 mm / 12,000 mm
    Extended feed track configurations are available; confirm with IWM which option suits your standard stock lengths and workshop footprint.
    Max. Cutting Height
    120 mm
    Confirm that your largest section timber falls within this limit before specifying.
    Feed Speed
    0–60 m/min
    Saw Blade Motor
    7.5 kW (10 HP)
    This motor requires a three-phase supply; confirm your site's three-phase capacity with your electrician before ordering.
    Length Tolerance
    0.5 mm/m
    Dust Extraction Spigots
    100 mm + 120 mm
    Two extraction points require connection to a suitably sized extraction unit; confirm your existing extraction capacity covers both outlets simultaneously.
    Control Interface
    10" Touch Screen
    Automatic Material Measuring
    Yes
    The machine measures incoming material automatically, removing the need for manual marking-out and reducing operator error on repetitive cutting lists.
    Servo Driven Electronic Loading
    Yes
    Servo-driven feed gives precise, repeatable positioning of each piece — this is what delivers the 0.5 mm/m tolerance across the full length.
    Manual Cutting List Input
    Yes
    Static Unloading Table
    Yes
    Grooving Module
    Optional extra
    The grooving module is available as an add-on; it is used during prefabrication to mark stud positions precisely within panel construction. Confirm requirement and pricing with IWM at enquiry stage.
    Machine Length
    11,960 mm
    At nearly 12 m in its standard configuration, shop floor length should be measured carefully before enquiring — extended material options will require additional clearance at the infeed end.
    Machine Width
    1,210 mm
    Allow additional clearance either side for operator access and safe timber handling.
    Machine Height
    1,590 mm
    Machine Weight
    Confirm with IWM
    Weight data is not published in available documentation; ask IWM to confirm before checking floor loading, particularly on mezzanine or older industrial slabs.
    Electrical Supply
    Three-phase (full spec: confirm with IWM)
    The 7.5 kW saw blade motor requires a three-phase supply; full voltage and amperage data should be confirmed with IWM so your electrician can verify site readiness before ordering.
    Get expert advice

    Is this the right
    machine for you?

    Choose the Soukup Crossline 500m Cross Cut Saw if...

    • You are producing timber frame components from cutting lists and need automatic length measurement and servo-driven feed to maintain consistent accuracy across high volumes
    • Your crosscutting is all at 90° and you do not need angled cuts — this machine is optimised for square crosscutting and is simpler to specify and operate as a result
    • You are working with structural softwood or engineered timber up to 120 mm in section height and up to 6 m in standard length (or up to 12 m with extended configuration)
    • You want a machine that an operator can load a cutting list into and run with minimal intervention, reducing labour cost per component

    Consider an alternate model if...

    • You need to cut compound or angled crosscuts — the Soukup Crossline 650 Automatic Angle Cross Cut Saw handles angular cutting up to ±70° and may be more appropriate for rafter or roof component work
    • Your volume does not justify a fully automated feed system — the Soukup Crossline 500 (non-M) may offer the same cutting capacity at lower capital cost if manual feeding is acceptable
    • Your workshop cannot accommodate nearly 12 m of floor length even in its standard configuration — discuss space constraints with IWM before proceeding
    • You are primarily cutting panels or working with SIP construction — the Soukup Framer Profi or Framer Modular system may be a better fit for that workflow
