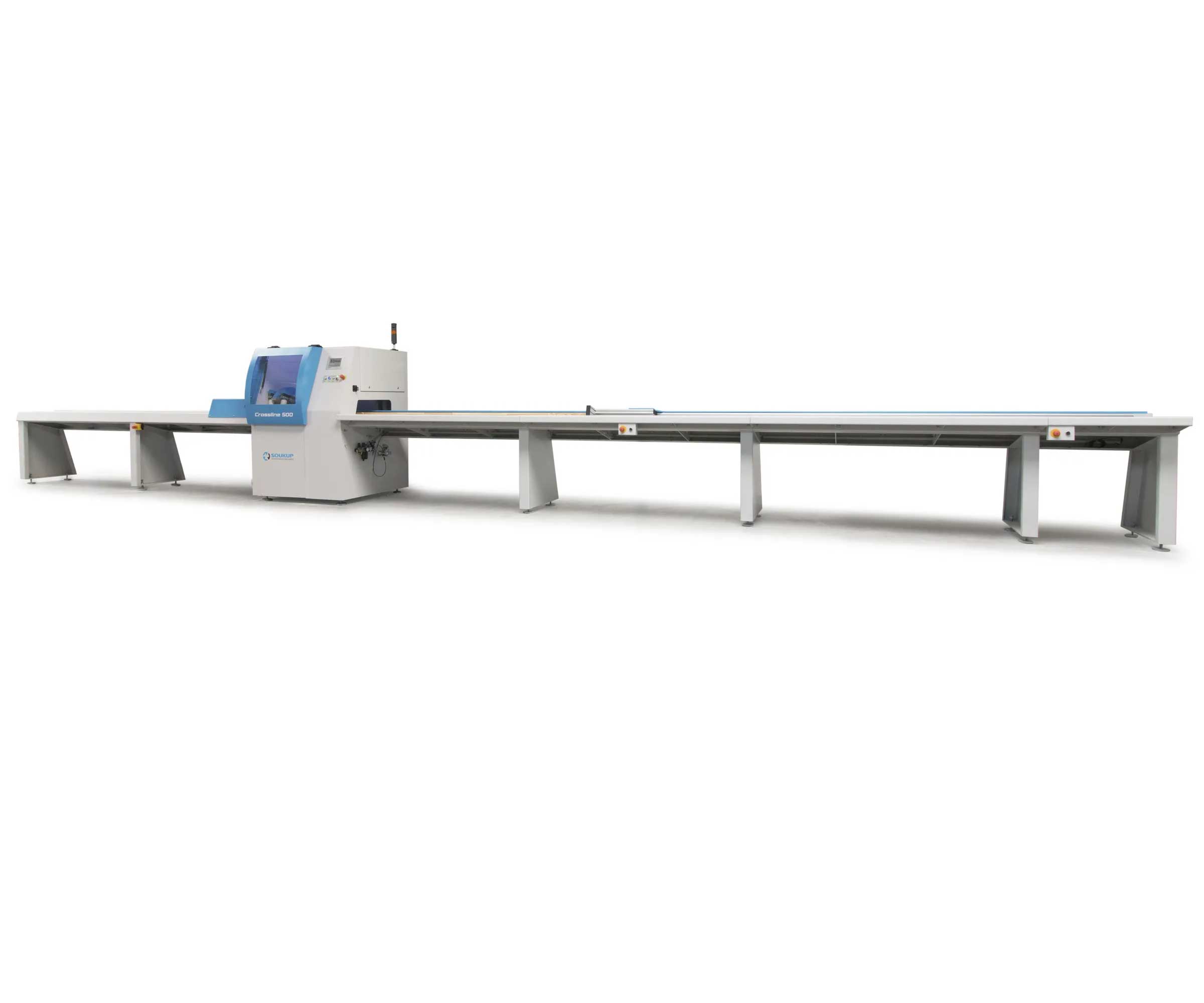

  • Soukup Crossline 650m automatic angle cross cut saw with extended infeed and outfeed conveyor tables

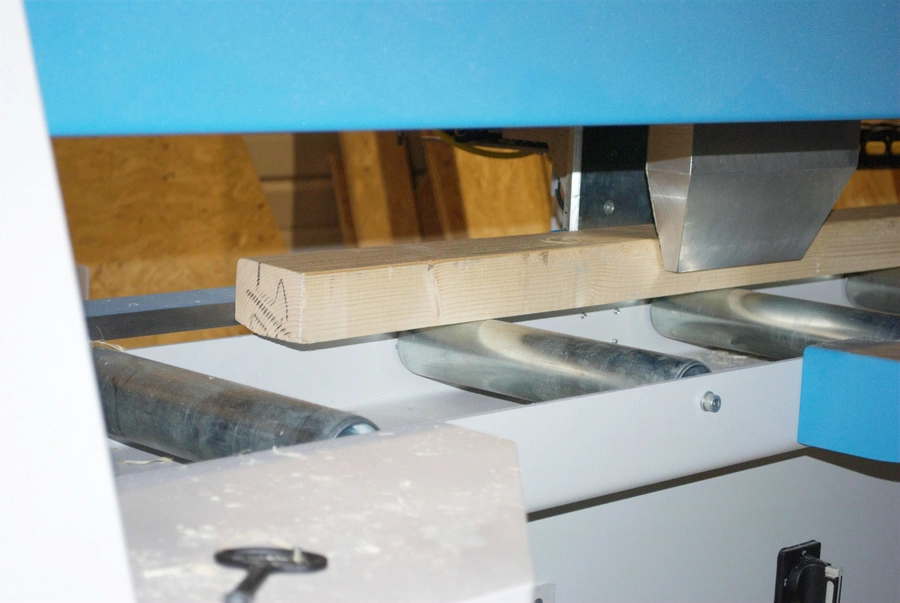

  • A timber plank being fed through a blue automatic cross cut saw machine on metal conveyor rollers

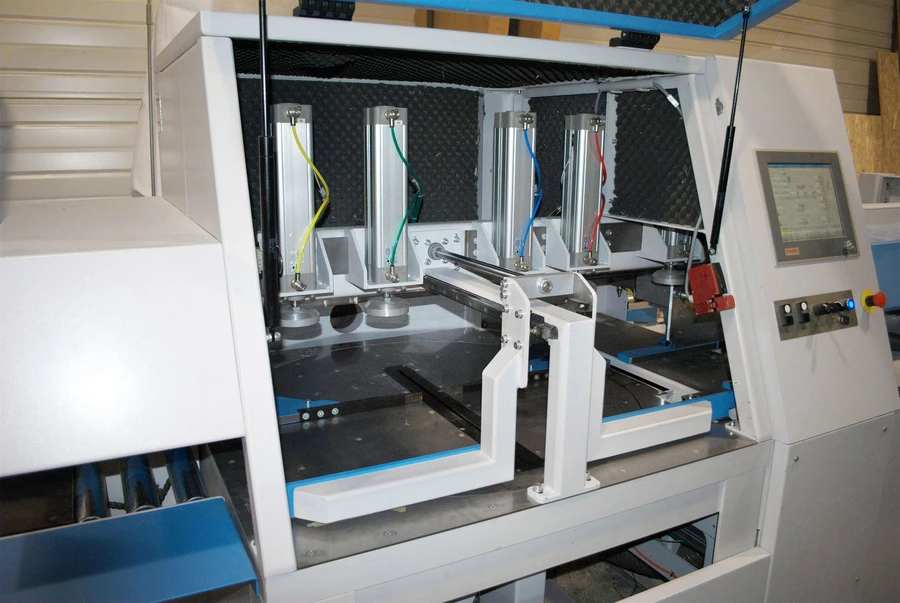

  • Soukup Crossline 650m automatic angle cross cut saw with trenching, open enclosure revealing pneumatic cutting heads and control panel

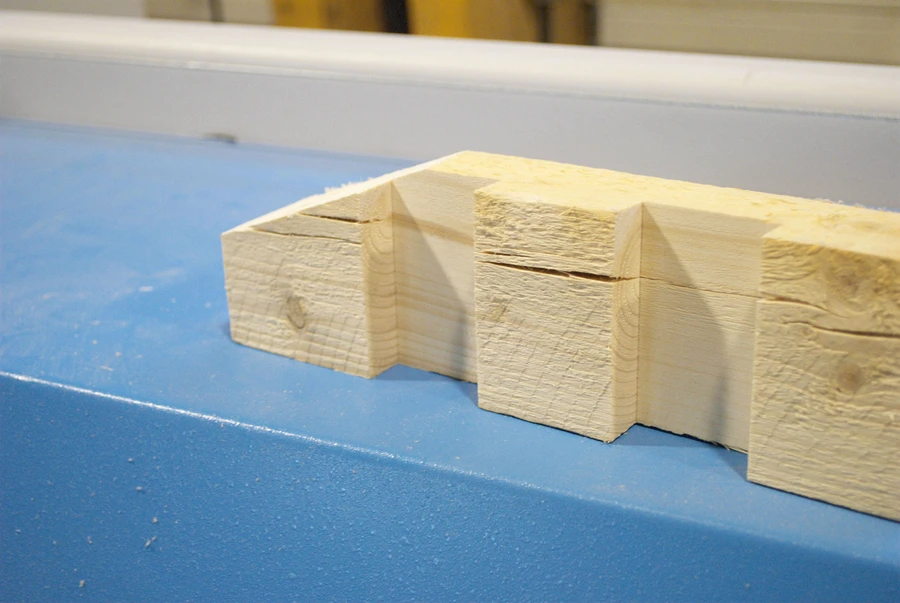

  • Freshly cut pale timber pieces with interlocking notched joints resting on a blue workshop surface

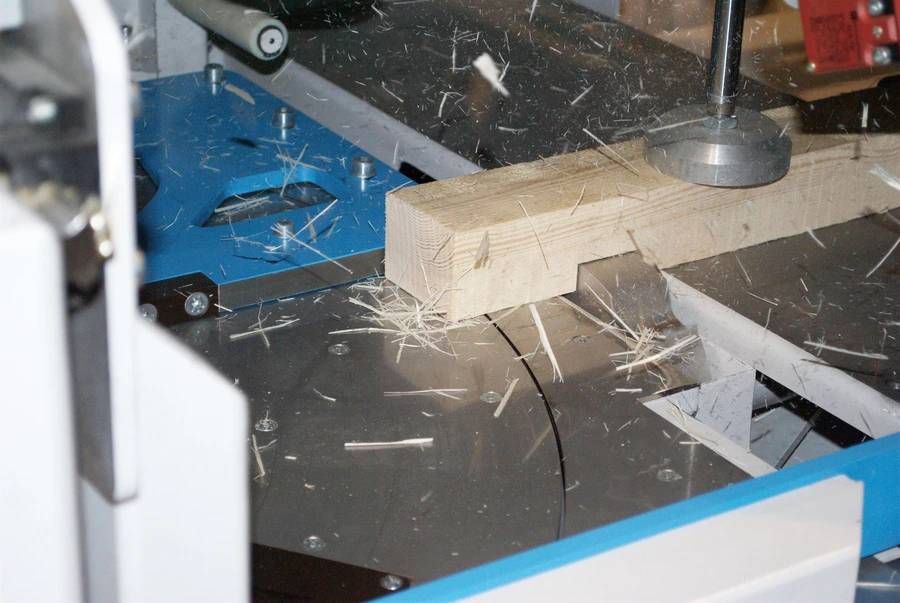

  • Timber being cross cut and trenched on a Soukup Crossline 650m automatic angle saw, with wood shavings scattered across the machine bed

    Soukup Crossline 650m Automatic Angle Cross Cut Saw with Trenching

    Soukup · Timber Window & Door
    A fully automatic CNC cross-cut saw with integrated grooving module, built for timber truss manufacturers and offsite fabricators who need angled cross-cutting and stud-position trenching from a single machine. If your operation runs BTL-format design software and requires production-volume throughput without manual re-entry of cut data, this is the machine to discuss with us.

    Typically chosen by

    • Timber truss manufacturers needing consistent, repeatable cuts at volume with minimal manual intervention
    • Offsite timber frame fabricators who cut both structural members and wall panel components and want to consolidate operations onto one machine
    • Production facilities already running WinCreator or BTL-format software who want a saw that integrates into their existing data workflow
    Get expert advice
    Book a free demo
    Before you commit

    See it run on your own material

    Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
    Book a free demo

    Key specification considerations

    Saw Blade Diameter
    650 mm
    Turntable Range
    20°–160°
    This range covers the full spread of compound angles commonly required in truss geometry without repositioning the workpiece.
    Cut Tolerance
    ±0.5 mm/bm
    Feed Speed
    0–60 m/min
    Variable feed speed allows the operator to match throughput to timber section size and material condition rather than running at a fixed rate.
    See full specifications
    SpecificationValueNotes
    Saw Blade Diameter
    650 mm
    Saw Blade Speed
    2,800 RPM
    Saw Blade Motor
    7.5 kW (10 HP)
    Three-phase supply will be required — confirm exact amperage draw and supply availability with IWM before ordering.
    Turntable Rotation
    20°–160°
    This range covers the full spread of compound angles commonly required in truss geometry without repositioning the workpiece.
    Cut Tolerance
    ±0.5 mm/bm
    Feed Speed
    0–60 m/min (variable)
    Variable feed speed allows the operator to match throughput to timber section size and material condition rather than running at a fixed rate.
    Saw Blade Lifting Speed
    Regulated (variable)
    Control System
    Beckhoff industrial PC with 12" touch screen
    Software Compatibility
    WinCreator or third-party BTL-format software
    If your existing CAD/CAM or design package exports BTL files, the machine can receive cut lists directly — check your software's export capability before specifying.
    Clamping
    Upper and side pneumatic clamps with individual pressure regulation
    Individual pressure regulation on each clamp matters when you are running mixed section sizes without stopping to reconfigure.
    Grooving Module
    Included (max groove width 60 mm, subject to tooling)
    The grooving module allows stud-position slots to be cut into wall panel material on the same machine, removing a separate operation.
    Material Measuring
    Automatic
    Operating Modes
    Manual or automatic (CNC)
    Dust Extraction Outlets
    ø120 mm + ø100 mm
    Two separate outlets with different spigot sizes — confirm your extraction system can accommodate both connections and the combined airflow demand before installation.
    Sound Attenuation
    Soundproof enclosure design
    The machine incorporates a soundproof enclosure — contact IWM for the confirmed dB rating if acoustic assessment is required for your site.
    Machine Dimensions
    Contact IWM for confirmed dimensions
    Allow additional clearance for infeed table, outfeed table, and operator access when planning floor space.
    Machine Weight
    Contact IWM for confirmed weight
    Verify floor loading capacity with your structural engineer prior to installation — contact IWM for the confirmed figure.
    Electrical Supply
    Three-phase — contact IWM for confirmed voltage and amperage
    Confirm phase, voltage, and amperage requirements with IWM before ordering to ensure your incoming supply is correctly specified.
    Outfeed
    Automatic transfer from cutting zone to outfeed table
    Line Integration
    Compatible with conveyors and manipulators
    Get expert advice

    Is this the right
    machine for you?

    Choose the Soukup Crossline 650m Automatic Angle Cross Cut Saw with Trenching if...

    • You are producing both timber trusses and prefabricated wall panels and need angled cross-cutting and stud-position grooving from a single machine
    • Your operation runs BTL-format design software and you want cut lists to flow directly to the saw without manual re-entry
    • You need fully automatic CNC operation at production volume, not a manually operated or semi-automatic saw
    • You are planning or already running a production line with conveyors and manipulators and need a saw that can be integrated into that flow

    Consider an alternate model if...

    • You only need cross-cutting without grooving — the Soukup Crossline 650 (without the M module) is likely the more straightforward and cost-effective specification
    • Your timber sections are consistently smaller and a 650 mm blade is more than required — the Soukup Crossline 500 is worth discussing with us first
    • Your output volumes are lower or your operation is predominantly manual — a simpler cross-cut saw may be better matched to your throughput and budget
    • You need full multi-axis machining of timber frame components beyond cross-cutting and grooving — the Soukup Framer Profi may be more appropriate for your scope
