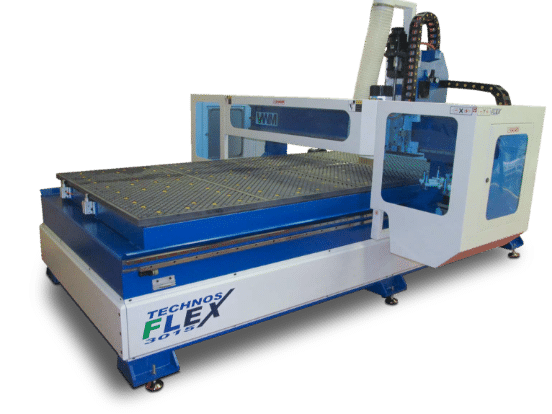

Technos Flex 3075 CNC router machine with a large blue and white frame and grid cutting bed
  • Technos Flex 3075 CNC router machine with a large blue and white frame and grid work surface
  • Technos Flex 3075 CNC router machine with a large blue and white frame and grid cutting bed

Our Technos 2132 HD Nesting CNC Router

Joinery Workshop
The largest table in the Technos HD Series, built for workshops that process full-size sheet material day in, day out. Eight-position automatic tool changing and an 8-zone vacuum bed mean complex nested jobs run with minimal intervention.

Typically chosen by

  • Joinery and fitted furniture workshops that regularly run full 2440×1220mm sheets and need consistent, repeatable results across batches
  • Panel processing operations where downtime between tool changes or manual board positioning is a measurable production cost
  • Businesses moving from manual or semi-manual routing who want a machine that can be programmed and managed from an office CAD/CAM workstation
Get expert advice
Book a free demo
Before you commit

See it run on your own material

Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
Book a free demo

Key specification considerations

Table Size
2100 × 3200 mm
Accommodates standard full-size sheet material; allow additional clearance around the machine perimeter for board loading and operator movement.
Spindle Power
9 kW
Inverter-driven with variable speed up to 24,000 rpm, allowing the machine to be matched to different tooling and material types without manual head changes.
Tool Carousel
8-position (gantry-mounted)
Automatic tool changes during program execution reduce mid-run stoppages and allow complex multi-operation jobs to run unattended.
Vacuum Holding
2 × EuroVac 250 m³/h pumps, 8-zone matrix bed
Zoned control means vacuum is only applied where needed, maintaining hold-down on smaller nested parts without requiring a full-bed seal.
See full specifications
SpecificationValueNotes
Table Size
2100 × 3200 mm
Accommodates standard full-size sheet material; allow additional clearance around the machine perimeter for board loading and operator movement.
Spindle Power
9 kW
Spindle Speed
Variable, up to 24,000 rpm
Spindle Drive
Inverter-driven
Tool Carousel
8-position, gantry-mounted
Rear-mounted position keeps the carousel within the machine footprint and allows tool changes without gantry travel to a separate station.
Tool Probe
Fixed, rear-mounted
Automatically sets depth offsets for each tool, removing the need for manual measurement and reducing the risk of depth errors when tools are changed mid-program.
Axis Drives
Yaskawa Absolute Servo drives, all axes
Axis Transmission
Servo motors on precision helical racks
Rapid Axis Speed
50 m/min
Vacuum System
2 × EuroVac 250 m³/h pumps
Vacuum Bed
8-zone automatically controlled matrix bed
Sacrifice Board
MDF required
The MDF sacrifice board protects the matrix bed surface from tool breakthrough; this is a consumable that will need periodic replacement and should be factored into running costs.
Automatic Stops
Two-face board location stops
Ensures consistent board registration every cycle without manual alignment, which directly affects part accuracy on nested jobs.
Controller
Syntec FC 60WA
Keyboard and mouse operated; supports USB and network program transfer, so jobs can be sent directly from an office CAD/CAM workstation without moving files manually.
Program Storage
Hundreds of programs with directory organisation
Program Transfer
USB or network connection
Installation
IWM engineer installation with Leica AT401 laser levelling across 6 points
Laser levelling at installation compensates for uneven workshop floors, which is particularly relevant in older timber-framed or concrete-slab premises.
Warranty
12 months standard
Electrical Supply
Confirm with IWM at enquiry stage
Phase and amperage requirements must be confirmed before planning installation; contact IWM to ensure your supply is adequate for this machine.
Machine Dimensions
Confirm with IWM at enquiry stage
Overall footprint including gantry overtravel must be confirmed with IWM before finalising workshop placement and extraction routing.
Machine Weight
Confirm with IWM at enquiry stage
Weight must be confirmed with IWM so that workshop floor loading capacity can be checked before installation is planned.
Extraction Connection
Confirm with IWM at enquiry stage
Get expert advice

Is this the right
machine for you?

Choose the Our Technos 2132 HD Nesting CNC Router if...

  • You are regularly processing full-size or near-full-size sheet material and the smaller Technos HD table sizes would require frequent board trimming before machining
  • Your programs involve multiple tooling operations in a single run and manual tool changes are currently adding time or introducing inconsistency
  • You need to manage programs centrally from a CAD/CAM office setup and load jobs to the machine over a network without walking files to the machine
  • Your volume justifies the floor space and investment of the largest table in the HD Series — if you are running lower sheet volumes, a smaller HD model may give you the same capability at a more appropriate scale

Consider an alternate model if...

  • Your typical sheet sizes are smaller than full-size and a reduced-table Technos HD model — such as the Technos 1632 HD — would cover your work without the larger footprint; discuss the options with IWM
  • Your workshop floor area is constrained and cannot accommodate the full footprint of the 2132 HD including loading clearances — the Technos 1632 HD is worth considering
  • Your volume is lower and you do not need automatic tool changing or full 8-zone vacuum — a simpler specification such as the Technos ECO Series may represent better value for your operation
  • Your electrical supply cannot support this machine's power requirements without significant upgrade — confirm supply capacity with IWM before specifying this model
