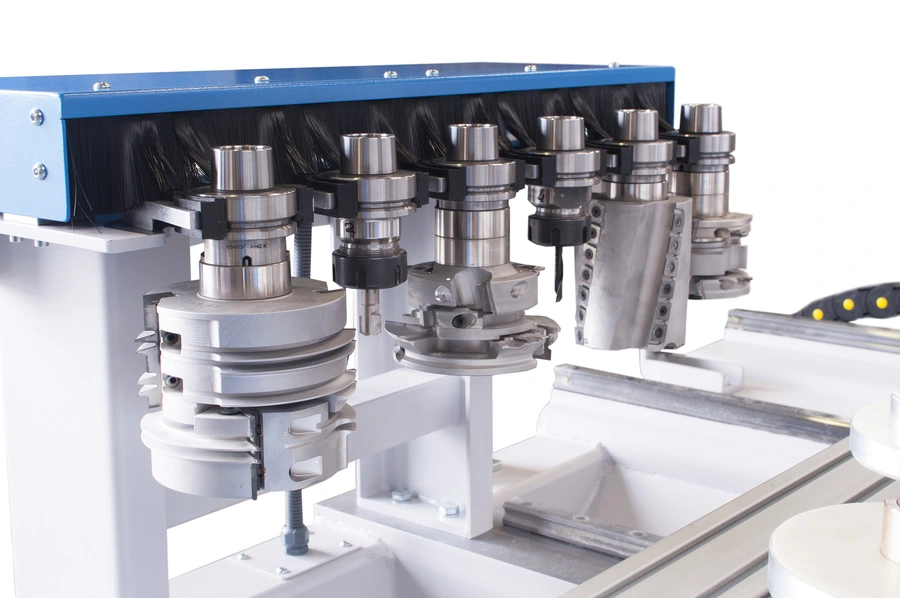

  • Multiple CNC spindle tool heads with milling cutters mounted on a Soukup Spectra CNC machining centre

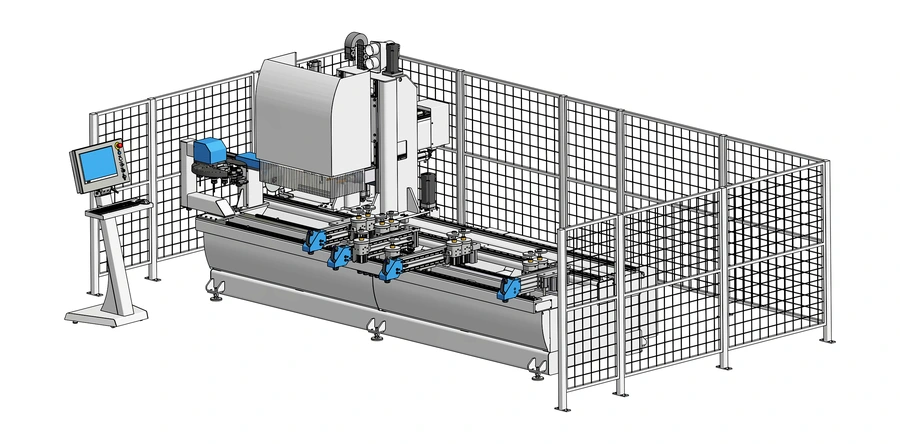

  • 3D CAD illustration of the Soukup Spectra CNC working centre with safety guarding, blue clamps, and a control panel monitor
  • Close-up of pale wood moulding profiles with dowel pin joinery detail on a white background

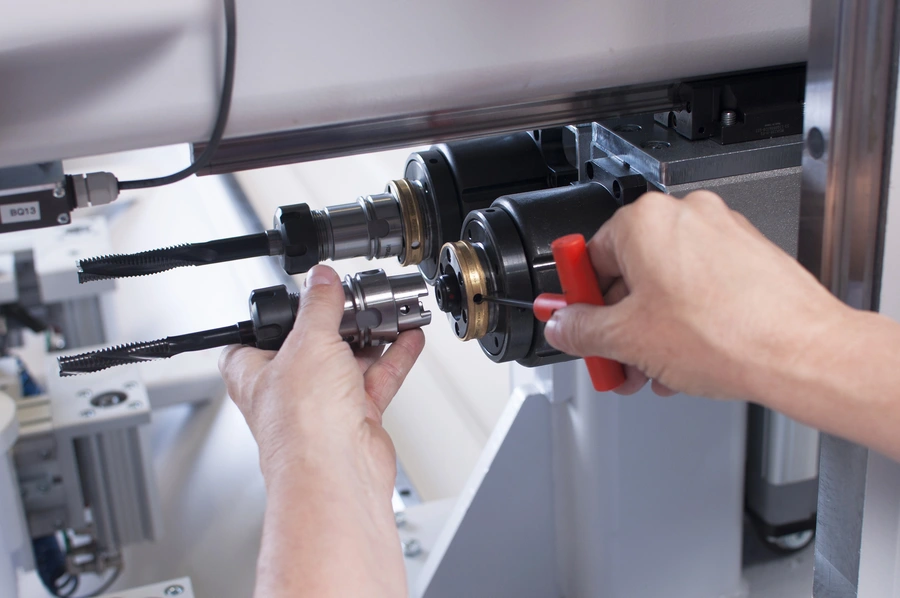

  • A technician's hands fitting a precision tool holder into a CNC machining centre spindle using a red-handled key.

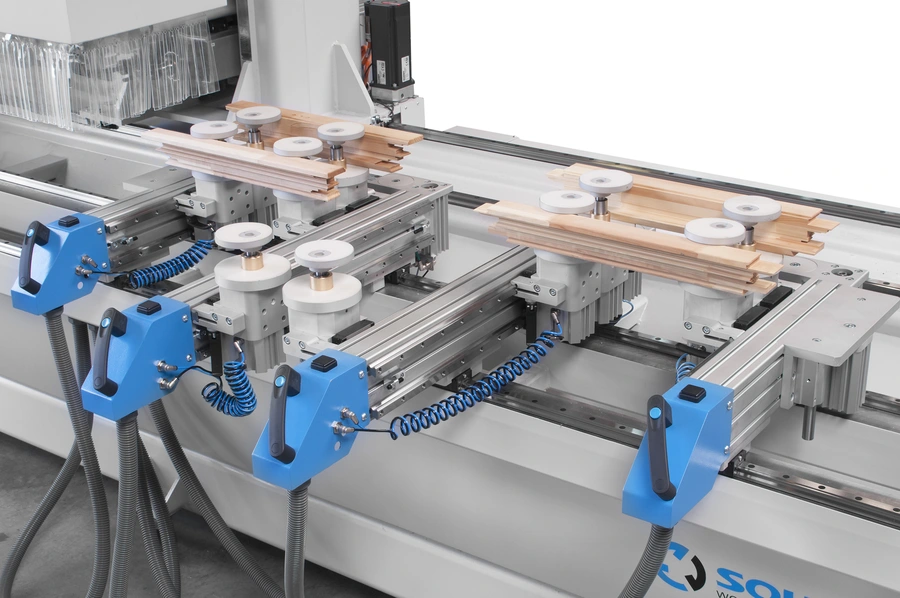

  • Soukup Spectra CNC working centre with blue clamps, white rollers, and timber strips secured on aluminium rail tracks

Soukup Spectra CNC Working Centre

Soukup · Timber Window & Door
A single CNC centre that handles the full range of window and door machining — milling, drilling, rebating, mortising, and hardware prep — across straight and arched components alike. Suited to bespoke workshops that need flexibility across component types without building a multi-machine line.

Typically chosen by

  • Joinery workshops producing bespoke windows and doors who need one machine to handle milling, drilling, rebating, and hardware prep across a range of component profiles
  • Manufacturers already running an angular machining centre who need a dedicated downstream station for drilling muntin bar joints, mortising, and hardware routing without interrupting the main line
  • Smaller producers working on arched or curved window and door frames who cannot justify a full multi-machine line but still need consistent, repeatable results across up to four components at once
Get expert advice
Book a free demo
Before you commit

See it run on your own material

Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
Book a free demo

Key specification considerations

Simultaneous Capacity
4 components
Four workholding tables with clamps allow a full set of knock-down window or door components to be machined in a single setup, which matters for cycle time in batch production.
Control System
Beckhoff PC, 15" touch screen
Accepts data from WinCreator or third-party CAD/CAM software, so workshops already running design software should confirm compatibility before specifying.
Arched Component Capability
Yes — straight and curved
The machine handles arched structures as standard, which removes the need for a separate dedicated jig or machine when taking on curved-frame orders.
Integration with Angular Centre
Yes — label scan workflow
Identification labels printed at the angular centre can be scanned at the Spectra, linking the two machines into a traceable sequential process without manual re-entry of job data.
See full specifications
SpecificationValueNotes
Simultaneous Workpiece Capacity
4 components
Four tables with clamps allow a complete set of knock-down components to be fixtured and machined together.
Component Types
Straight and curved (arched) window and door components
Machining Operations
Milling, drilling, rebating, profiling, mortising, hardware/hinge/lock prep
Working Faces
Top, back, and both component heads
Access to all four faces in one setup avoids re-fixturing, which reduces handling time and the risk of positional error.
Control System
Beckhoff PC with 15" touch screen
Software Compatibility
WinCreator or third-party software (incl. Alphacam, Klaes, JoinerySoft, RA Workshop)
Workshops using alternative CAD/CAM packages should confirm file format compatibility with IWM before ordering.
Angular Centre Integration
Yes — scannable label workflow
Arched Structure Capability
Yes
Rebate Flexibility
Variable rebates per component — opening/fixed glazing, inward/outward opening
Different rebate profiles can be applied to a single piece in one run, which is useful for mixed-specification door and window batches.
Intended Use Mode
Standalone multifunctional centre or supplementary to angular machining centre
X-Axis Stroke / Max Component Length
3,700 mm / 2,840 mm
Allow additional clearance at each end of the machine for full-length component infeed and outfeed — talk to IWM about floor layout before installation.
Y-Axis Stroke / Max Component Width
1,830 mm / 1,060 mm
Z-Axis Stroke / Max Component Thickness
395 mm / 100 mm
Worktables
4 manually moveable tables with set-up assistance; 10 pneumatic clamps
Set-up assistance guides accurate table positioning to avoid tool-clamp collisions during program execution.
Component Thickness (clamping range)
50–100 mm
Spindle / Aggregate Configuration
Vertical electro spindle HSK-F63: 8/9.5 kW, 380 V, 24,000 rpm, C-axis for aggregates; 5× M10 vertical boring head: 1.5 kW, 380 V; 1× horizontal milling unit: 5.6 kW, 0–18,000 rpm, HSK 40A, bits to ø20 mm; linear tool changer: 6 positions
All spindles run on 380 V three-phase supply — confirm your workshop supply against total connected load with IWM before ordering.
Panel Door Capability
Yes — with optional vacuum clamps, panel doors up to 1,000 mm wide
Machine Dimensions (footprint)
Contact IWM for current datasheet
Allow additional clearance on all sides for component infeed, outfeed, and operator access — IWM can advise on floor layout before installation.
Weight
Contact IWM for current datasheet
Extraction Connection
Contact IWM for current datasheet
Get expert advice

Is this the right
machine for you?

Choose the Soukup Spectra CNC Working Centre if...

  • You need a single machine to handle the full range of window and door machining operations — milling, drilling, rebating, mortising, hardware prep — without investing in a multi-machine line
  • You produce arched or curved window and door frames alongside standard straight components and need one machine that handles both reliably
  • You already run a Soukup angular machining centre and need a downstream drilling and milling station that integrates directly with it via a label-scan workflow
  • Your work is predominantly bespoke or mixed-specification, and you need the flexibility to run different rebate profiles and hardware preparations on individual components within the same batch

Consider an alternate model if...

  • Your primary bottleneck is tenoning and end profiling rather than drilling and hardware prep — the Soukup Temac Automatic Single End Tenoning Machine or Soukup Wizard Tenon CNC Window Machine may address that more directly
  • You need higher throughput on standard window components and can work to more fixed specifications — the Soukup Crafter CNC Window Machining Centre or Soukup Wizard 4L Machine may be better matched to volume production
  • Your component range is narrower and a simpler three-axis CNC is sufficient — the Soukup Wizard 3S CNC Window Machine is worth discussing if the full flexibility of the Spectra is more than your workflow requires
  • Your budget or floor space is constrained — talk to IWM about where the Spectra sits relative to the Soukup range so we can help you specify the most appropriate machine for your actual output
