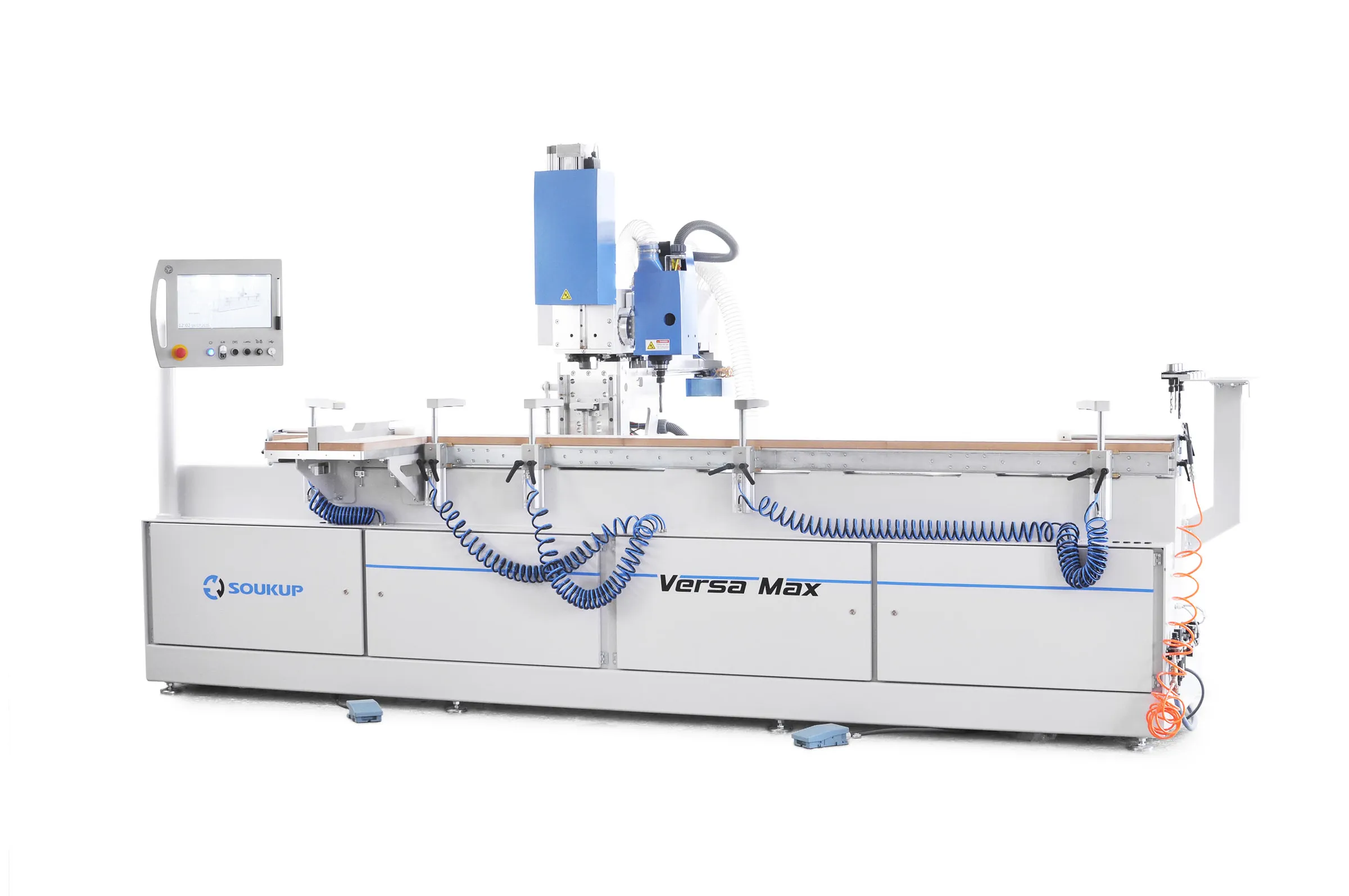

Soukup Versa Max CNC window machining centre in white and blue, showing the full-length worktable, pneumatic clamps, tilting milling head and touchscreen control arm

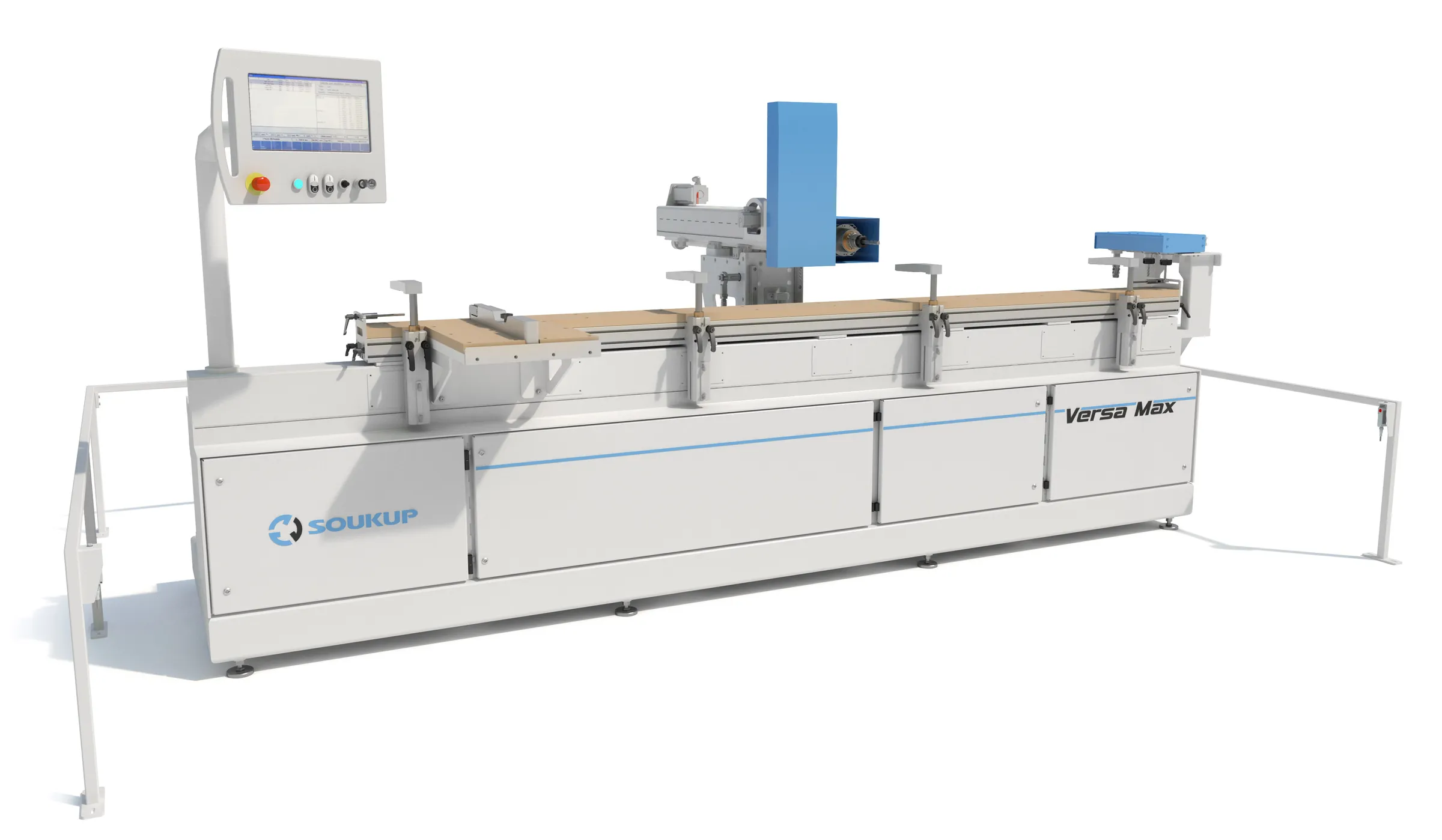

Full-length view of the Soukup Versa Max machining centre with MDF worktable, four pneumatic clamps, lateral drilling unit and safety barrier

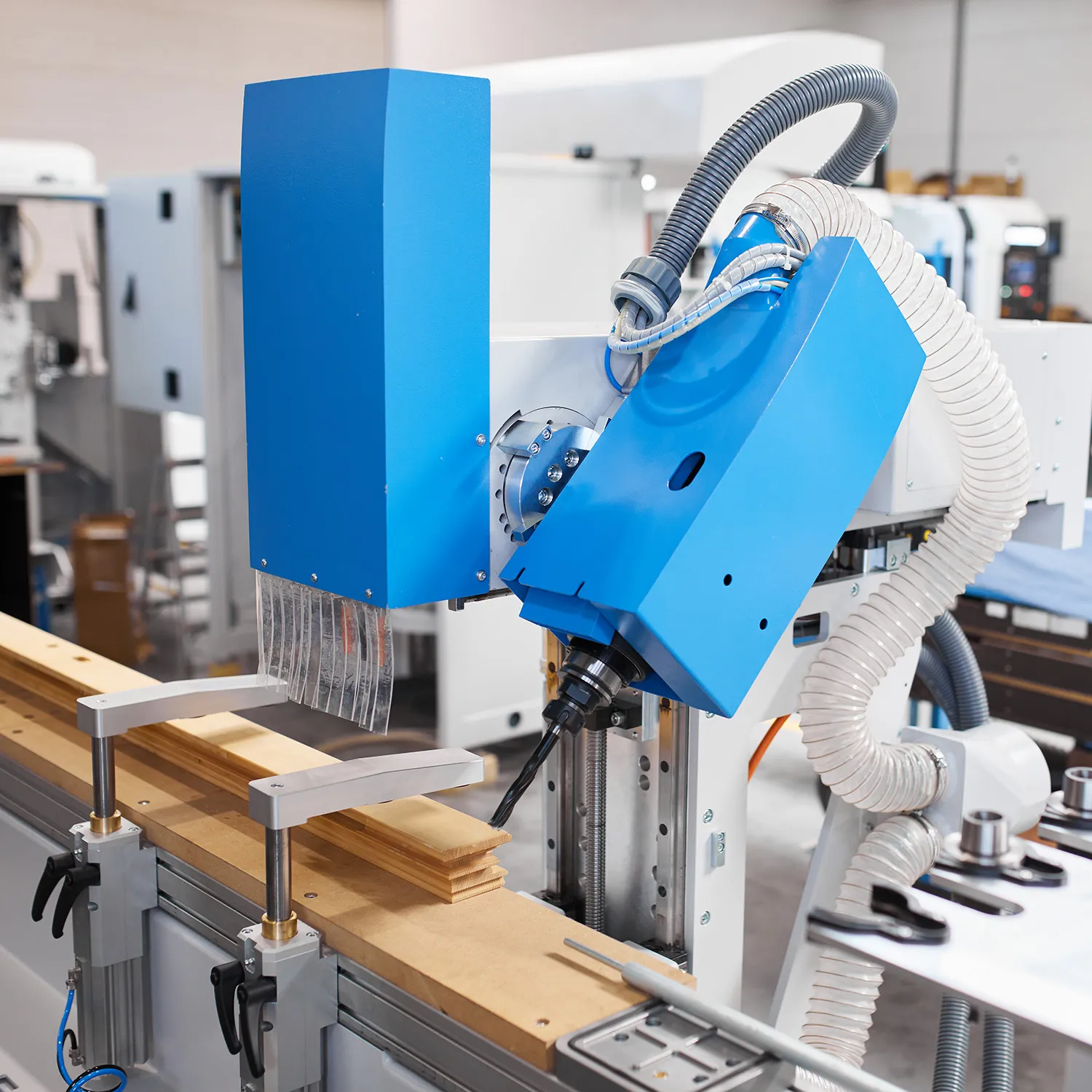

Blue tilting milling unit of the Soukup Versa Max angled over a clamped timber window section, with extraction hose and brush guard fitted

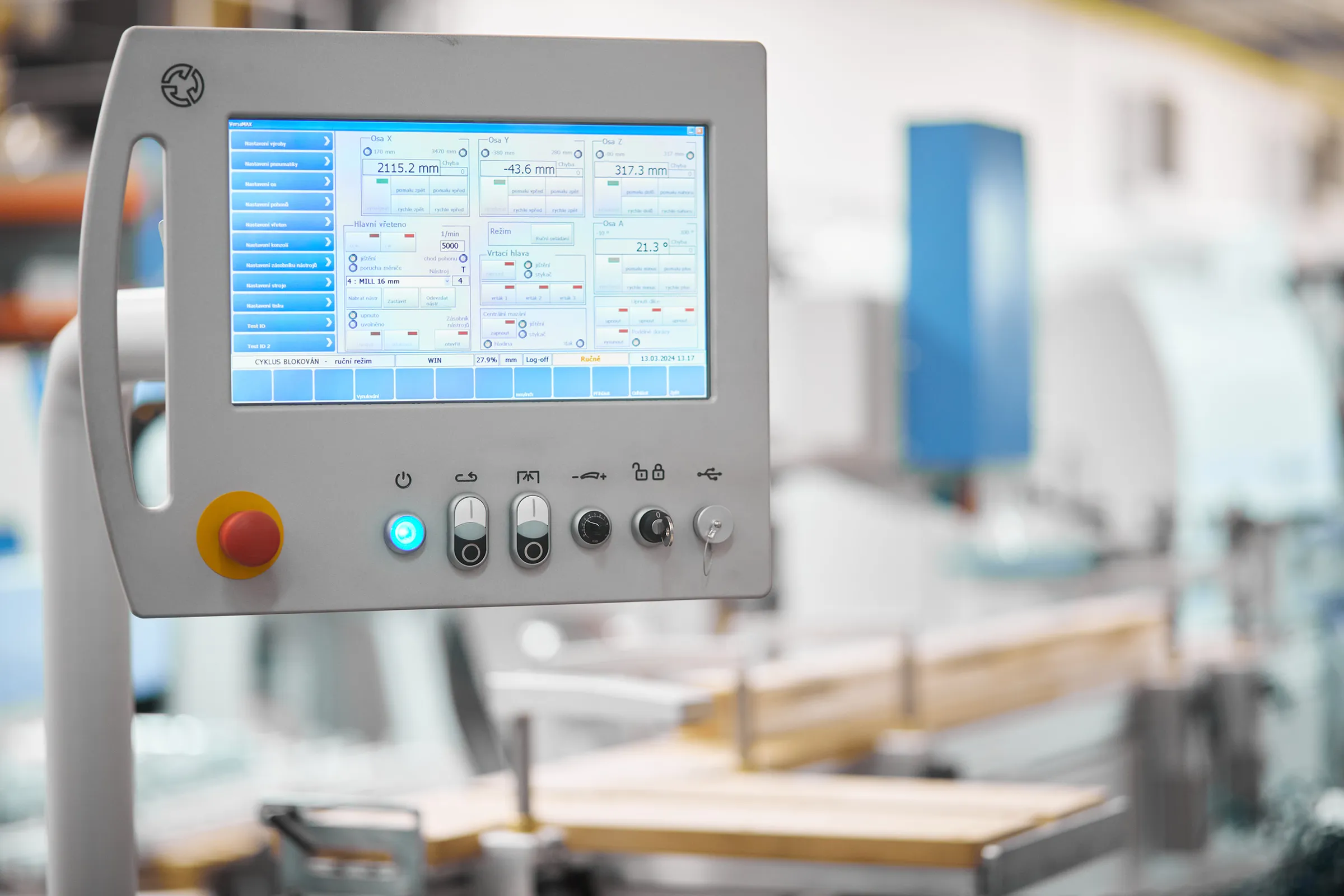

Touchscreen control panel of the Soukup Versa Max showing live X, Y, Z and A axis positions, spindle speed and drilling head status, with emergency stop and key switch below

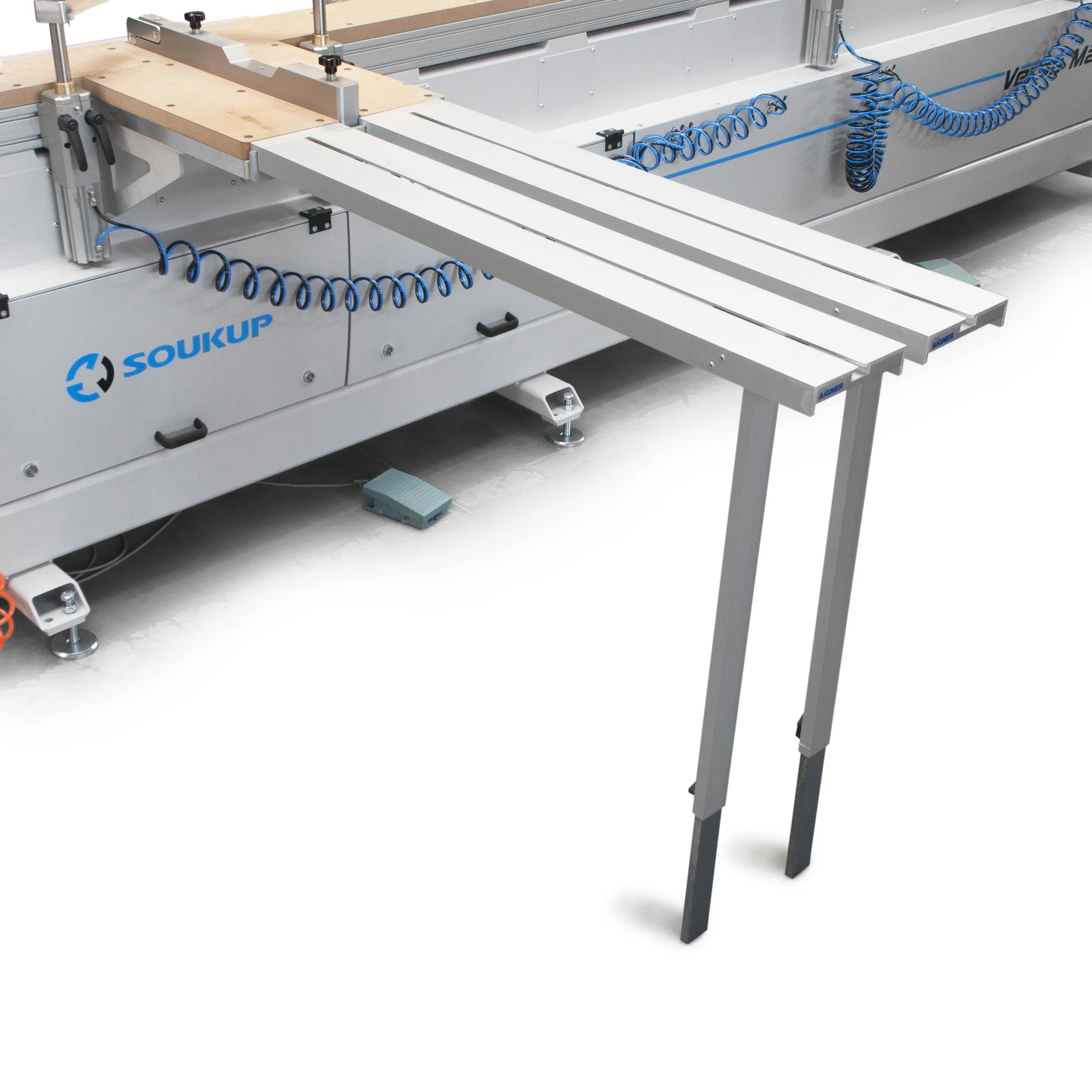

Adjustable support table extending from the side of the Soukup Versa Max to carry long window and door components during cross-machining
Cutaway view of the Soukup Versa Max working units — three-spindle vertical drilling head, main milling spindle and linear tool magazine above the MDF worktable

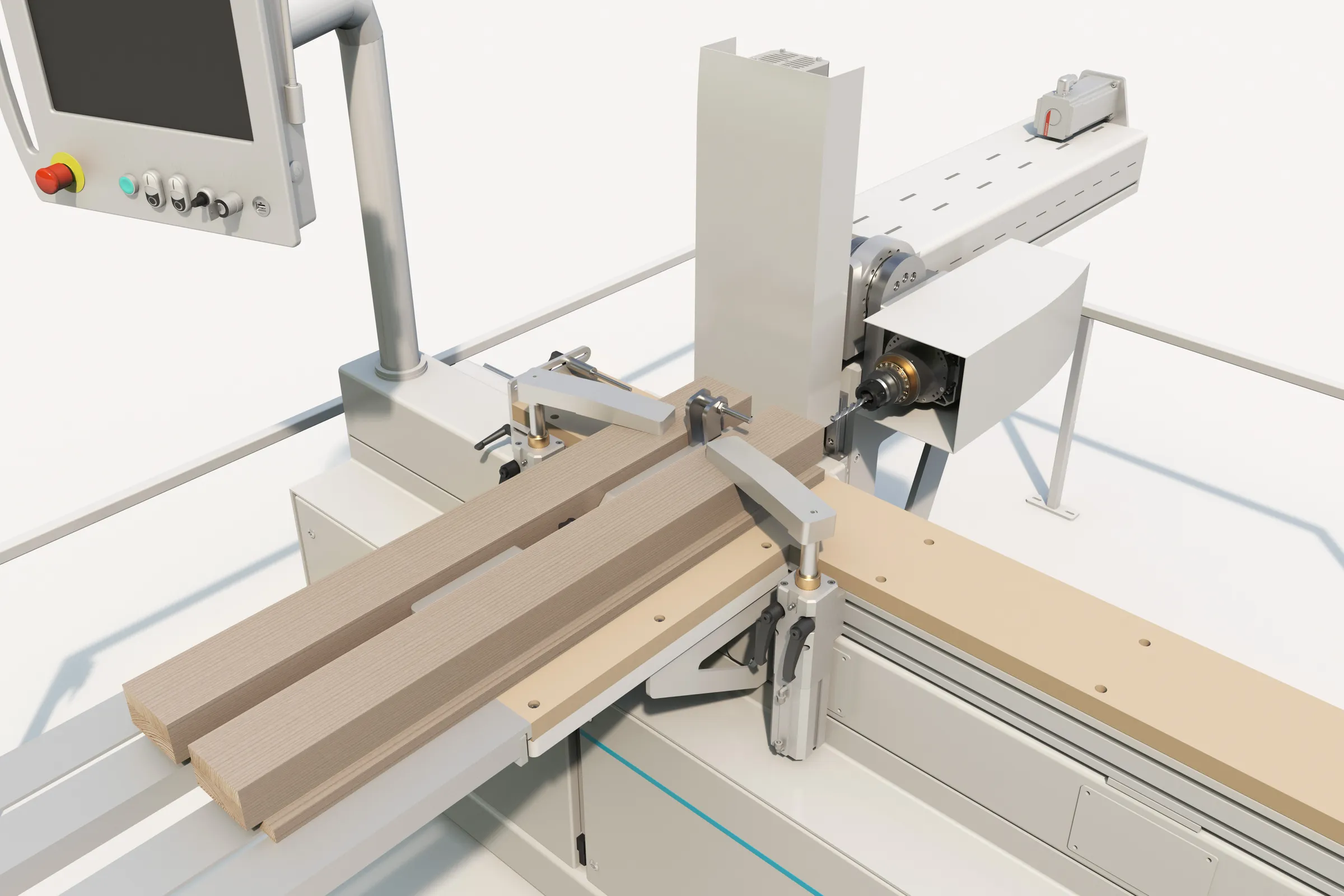

Lateral drilling unit of the Soukup Versa Max boring into the end of a clamped timber section, with a second component held on the cross table alongside
Close-up of the Soukup Versa Max main spindle carrying a mortising cutter, with the tilting head casting, linear guides and extraction ducting behind
  • Soukup Versa Max CNC window machining centre in white and blue, showing the full-length worktable, pneumatic clamps, tilting milling head and touchscreen control arm
  • Full-length view of the Soukup Versa Max machining centre with MDF worktable, four pneumatic clamps, lateral drilling unit and safety barrier
  • Blue tilting milling unit of the Soukup Versa Max angled over a clamped timber window section, with extraction hose and brush guard fitted
  • Touchscreen control panel of the Soukup Versa Max showing live X, Y, Z and A axis positions, spindle speed and drilling head status, with emergency stop and key switch below
  • Adjustable support table extending from the side of the Soukup Versa Max to carry long window and door components during cross-machining
  • Cutaway view of the Soukup Versa Max working units — three-spindle vertical drilling head, main milling spindle and linear tool magazine above the MDF worktable
  • Lateral drilling unit of the Soukup Versa Max boring into the end of a clamped timber section, with a second component held on the cross table alongside
  • Close-up of the Soukup Versa Max main spindle carrying a mortising cutter, with the tilting head casting, linear guides and extraction ducting behind

    Soukup Versa Max CNC Window Machining Centre

    Soukup ·Timber Window & Door

    The Versa Max takes a window or door component through drilling, mortising, lock pockets, hinge seats and tenon rounding in a single clamping, working from your window design data rather than settings dialled in at the machine. It suits workshops running mixed batches, where the joint positions change with every order.

    Typically chosen by

    • Joinery workshops producing timber windows and doors in mixed batches, where sizes, hardware and joint positions change from order to order rather than running one profile at length
    • Businesses already designing in WinCreator or a comparable package, who want joint, hinge and handle positions taken straight from the design instead of re-entered by hand at the machine
    • Workshops that have outgrown drilling and mortising alone, and now need lock pockets, hinge seats, bevelled louvre mortises and tenon rounding completed in the same setup
    Get expert advice
    Book a free demo
    Before you commit

    See it run on your own material

    Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
    Book a free demo

    Key specification considerations

    Main Working Unit
    5.6 kW, 0–24,000 rpm, tilting −10° to +90°
    The tilt range covers vertical boring through to horizontal end work, so bevelled louvre mortises and angled joints are machined without moving the component to a second machine.
    Tool Changer
    Linear magazine, 5 positions, HSK 63F
    Five tools held at the machine covers the drilling, mortising and lock pocket work on a typical window without the operator changing tooling mid-cycle.
    Maximum Component Size
    2,800 mm long × 100 mm thick
    This covers the large majority of UK window and door sections — check your longest cill or frame member against it before specifying.
    Drilling Units
    Vertical unit 1.7 kW, 3 independent spindles; lateral unit 3-axis NC
    The lateral unit is servo-driven on all three axes, so drilling schemas and tenon mortises change with the program rather than needing the component repositioned.
    See full specifications
    SpecificationValueNotes
    Main Working Unit Power
    5.6 kW
    Main Spindle Speed
    0–24,000 rpm
    Main Spindle Tilt
    −10° to +90°
    Allows vertical, angled and horizontal machining from one head.
    Tool Interface
    HSK 63F
    Tool Changer
    Linear magazine, 5 positions, automatic
    Vertical Drilling Unit
    1.7 kW, 3 independent spindles
    Maximum Drill Diameter
    25 mm
    Lateral Drilling Unit
    3-axis NC, servomotor driven
    Drills to any schema and mortises slots for tenons under program control.
    Maximum Component Length
    2,800 mm
    Maximum Component Thickness
    100 mm
    Operations Supported
    Dowel holes, mortise slots, door lock pockets, hinge seats, bevelled louvre mortises, front rounding of tenons, cross-machining
    Workholding
    4 adjustable pneumatic clamps
    Clamps reposition along the bed so the component is held clear of the cutter across its full length.
    Component Positioning
    Pneumatic pins
    Worktable
    MDF board
    Templates can be fixed directly to the table for special work such as pulley milling in sliding sash boxes.
    Cross Tables
    Machining of parts in pairs
    Halves the number of load cycles where components are made as handed pairs.
    Control Panel
    15.6" touchscreen
    Software
    WinCreator; open to third-party packages
    Construction joints, hinge and handle positions derive from the window dimensions and design, with macros storable in a template library.
    Support Tables for Long Components
    Optional
    Vacuum Pump
    Optional
    Used to hold flat components such as panel doors that the side clamps cannot grip.
    Extraction Cover for Disc Tool
    Optional
    Machine Dimensions
    4,700 × 2,900 × 2,200 mm (per manufacturer layout — confirm with IWM)
    Allow clearance beyond the footprint for component infeed, outfeed and operator access along the full length of the bed.
    Machine Weight
    Contact IWM to confirm
    Electrical Supply
    Contact IWM to confirm
    Phase and amperage determine whether a dedicated circuit is needed — confirm with your electrician before installation.
    Compressed Air Requirement
    Contact IWM to confirm
    The clamps, positioning pins and tool changer are all pneumatic, so a supply of adequate capacity is needed.
    Noise Level
    Contact IWM to confirm
    Extraction Connection
    Contact IWM to confirm
    Spigot diameter determines compatibility with your existing extraction ductwork.
    Get expert advice

    Is this the right
    machine for you?

    Choose the Soukup Versa Max CNC Window Machining Centre if...

    • You produce timber windows and doors in mixed batches and want the joint, lock, hinge and louvre work finished in one setup rather than passed between machines
    • Your components sit within 2,800 mm long and 100 mm thick
    • You already work in WinCreator or a comparable design package and want machining derived from the design rather than programmed at the machine
    • You want to machine handed components in pairs on the cross tables to cut the number of load cycles

    Consider an alternate model if...

    • Your components run longer than 2,800 mm or thicker than 100 mm — talk to us about the Soukup Wizard range, which is built for heavier sections
    • You need drilling and mortising only, without the tilting milling spindle and tool changer — the Soukup Versa covers that ground for less outlay
    • You want tenoning and profiling on the same machine as the boring work — the Soukup Wizard Tenon is built around a larger spindle for exactly that
    • Your work is mainly panel and nesting rather than window and door sections — the Soukup Spectra or a nesting router is the better fit
