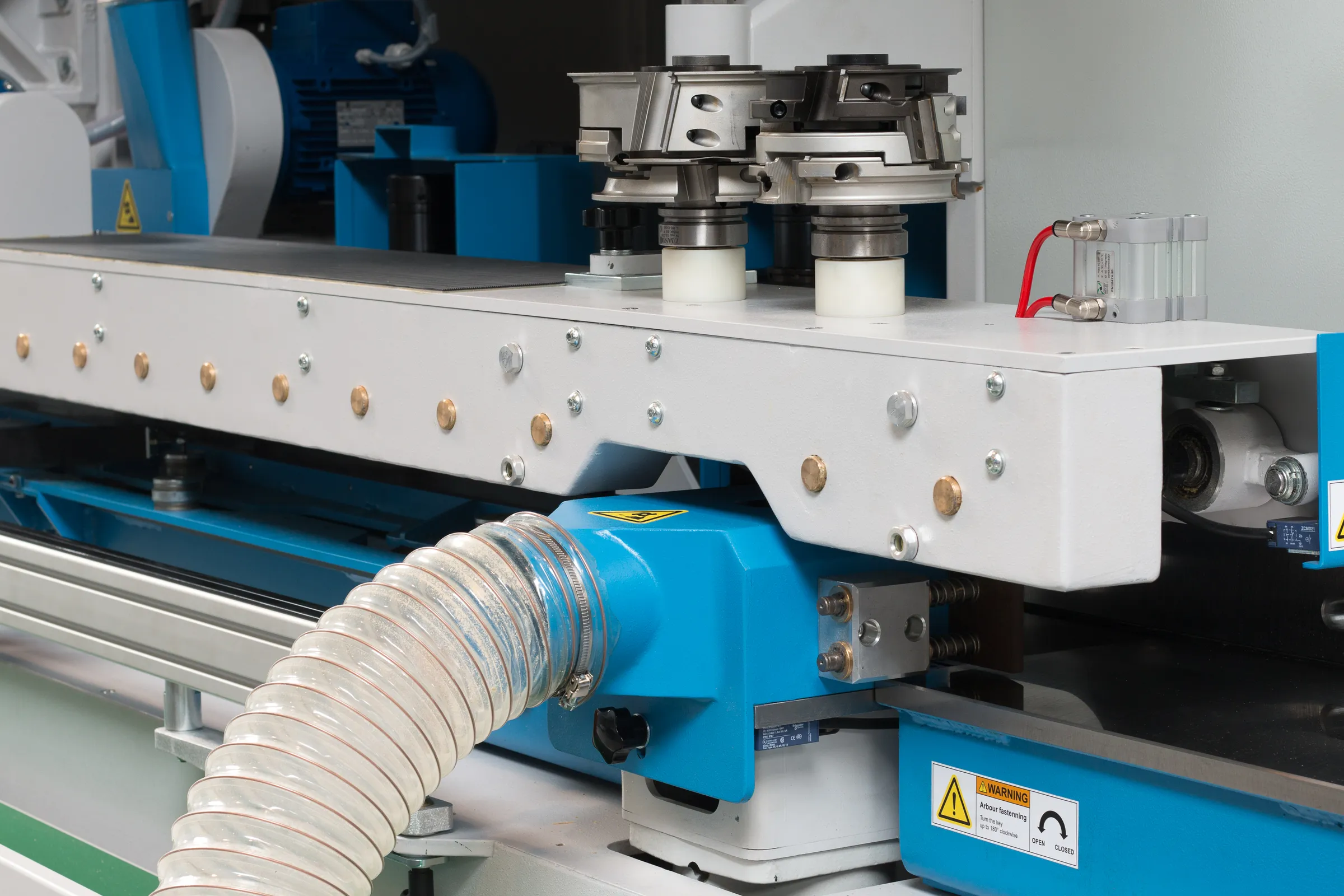

  • Close-up of the Soukup Wizard 3S CNC window machine showing spindle heads, dust extraction hose, and blue steel frame components

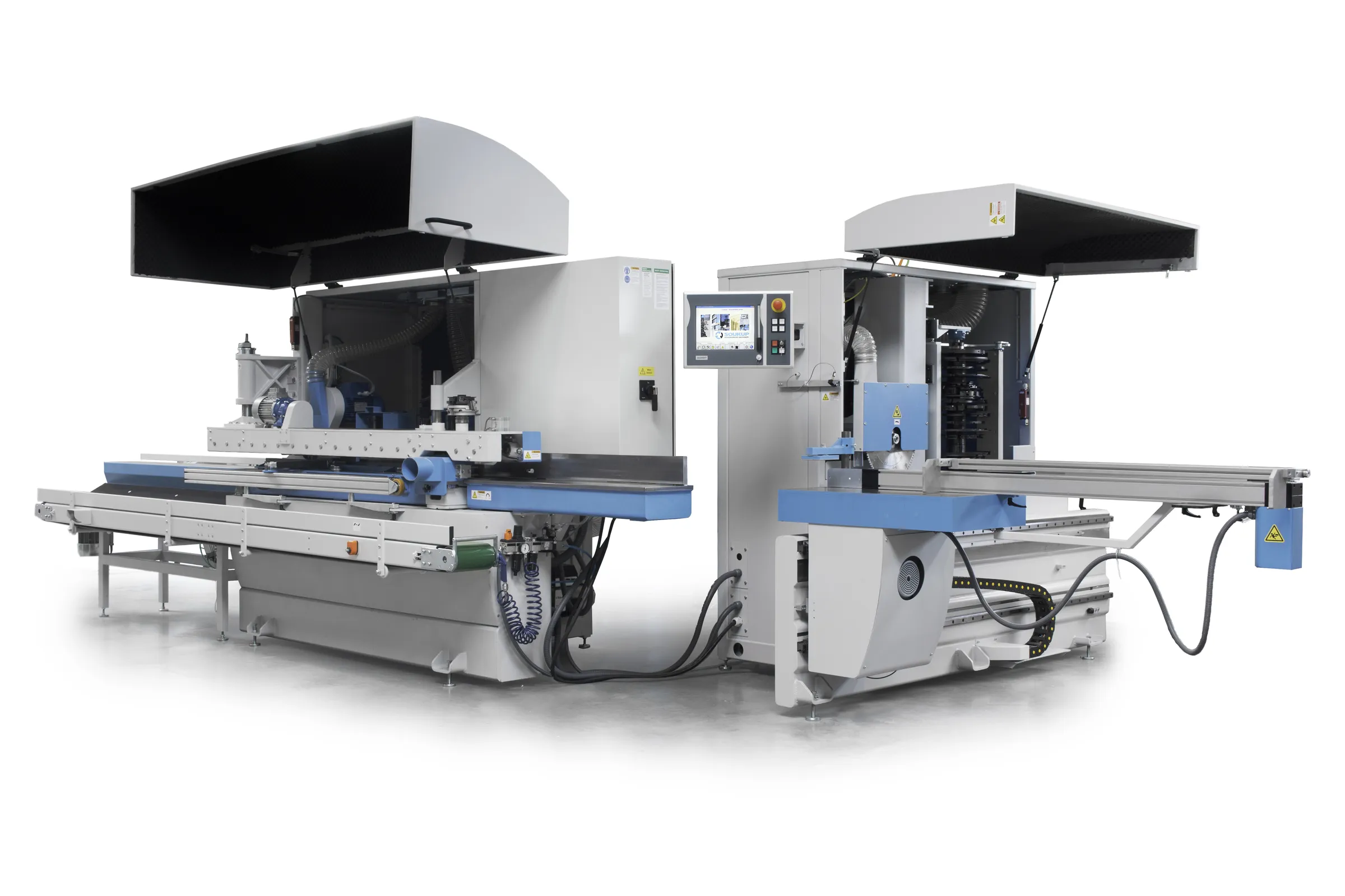

  • Soukup Wizard 3S CNC window machine with dual processing units, blue and grey industrial frame, and overhead extraction hoods

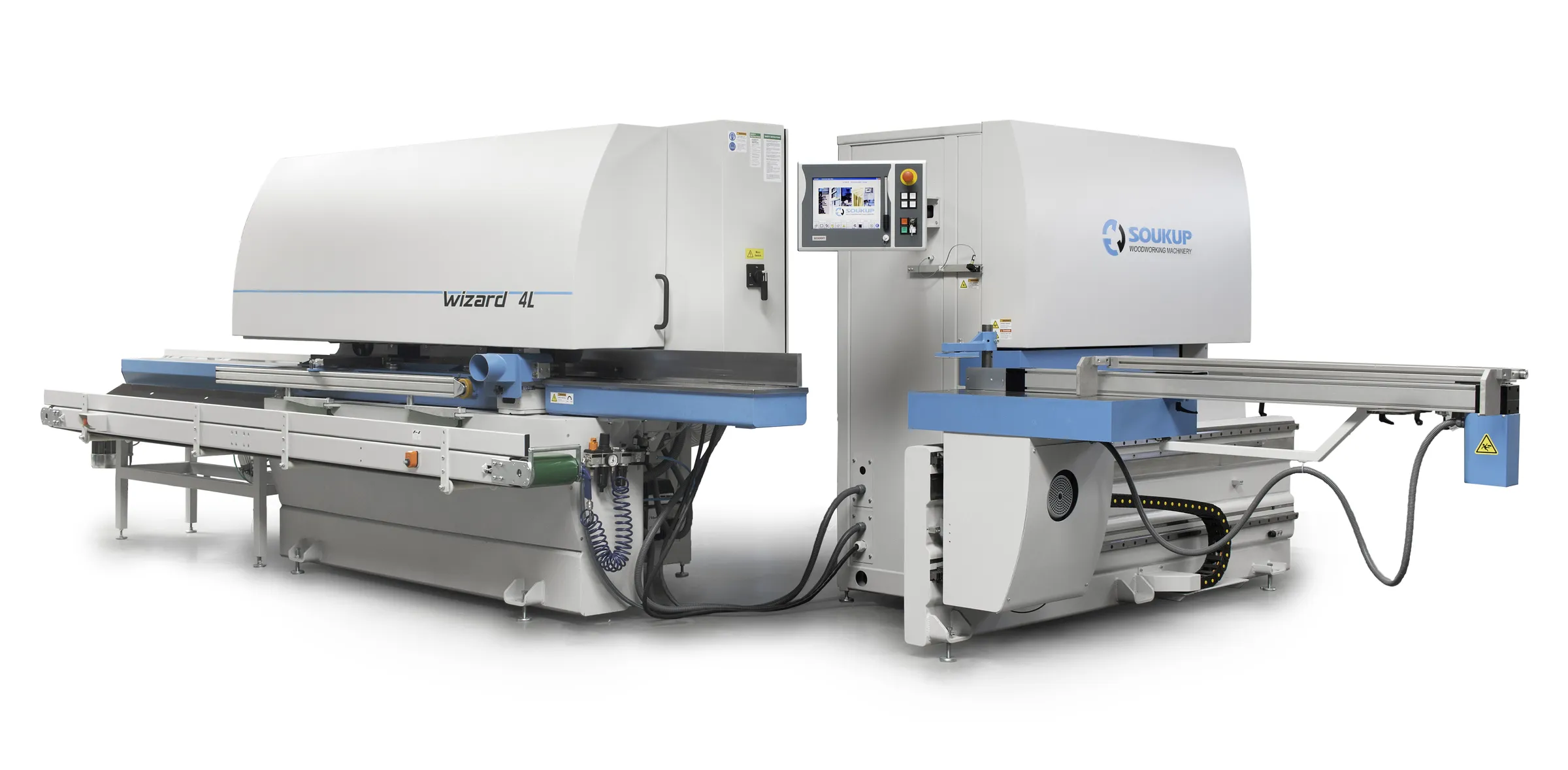

  • Soukup Wizard 4L woodworking machinery unit with blue conveyor tables and a touchscreen control panel

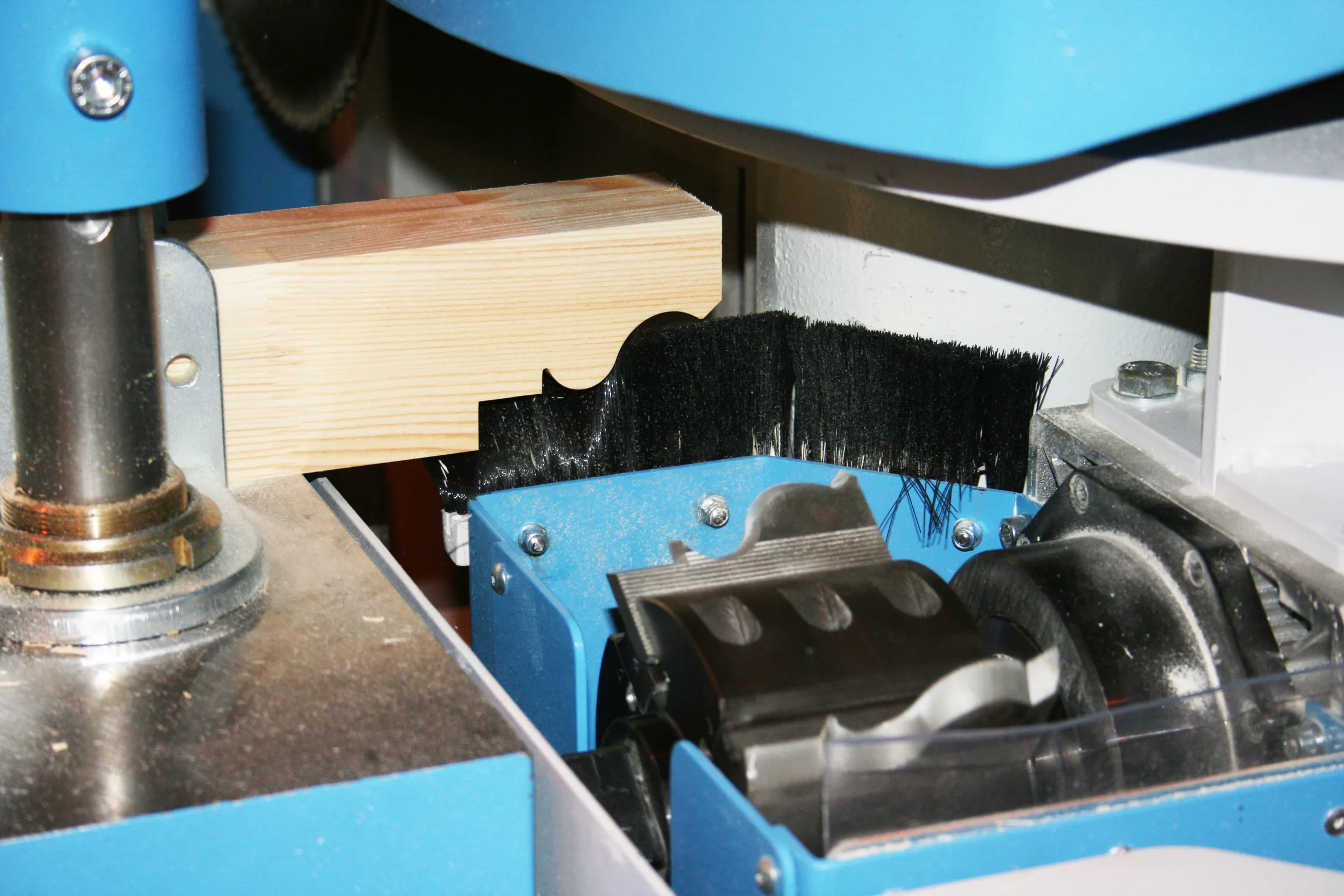

  • Close-up of a timber profile being shaped by a rotating cutter head and brush seals on a blue CNC window machine

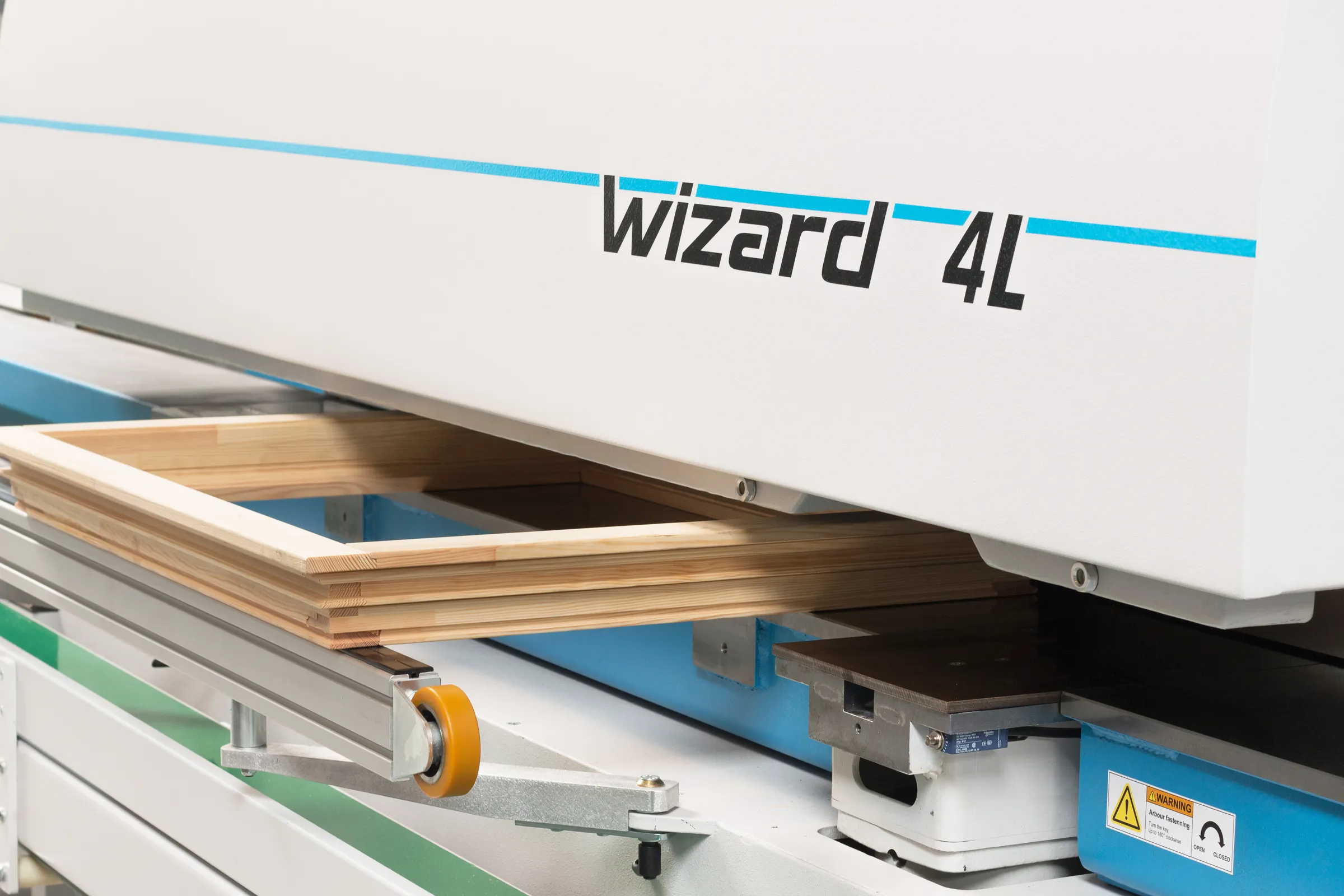

  • Soukup Wizard 4L CNC window machine processing a wooden window frame on its conveyor bed

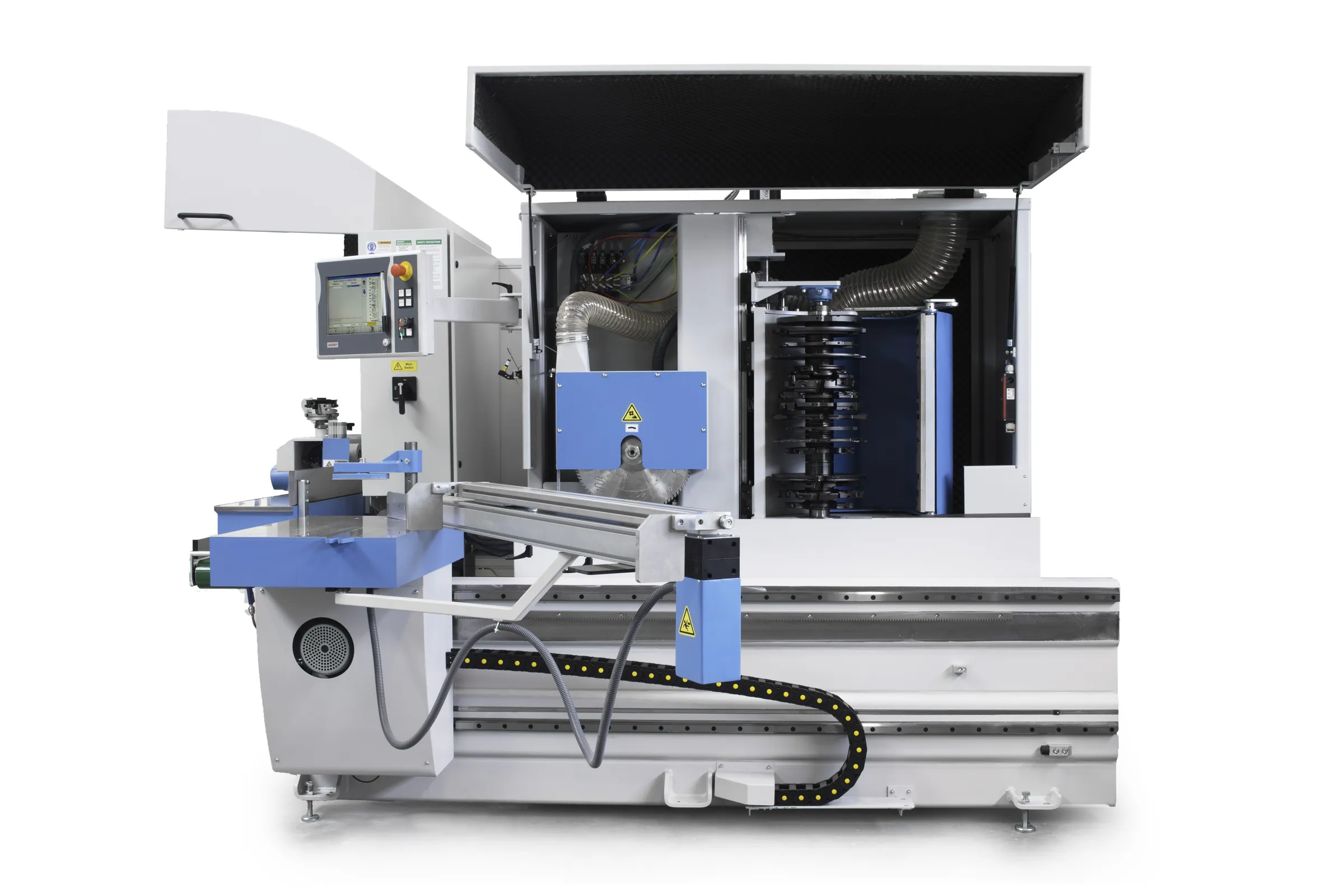

  • Soukup Wizard 3S CNC window machine with open enclosure, CNC control panel, blue components, extraction ducting and cable chain track

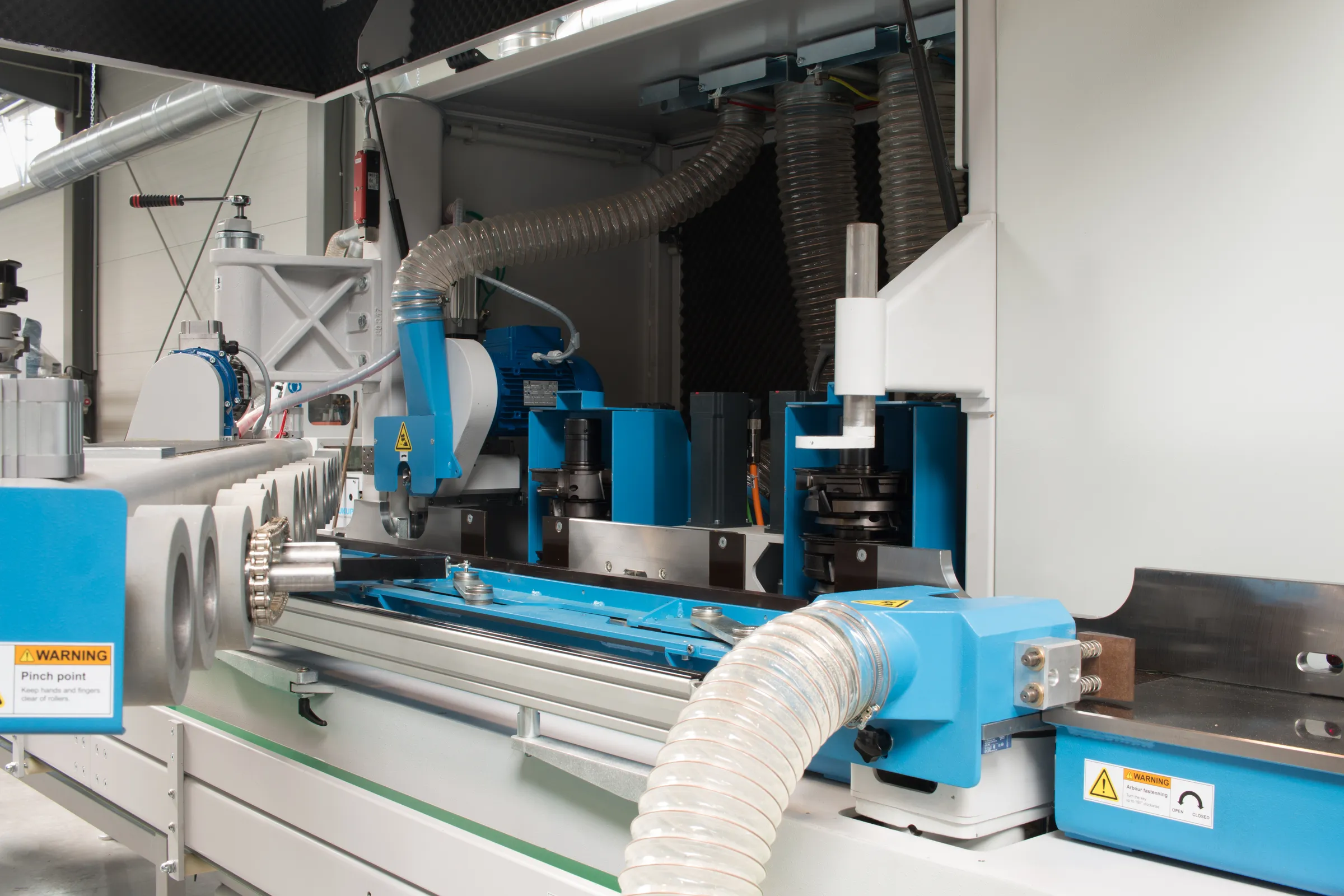

  • Interior view of a Soukup Wizard 3S CNC window machine showing blue motorised spindles, dust extraction hoses and warning labels

    Soukup Wizard 3S CNC Window Machine

    Soukup · Timber Window & Door
    A dedicated two-machine centre for joinery workshops producing storm-proof glued sash and frame windows at volume. Built around the traditional outside-milling method, it gives sliding sash and casement manufacturers CNC repeatability without abandoning the construction technique their customers expect.

    Typically chosen by

    • Joinery workshops producing traditional timber windows at volume, where consistent quality across shifts matters more than flexibility
    • Manufacturers working with storm-proof glued sash and frame construction — sliding sash, casement windows, and timber doors — who need a machine built around that specific technique
    • Businesses that want the option to run tenoning and profiling independently when workflow or staffing demands it
    Get expert advice
    Book a free demo
    Before you commit

    See it run on your own material

    Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
    Book a free demo

    Key specification considerations

    Output Capacity
    30–40 one-leaf windows per shift
    Based on traditional outside milling of sashes; actual throughput will depend on window size, complexity, and operator setup time.
    Machine Configuration
    Two independent machines (tenoning + profiling)
    Each unit can be run separately or as a combined centre, giving flexibility if one process becomes a bottleneck or requires maintenance.
    Workpiece Length Range
    220–2,900 mm (between tenons)
    Covers the full range of standard sash and frame lengths; verify your longest frame dimension falls within this range before specifying.
    Power Requirement
    3-phase, 415 V, 50 Hz — max 53 A
    Requires a three-phase supply with neutral and earth; confirm available amperage at your distribution board before installation.
    See full specifications
    SpecificationValueNotes
    Output Capacity
    30–40 one-leaf windows per shift
    Based on traditional outside milling of sashes; actual throughput will depend on window size, complexity, and operator setup time.
    Machine Configuration
    Two independent machines (tenoning + profiling)
    Each unit can be run separately or as a combined centre, giving flexibility if one process becomes a bottleneck or requires maintenance.
    Control System
    Industrial PC with specialist control software
    Operator Interface
    Touch screen panel
    Intended Application
    Traditional timber window manufacturing — storm-proof glued sashes and frames
    Milling Method
    Outside milling of sashes (traditional technique)
    Dimensions
    2,000 × 2,000 mm
    Allow additional clearance beyond the machine footprint for material feed, extraction ducting, and operator movement around both units.
    Weight
    2,750 kg
    At this weight, floor loading capacity should be verified with a structural engineer before installation.
    Power Requirement
    3-phase, 415 V, 50 Hz — max 53 A
    Requires a three-phase supply wired with neutral and earth; confirm available amperage at your distribution board before ordering.
    Spindle Speed
    6,000 rpm
    Workpiece Length Range
    220–2,900 mm (measured between tenons)
    Covers the full range of standard sash and frame lengths; verify your longest frame dimension falls within this range before specifying.
    Certification
    UKCA
    UKCA marking confirms the machine meets UK safety regulations and is cleared for supply and use on the GB market.
    Get expert advice

    Is this the right
    machine for you?

    Choose the Soukup Wizard 3S CNC Window Machine if...

    • Your workshop produces traditional timber windows at volume — 30–40 units per shift is a realistic and necessary target for your business
    • You work specifically with storm-proof glued sash and frame construction — sliding sash, casement, or timber doors — and need a machine designed around that process
    • You want the operational resilience of two discrete machines that can run independently, rather than a single integrated unit
    • You need CNC precision and repeatability across shifts without relying on manual setup for each window

    Consider an alternate model if...

    • Your volumes are lower or your window range more varied — the Soukup Crafter CNC Window Machining Centre or Soukup Versa CNC Window Machine may be a better fit for mixed or lower-volume production
    • You need only tenoning capability and don't require the profiling unit — the Soukup Wizard Tenon CNC Window Machine or the Soukup Temac Automatic Single End Tenoning Machine are worth discussing with us
    • You are looking for a higher-capacity or more automated solution — the Soukup Wizard 4L, with its dual-side profiling and knock-down production capability of around 60 windows per shift, may suit a larger or more intensive operation; talk to us about where the threshold lies
    • Your floor space or budget cannot accommodate a two-machine configuration — we can help you understand the footprint and investment required before you commit
