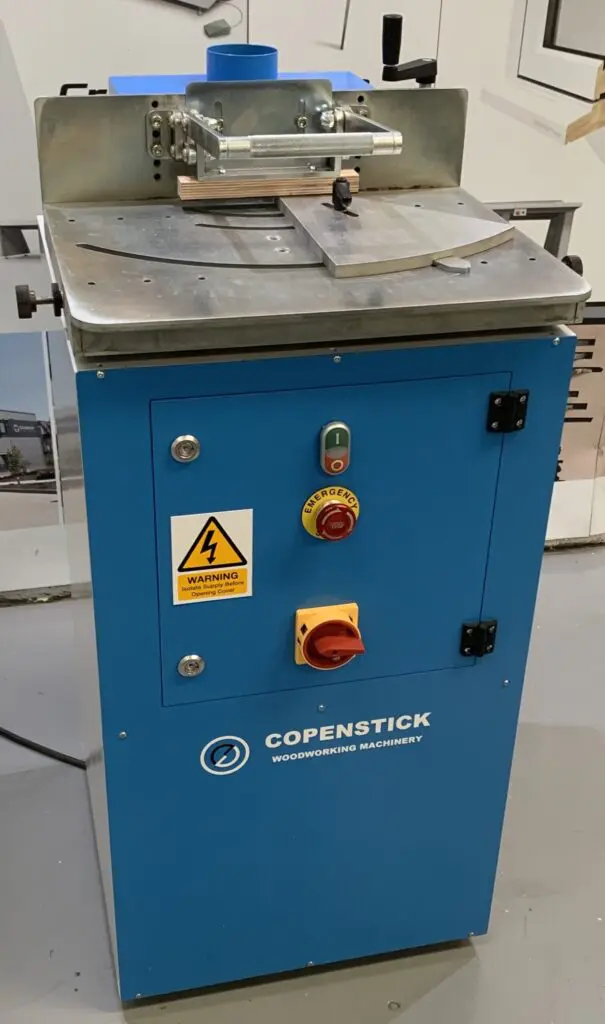

Cut Angles | 0°– 45° | The full 0°–45° range means the machine handles not just standard 90° butt joints but also radius and pitched window intersections without a separate setup. |

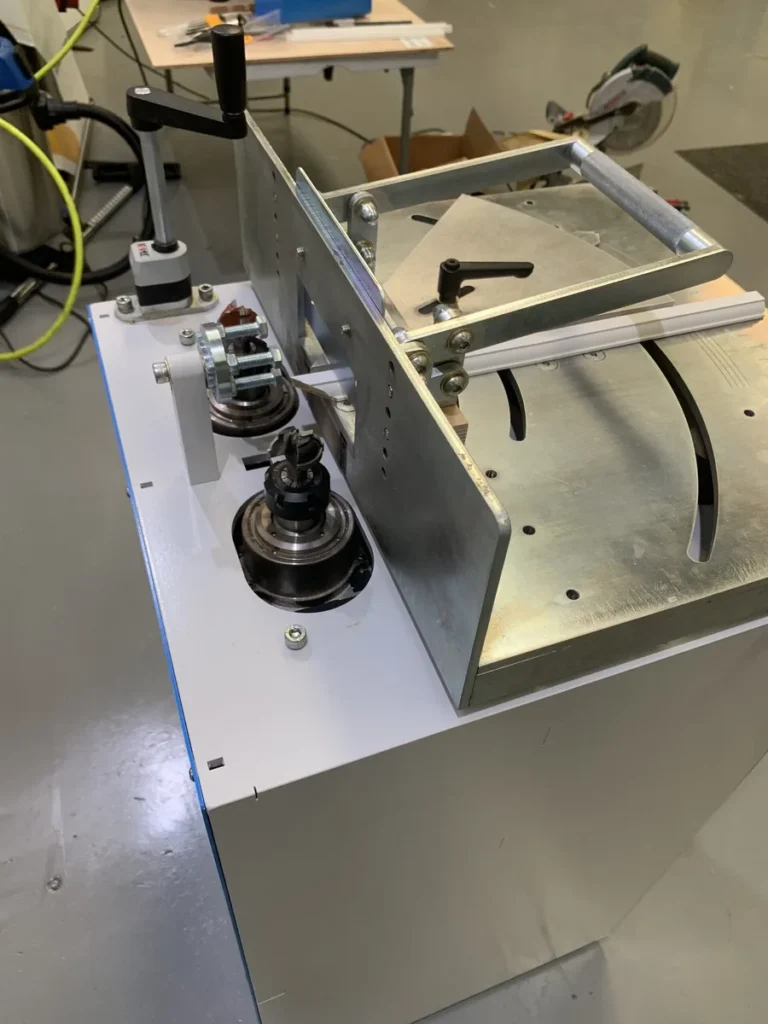

Spindles | 2 (counter-rotating high-speed milling spindles) | Counter-rotating spindles cut from both sides simultaneously, which eliminates breakout and produces a clean, tear-free end profile on finished mouldings. |
Spindle Speed | 12,000 RPM | |
Spindle Motor Power | 2 × 1.5 kW | |
Collet Standard | ER25 | |
Spindle Height Adjustment | 90 mm (lockable) | The 90 mm figure is the total vertical travel of the spindle shafts, which determines the maximum combined height of profiles you can stack on the tooling. |
Tooling Position Setting | Digital mechanical readout | The digital readout lets you return to a known cutter position accurately when switching between profiles, reducing setup time and the risk of trial-and-error adjustment. |
Position Accuracy | 0.1 mm | |
Max Profiles Per Tool Stack | Up to 3 per shaft | Stacking multiple profile cutters on each shaft means you can switch between scribe profiles by repositioning rather than physically changing tooling, which reduces downtime between runs. |
Maximum Tooling Diameter | 60 mm | |
Tooling Type | Custom-manufactured; available as welded TCT (resharpenable) or replacement-tip with spare knives | Welded TCT suits workshops with a grinder and consistent profiles; replacement-tip tooling is the lower-maintenance option if profiles change frequently. |
Workpiece Clamp | Manual (adjustable) | |
Workpiece Limit @ 90° | 50 × 60 mm | |
Workpiece Limit @ 45° | 30 × 60 mm | |
Glazing Bar Width | 18–32 mm (as per table incrementation) | |
Table Travel | 100/180 mm (trimmed to suit profile) | |
Turret Stop | 3 positions (adjustable) | |
Curved Section Capability | Yes — via optional table cams | The optional cams allow the sliding table to follow a curved path, making it possible to end-scribe beads for circular or segmental window frames. |

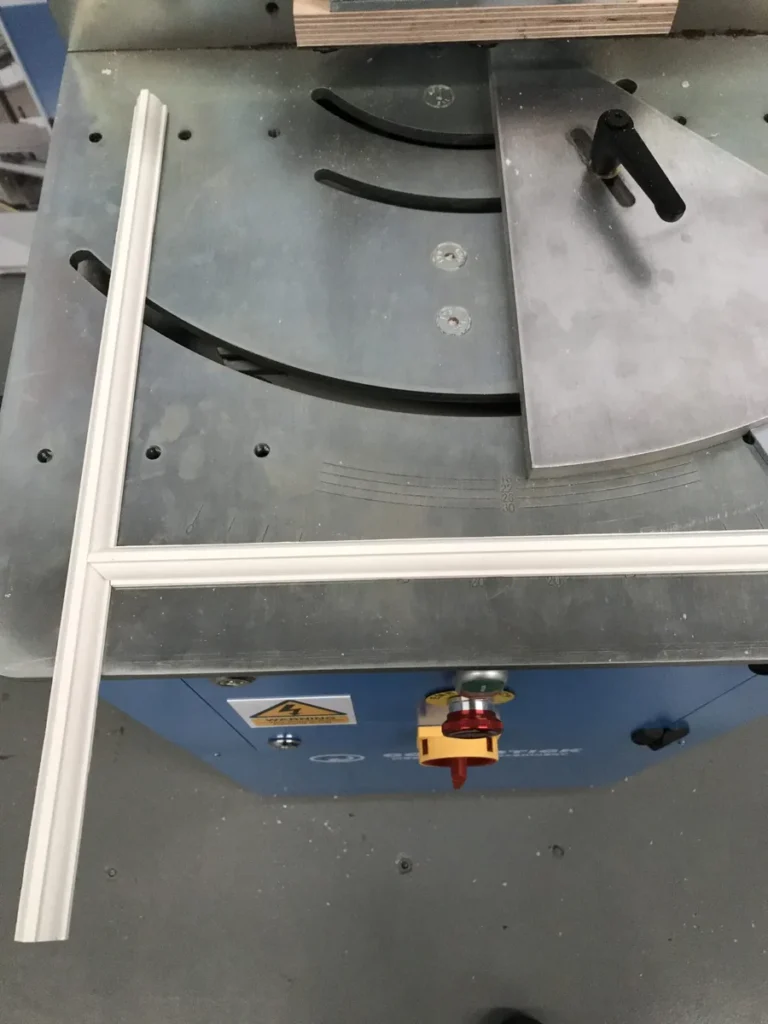

Sliding Table | Yes — with incremental scale for width and angle selection | |
Working Height of Table | 895–935 mm (adjustable) | |
Machine Dimensions | 480 × 490 × 1085/1125 mm (H adjustable) | Allow additional clearance beyond the 480 mm depth for operator access and material infeed on both sides of the sliding table. |
Machine Weight | 120 kg approx. | |
Motor Power / Electrical Supply | 240 V, 16 A, Single Phase, 50 Hz | Single-phase supply means the machine can run from a standard workshop socket, but confirm a dedicated 16 A circuit is available before installation. |
Dust Extraction Connection | 80 mm port | An 80 mm extraction port is suited to a small dedicated extractor or a lightweight central system; confirm your existing extraction can accept this port size. |
