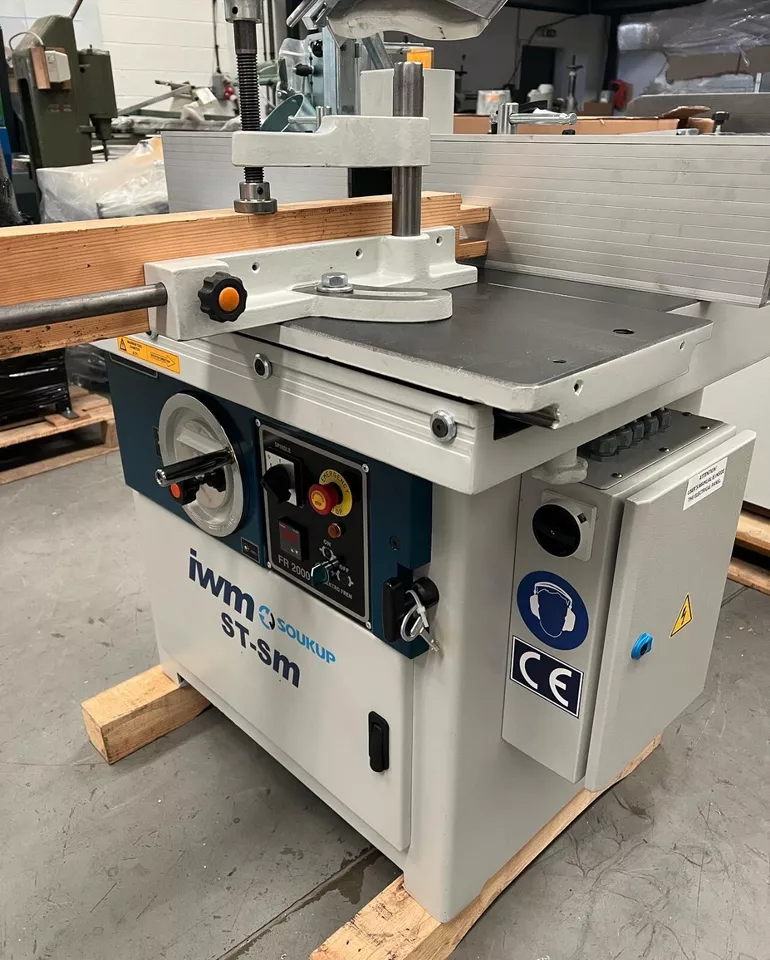

A heavy-duty spindle moulder with sliding table, ring fence, and collet attachment included as standard — built for joinery workshops that need to move between straight profiling, curved work, and dovetailing without switching machines.
Typically chosen by
Joinery workshops producing doors, windows, or staircases where consistent moulded profiles are a daily requirement
Shops already running curved or shaped components who need a ring fence and sliding table as standard, not as an afterthought
Businesses that use a variety of tooling types and want the flexibility of both a 30mm spindle and a separate collet attachment without changing machines
Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
Four discrete speeds let you match the spindle to the tooling diameter and timber species — slower speeds for large-diameter cutters, higher speeds for fine profiling work.
Max. Tool Diameter
300 mm

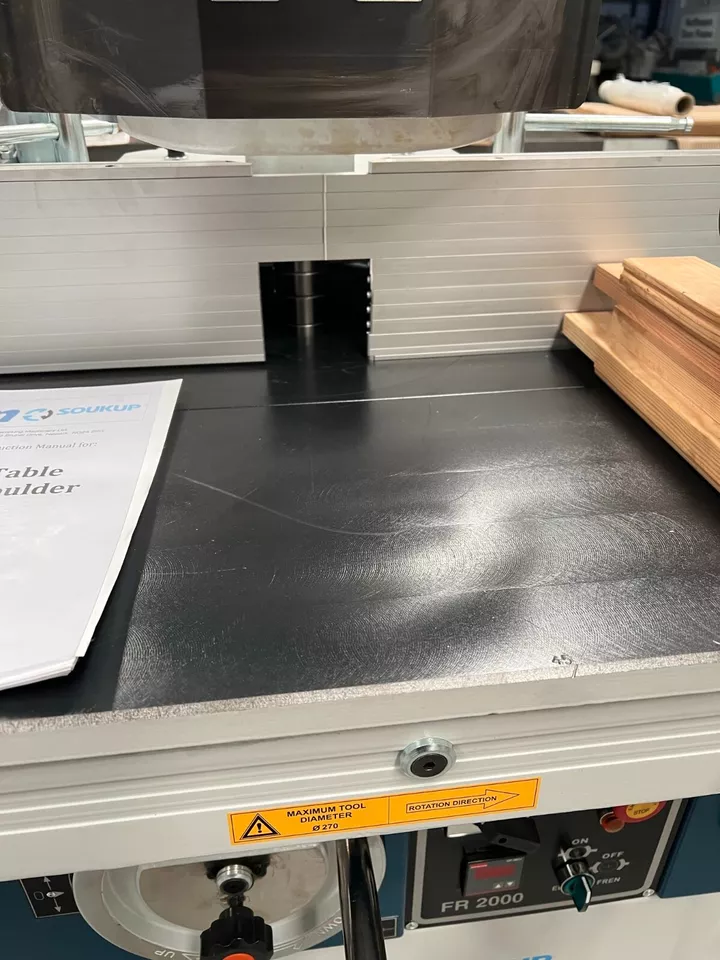

Table Size
1,000 × 750 mm
A generous table area supports longer workpieces without additional outfeed support in most joinery applications.

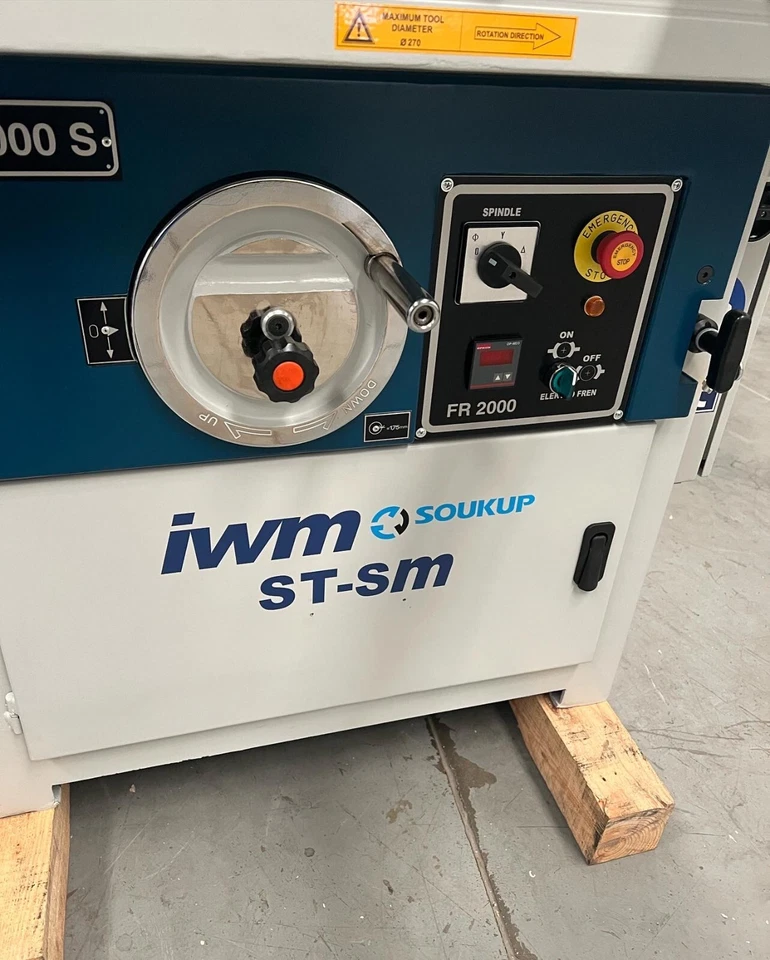

Rise & Fall Display
LED, 0.1 mm resolution
Digital readout to a tenth of a millimetre means height settings can be recorded and returned to accurately, which matters when running repeat batch profiles.
The MK5 taper means the spindle itself can be swapped out, so you are not permanently committed to one spindle size if your tooling requirements change.
Spindle Useable Length
150 mm
Collet Spindle Attachment
Included (for dovetailing)
The separate collet attachment is supplied as standard, giving you dovetailing capability without a second machine.
Spindle Speeds
4,000 / 6,000 / 8,000 / 10,000 RPM
Max. Tool Diameter
300 mm
Rise & Fall
Yes — LED display to 0.1 mm
Table Size
1,000 × 750 mm
Table Height
850 mm

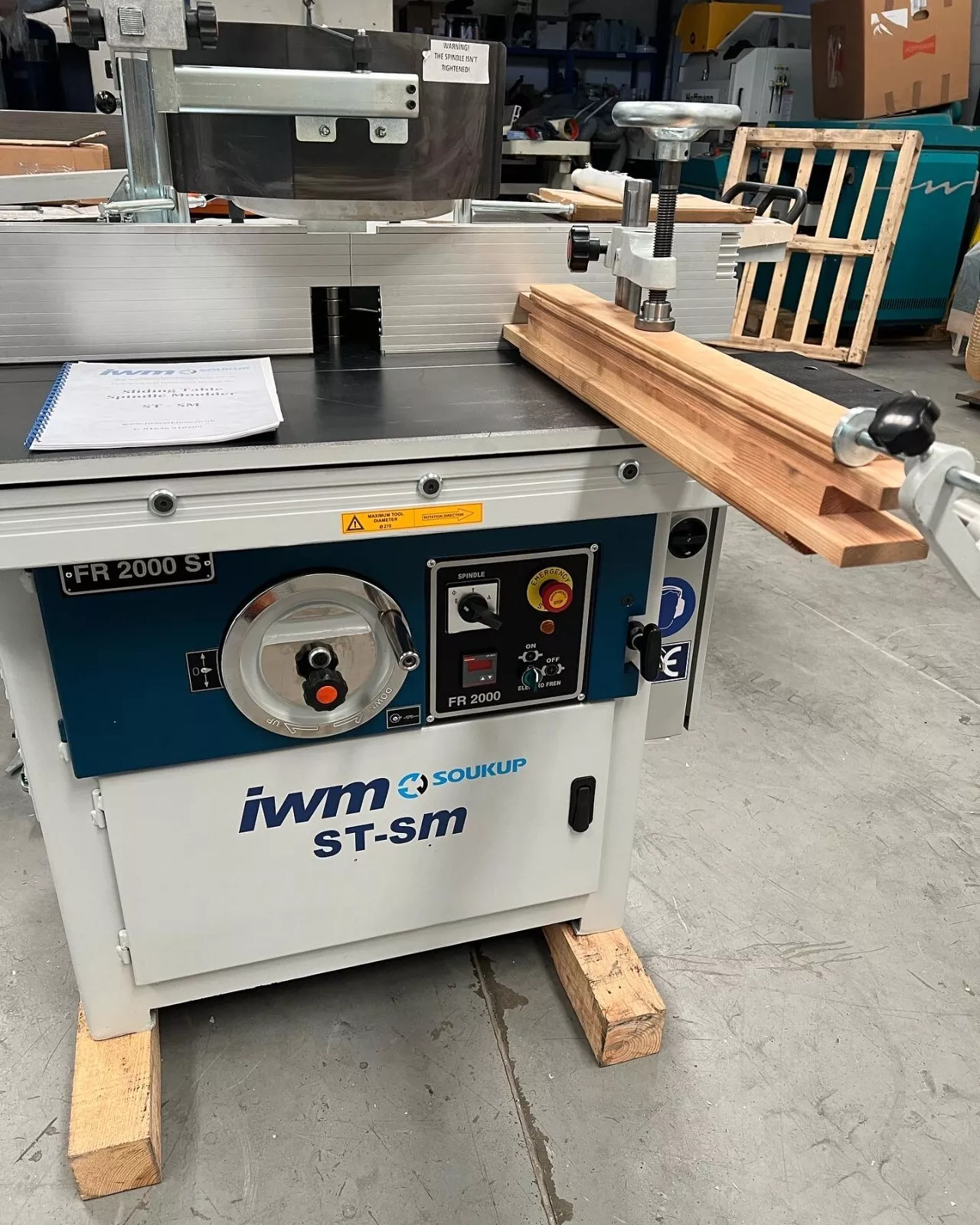

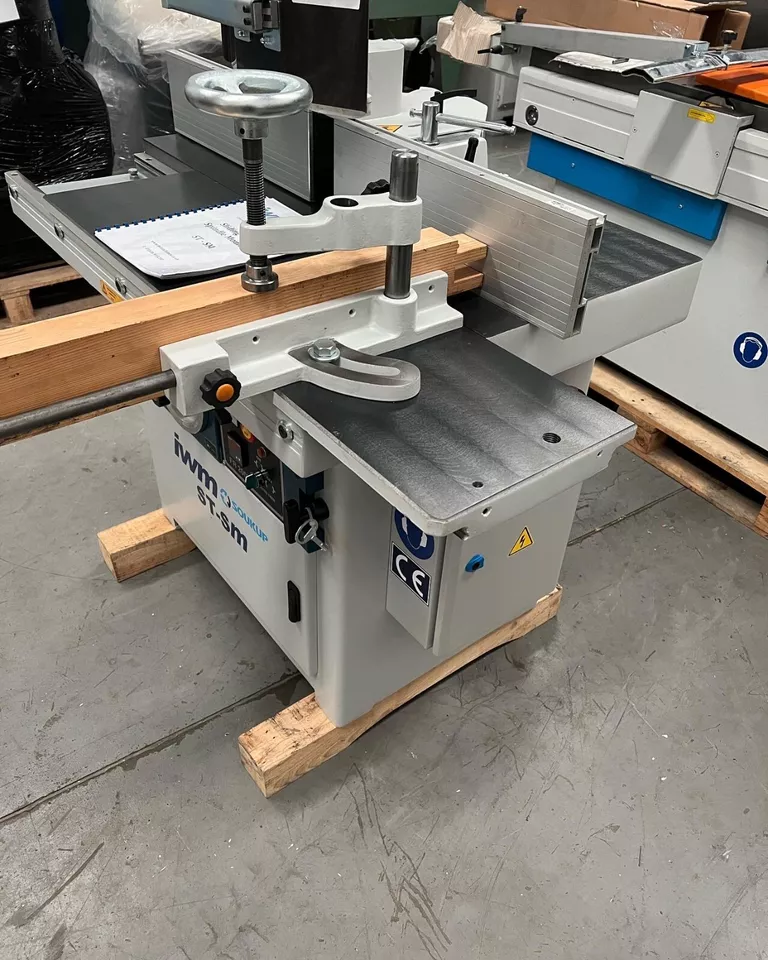

Sliding Table
Included — with heavy-duty cramp and end stop
The cramp and end stop arrangement allows consistent, repeatable cuts when machining multiple identical components.
Ring Fence
Included
Supplied as standard for curved and shaped work — no additional purchase required.
Power Feed Provision
Machine pre-wired and table pre-drilled
If your volume grows to the point where a power feed is worthwhile, the machine is already prepared for one — no retrofitting needed.
Machine Weight
580 kg
At 580 kg, floor loading should be checked before installation, particularly on suspended or upper-floor workshop premises.
Motor / Power Supply
Contact IWM to confirm
Electrical supply requirements vary by specification — talk to us before ordering to ensure your workshop supply is compatible.
Manufacturer
Soukup Woodworking Machinery (Czech Republic)
Soukup is a family-owned Czech manufacturer specialising in machinery for wooden windows, doors, and timber-frame construction, with installations across the UK and internationally.
Choose the Spindle Moulders with a Sliding Table IWM Soukup if...
You need a sliding table as part of the standard package — it is included here, not an optional extra
Your work involves curved or shaped components and you need a ring fence ready to use from day one
You want tooling flexibility with both the MK5 tapered spindle and collet attachment supplied together
You run repeat batch profiles and need a reliable height readout to return to recorded settings quickly
Consider an alternate model if...
Your work involves angled or bevelled mouldings — the Tilting Spindle Moulder IWM Soukup is designed for that application and would be a more appropriate choice
You do not need a sliding table and would prefer a simpler, more compact machine — a standard spindle moulder without the sliding table may suit lower-complexity work better
Your throughput is very low and the full capability of this machine would rarely be used — discuss with IWM whether a lighter-duty option makes more sense for your situation
