Soukup Assembling Equipment & Trolleys

Soukup
Purpose-built assembly tables and transport trolleys that give window and frame workshops a logical, repeatable flow between machining, impregnation, and finishing — without improvising with general-purpose equipment.

Typically chosen by

  • Window and joinery manufacturers looking to bring order to the space between machining and finishing
  • Workshops handling timber frames at multiple stages — drying, impregnation, glazing, and assembly — who need dedicated storage for each
  • Businesses where floor space is tight and stackable, purpose-built trolleys make a practical difference to daily operations
Get expert advice
Book a free demo

Key specification considerations

Radial Arm Reach
Up to 1.2 m
The extendable arms on the assembly table accommodate both small and large sashes without needing a separate fixture for each size.
Gasket Stand Capacity
2 or 4 coils (G2 / G4)
Trolley Stacking
Yes — TR10 stackable when empty
Empty TR10 trolleys stack directly on top of one another, which matters when floor space is shared with active production.
TR30 Orientation
Horizontal storage
Horizontal racking suits components that must lie flat — particularly parts drying after impregnation or staged prior to gluing.
See full specifications
SpecificationValueNotes

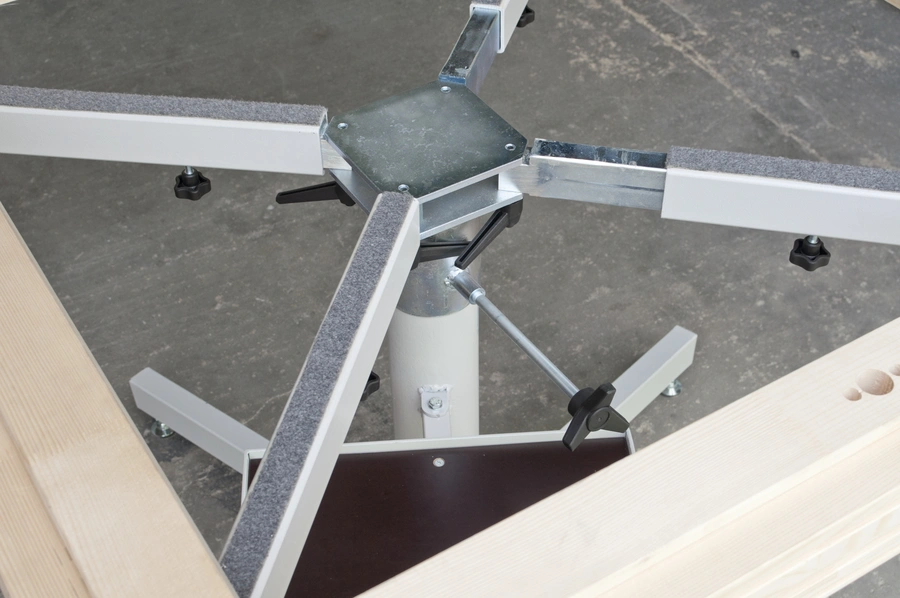

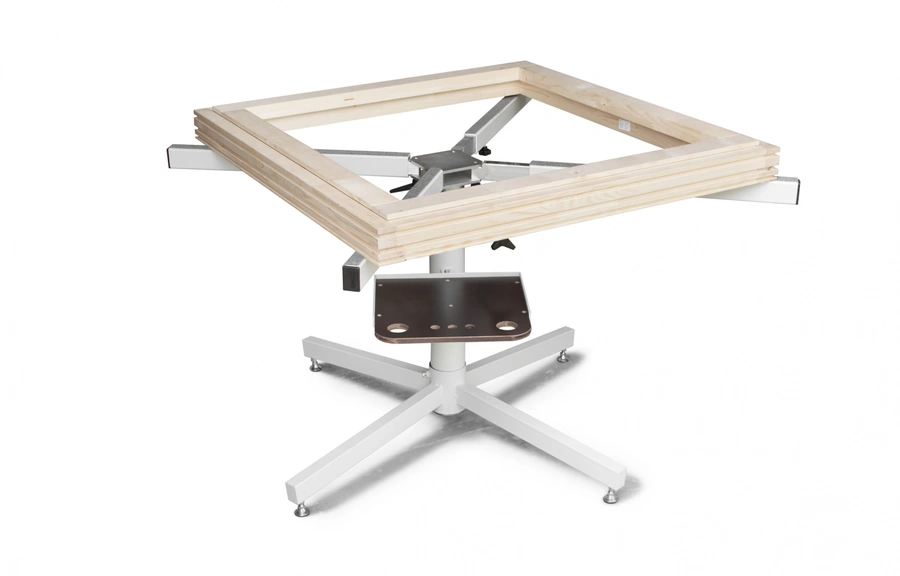

Assembly Table — Height Adjustment
Yes
Allows the working height to be set per operator or per task, reducing fatigue during gasket, hardware, or glazing application.
Assembly Table — Radial Arm Extension
Up to 1.2 m
Assembly Table — Tool Shelf
Yes

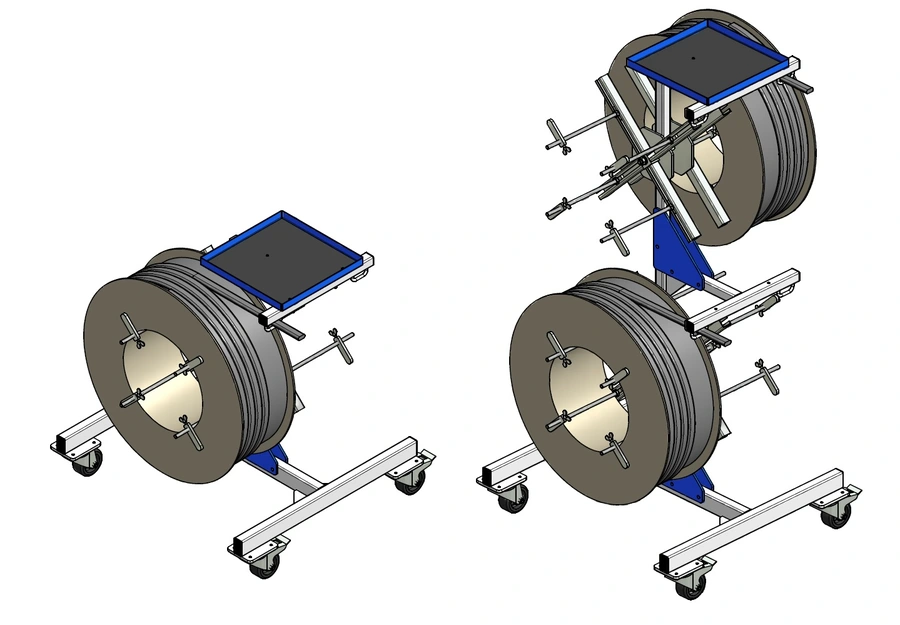

Stand Gasket — Compatible Models
G2 (2-coil) and G4 (4-coil)
Stand Gasket — Storage Shelf
Yes

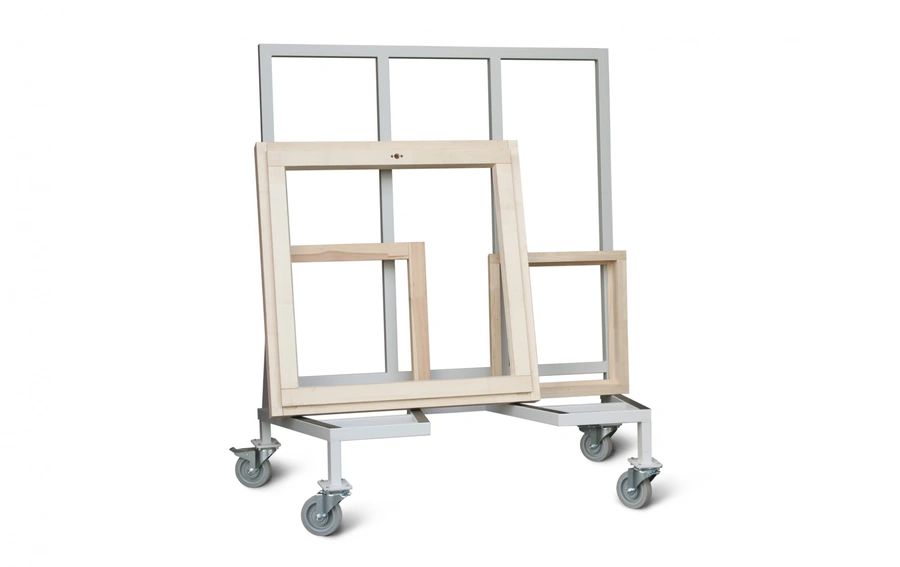

TR10 — Primary Use
Storage and transport of assembled frames or finished windows
TR10 — Loading Area
800 × 1,600 mm
TR10 — Height
1,600 mm
TR10 — Stackable When Empty
Yes

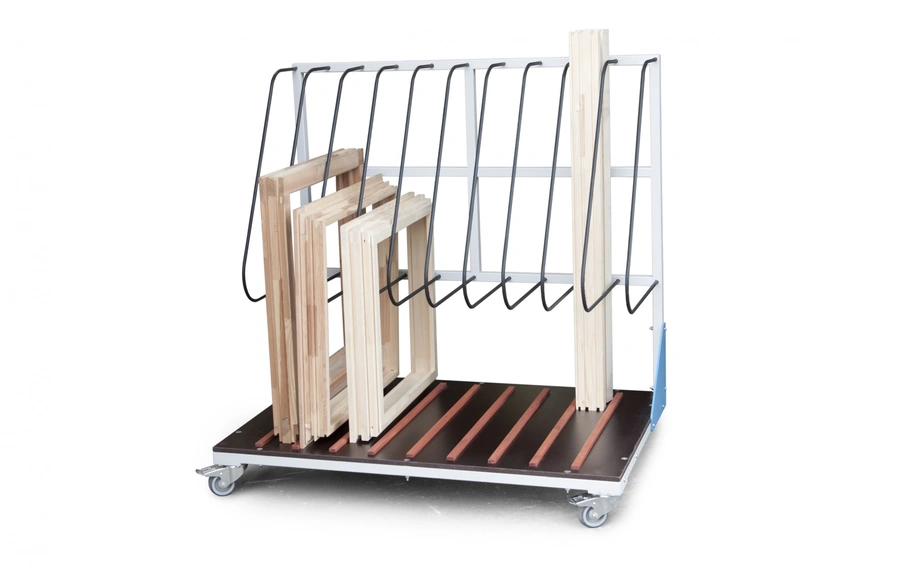

TR20 — Primary Use
Dedicated sections for raw timber ready for processing or complete window frames
The sectioned design keeps raw and finished stock separated, which is useful in a shared production and finishing area.
TR20 — Loading Area
800 × 1,200 mm
TR20 — Height
1,200 mm

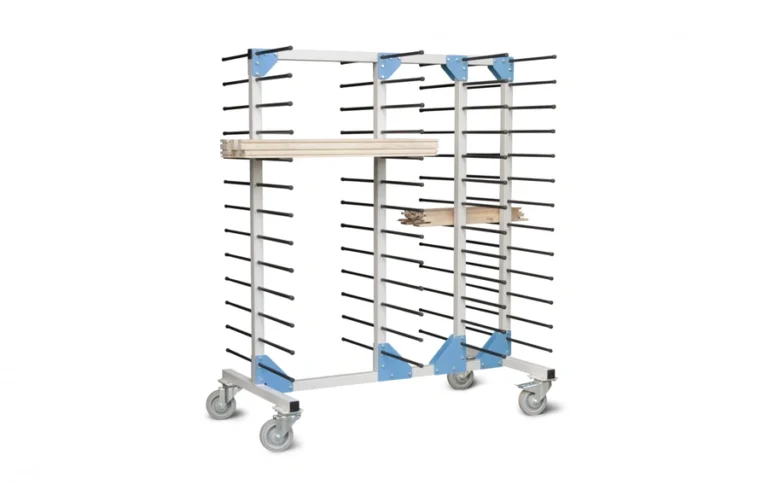

TR30 — Primary Use
Horizontal storage of machined parts, components drying after impregnation, sanding parts, or pre-gluing staging
TR30 — Loading Area
800 × 1,600 mm
TR30 — Height
1,800 mm
Dimensions — Assembly Table
Contact IWM for current specification
Weight — All Items
Contact IWM for current specification
Load Capacity — Trolleys
Contact IWM for current specification
Material / Finish
Contact IWM for current specification
Get expert advice

Is this the right
machine for you?

Choose the Soukup Assembling Equipment & Trolleys if...

  • Your workshop produces windows or frames and components currently sit in undefined staging areas between operations
  • You need a dedicated, consistent way to move frames through impregnation, drying, assembly, and glazing without improvising with general-purpose trolleys
  • Floor space is limited and you need equipment that stacks or nests when not in use
  • You want assembly, gasket fitting, and transport equipment that is designed to work together as a coordinated system rather than sourced piecemeal

Consider an alternate model if...

  • Your primary need is surface coating or finishing — the IWM Wood Finishing Spray Booth With Extractor is likely the more relevant starting point
  • Your workshop handles bulk timber treatment rather than assembled frames — the IWM Impregnation & Basic Coating Bath addresses that earlier stage of the process
  • You are looking for heavy-duty industrial racking or pallet-based logistics rather than workshop-scale joinery trolleys — talk to us and we can advise on whether this range is the right fit
