CNC Control | FAGOR CNC 8055i/A, 3-axis | |
Router Motors | Two × 5HP high-speed router motors | |
Speed Controllers | Two adjustable speed drive controllers | Independent speed control on each motor allows feed and cut rates to be tuned to the timber species or profile being worked. |
Standard Programmes | Standard Box Step with Round Nose; Blunt Nose with Rake or Straight Riser; Open Pan Rout with Partial or No Riser; Temporary Stair Rout; Centre Open Horse Cut | These programmes are built in as standard — the FAGOR control also retains full capability for editing existing programmes and entering new ones using standard CNC codes, so bespoke or non-standard profiles can be added; discuss requirements with us before ordering. |

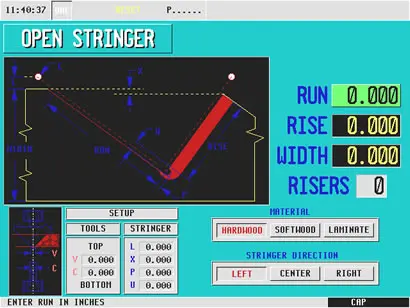

Open Stringer Cut | Yes — with 45° riser relief | The 45° relief cut is machined automatically as part of the stringer programme, removing a secondary hand operation. |
Board Advance | Automatic — every cycle | Automatic advance removes the need for an operator to manually index material between cuts, supporting consistent output with a single operative. |
Tool Shank Capacity | ¾" | |
Max Material Width | 12" | |
Material Thickness | ¾" – 3½" | |
Max Feed Speed | 300 FPM | |
Dust Extraction Outlet | 8" | An 8" outlet requires a suitably sized extraction branch — confirm your existing extraction system can accommodate this diameter before installation. |
Communication Ports | RS232, USB, Network | Network connectivity supports remote programme loading and supervision, which is useful if programmes are prepared off-machine by a CAD or estimating team. |
Networking / Remote Supervision | Yes | |
Machine Dimensions | 94" L × 60" D × 64" H (approx. 2,388 mm × 1,524 mm × 1,626 mm) | Allow additional clearance beyond the machine footprint for full-length stringer or board infeed and outfeed — the working envelope will extend considerably beyond the machine body. |
Machine Weight | Approx. 4,200 lbs (approx. 1,905 kg) | Floor loading must be verified before installation. |
Construction | Heavy-duty — cast iron arms and walls | |
Power Requirement | Three-phase — confirm supply requirements with IWM before installation | Phase, voltage, and amperage draw must be confirmed for your specific machine build before electrical supply is arranged — do not proceed without this information. |
