Woodworking Machines > Wall Saws > IWM 2.1m x 4.1m Vertical Wall Saw
IWM 2.1m x 4.1m vertical panel saw with red horizontal rails and a motorised vertical cutting carriage

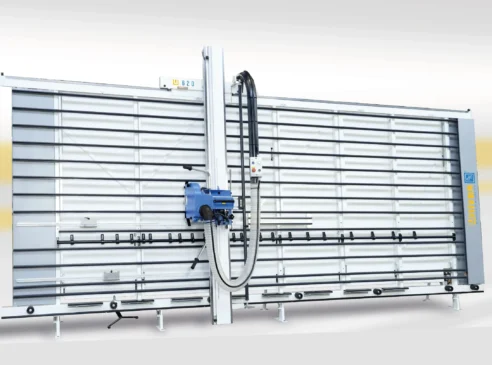

IWM vertical wall saw with blue cutting head mounted on a tall aluminium frame, measuring 2.1m x 4.1m
  • IWM 2.1m x 4.1m vertical panel saw with red horizontal rails and a motorised vertical cutting carriage
  • IWM vertical wall saw with blue cutting head mounted on a tall aluminium frame, measuring 2.1m x 4.1m

IWM 2.1m x 4.1m Vertical Wall Saw

IWM
A full-format vertical wall saw for workshops that need accurate, repeatable rip and cross cuts on sheet material without the floor space demands of a horizontal beam saw. Scoring unit, pneumatic clamping, and digital readout are all included as standard.

Typically chosen by

  • Joinery and shopfitting workshops regularly processing full sheets of MDF, plywood, or melamine who need consistent, square cuts with a scoring unit to protect face veneers
  • Smaller workshops where floor space is at a premium — the vertical format means sheets are handled upright rather than laid flat, freeing up the shop floor
  • Operations that need repeatable rip and cross cuts on sheet material without committing to a large horizontal beam saw investment
Get expert advice
Book a free demo

Key specification considerations

Cutting Height
2100mm
Accommodates a full standard sheet height, so 2440mm boards will need to be checked against actual usable cut capacity before specifying.
Cutting Length
4100mm
Covers standard 2440mm and 3050mm sheet lengths with room to spare, making this suitable for most common panel sizes without repositioning.
Cutting Depth (with scorer)
42mm
The scoring unit reduces maximum cut depth slightly — worth confirming this is adequate if you regularly cut thicker engineered panels or laminated boards.
Main Saw Motor
3kW
This is a three-phase motor — confirm your workshop has a suitable three-phase supply before ordering to avoid additional infrastructure costs.
See full specifications
SpecificationValueNotes
Cutting Height
2100mm
Accommodates a full standard sheet height, so 2440mm boards will need to be checked against actual usable cut capacity before specifying.
Cutting Length
4100mm
Cutting Depth (without scoring unit)
55mm
Cutting Depth (with scoring unit)
42mm
The scoring unit reduces maximum cut depth — confirm this suits your typical material thickness before specifying.
Main Saw Motor
3kW
Confirm phase and amperage requirements with your electrician before ordering.
Scoring Unit
Included
The scoring unit makes a shallow pre-cut on the underside of the panel before the main blade passes through, preventing breakout on faced or veneered boards.
Automatic Shifting Frame
Yes
Automates the repositioning of the saw carriage between cuts, reducing operator effort and improving repeatability on production runs.
Digital Readout to Vertical Cut
Yes
Mid Shelf Cutting Fence
Included
Pneumatic Clamping of Workpiece
Yes — compressed air required
Pneumatic clamping holds the sheet firmly during cutting without operator intervention, but this machine requires a compressed air supply on-site — confirm this is available before ordering.
Pneumatic Locking of Beam
Yes
Transport Roller for Sheets
Included
Assists loading and positioning of heavy sheet material, reducing the physical effort and risk of handling full boards single-handed.
Angle Cutting Device
Included
Machine Dimensions (L x H x W)
5100mm x 3100mm x 1350mm
At over 3m tall and 5.1m long, confirm your workshop has sufficient ceiling height and clear wall space — additional clearance will be needed for sheet loading and extraction ducting.
Certification
Full CE
Weight
Contact IWM to confirm
Ask IWM for the confirmed figure — if the machine is above approximately 500kg, floor loading capacity should be checked with your structural engineer before installation.
Electrical Supply
Three-phase — voltage and amperage: contact IWM to confirm
A three-phase supply is required; confirm the exact voltage and amperage with IWM so your electrician can verify your workshop supply is adequate before ordering.
Compressed Air Requirement
Required — minimum pressure and flow rate: contact IWM to confirm
A compressed air supply is needed for the pneumatic clamping and beam locking — ask IWM for the minimum pressure and flow rate before ordering so you can check your existing supply or size a new one.
Noise Level
Contact IWM to confirm
If the confirmed level exceeds 80 dB(A), acoustic treatment or hearing protection will be required under UK COSHH and noise at work regulations.
Extraction Connection
Contact IWM to confirm
Confirm the port diameter and required extraction volume with IWM to ensure your existing dust extraction unit can be connected and meet the machine's dust removal needs.
Get expert advice

Is this the right
machine for you?

Choose the IWM 2.1m x 4.1m Vertical Wall Saw if...

  • You regularly process full-size sheet material (MDF, plywood, melamine) and need accurate, repeatable rip and cross cuts with a built-in scoring unit to protect face finishes
  • Your workshop is space-constrained and a horizontal beam saw is not practical — the vertical format keeps the footprint manageable while still handling large panels
  • You need pneumatic clamping to hold sheets securely during cutting and already have, or can easily install, a compressed air supply
  • You cut a variety of panel thicknesses and angles and need digital readout, automatic frame shifting, and an angle cutting device as standard

Consider an alternate model if...

  • Your typical sheet sizes are smaller or your cutting height requirement is well below 2100mm — talk to IWM about whether a smaller-format vertical wall saw would meet your needs at lower cost
  • You do not have a compressed air supply and installing one is not practical — this machine cannot operate its clamping system without it
  • You need to cut material thicker than 42mm regularly with the scorer engaged — confirm maximum cut depth suits your stock before specifying
  • Your volume is high enough to justify a horizontal beam saw, which may offer faster cycle times and greater automation for production environments — speak to IWM about suitable horizontal beam saw alternatives
