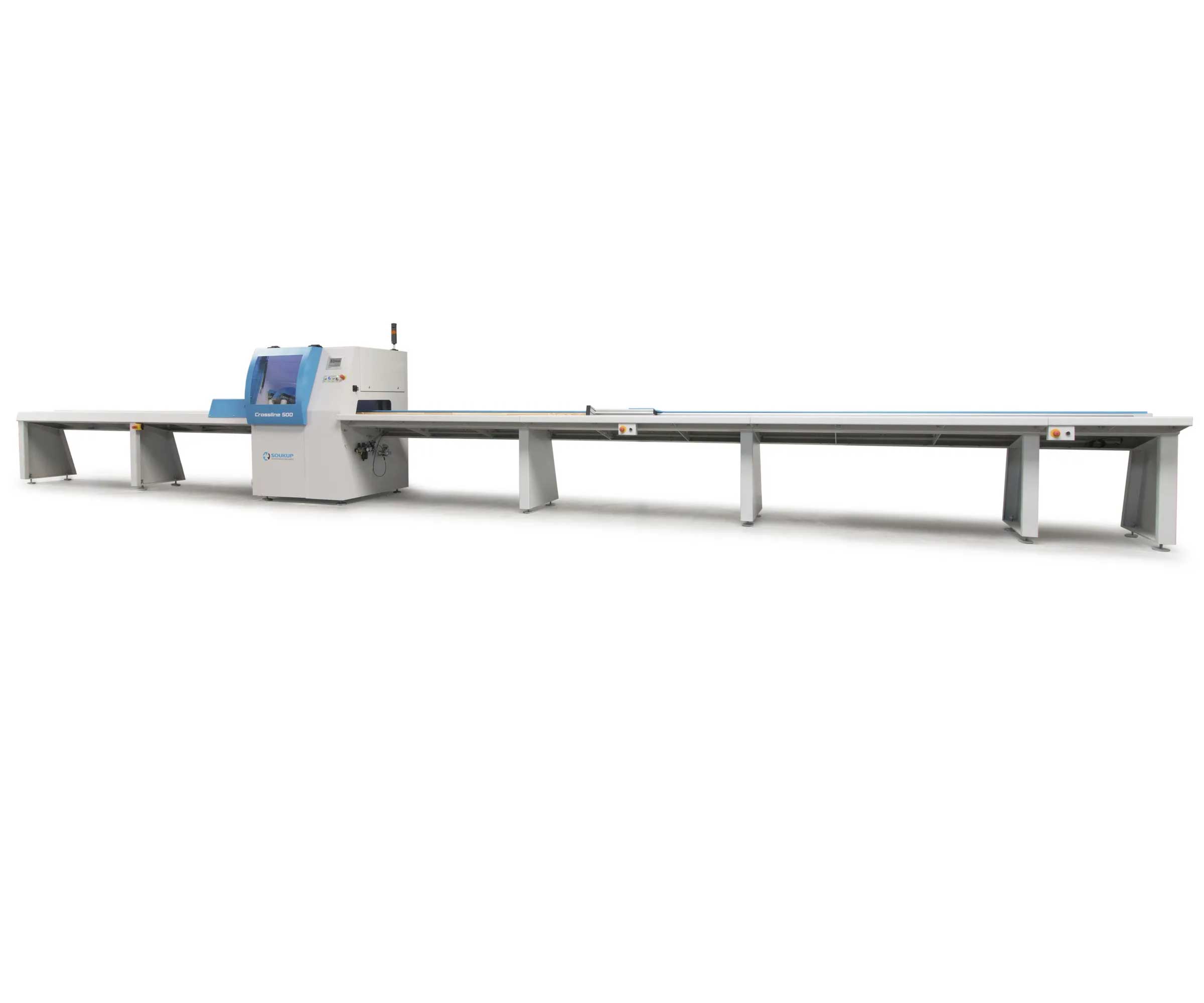

Soukup Crossline 500 cross cut saw with extended grey infeed and outfeed roller tables on a white background

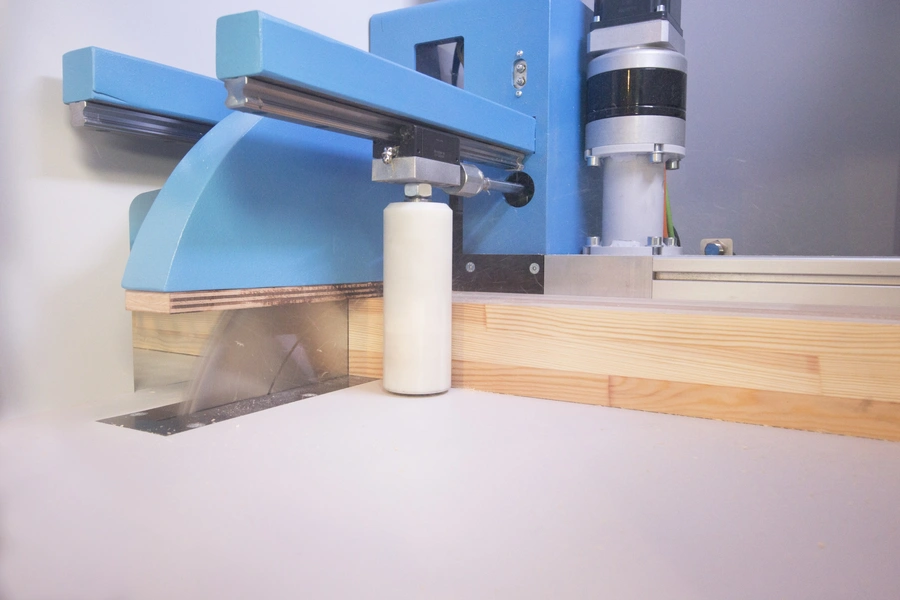

Soukup Crossline 500 cross cut saw cutting through a pine timber plank with dust visible beneath the blue blade guard

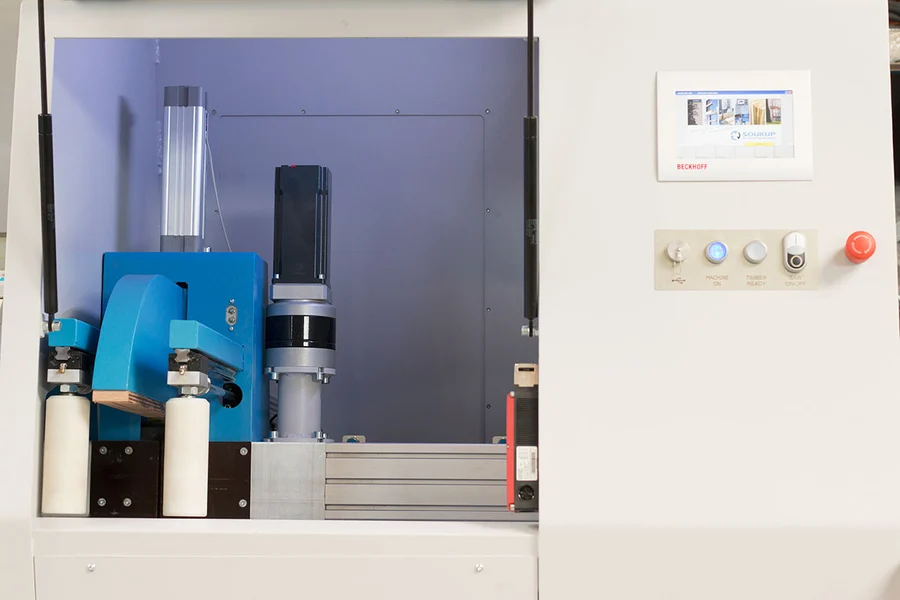

Soukup Crossline 500 cross cut saw with blue cutting head, pneumatic cylinder, and Beckhoff control panel with emergency stop button

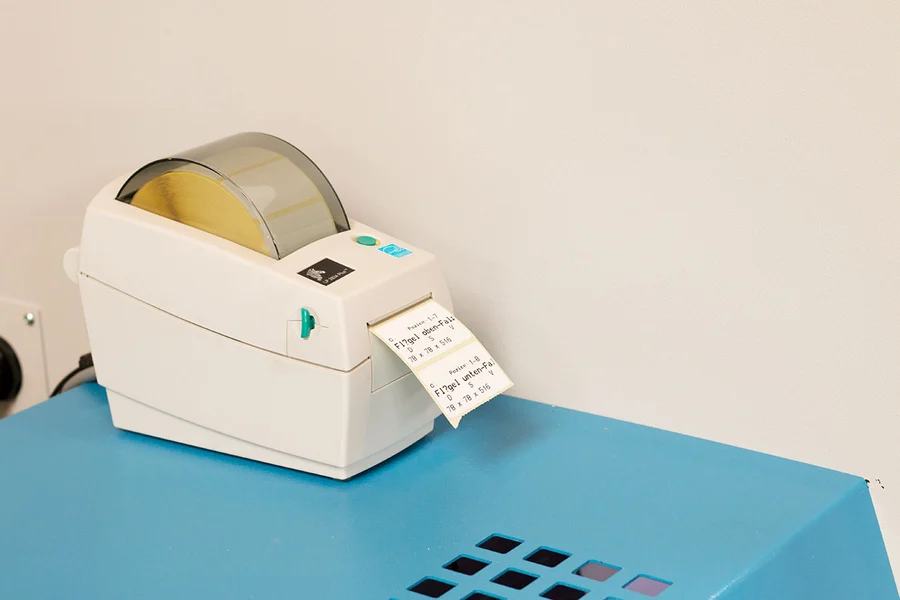

A white Zebra thermal label printer sitting on a blue metal surface, printing two small labels with text and numbers.

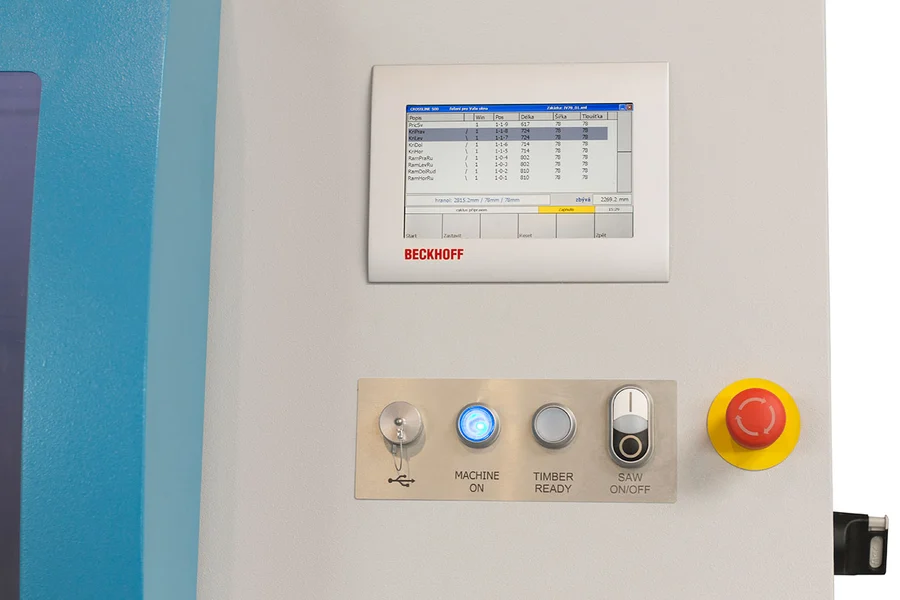

Beckhoff touchscreen control panel on a Soukup Crossline 500 cross cut saw with Machine On, Timber Ready, Saw On/Off buttons and emergency stop

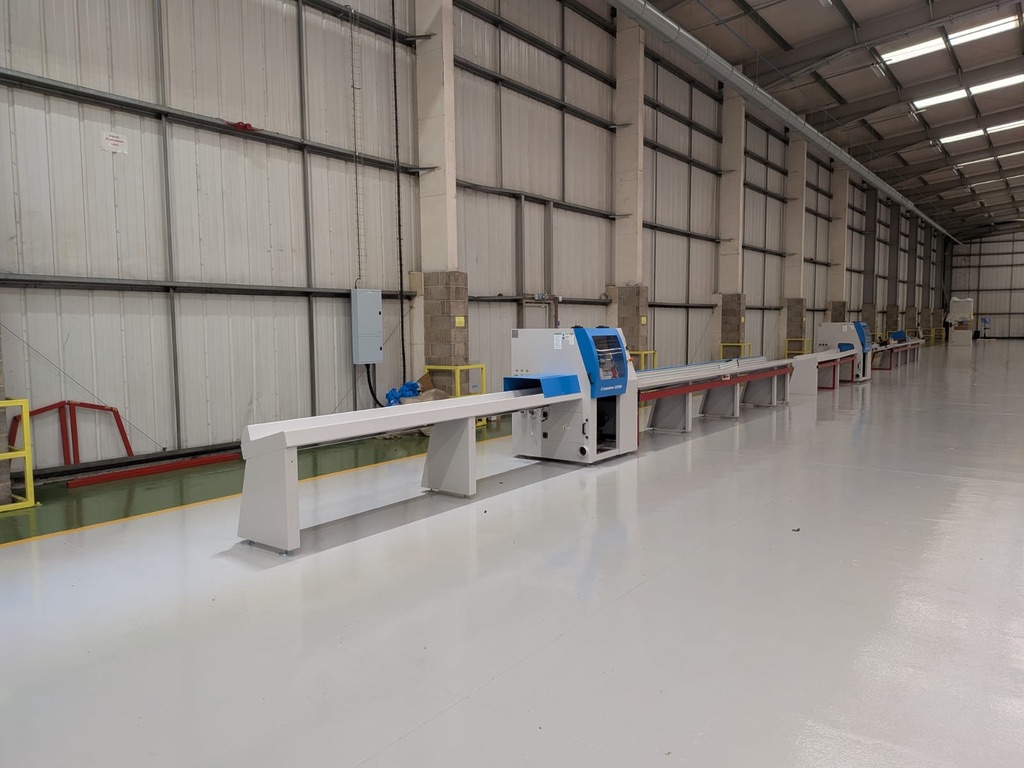

Soukup Crossline 500 cross cut saw mounted on a long white feed rail inside a large industrial warehouse

Soukup Crossline 500 Cross Cut Saw

Soukup · Timber Window & Door

A servo-fed automatic crosscut saw for workshops running structured cutting lists against long structural timber and joinery sections. Square cuts to 0.5 mm/m tolerance, with bed options up to 12,000 mm for the longest frame components.

Typically chosen by

Timber frame fabricators who need to process long structural sections to a cutting list without manual measuring at the saw
Joinery and construction workshops stepping up from manual crosscutting to automate repetitive length cutting across high daily volumes
Off-site construction operations where cutting tolerance and throughput consistency directly affect downstream assembly accuracy

Get expert advice

Book a free demo

Before you commit

See it run on your own material

Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.

Book a free demo

Key specification considerations

Saw Blade Diameter

500 mm

Max. Material Length

6,000 mm (options: 9,000 mm / 12,000 mm)

The extended length options will significantly increase the machine footprint beyond the standard 11,960 mm — confirm available floor run before specifying.

Max. Cutting Height

120 mm

This is the maximum single-pass depth; confirm your largest section sizes fall within this before proceeding.

Tolerance

±0.5 mm/m

For timber frame and off-site construction, this level of dimensional consistency supports accurate panel and structural assembly without remedial trimming.

See full specifications

Specification	Value	Notes
Saw Blade Diameter	500 mm
Cut Angle	90°	Square crosscutting only — if angled cuts are required, consider the Soukup Crossline 650 Automatic Angle Cross Cut Saw instead.
Material Length	6,000 mm (9,000 mm / 12,000 mm available)	The extended length options will significantly increase the machine footprint beyond the standard 11,960 mm — confirm available floor run before specifying.
Max. Cutting Height	120 mm	Confirm your largest section sizes fall within this before proceeding.
Feed Speed	0–60 m/min
Saw Blade Motor	7.5 kW (10 HP)	Three-phase motor — confirm three-phase supply is available at your premises before ordering.
Tolerance	±0.5 mm/m
Noise Level	60 dB	60 dB is broadly comparable to a normal conversation; sustained daily operation still warrants appropriate hearing protection in line with your noise risk assessment.
Dust Extraction	100 mm + 120 mm ports	Two separate extraction connections are required — confirm your extraction system has sufficient capacity and the correct spigot sizes for both ports.
Touch Screen Control	10" touch screen
Machine Length	11,960 mm	This is the machine body only — additional clearance for infeed, outfeed, and operator access will be needed. Verify your building length against the full installed run.
Machine Width	1,210 mm
Machine Height	1,590 mm
Machine Weight	1,750 kg	At 1,750 kg, floor loading should be checked before installation — particularly relevant for mezzanine levels or older workshop floors.
Electrical Supply	3 Phase, 400 V, 50 Hz, Neutral & Earth, 32 A	Confirm three-phase 400 V supply with Neutral and Earth is available and that your distribution board can support a 32 A draw before ordering.

Get expert advice

Is this the right
machine for you?

Choose the Soukup Crossline 500 Cross Cut Saw if...

Your operation runs structured cutting lists and you need the saw to measure and position material automatically rather than relying on operators to do so
You are cutting structural timber, house components, or long joinery sections up to 6,000 mm (or longer with extended bed options) at consistent daily volumes
All your crosscuts are square at 90° — you do not need the machine to cut compound or angled sections
You want automated loading via servo-driven feed but are comfortable with a static unloading table rather than a fully automated outfeed system

Consider an alternate model if...

You need angled or compound crosscuts as well as square cuts — the Soukup Crossline 650 Automatic Angle Cross Cut Saw handles cuts up to ±70° and is the more appropriate specification for that workflow
Your operation is a smaller joinery or fabrication shop with lower daily volume where a manual or semi-automatic crosscut saw would be a more proportionate fit — talk to us about right-sizing before committing to this level of automation
You are specifying within a wider timber frame panel production line — the Soukup Framer Profi or Framer Modular Assembly Table may need to be considered alongside this machine to ensure the full workflow is compatible
Your building or floor run cannot accommodate 12 metres or more of installed length including feed and clearance — confirm your available space with us before proceeding
