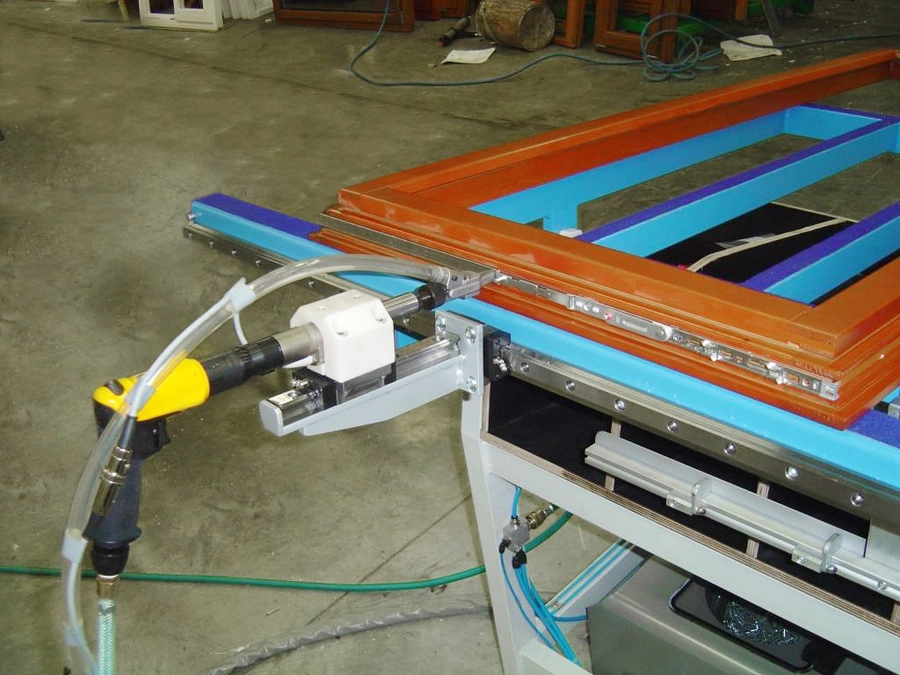

Soukup Assembling Table KS 2400 with orange and blue frame sections, pneumatic tool attachment, and hose on workshop floor

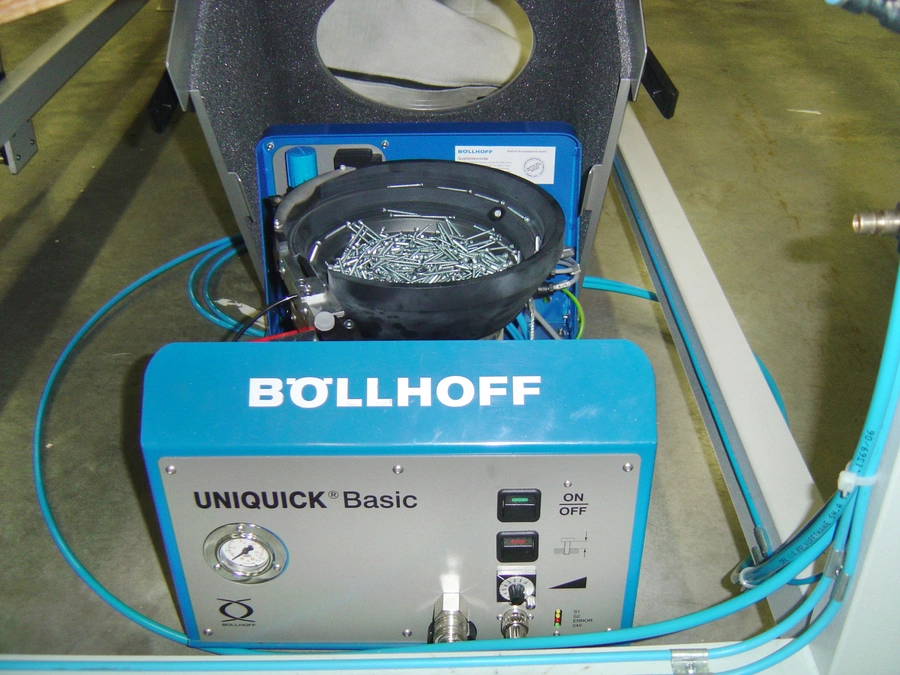

Böllhoff UNIQUICK Basic fastener feeding unit with a bowl filled with metal rivets and blue pneumatic tubing

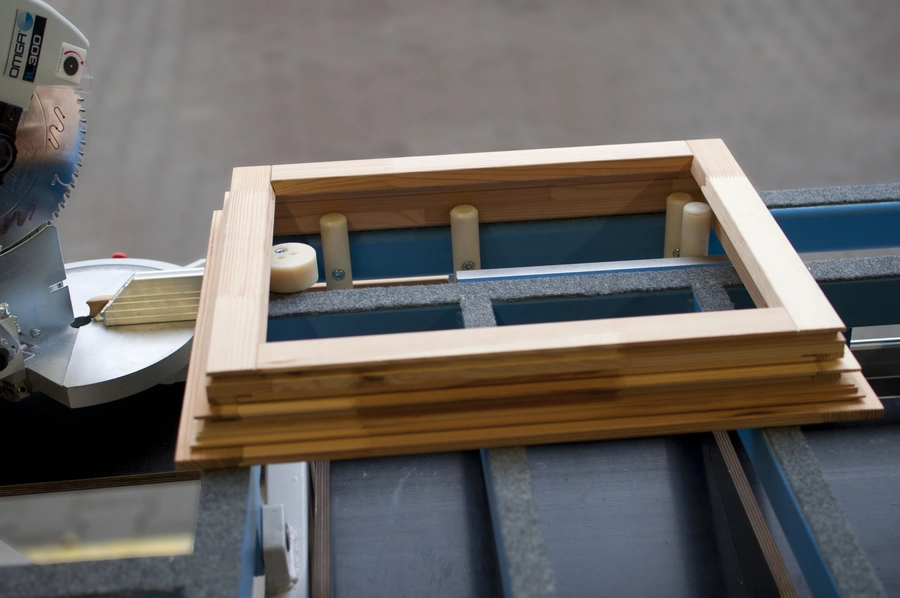

A pine wood frame assembled on a Soukup Assembling Table KS 2400, with clamping pins and a mitre saw visible nearby.

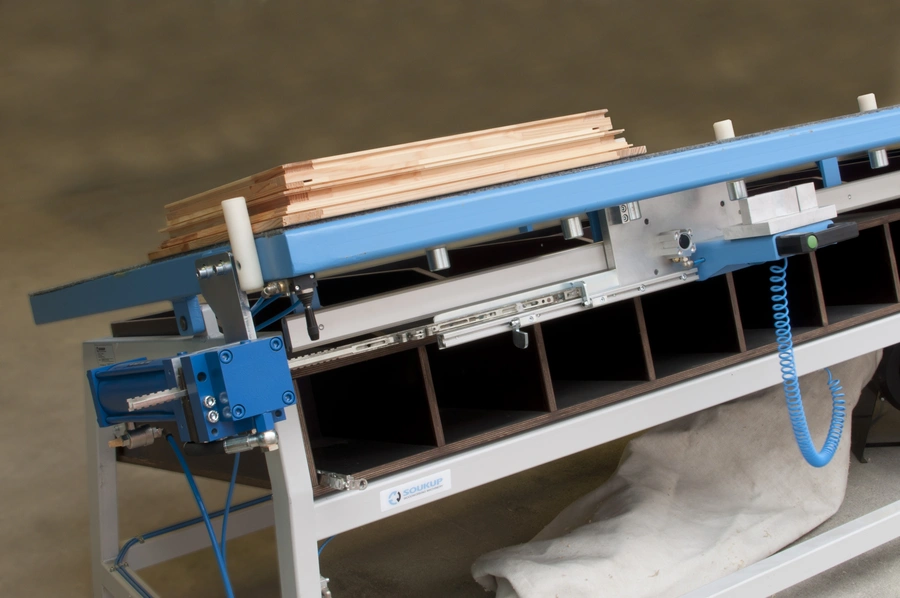

Soukup Assembling Table KS 2400 with blue frame, timber strips stacked on top, pneumatic fittings and segmented storage below

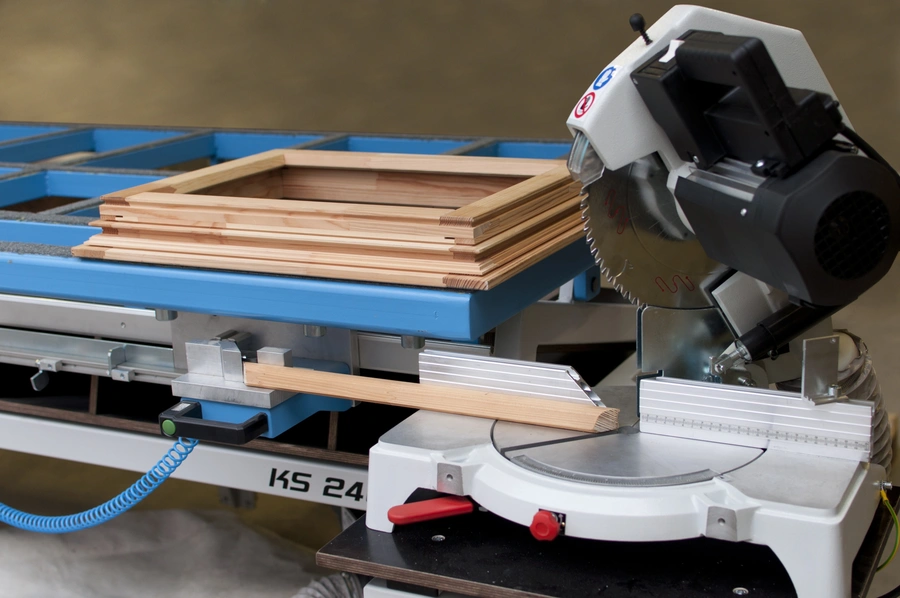

Soukup KS 2400 assembling table with a mitre saw and timber door frame components on a blue work surface
  • Soukup Assembling Table KS 2400 with blue grid surface, dust extraction bag, mitre saw attachment, and yellow foot pedal
  • Soukup Assembling Table KS 2400 with orange and blue frame sections, pneumatic tool attachment, and hose on workshop floor
  • Böllhoff UNIQUICK Basic fastener feeding unit with a bowl filled with metal rivets and blue pneumatic tubing
  • A pine wood frame assembled on a Soukup Assembling Table KS 2400, with clamping pins and a mitre saw visible nearby.
  • Soukup Assembling Table KS 2400 with blue frame, timber strips stacked on top, pneumatic fittings and segmented storage below
  • Soukup KS 2400 assembling table with a mitre saw and timber door frame components on a blue work surface

    Soukup Assembling Table KS 2400

    Soukup
    A dedicated station for fitting whole-frame window hardware and cutting glazing beads to length — keeping both operations in one organised, ergonomic workspace. Suits joinery shops where accuracy, repeatability, and operator comfort during hardware fitting all matter.

    Typically chosen by

    • Joinery shops producing timber windows who need a single, organised station for hardware fitting and bead cutting
    • Workshops looking to reduce measuring errors when cutting glazing beads to length
    • Businesses where ergonomics matter — the tilting surface reduces operator fatigue during repetitive hardware fitting tasks
    Get expert advice
    Book a free demo

    Key specification considerations

    Bead Cutting
    Precision mitre saw with dust extraction
    Integrated dust extraction keeps the work surface clean, which matters when fitting hardware directly on the same station.
    Clamping
    Pneumatic perimeter clamps
    Pneumatic clamping holds the window securely around its perimeter, freeing both hands for hardware fitting.
    Measurement System
    Integral slide — outside frame and inner light measurement
    The slide transfers the inner light measurement directly to a moveable stop on the mitre saw, reducing the chance of transcription errors between measuring and cutting.
    Working Surface
    Tiltable table top
    Tilting the surface towards the operator makes screwdriver access to fittings more comfortable, particularly during long production runs.
    See full specifications
    SpecificationValueNotes
    Bead Cutting Tool
    Hand-operated mitre saw with dust extraction and collection
    Clamping System
    Pneumatic scissors / perimeter clamps
    Measurement — Outside Frame
    Integral slide, left-hand side of table
    Measurement — Inner Light
    Integral slide with transferable stop, right-hand side of table
    The stop transfers directly to the mitre saw, so the bead is cut to the measured dimension without a separate marking step.
    Working Surface
    Tiltable
    Storage
    Built-in containers for hardware and fittings
    Dimensions
    Contact IWM for confirmed footprint
    Allow additional clearance on all sides for window loading, operator movement, and extraction hose routing — speak to us and we will confirm the exact figures from Soukup before you plan your floor layout.
    Weight
    Contact IWM for confirmed figure
    Confirm with us before installation so your floor loading can be checked if required.
    Air Supply Required
    Compressed air supply required — contact IWM for pressure and flow rate
    The pneumatic clamping and scissors require a clean, dry compressed air supply; confirm the exact requirement with us before specifying your compressor or ring main.
    Electrical Supply
    Electrical connection required — contact IWM for supply details
    Confirm voltage, phase, and amperage with us before planning your workshop supply.
    Get expert advice

    Is this the right
    machine for you?

    Choose the Soukup Assembling Table KS 2400 if...

    • You are fitting hardware and cutting glazing beads as a regular, repeated part of your window production and want both operations at one station
    • Measurement accuracy when cutting beads is a current problem — the integrated slide-and-stop system removes a manual transfer step
    • Your operators are fitting hardware for long periods and would benefit from a tiltable surface to reduce fatigue
    • You want built-in storage to keep hardware and fittings organised at the point of use rather than on a separate bench

    Consider an alternate model if...

    • Your primary need is pressing and bonding window frames under load — the Soukup FP Window & Door Press is the more appropriate machine for that operation
    • You need a combined mounting and glazing station with a larger or differently configured work area — the Soukup Mounting & Glazing Stand GW 2500 may be a closer fit and is worth comparing directly
    • Your workflow requires segment-by-segment pressing rather than full-frame assembly — the Soukup Segment Press Machine handles that differently and should be discussed with us
    • You do not regularly cut glazing beads and have no need for the mitre saw element — a simpler assembly stand may be more cost-effective for your situation
