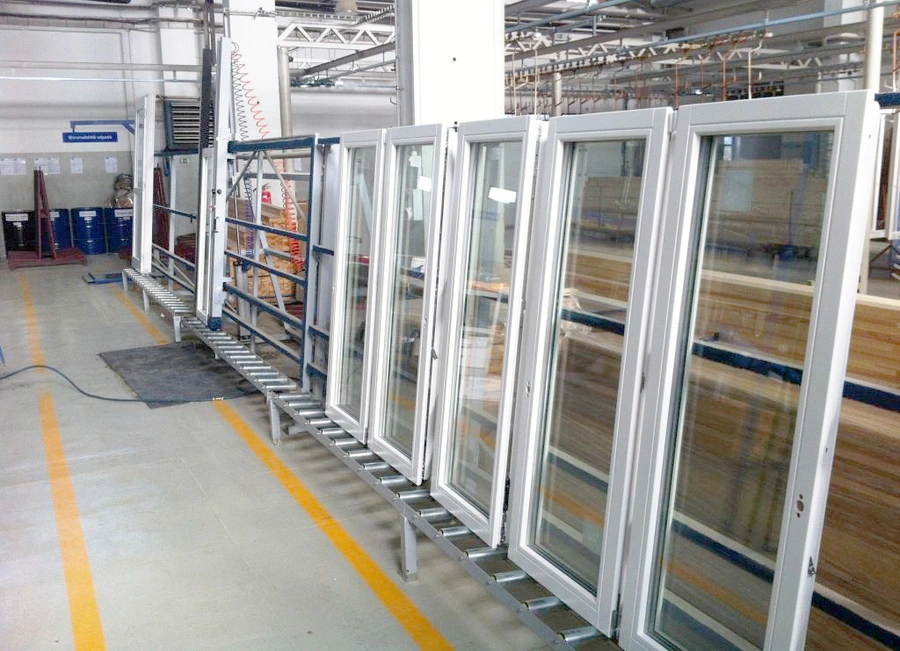

Rows of white-framed glazed window units stored upright on a metal roller stand inside a large manufacturing facility

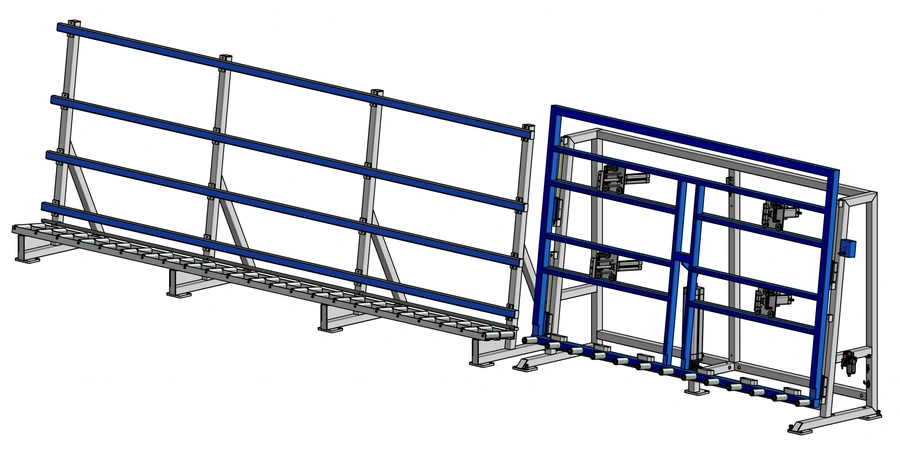

3D CAD render of the Soukup Mounting & Glazing Stand GW 2500, featuring a long inclined storage rack and upright glazing frame
  • Soukup GW 2500 mounting and glazing stand holding a brown double door frame with blue clamps
  • Rows of white-framed glazed window units stored upright on a metal roller stand inside a large manufacturing facility
  • 3D CAD render of the Soukup Mounting & Glazing Stand GW 2500, featuring a long inclined storage rack and upright glazing frame

    Soukup Mounting & Glazing Stand GW 2500

    Soukup
    A dedicated vertical station for assembling, squaring, and glazing timber windows — holding the frame at a comfortable working height so the operator can focus on accuracy rather than posture. Built for joinery workshops where consistent repeatable results at the assembly stage matter.

    Typically chosen by

    • Joinery workshops producing timber windows who need a dedicated station for assembly, squaring, and glazing
    • Fabricators looking to improve ergonomics at the assembly stage by bringing the window frame to a comfortable working height
    • Workshops feeding finished windows directly onto a storage or dispatch conveyor, where the openable fixed shoulder saves handling time
    Get expert advice
    Book a free demo

    Key specification considerations

    Height Adjustment
    Up to 500 mm
    The 500 mm of vertical travel means the stand can be set to a comfortable working height for operators of different statures, reducing back strain over a full shift.
    Clamping Method
    Pneumatic piston (movable shoulder)
    Pneumatic clamping requires a compressed air supply on site — confirm available pressure and flow rate before ordering.
    Fixed Shoulder
    Opens for conveyor unloading
    The openable fixed shoulder allows completed windows to be transferred directly to a storage conveyor without lifting, which matters in higher-throughput production lines.
    Manufacturer
    Soukup (Czech Republic)
    See full specifications
    SpecificationValueNotes
    Max Window Width
    Contact IWM to confirm for your frame sizes
    Capacity figures vary by configuration — speak to us before specifying to ensure the stand suits the range of window widths you produce.
    Max Window Height
    Contact IWM to confirm for your frame sizes
    Capacity figures vary by configuration — speak to us before specifying to ensure the stand suits the range of window heights you produce.
    Max Window Weight Capacity
    Contact IWM to confirm
    If you are regularly assembling large or heavily glazed units, confirm the weight capacity with us before ordering.
    Height Adjustment
    Up to 500 mm
    The 500 mm of vertical travel means the stand can be set to a comfortable working height for operators of different statures, reducing back strain over a full shift.
    Clamping Method
    Pneumatic piston (movable shoulder)
    Pneumatic clamping requires a compressed air supply on site — confirm available pressure and flow rate before ordering.
    Fixed Shoulder
    Openable — for conveyor unloading
    The openable fixed shoulder allows completed windows to be transferred directly to a storage conveyor without lifting, which matters in higher-throughput production lines.
    Overall Dimensions
    Contact IWM to confirm
    Allow additional floor space beyond the machine footprint for operator access on all working sides and for the full range of height adjustment travel.
    Machine Weight
    Contact IWM to confirm
    Power / Electrical Supply
    Contact IWM to confirm
    Compressed Air Requirement
    Contact IWM to confirm
    A regulated, clean compressed air supply is required for the pneumatic clamping circuit — verify your site supply meets the machine requirement before installation.
    Manufacturer
    Soukup
    Get expert advice

    Is this the right
    machine for you?

    Choose the Soukup Mounting & Glazing Stand GW 2500 if...

    • Your workflow requires a dedicated vertical stand for holding windows during assembly, glazing, and final squaring — rather than working flat on a table
    • You want to feed finished windows directly onto a storage or dispatch conveyor without manual lifting
    • Operator ergonomics at the assembly stage are a concern and you need a stand that can be raised or lowered to suit the work rather than the operator stooping to a fixed height
    • You need pneumatic clamping to hold frames consistently during adjustment without tying up an operator's hands

    Consider an alternate model if...

    • You primarily need a flat surface for frame assembly and gluing — the Soukup Assembling Table KS 2400 is better suited to that workflow
    • Your production requires pressing and squaring windows under significant controlled force rather than pneumatic holding — the Soukup FP Window & Door Press or the Soukup Segment Press Machine would be more appropriate
    • You are assembling doors as well as windows at high volume and need a press with greater clamping force and a wider working envelope — discuss the Soukup FP with us
