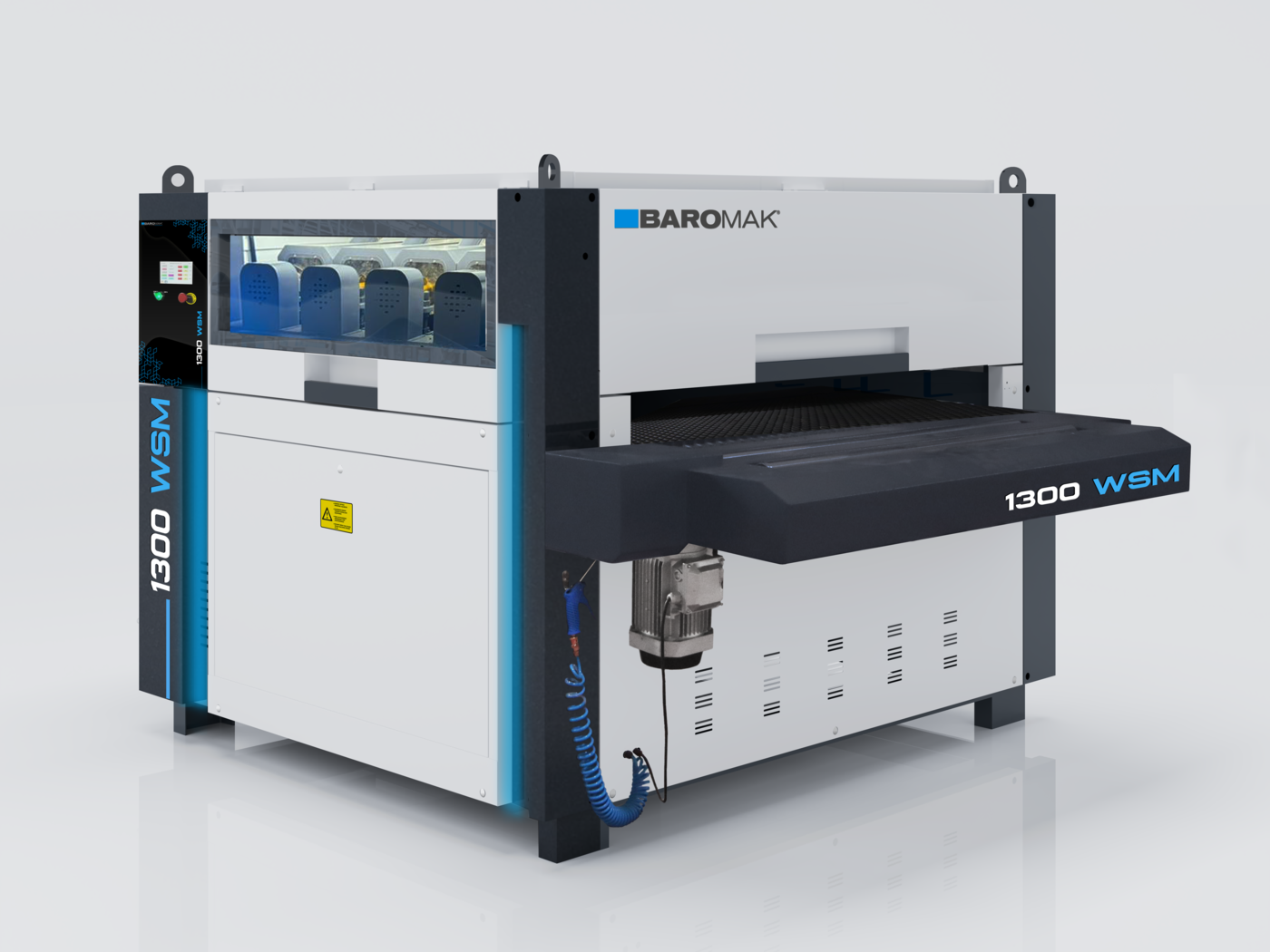

Baromak 1300 WSM industrial wide belt sanding machine with blue and grey casing, control panel, and feed conveyor table

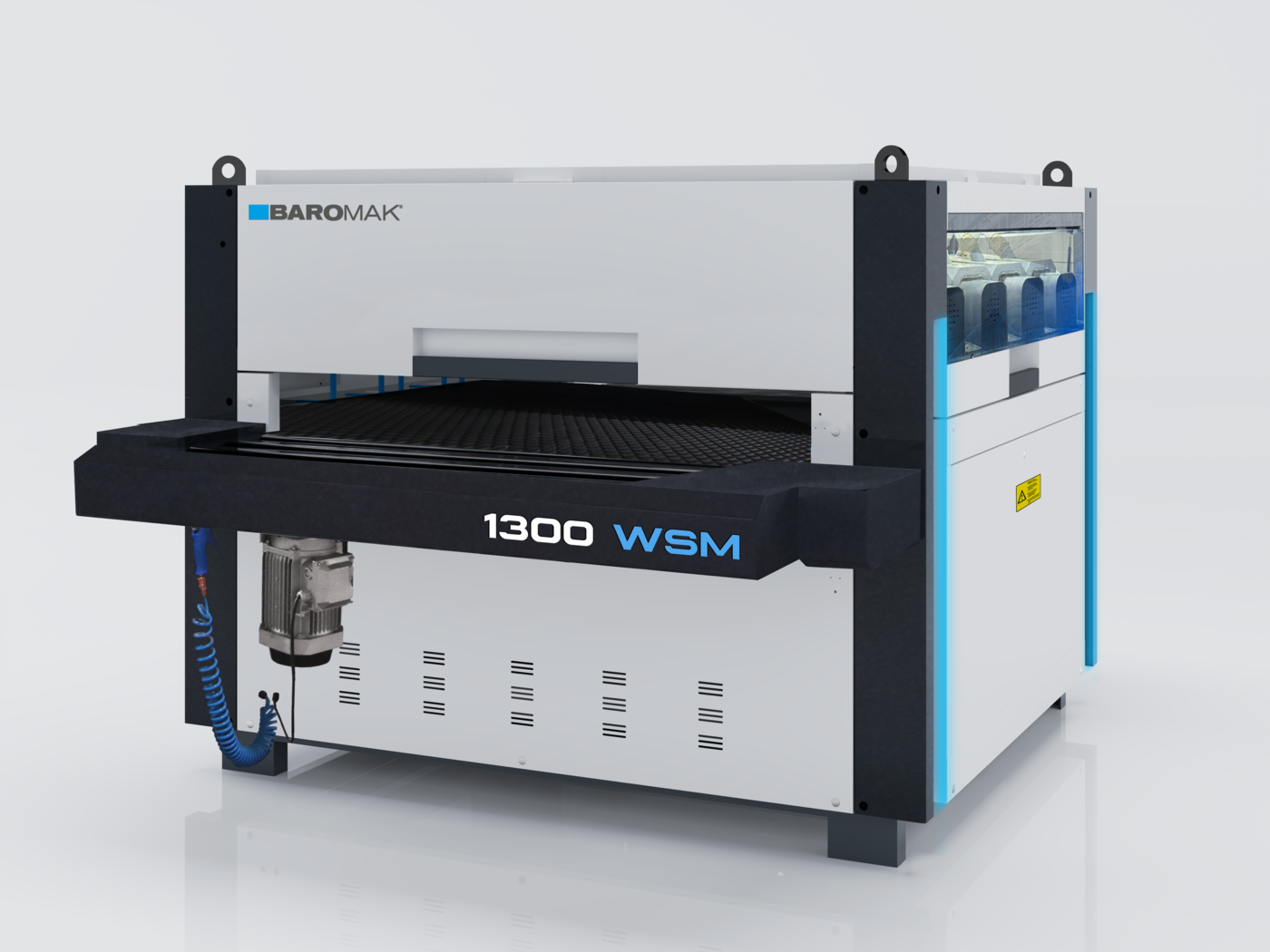

Baromak 1300 WSM industrial machine with a large flat bed, motor unit, blue coiled hose, and ventilated white casing

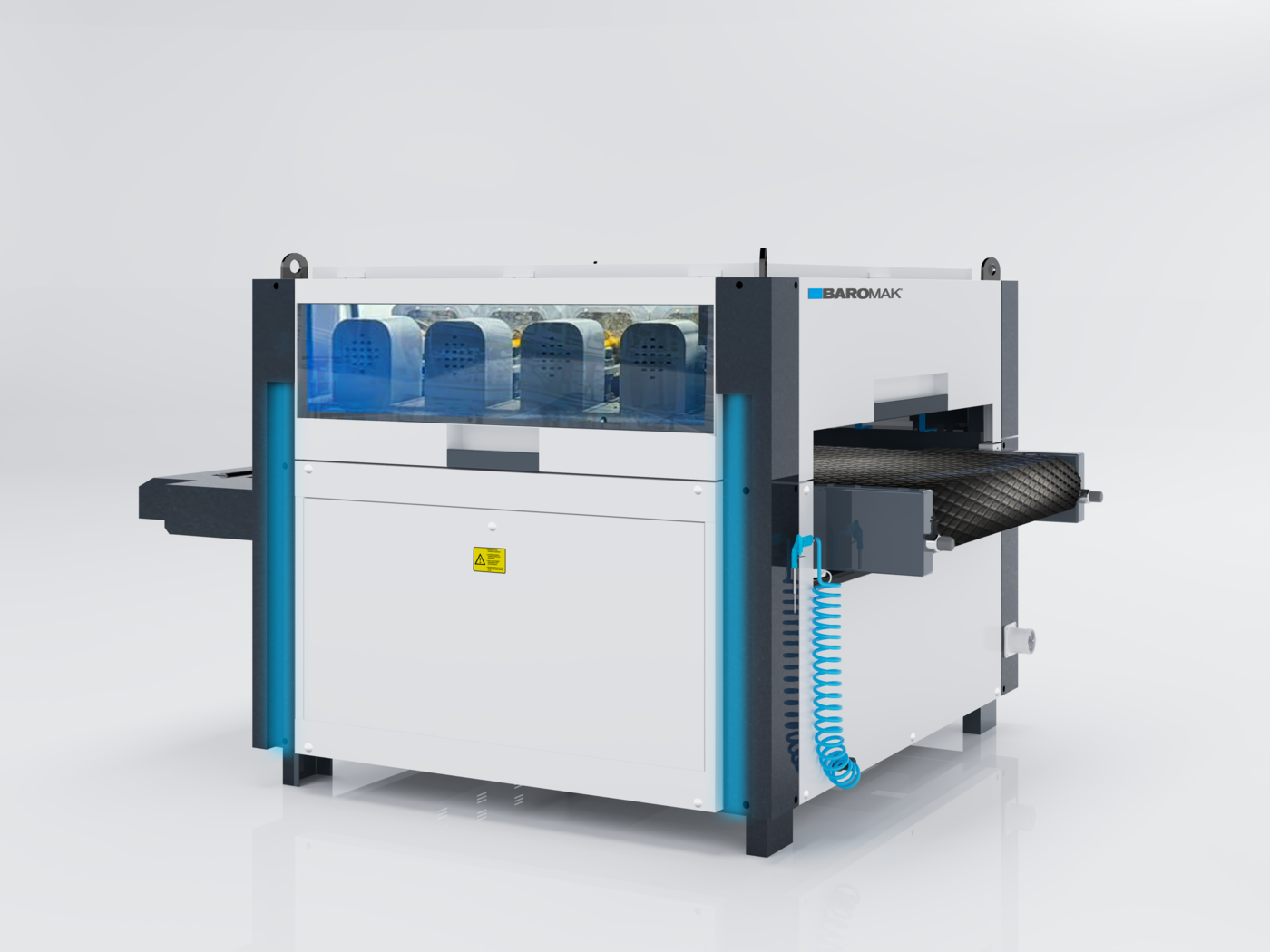

Baromak 1300 WSM industrial sanding machine with conveyor belt, blue safety columns, transparent guard panel and coiled air hose

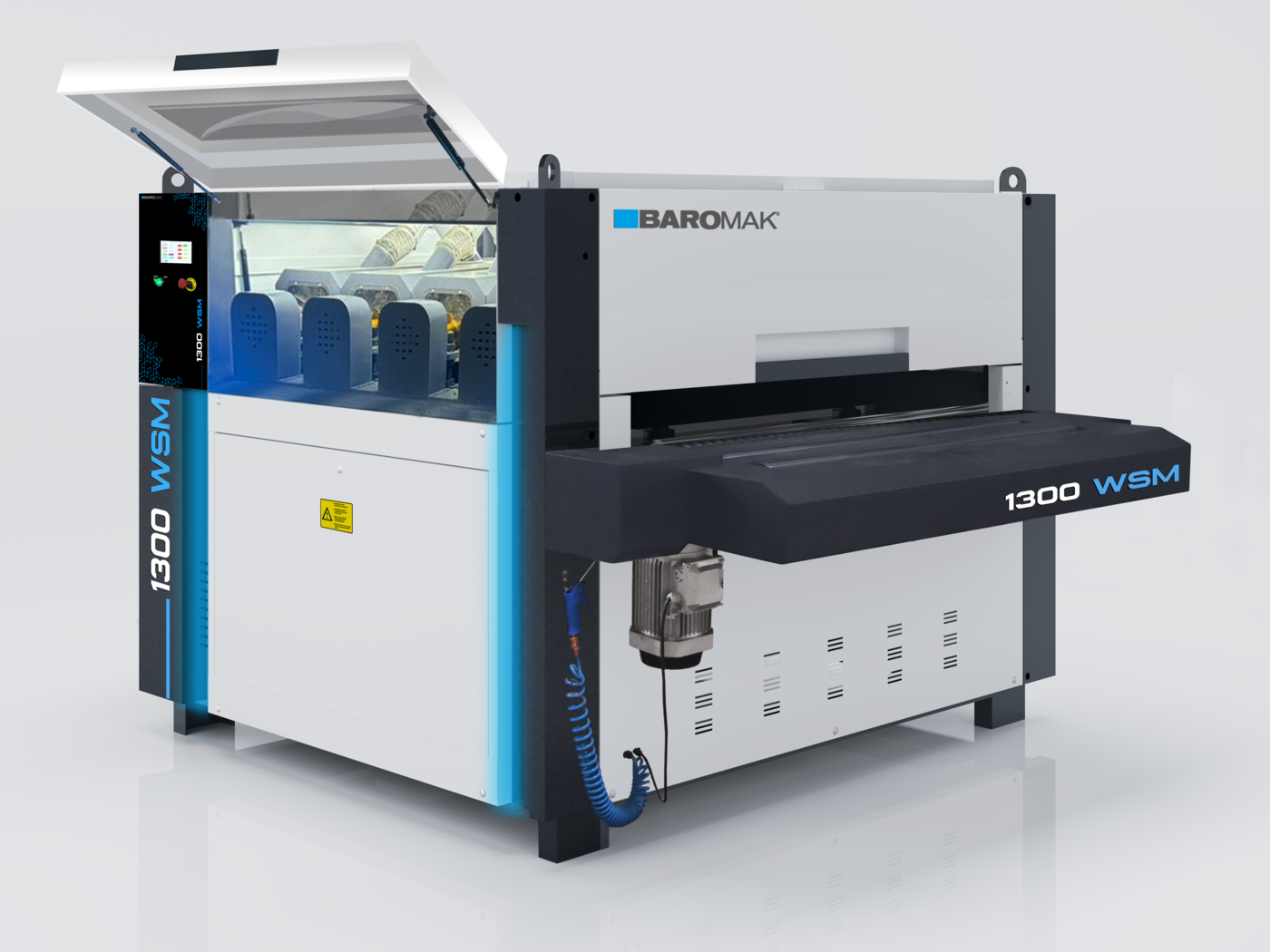

Baromak 1300 WSM industrial wide belt sanding machine with open lid, blue accent lighting, and feed conveyor table
  • Baromak 1300 WSM industrial wet sanding machine with open top cover, blue accents, and motor unit on white background
  • Baromak 1300 WSM industrial wide belt sanding machine with blue and grey casing, control panel, and feed conveyor table
  • Baromak 1300 WSM industrial machine with a large flat bed, motor unit, blue coiled hose, and ventilated white casing
  • Baromak 1300 WSM industrial sanding machine with conveyor belt, blue safety columns, transparent guard panel and coiled air hose
  • Baromak 1300 WSM industrial wide belt sanding machine with open lid, blue accent lighting, and feed conveyor table

1300 WSM

Joinery Workshop
A four-station automatic wiring machine for workshops that need consistent brushed or structured surface effects across full panel widths. Wire brushing, hard plastic wire brushing, and brush sanding in a single pass — without the handling overhead of separate operations.

Typically chosen by

  • Furniture and panel manufacturers who need consistent brushed or structured surface finishes across wide boards in a single pass
  • Joinery and flooring operations processing reclaimed or engineered timber where wire finishing or distressing is part of the product
  • Production workshops that have outgrown narrower sanding capacity and need a machine that can handle full panel widths without multiple passes
Get expert advice
Book a free demo
Before you commit

See it run on your own material

Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
Book a free demo

Key specification considerations

Working Width
Up to 1300 mm
Sanding Stations
4 (wire and brush units)
A four-station configuration allows wire and brush operations to be combined in a single pass, reducing handling time and keeping finish consistent across a production run.
Product Thickness
3 mm – 160 mm
Total Installed Power
24.05 kW
This machine requires a 400V three-phase supply — confirm available amperage with your electrician before ordering.
See full specifications
SpecificationValueNotes
Working Width
Up to 1300 mm
Product Thickness
3 mm – 160 mm
Minimum Working Length
330 mm
Maximum Working Length
No published upper limit
Baromak does not specify a maximum working length for this model — if you are processing unusually long boards, speak to us and we will confirm suitability with the manufacturer directly.
Sanding Stations
4 (wire and brush units)
A four-station configuration allows wire and brush operations to be combined in a single pass, reducing handling time and keeping finish consistent across a production run.
Max Conveyor Speed
20 m/min
Total Installed Power
24.05 kW
Confirm available amperage at your distribution board before ordering — 24kW at 400V three-phase draws significant current.
Voltage
400 V
Machine Dimensions
2235 x 2020 x 1610 mm (L x W x H)
Allow additional clearance beyond the machine footprint for infeed, outfeed, and operator movement — particularly given the 1300mm working width.
Total Machine Weight
1,893 kg
At close to 1,900kg, floor loading capacity should be assessed by a structural engineer before installation.
Get expert advice

Is this the right
machine for you?

Choose the 1300 WSM if...

  • You need to process panels or boards up to the full 1300mm width and a narrower machine would require multiple passes
  • Your finishing process specifically requires wire brushing, brush sanding, or a combination of both — not just abrasive belt sanding
  • You need a four-station machine to combine different finish operations in a single pass through the machine
  • Your throughput justifies a machine of this size and weight, and you have the three-phase supply and floor loading capacity to support it

Consider an alternate model if...

  • You only need abrasive belt sanding rather than wire or brush finishing — the MOSTRO 1300 2U or MOSTRO 1300 2U S may be more appropriate for that work
  • Your working width rarely exceeds 1000mm — the LUNA 1000 PRO offers a smaller footprint and lower installed power for narrower work
  • You need a lighter or more compact 1300mm machine — speak to us about the LUNA 1300 PRO as a comparison point
  • Your requirement is for softer or finer surface finishing rather than structured or wire-brushed textures — the MORBIDO 1300 may better suit that application
