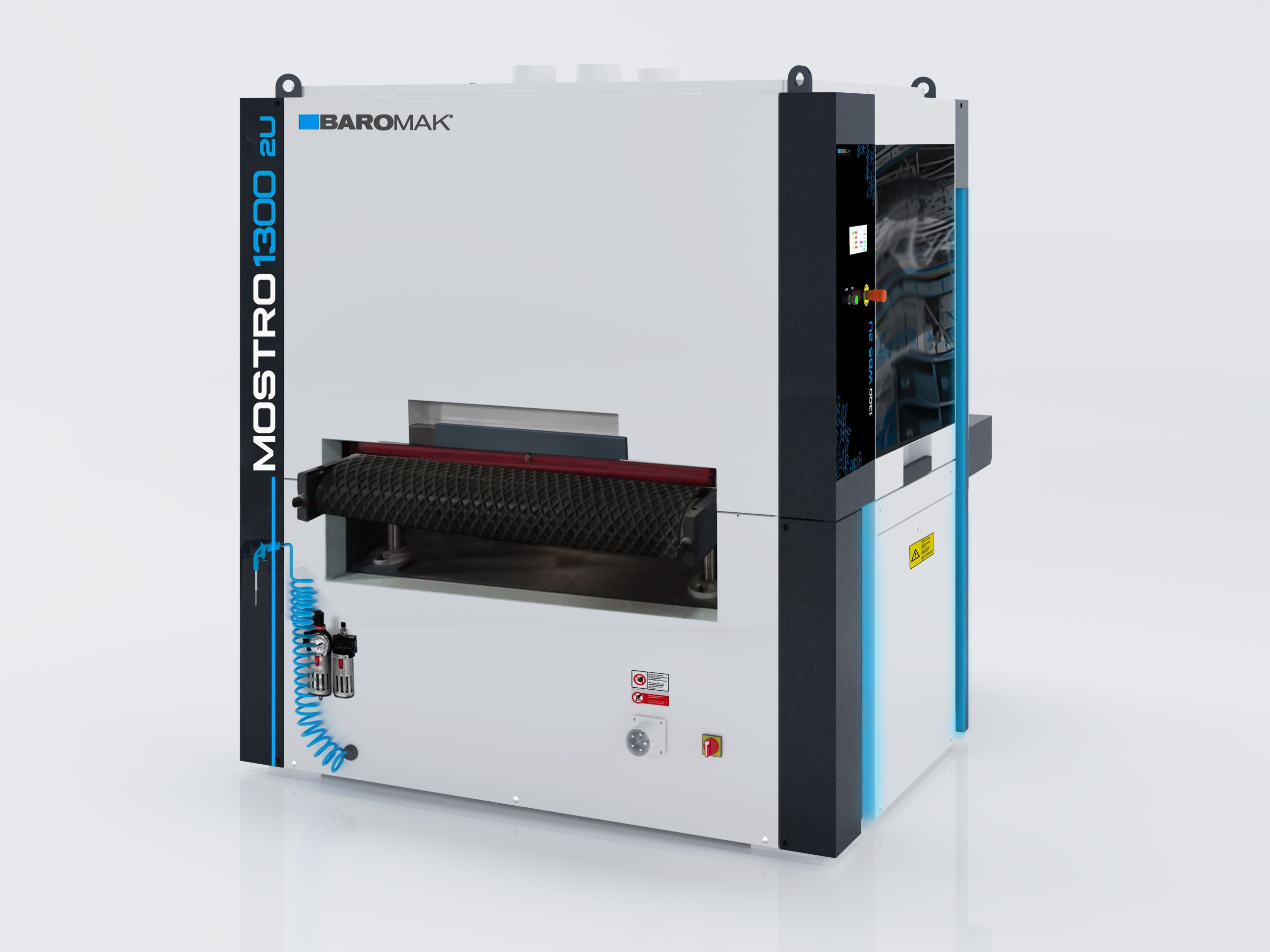

Baromak MOSTRO 1300 2U industrial wide belt sanding machine with blue coiled air hose and control panel
Baromak Mostro 1300 2U industrial wide belt sanding machine with open hood, conveyor belt, and blue accent columns
Baromak Mostro 1300 2U industrial sanding machine with feed conveyor, blue trim, and coiled air hose on a grey background
  • Baromak MOSTRO 1300 2U wide belt sanding machine with open hood, conveyor belt, and blue accent frame on white background
  • Baromak MOSTRO 1300 2U industrial wide belt sanding machine with blue coiled air hose and control panel
  • Baromak Mostro 1300 2U industrial wide belt sanding machine with open hood, conveyor belt, and blue accent columns
  • Baromak Mostro 1300 2U industrial sanding machine with feed conveyor, blue trim, and coiled air hose on a grey background

MOSTRO 1300 2U

Baromak · Joinery Workshop
A dual-station wide belt sander that takes panels and solid timber up to 1300 mm wide from rough stock to finished surface in a single pass. Built for workshops where throughput is high and stopping to reset between calibration and finishing is not an option.

Typically chosen by

  • Joinery and panel shops running wide boards or MDF components who need calibration and finishing done in one pass rather than two separate operations
  • Production environments where throughput matters — the 20 m/min conveyor speed and large working width support continuous flow rather than batch feeding
  • Workshops processing material with variable incoming thickness, where the 0.5 mm-per-pass reduction capability helps bring stock to a consistent dimension before finishing
Get expert advice
Book a free demo
Before you commit

See it run on your own material

Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
Book a free demo

Key specification considerations

Working Width
1300 mm
Sets the maximum panel or board width the machine will accept — material wider than this cannot be processed in a single pass.
Sanding Stations
2 (independently adjustable)
Independent adjustment means each head can be set for a different function — typically one for calibration, one for finishing — without resetting between passes.
Max Conveyor Speed
20 m/min
Total Installed Power
57.55 kW
This is a substantial power demand on a 400 V three-phase supply — confirm available amperage with your electrician before ordering.
See full specifications
SpecificationValueNotes
Working Width
1300 mm
Min Product Thickness
3 mm
Max Product Thickness
160 mm
Minimum Product Length
400 mm
Shorter workpieces than 400 mm cannot be fed; working length (the minimum for the machine to engage properly) starts at 450 mm.
Sanding Stations
2 (independently adjustable)
Max Thickness Reduction per Pass
0.5 mm
Sanding Roller Diameters
240 mm and 210 mm
Max Conveyor Speed
20 m/min
Total Installed Power
57.55 kW
Confirm three-phase supply capacity with your electrician prior to installation — this is a high power demand.
Voltage
400 V (three-phase)
Machine Dimensions (L × W × H)
2530 × 2100 × 2380 mm
Allow additional clearance beyond the machine footprint for infeed and outfeed runs suited to your longest workpiece, plus extraction ducting and operator access on both sides.
Total Machine Weight
3,270 kg
At this weight, floor loading capacity must be verified with a structural engineer before siting — this is well above the threshold for standard industrial slab assumptions.
Get expert advice

Is this the right
machine for you?

Choose the MOSTRO 1300 2U if...

  • You need to calibrate and finish wide panels or solid timber in a single machine pass — the two independent stations remove the need for a separate calibrating sander upstream
  • Your working width regularly reaches or exceeds 1000 mm and you cannot afford to run material through twice
  • Your production volume justifies the installed power and floor space this machine demands, and you have three-phase supply with sufficient capacity
  • Consistent thickness across large panels is critical to your downstream processes — joinery assembly, veneering, or coating, for example

Consider an alternate model if...

  • Your working width rarely exceeds 1000 mm — the LUNA 1000 PRO will cover most of your work at a smaller footprint and lower power demand
  • You need dual-station capability but also require a different head configuration — ask the IWM team about the MOSTRO 1300 2U S variant, as station configuration differs between the two models and the right choice depends on your specific finishing requirement
  • Your volume is lower or your material range is narrower — the LUNA 1300 PRO or MORBIDO 1300 may be a more proportionate fit without the power and weight overhead of this machine
  • Your workshop floor loading or electrical supply cannot accommodate this machine's demands — discuss the 1300 WSM or LUNA range as alternatives with the IWM team
