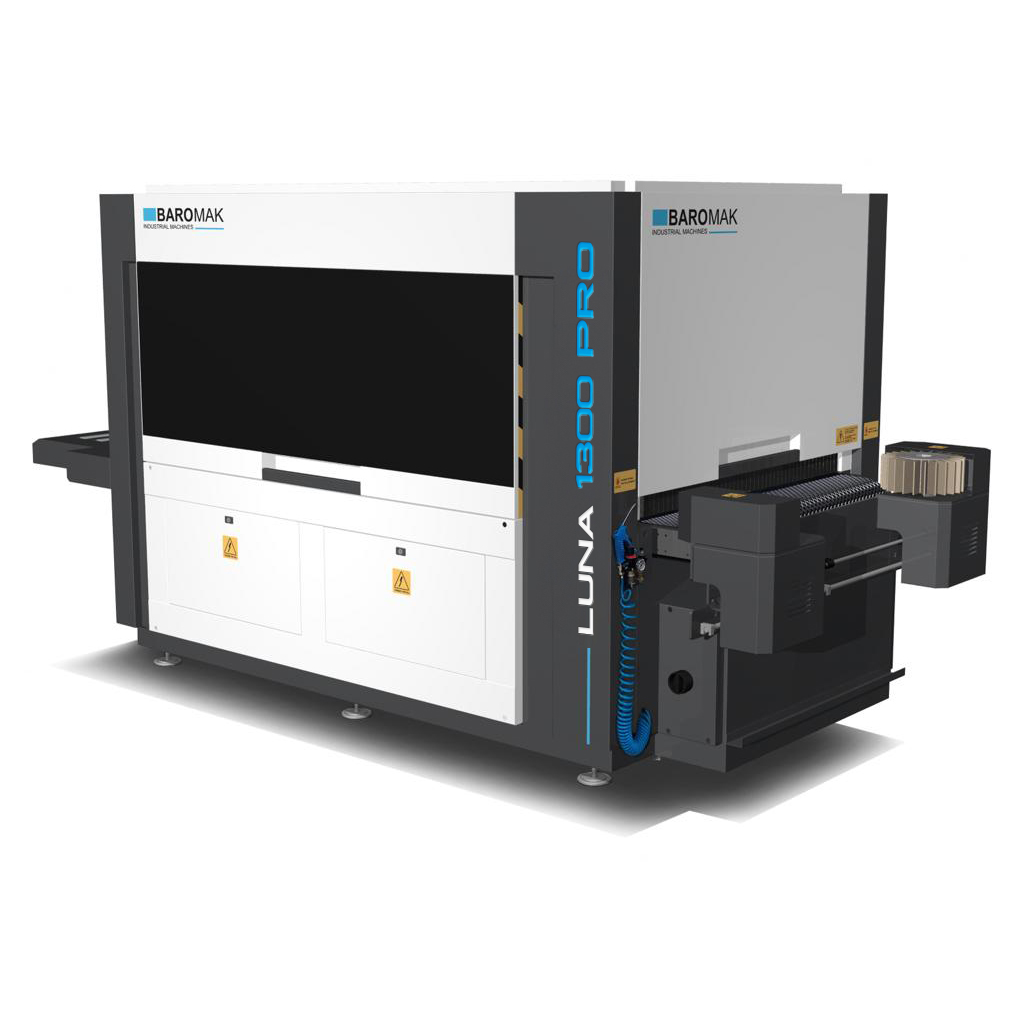

Baromak Luna 1300 Pro industrial laser cutting machine with dark grey and white enclosure on white background
  • Baromak Luna 1300 Pro industrial machine with open side panel revealing internal components and a sliding work table
  • Baromak LUNA 1300 PRO industrial laser cutting machine with enclosed work area and extended feed table
  • Baromak Luna 1300 Pro industrial machine with control panel, warning labels, and gear mechanism on white background
  • Baromak Luna 1300 Pro industrial laser cutting machine with dark grey and white enclosure on white background

LUNA 1300 PRO

Luna · Joinery Workshop
Six oscillating sanding stations across a full 1300mm working width — built for production and contract workshops that need multiple grit stages completed in a single pass, without stopping to reconfigure between runs.

Typically chosen by

  • Panel and board manufacturers running high daily volumes who need consistent surface quality without stopping to reconfigure between passes
  • Bespoke joinery and furniture workshops processing wide, solid-wood panels where multiple grit stages in a single pass saves significant time
  • Timber processors and contract finishers handling pieces of irregular or varying thickness who need a machine that can accommodate the full range without manual adjustment between jobs
Get expert advice
Book a free demo
Before you commit

See it run on your own material

Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
Book a free demo

Key specification considerations

Working Width
10–1300 mm
The full 1300mm capacity means wide panels and glued-up boards can be processed in a single pass, avoiding the re-jointing and misalignment risk of narrower machines.
Sanding Stations
6 (double-sided, oscillating)
Six stations allow multiple grit sequences to be run in one pass, removing the need to feed material through separate machines or make repeat passes.
Conveyor Speed
Up to 20 m/min
Product Thickness
10–160 mm
The 160mm upper limit accommodates thick solid-wood blanks and laminated sections that narrower-capacity machines would not accept.
See full specifications
SpecificationValueNotes
Working Width
10–1300 mm
Product Thickness
10–160 mm
Minimum Product Length
400 mm
Maximum Product Length
Unlimited
Sanding Stations
6 (double-sided, oscillating)
Maximum Conveyor Speed
20 m/min
Total Installed Power
18 kW
Confirm your site's supply capacity and protection devices with your electrician before ordering.
Electrical Supply
380 V, three phase
Three-phase supply is required — confirm availability at your premises before specifying.
Machine Dimensions (L × W × H)
4580 × 1970 × 2300 mm
Allow additional clearance beyond the footprint for infeed, outfeed, and extraction ducting — a practical floor allocation significantly larger than the machine envelope itself will be needed.
Machine Weight
3,730 kg
At this weight, floor loading capacity should be checked with a structural engineer before installation.
Manufacturer
BAROMARK
Get expert advice

Is this the right
machine for you?

Choose the LUNA 1300 PRO if...

  • You are processing wide panels or glued-up boards up to 1300mm and need the full width capacity with no compromise
  • Your throughput demands multiple grit stages in a single pass — the six sanding stations remove the need for separate finishing runs
  • You regularly work with material up to 160mm thick and need a machine that handles the full thickness range without reconfiguration
  • You are running a production or contract operation where conveyor speed and consistency matter more than compact footprint or lower capital cost

Consider an alternate model if...

  • Your working width requirement is 1000mm or below — the LUNA 1000 PRO will cover this with a smaller footprint and likely lower cost
  • You need fewer sanding stations and a simpler setup for lighter production volumes — the MORBIDO 1300 or 1300 WSM may be more appropriate starting points to discuss with us
  • You are looking at a two-station configuration as a cost-effective entry into wide-belt sanding — the MOSTRO 1300 2U or MOSTRO 1300 2U S are worth considering alongside this machine
  • Your workshop floor space or electrical supply cannot comfortably accommodate an 18 kW, 3,730 kg machine — talk to us and we can help you identify a more suitable specification
