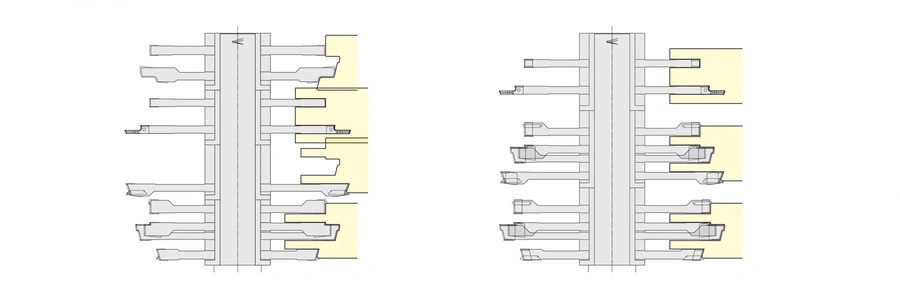

Technical cross-section drawings of a single end tenoning machine, showing two side-by-side mechanical component diagrams.

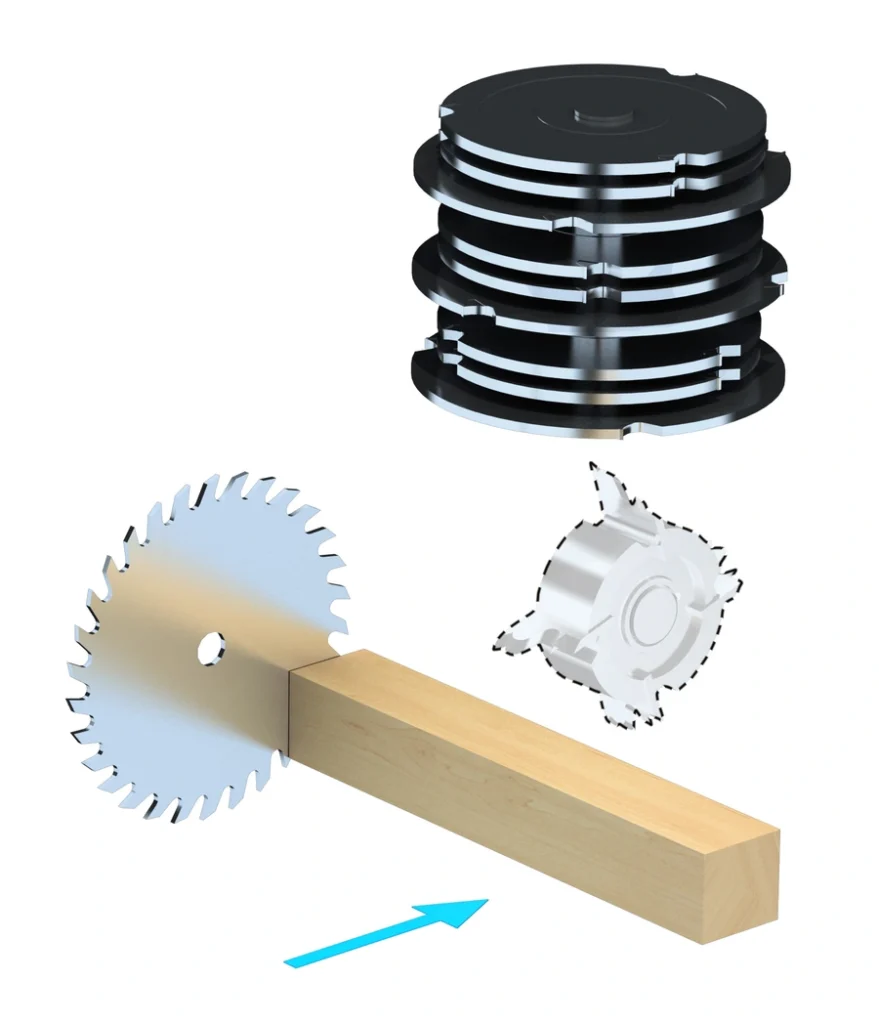

Diagram showing a stacked dado head cutter, a circular saw blade cutting a timber beam, and a small grooving blade component
Soukup Temac machine control panel with touchscreen display, red emergency stop, blue start button, and rotary dial

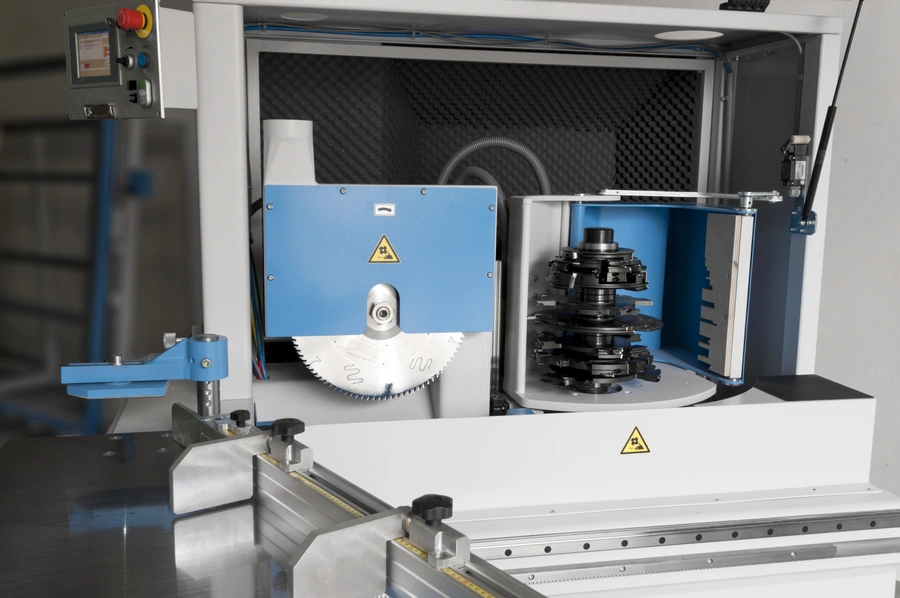

Soukup Temac automatic single end tenoning machine with circular saw blade and stacked cutter heads mounted on blue housing

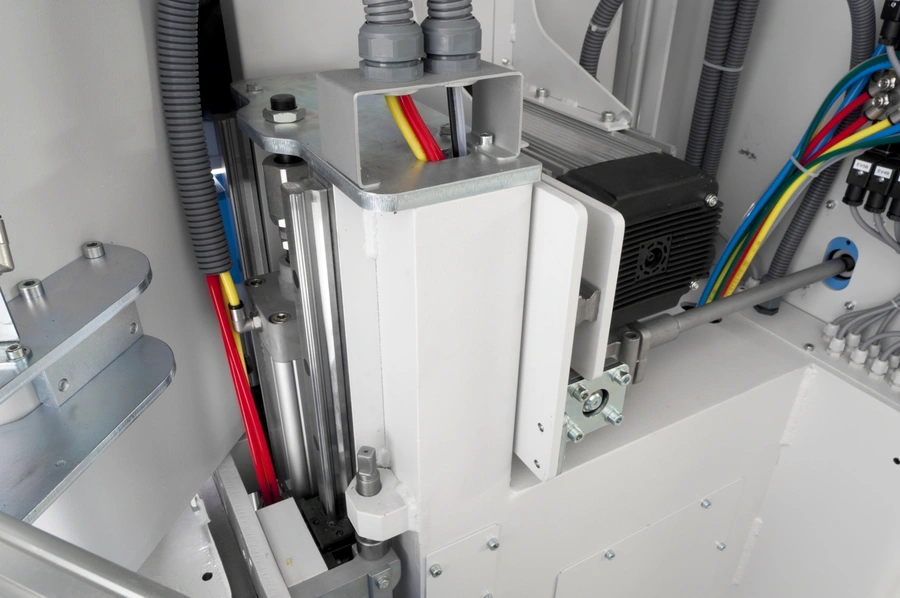

Internal machinery of a Soukup Temac automatic single end tenoning machine showing a servo motor, pneumatic cylinder, and multicoloured wiring

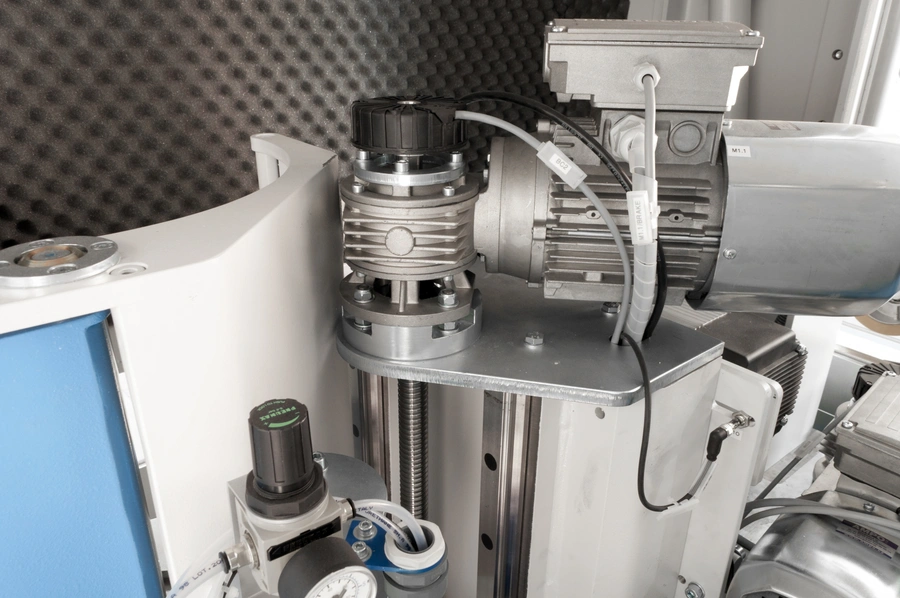

Close-up of an electric motor and spindle assembly mounted on a linear rail within a sound-dampened industrial tenoning machine enclosure
  • Soukup Temac automatic single end tenoning machine in white and blue on a white background
  • Technical cross-section drawings of a single end tenoning machine, showing two side-by-side mechanical component diagrams.
  • Diagram showing a stacked dado head cutter, a circular saw blade cutting a timber beam, and a small grooving blade component
  • Soukup Temac machine control panel with touchscreen display, red emergency stop, blue start button, and rotary dial
  • Soukup Temac automatic single end tenoning machine with circular saw blade and stacked cutter heads mounted on blue housing
  • Internal machinery of a Soukup Temac automatic single end tenoning machine showing a servo motor, pneumatic cylinder, and multicoloured wiring
  • Close-up of an electric motor and spindle assembly mounted on a linear rail within a sound-dampened industrial tenoning machine enclosure

    Soukup Temac Automatic Single End Tenoning Machine

    Soukup · Timber Window & Door
    A dedicated CNC tenoning machine for window and door frame manufacturers who need consistent, repeatable tenons across a full production shift — without the compromises of a general-purpose machining centre.

    Typically chosen by

    • Joinery manufacturers producing high volumes of window and door frames who need a dedicated tenoning station rather than a general-purpose machining centre
    • Workshops already running Soukup equipment — particularly the Wizard range — who want a complementary machine with shared tooling and operational familiarity
    • Businesses looking to remove a bottleneck at the tenoning stage by automating what is currently a manual or semi-manual process
    Get expert advice
    Book a free demo
    Before you commit

    See it run on your own material

    Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
    Book a free demo

    Key specification considerations

    Spindle Length
    620 mm
    The 620 mm spindle length accommodates a substantial tool stack, which is what allows multiple tenon profiles to be completed in a single pass rather than requiring separate operations.
    Motor Power
    7.5 kW (10 HP)
    Running at 3,000 rpm, this is a three-phase motor — confirm amperage draw with your electrical contractor before installation.
    Upper Supporting Bearing
    Yes
    The upper bearing reduces spindle deflection under load, which matters for maintaining tenon accuracy across a full production shift — particularly on harder timbers or wider sections.
    Max Workpiece Length
    2,900 mm
    Two horizontal positioning stops cover timbers up to 2,900 mm — sufficient for most standard window and door frame components without repositioning.
    See full specifications
    SpecificationValueNotes
    Spindle Length
    620 mm
    The 620 mm spindle length accommodates a substantial tool stack, which is what allows multiple tenon profiles to be completed in a single pass rather than requiring separate operations.
    Upper Supporting Bearing
    Yes
    The upper bearing reduces spindle deflection under load, which matters for maintaining tenon accuracy across a full production shift — particularly on harder timbers or wider sections.
    Processing
    Multi-faceted in single pass
    Primary Application
    Window & door frame construction
    Control System

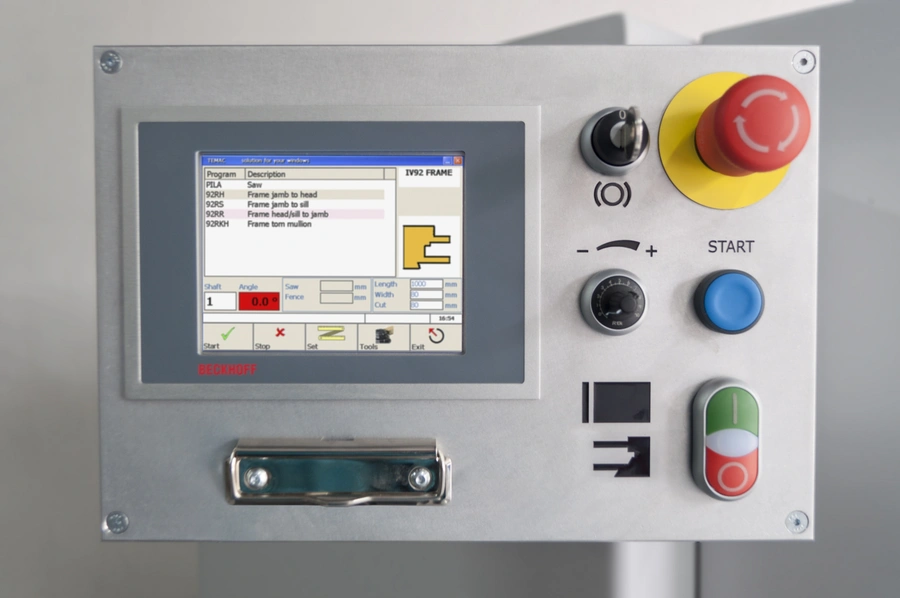

    Beckhoff industrial PC, 12" touch screen, Windows Embedded OS
    The swivelling control panel can be operated in full CNC automatic mode using downloaded job lists, or in manual mode for short runs — no programming required for the latter.
    Max Workpiece Length
    2,900 mm
    Two horizontal positioning stops with mechanical readout cover timbers up to 2,900 mm.
    Min Workpiece Dimensions
    Contact IWM to discuss your shortest component
    Spindle Speed
    3,000 rpm
    Motor Power
    7.5 kW (10 HP)
    Three-phase motor — confirm amperage draw with your electrical contractor prior to installation.
    Electrical Supply
    Contact IWM to confirm supply requirements for your site
    Max Tool Diameter
    320 mm
    Cut-Off Saw
    ø400 mm, 4 HP, CNC controlled
    Tenoning Fence Swivel
    Up to 60° (programmable)
    Dust Extraction Connection
    ø120 mm
    A single ø120 mm hood connection — size this against your extraction unit's capacity, particularly if running back-to-back with other machines on the same network.
    Machine Dimensions (L × W × H)
    Contact IWM — allow additional clearance for workpiece infeed and outfeed at both ends
    Machine Weight
    approx. 1,500 kg
    At this weight, floor loading should be checked with a structural engineer before installation, particularly on suspended or older workshop floors.
    Noise Level
    Contact IWM to discuss acoustic requirements for your site
    Get expert advice

    Is this the right
    machine for you?

    Choose the Soukup Temac Automatic Single End Tenoning Machine if...

    • Tenoning is a defined, high-volume stage in your production process and you want a machine built solely for that task rather than a multi-function centre
    • You need to complete multiple tenon faces in a single pass to maintain throughput — particularly relevant if you are currently running separate operations to achieve the same result
    • Your workshop produces window and door frames to consistent profiles and you want a dedicated machine that can be set up and repeated reliably shift after shift
    • You are already familiar with Soukup's Wizard platform and want tooling and operational consistency across your machining line

    Consider an alternate model if...

    • Your production requires full window or door processing — including profiling, morticing, and tenoning — in one machine: the Soukup Wizard 3S or Wizard 4L may be a better fit depending on your section sizes
    • You produce a wide variety of joinery components beyond frames and need more flexible CNC toolpath capability: the Soukup Versa CNC Window Machine is worth discussing
    • Your volumes are lower or your profiles change frequently, where a more flexible machining centre such as the Soukup Crafter would avoid the overhead of a dedicated tenoning station
    • You need combined tenoning and window machining in a single footprint: speak to us about the Soukup Wizard Tenon, which may combine both functions
