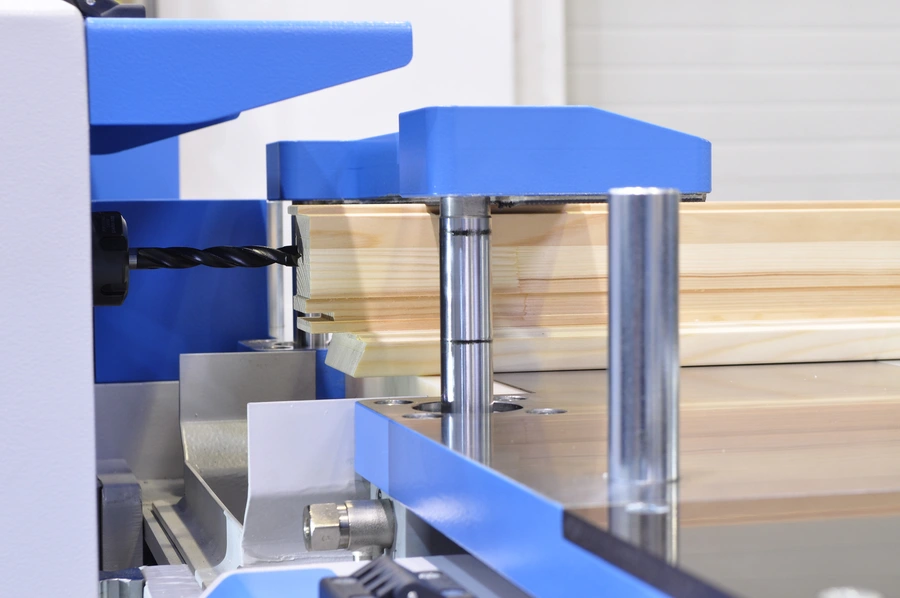

Blue Soukup Versa CNC window machine drilling into a timber window frame with a spiral drill bit

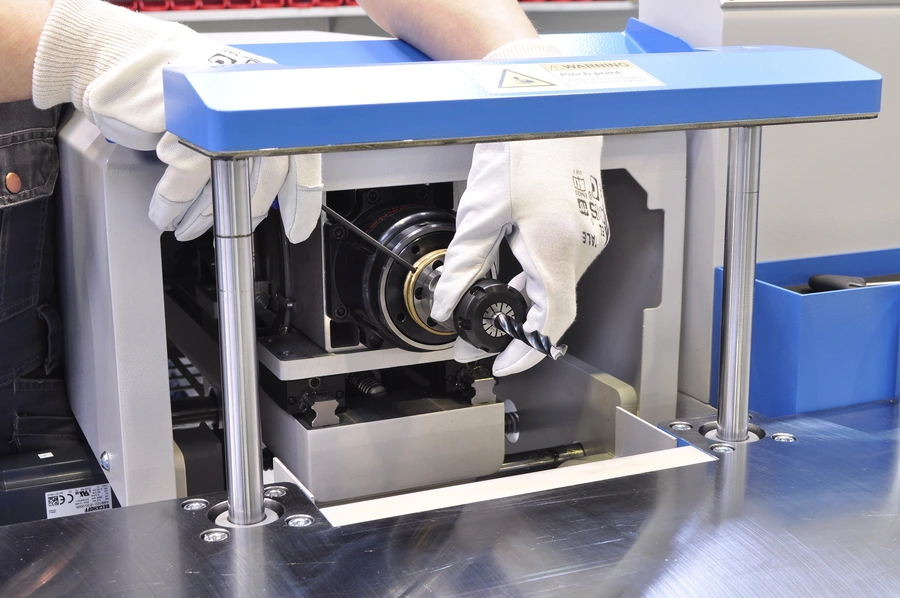

Gloved hands assembling internal mechanical components inside a blue and grey Soukup Versa CNC window machine on a workbench

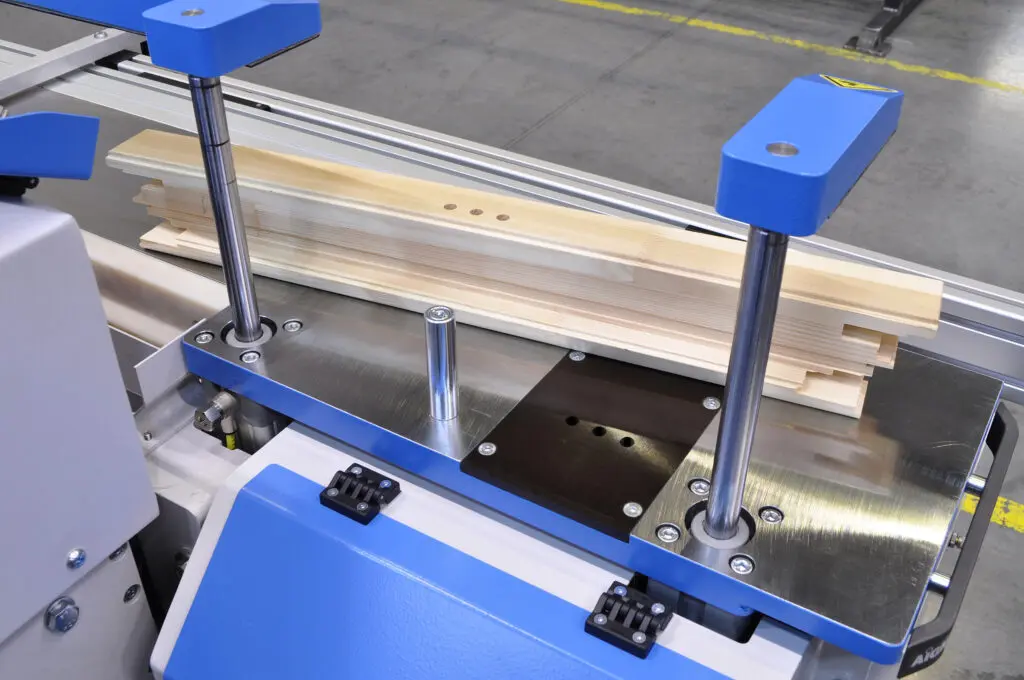

Blue and silver CNC window machine clamping a timber window frame component on a factory production line.

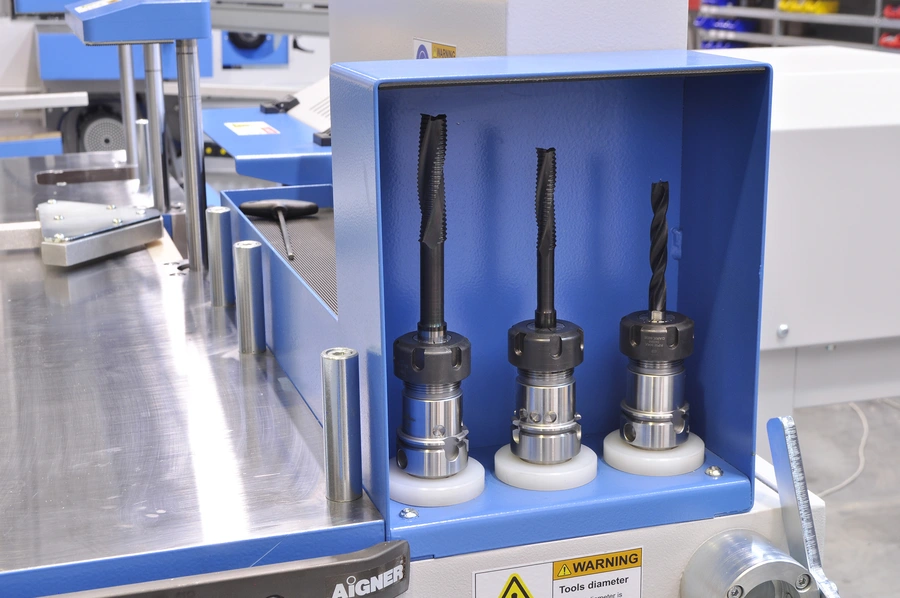

Three CNC cutting tools with collet holders stored upright in a blue tool storage compartment on a Soukup Versa machine

Soukup Versa CNC Window Machine

Soukup · Timber Window & Door

A compact CNC drilling and milling machine for timber window and door workshops that need to switch between joint types — dowels, mortises, lock pockets, hinge seats — within the same production run, without manual retooling between jobs.

Typically chosen by

Joinery workshops producing timber windows and doors across multiple styles and dimensions, where running the same profile repeatedly is less common than adapting to each order
Businesses already using WinCreator or similar window design software who want machining that reads directly from their design data rather than requiring manual re-entry
Shops stepping up from manual or semi-automatic mortising and drilling who need consistent, repeatable joint quality without a dedicated operator interpreting each job

Get expert advice

Book a free demo

Before you commit

See it run on your own material

Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.

Book a free demo

Key specification considerations

Lateral Working Unit

NC-controlled, 3-axis

Three-axis NC control means the unit can reach any drilling or mortising position across the workpiece without manual repositioning, reducing setup time between different window sizes.

Control System

Beckhoff PC, 10" touch screen

The Beckhoff platform is a well-established industrial control environment; third-party software compatibility means the machine is not locked to a single CAD or design package.

Software Integration

WinCreator compatible; third-party open

Joint positions, hinge locations, and handle centres are derived automatically from your window design dimensions, reducing the risk of manual input errors on the shop floor.

Operations Supported

Dowel drilling, mortising, lock pocket milling, hinge seats, louvre mortises, tenon rounding

See full specifications

Specification	Value	Notes
Lateral Working Unit Axes	3-axis NC-controlled
Drilling Operations	Dowel holes; any drilling schema
Mortising Operations	Mortise slots for tenons; bevelled louvre mortises
Milling Operations	Door lock pocket milling; hinge seats; front rounding of tenons
Control Hardware	Beckhoff PC with 10" touch screen
Primary Software	WinCreator (macros and design data)	Design dimensions drive construction joints, hinge positions, and handle locations automatically.
Programming Options	WinCreator data import; direct macro insertion on element; saved template library
Third-Party Software	Yes — control system is open to third-party packages
Working Dimensions	Contact IWM for confirmed working envelope figures	Working dimensions affect the maximum window or door component length and cross-section the machine can accept — ask us to confirm these against your typical blank sizes before specifying.
Motor Power	Contact IWM for confirmed motor power
Electrical Supply	Contact IWM for confirmed supply requirements	Supply phase and amperage will determine whether a dedicated circuit or consumer unit upgrade is needed — confirm with your electrician before installation.
Machine Dimensions (footprint)	Contact IWM for confirmed footprint dimensions	Allow additional clearance beyond the machine footprint for workpiece infeed, outfeed, and operator access on all sides.
Machine Weight	Contact IWM for confirmed weight
Noise Level	Contact IWM for confirmed noise level
Extraction Connection	Contact IWM for confirmed extraction spigot size	Extraction connection diameter determines compatibility with your existing ducting — confirm before ordering extraction pipework.

Get expert advice

Is this the right
machine for you?

Choose the Soukup Versa CNC Window Machine if...

Your work involves a wide variety of window and door joint types in the same production run — the Versa's flexible programming handles switching between operations without physical retooling
You are already using WinCreator for window design and want your machining to pull directly from that data, reducing transcription errors between office and workshop
You need a single machine to cover dowelling, mortising, lock pockets, and hinge seats rather than routing separate jobs to separate machines
You want the option to integrate third-party design or production software into the control system as your workflow develops

Consider an alternate model if...

Your production is dominated by tenoning as the primary joint operation — the Soukup Temac Automatic Single End Tenoning Machine is purpose-built for that task and may offer higher throughput per shift
You need a higher-specification CNC machining centre with more axes or a larger working envelope — the Soukup Crafter CNC Window Machining Centre or Soukup Wizard 4L Machine may be more appropriate and are worth comparing directly
Your volume is lower and the range of operations you need is more limited — the Soukup Wizard 3S or Wizard Tenon CNC Window Machine may represent a more proportionate investment for your current output
You are unsure whether CNC is the right step for your workshop at this stage — talk to us before specifying; we can help you assess whether a semi-automatic or manually-fed machine would better match your throughput and operator setup
