Used Automatic CNC Single End Tenoner Model Temac 300

Soukup ·Timber Window & Door

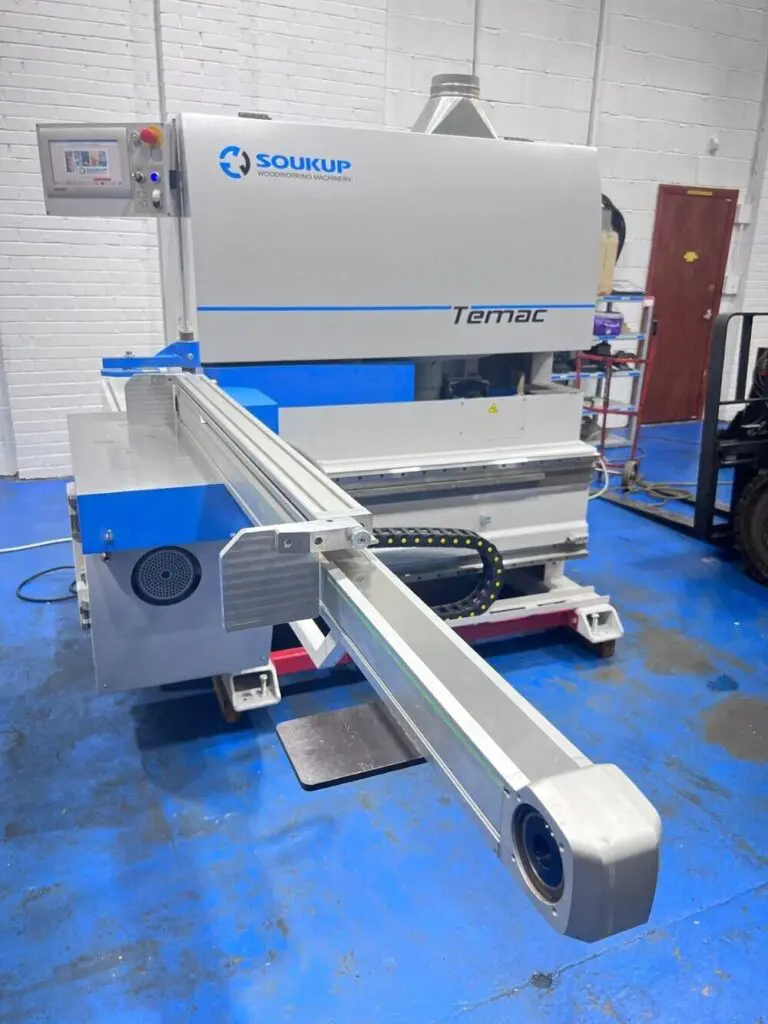

Used IWM Soukup Automatic CNC Single End Tenoner Model Temac 300

Superb example.

(Other machines arriving on a regular basis, please call for details)

Typically chosen by

  • Joinery manufacturers producing high volumes of window and door frames who need a dedicated tenoning station rather than a general-purpose machining centre
  • Workshops already running Soukup equipment — particularly the Wizard range — who want a complementary machine with shared tooling and operational familiarity
  • Businesses looking to remove a bottleneck at the tenoning stage by automating what is currently a manual or semi-manual process
Get expert advice
Book a free demo
Before you commit

See it run on your own material

Bring us a sample profile or board and we'll run it through the machine at our Newark showroom. You'll see the output quality firsthand and we can talk through how it fits your workflow - before any decisions are made.
Book a free demo

Key specification considerations

Spindle Length
620 mm
The 620 mm spindle length accommodates a substantial tool stack, which is what allows multiple tenon profiles to be completed in a single pass rather than requiring separate operations.
Motor Power
7.5 kW (10 HP)
Running at 3,000 rpm, this is a three-phase motor — confirm amperage draw with your electrical contractor before installation.
Upper Supporting Bearing
Yes
The upper bearing reduces spindle deflection under load, which matters for maintaining tenon accuracy across a full production shift — particularly on harder timbers or wider sections.
Max Workpiece Length
2,900 mm
Two horizontal positioning stops cover timbers up to 2,900 mm — sufficient for most standard window and door frame components without repositioning.
See full specifications
SpecificationValueNotes
Spindle Length
620 mm
The 620 mm spindle length accommodates a substantial tool stack, which is what allows multiple tenon profiles to be completed in a single pass rather than requiring separate operations.
Upper Supporting Bearing
Yes
The upper bearing reduces spindle deflection under load, which matters for maintaining tenon accuracy across a full production shift — particularly on harder timbers or wider sections.
Processing
Multi-faceted in single pass
Primary Application
Window & door frame construction
Control System
Beckhoff industrial PC, 12" touch screen, Windows Embedded OS
The swivelling control panel can be operated in full CNC automatic mode using downloaded job lists, or in manual mode for short runs — no programming required for the latter.
Max Workpiece Length
2,900 mm
Two horizontal positioning stops with mechanical readout cover timbers up to 2,900 mm.
Min Workpiece Dimensions
Contact IWM to discuss your shortest component
Spindle Speed
3,000 rpm
Motor Power
7.5 kW (10 HP)
Three-phase motor — confirm amperage draw with your electrical contractor prior to installation.
Electrical Supply
Contact IWM to confirm supply requirements for your site
Max Tool Diameter
320 mm
Cut-Off Saw
ø400 mm, 4 HP, CNC controlled
Tenoning Fence Swivel
Up to 60° (programmable)
Dust Extraction Connection
ø120 mm
A single ø120 mm hood connection — size this against your extraction unit's capacity, particularly if running back-to-back with other machines on the same network.
Machine Dimensions (L × W × H)
Contact IWM — allow additional clearance for workpiece infeed and outfeed at both ends
Machine Weight
approx. 1,500 kg
At this weight, floor loading should be checked with a structural engineer before installation, particularly on suspended or older workshop floors.
Noise Level
Contact IWM to discuss acoustic requirements for your site
Get expert advice

Is this the right
machine for you?

Choose the Used Automatic CNC Single End Tenoner Model Temac 300 if...

  • Tenoning is a defined, high-volume stage in your production process and you want a machine built solely for that task rather than a multi-function centre
  • You need to complete multiple tenon faces in a single pass to maintain throughput — particularly relevant if you are currently running separate operations to achieve the same result
  • Your workshop produces window and door frames to consistent profiles and you want a dedicated machine that can be set up and repeated reliably shift after shift
  • You are already familiar with Soukup's Wizard platform and want tooling and operational consistency across your machining line

Consider an alternate model if...

  • Your production requires full window or door processing — including profiling, morticing, and tenoning — in one machine: the Soukup Wizard 3S or Wizard 4L may be a better fit depending on your section sizes
  • You produce a wide variety of joinery components beyond frames and need more flexible CNC toolpath capability: the Soukup Versa CNC Window Machine is worth discussing
  • Your volumes are lower or your profiles change frequently, where a more flexible machining centre such as the Soukup Crafter would avoid the overhead of a dedicated tenoning station
  • You need combined tenoning and window machining in a single footprint: speak to us about the Soukup Wizard Tenon, which may combine both functions
