If your workshop generates shavings, dust, or offcuts, a briquette machine can turn that waste stream into something genuinely useful. By compressing dry wood waste under high pressure, these machines produce dense, slow-burning briquettes that work well in log burners, biomass boilers, and workshop heating systems.
The practical appeal is straightforward: you reduce skip costs and haulage, and you end up with a fuel source you can use on site or pass on. For heavier production environments, the output can be considerable enough to offset heating bills meaningfully.
Getting the right machine depends on your waste volumes, moisture content, and available floorspace. Talk to us and we can help you work out whether a briquette press makes sense for your operation, and which capacity suits your output.
Dust extraction is not optional in a working timber or joinery shop — it is a health and safety requirement. A good extractor removes dust, chips, and shavings at source, keeping the air breathable, the floor clear, and your machines running freely.
Units range from compact single-machine extractors to larger models capable of serving several machines simultaneously, or feeding into a central ducted system. The right choice depends on the number of machines you are running, the types of waste they produce, and the layout of your workshop.
If you are unsure whether a standalone unit or a central extraction arrangement suits your situation better, talk to us. With long experience specifying extraction for workshops of all sizes, we can help you avoid both under-specifying and unnecessary over-spend.
- Chosen By List:
- List Item:
Joinery and timber workshops with consistent daily waste output looking to eliminate or reduce skip collections
- List Item:
Operations that need a machine running unattended for periods, without requiring an operator to monitor it constantly
- List Item:
Businesses wanting to produce briquettes for resale or on-site heating rather than paying to dispose of waste
- This Product List:
- List Item:
Your workshop produces enough waste to justify 40–60 kg/hour output and you want a machine that can run continuously through the day
- List Item:
You need a lower-profile installation — at 1100mm high, this machine sits notably lower than the XL variants and may suit tighter or mezzanine spaces
- List Item:
You want the agitator and automatic switch-out features to reduce hands-on supervision during production runs
- List Item:
Your waste material is primarily fine shavings or dust that benefits from the agitator preventing hopper bridging
- Alternate List:
- List Item:
Your waste output is lower or less consistent — the <a href="index.php?option=com_content&view=article&id=16&catid=13">Falach 30</a> (25–35 kg/hr) or <a href="index.php?option=com_content&view=article&id=17&catid=13">Falach 35</a> (30–40 kg/hr) may be better matched and represent less capital outlay
- List Item:
You need a smaller physical footprint — the <a href="index.php?option=com_content&view=article&id=14&catid=13">Falach 20</a> or <a href="index.php?option=com_content&view=article&id=15&catid=13">Falach 20XL</a> are significantly more compact at 1250mm long versus 1860mm on this machine
- List Item:
You are manually loading from extraction bags and want to reload less frequently — the <a href="index.php?option=com_content&view=article&id=19&catid=13">Falach 50XL</a> carries the same output rate but has a 0.75 m³ hopper (more than double the capacity of this machine) that can accept four full extraction bags at a time, making it the better choice if hopper reloading frequency is your main constraint
- List Item:
Your 3-phase supply is unavailable or uncertain — discuss your electrical situation with us before specifying any machine in this range
- Key Specifications:
- Specification Name:
Production Rate, Specification Value:
40–60 kg/hour, Specification Notes:
At full rate, the 0.33 m³ hopper will need reloading roughly every 20–30 minutes depending on material density — worth considering alongside your feed workflow.
- Specification Name:
Briquette Diameter, Specification Value:
50mm
- Specification Name:
Power Supply, Specification Value:
3-phase, 16A — 5.5 kW pump motor / 3.8 kW/hr consumption, Specification Notes:
Confirm your workshop has a suitable 3-phase 16A supply available at the intended installation point before ordering.
- Specification Name:
Noise Level, Specification Value:
68 dB, Specification Notes:
68 dB is roughly the level of a normal conversation — unlikely to require acoustic treatment in most workshop environments.
- Full Specifications:
- Specification Name:
Production Rate, Specification Value:
40–60 kg/hour
- Specification Name:
Briquette Diameter, Specification Value:
50mm
- Specification Name:
Briquette Density, Specification Value:
700–900 kg/m³, Specification Notes:
Higher density means more energy per bag and better storage efficiency — comparable to solid hardwood logs by weight.
- Specification Name:
Material Compatibility, Specification Value:
All wood waste — shavings, dust, chippings, MDF; max moisture 15%; max chip size 15mm, Specification Notes:
Moisture above 15% will reduce briquette density and can cause binding issues — check your material before running if it has been stored wet.
- Specification Name:
Dimensions (L × W × H), Specification Value:
1860 × 890 × 1100 mm, Specification Notes:
Allow additional clearance around all sides for hopper loading, briquette discharge, and operator access — the footprint alone will not reflect the working space required.
- Specification Name:
Weight, Specification Value:
390 kg
- Specification Name:
Hopper Volume, Specification Value:
0.33 m³
- Specification Name:
Pump Motor Input, Specification Value:
5.5 kW
- Specification Name:
Power Consumption, Specification Value:
3.8 kW/hour
- Specification Name:
Power Supply, Specification Value:
3-phase, 16A, Specification Notes:
Confirm supply availability at the installation point before ordering.
- Specification Name:
Operation, Specification Value:
Continuous
- Specification Name:
Oil Cooler, Specification Value:
Yes, Specification Notes:
The hydraulic cooler helps maintain consistent performance during extended continuous runs, reducing the risk of heat-related slowdowns.
- Specification Name:
Auto Reverse Vertical Agitator, Specification Value:
Yes, Specification Notes:
Prevents material bridging in the hopper, reducing the need for manual intervention when running shavings or fine dust that tend to clump.
- Specification Name:
Automatic Switch-out, Specification Value:
Yes, Specification Notes:
The machine can shut down automatically when conditions require it, allowing safer unattended operation.
- Specification Name:
Electrically Interlocked Lid, Specification Value:
Yes, Specification Notes:
The machine cannot operate with the lid open, which is a practical safety requirement for most workshop risk assessments.
- Specification Name:
Chromed Piston and Press Chamber, Specification Value:
Yes, Specification Notes:
Chrome lining on the piston and chamber improves wear resistance and helps maintain consistent briquette density over time.
- Specification Name:
Noise Level, Specification Value:
68 dB
- Specification Name:
Certification, Specification Value:
UKCA; Clean Air Strategy compliant, Specification Notes:
UKCA is the UK conformity mark required for machinery placed on the GB market post-Brexit; Clean Air Strategy compliance means briquettes produced meet government standards for burning in smoke control areas.

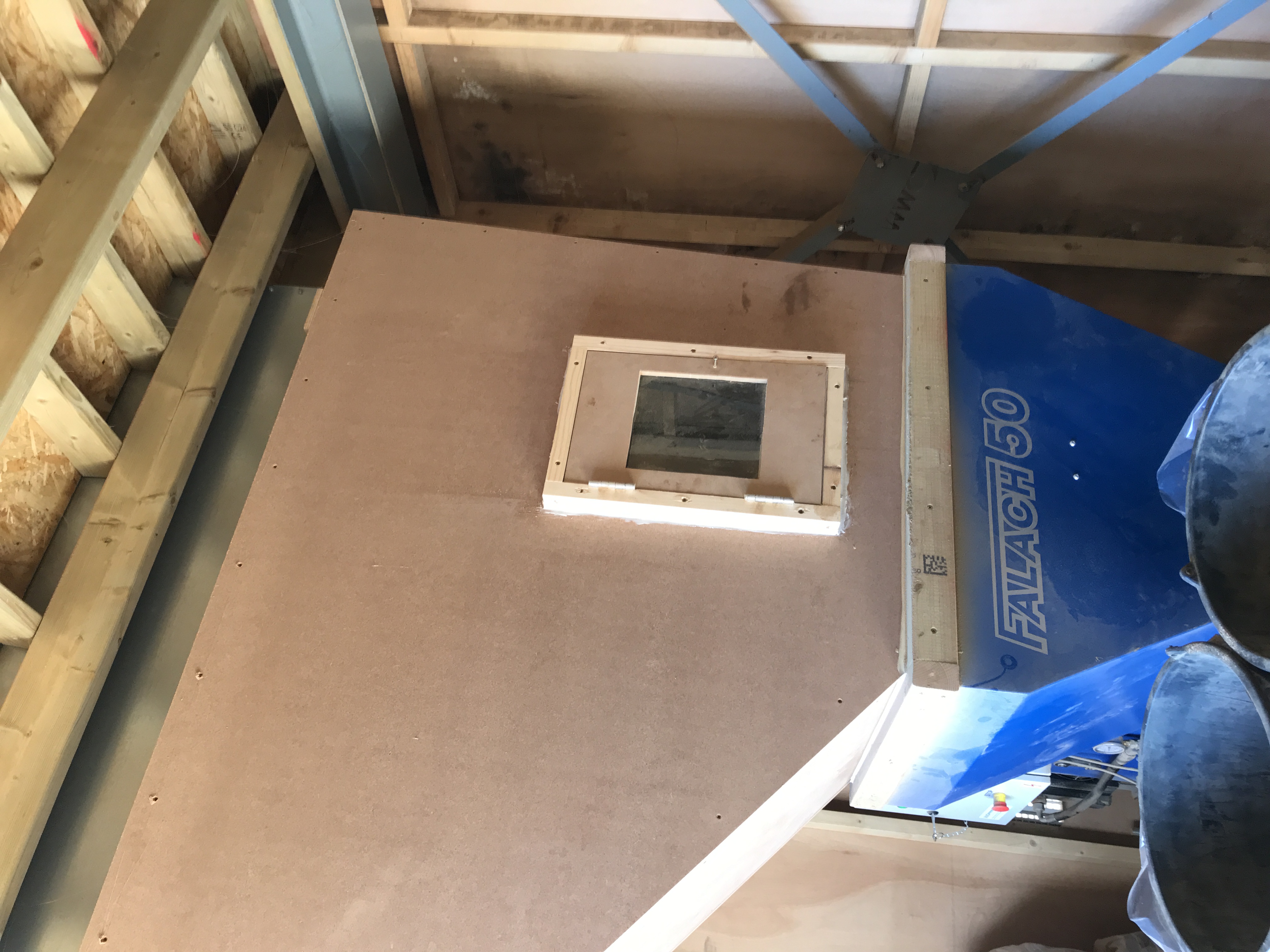

We are excited to offer our demonstration Falach 50 briquette machine with 5 Bag carousel unit, currently in stock and ready for sale. Falach is now the Leading Choice of Hydraulic Briquette Machines converting wood waste and other materials into renewable energy briquettes which have been Certified to meet the “Clean Air Strategy” producing same heat as Coal and no Air Pollutants.
The Falach 50 briquette machine comes complete with a 6-month parts warranty.
(Other machines arriving on a regular basis, please call for details)
- Chosen By List:
- List Item:
Timber merchants and sawmills with high daily waste volumes who need a press that can run continuously without operator intervention
- List Item:
Joinery shops and panel processors looking to offset waste disposal costs by producing a saleable or usable briquette product
- List Item:
Businesses that have outgrown a smaller press and need throughput capacity that keeps pace with production
- This Product List:
- List Item:
Your workshop generates enough waste to justify 90–120 kg/hour of throughput on a sustained basis
- List Item:
You need a press that can run continuously through a shift without requiring an operator to stand over it
- List Item:
You are producing briquettes for resale or regular fuel use and need consistent volume and a uniform 70 mm format
- List Item:
You have already outgrown a mid-range press and need a step up in capacity without moving to an industrial-scale machine
- Alternate List:
- List Item:
Your waste volumes are lower or intermittent — the <a href="index.php?option=com_content&view=article&id=19&catid=13">Falach 50XL</a> (40–60 kg/hour) or <a href="index.php?option=com_content&view=article&id=17&catid=13">Falach 35</a> (30–40 kg/hour) may be better matched to your actual throughput
- List Item:
Floor space is limited — the <a href="index.php?option=com_content&view=article&id=14&catid=13">Falach 20</a> or <a href="index.php?option=com_content&view=article&id=15&catid=13">Falach 20XL</a> has a significantly smaller footprint (L 1250 × W 740 mm) and may suit a tighter workshop layout
- List Item:
You are running a single-phase supply and cannot easily upgrade — the electrical requirement here is 3-phase 32 amp, which some smaller workshops cannot accommodate
- List Item:
Your budget or waste volume does not justify the step up from a smaller Falach model — talk to us and we will help you calculate whether the throughput gain is worth it for your situation
- Key Specifications:
- Specification Name:
Production Output, Specification Value:
90–120 kg/hour, Specification Notes:
At full rate, the 0.75 m³ hopper will empty in roughly 30–50 minutes depending on material density — factor this into how your extraction feeds the press.
- Specification Name:
Briquette Diameter, Specification Value:
70 mm
- Specification Name:
Power Consumption, Specification Value:
8.2 kW/hour, Specification Notes:
The machine requires a 3-phase, 32-amp supply — confirm your workshop supply is adequate before ordering.
- Specification Name:
Noise Level, Specification Value:
62 dB (max, under load), Specification Notes:
62 dB is roughly equivalent to a normal conversation — no acoustic treatment is required under standard workshop conditions.
- Full Specifications:
- Specification Name:
Production Output, Specification Value:
90–120 kg/hour, Specification Notes:
At full rate, the 0.75 m³ hopper will empty in roughly 30–50 minutes depending on material density — factor this into how your extraction feeds the press.
- Specification Name:
Briquette Diameter, Specification Value:
70 mm
- Specification Name:
Briquette Length, Specification Value:
45 mm (adjustable via potentiometer), Specification Notes:
The on-board potentiometer lets you adjust briquette length to suit the density of material being pressed, giving you control over briquette consistency.
- Specification Name:
Briquette Density, Specification Value:
900–1,100 kg/m³
- Specification Name:
Compression Method, Specification Value:
Hydraulic piston, 10 tons per square inch
- Specification Name:
Accepted Materials, Specification Value:
All wood waste types: shavings, dust, chippings, MDF — max 15% moisture content, Specification Notes:
Material above 15% moisture will not compress reliably and may damage the press — check your waste stream before running MDF or green timber offcuts.
- Specification Name:
Dimensions (L × W × H), Specification Value:
2220 × 1200 × 1510 mm, Specification Notes:
Allow additional clearance beyond the footprint for infeed ducting, briquette discharge, and operator access — this is a larger machine and siting should be planned carefully.
- Specification Name:
Weight, Specification Value:
810 kg, Specification Notes:
At this weight, floor loading capacity should be checked with your building surveyor before installation.
- Specification Name:
Hopper Volume, Specification Value:
0.75 m³
- Specification Name:
Pump Motor Input, Specification Value:
11 kW
- Specification Name:
Power Consumption, Specification Value:
8.2 kW/hour, Specification Notes:
The machine requires a 3-phase, 32-amp supply — confirm your workshop supply is adequate before ordering.
- Specification Name:
Electrical Supply, Specification Value:
3-phase, 32 amp
- Specification Name:
Operation, Specification Value:
Continuous, Specification Notes:
The press runs without stopping between cycles, making it suited to workshops where waste is generated at a steady, ongoing rate rather than in batches.
- Specification Name:
Oil Cooler, Specification Value:
Yes, Specification Notes:
Prevents hydraulic oil from overheating during extended continuous runs, which protects the press and reduces unplanned downtime.
- Specification Name:
Auto Reverse Vertical Agitator, Specification Value:
Yes, Specification Notes:
Prevents bridging or blockages in the hopper, reducing the need for manual intervention when processing fine or fluffy materials such as planer shavings.
- Specification Name:
Automatic Switch-out, Specification Value:
Yes, Specification Notes:
The machine can shut itself down safely without an operator present, useful for workshops where the press runs at the end of a shift.
- Specification Name:
Noise Level, Specification Value:
62 dB (max, under load), Specification Notes:
62 dB is roughly equivalent to a normal conversation — no acoustic treatment is required under standard workshop conditions.
- Specification Name:
Certification, Specification Value:
UKCA, Specification Notes:
UKCA marking confirms the machine meets UK product safety requirements post-Brexit — equivalent to CE for the UK market and required for legal sale and use in Great Britain.
- Specification Name:
Lead Time, Specification Value:
Normally 4–6 weeks from receipt of order
- Specification Name:
Installation & Commissioning, Specification Value:
Available at additional cost, Specification Notes:
Cost varies by location — talk to us when enquiring and we will confirm the figure for your site.
- Product Gallery:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Video Gallery:
- Video Link:
https://www.youtube.com/watch?v=_wtfB4-TlN0
- Video Link:
https://www.youtube.com/watch?v=Vbm-r7ojaUo
- Video Link:
https://www.youtube.com/watch?v=-i-W0y__u6k
A continuous-run hydraulic press for high-volume wood waste — turning shavings, dust, and chippings into a consistent 70 mm briquette at up to 120 kg/hour. Suited to UK timber and joinery workshops that generate waste at scale and want something useful or saleable at the end of it.
- Chosen By List:
- List Item:
Small joinery and timber workshops looking to reduce skip costs by converting sawdust and shavings into usable briquettes
- List Item:
Operations with limited floor space that need a briquette press with a modest footprint and a single-phase option
- List Item:
Businesses producing wood waste at a modest but consistent rate — typically under 25 kg per hour at the press — where a larger machine would be underused
- This Product List:
- List Item:
Your workshop generates a modest, consistent volume of dry wood waste — the Falach 20's 10–25 kg/hr capacity will be a good match rather than an over-specified machine sitting largely idle
- List Item:
Floor space is constrained and you need the smallest practical footprint in the Falach range
- List Item:
You only have single-phase power available, or prefer a lower electrical draw — the single-phase version of this machine makes it accessible without rewiring
- List Item:
You want a continuously-rated press for steady daytime use without the cost or complexity of a larger hydraulic unit
- Alternate List:
- List Item:
You need additional height clearance for your extraction or feeding arrangement — the <a href="index.php?option=com_content&view=article&id=15&catid=13">Falach 20XL</a> shares the same floor footprint (1250 × 740 mm) but stands 330 mm taller, which may suit certain installations better
- List Item:
Your waste volume regularly exceeds 25 kg/hr — the <a href="index.php?option=com_content&view=article&id=19&catid=13">Falach 50XL</a>, rated at 40–60 kg/hr, would be a more appropriate specification and avoid the press running at or beyond its upper limit
- List Item:
You anticipate running the machine in a warm environment or for very long continuous shifts — in that case it is worth discussing your shift pattern with us before specifying, so we can confirm the machine is a good fit
- List Item:
Your material moisture content is frequently above 15% — a drying stage or a different process may need to be considered regardless of which press is chosen
- Key Specifications:
- Specification Name:
Press Capacity, Specification Value:
10–25 kg/hr, Specification Notes:
At the upper end of this range with dry, consistent material, the press can process roughly a full 0.33 m³ hopper load in under an hour — though output will vary with material density and moisture content.
- Specification Name:
Briquette Size, Specification Value:
30 × 30 × 30 mm cube
- Specification Name:
Electrical Supply, Specification Value:
3-phase, 16A (single-phase also available), Specification Notes:
Confirm your workshop supply before ordering — the standard machine requires a 3-phase 16A connection, though a single-phase version is available at the same capacity if needed.
- Specification Name:
Noise Level, Specification Value:
68 dB at operator post, Specification Notes:
68 dB is roughly equivalent to a normal conversation at close range, so this machine is unlikely to require additional acoustic treatment in most workshop environments.
- Full Specifications:
- Specification Name:
Dimensions (L × W × H), Specification Value:
1250 × 740 × 1120 mm, Specification Notes:
Allow additional clearance around all sides for hopper loading, extraction ducting, and operator access — the quoted dimensions are the machine envelope only.
- Specification Name:
Weight, Specification Value:
233 kg
- Specification Name:
Hopper Volume, Specification Value:
0.33 m³
- Specification Name:
Pump Motor Input, Specification Value:
2.2 kW
- Specification Name:
Power Consumption, Specification Value:
1.1 kW/hr
- Specification Name:
Operation, Specification Value:
Continuous, Specification Notes:
Continuous-rated operation means the machine is designed to run uninterrupted during a working shift rather than in short duty cycles — suitable for workshops with an ongoing waste stream.
- Specification Name:
Maximum Moisture Content, Specification Value:
15%, Specification Notes:
Material above 15% moisture will compress poorly and produce lower-density briquettes — pre-drying or blending wetter waste with drier material is advisable if your shavings come from green timber.
- Specification Name:
Specific Weight of Briquettes, Specification Value:
900–1100 kg/m³
- Specification Name:
Oil Cooler, Specification Value:
No, Specification Notes:
The machine uses an enlarged oil tank in place of a cooler, which Falach rate as sufficient for continuous shift use — talk to us if your environment is unusually warm or your shift pattern is particularly demanding.
- Specification Name:
Maximum Noise Level, Specification Value:
68 dB at operator post
- Specification Name:
Electrical Supply, Specification Value:
3-phase, 16A (single-phase version available), Specification Notes:
Confirm your workshop supply before ordering — the standard machine requires a 3-phase 16A connection, though a single-phase version is available at the same capacity if needed.
- Product Gallery:
- Image:
- Video Gallery:
- Video Link:
https://www.youtube.com/watch?v=ZHHgbLkxQf8
- Video Link:
https://www.youtube.com/watch?v=_wtfB4-TlN0
A compact, continuously-rated hydraulic briquette press for smaller workshops that need to convert sawdust and shavings into usable fuel without occupying significant floor space. Available in single-phase or three-phase supply.
- Chosen By List:
- List Item:
Smaller joinery or timber workshops looking to eliminate skip costs by converting dry shavings and dust into usable briquettes
- List Item:
Businesses wanting a single-phase-compatible footprint where three-phase supply is limited or unavailable
- List Item:
Workshops producing waste at a manageable, consistent rate rather than high-volume batch production
- This Product List:
- List Item:
Your workshop generates a modest, steady volume of dry shavings or dust — roughly enough to keep a 10–25 kg/hr press usefully occupied
- List Item:
Floor space is limited and you need a compact machine that can be positioned within a small production area
- List Item:
You need a single-phase option or have a 3-phase 16A supply readily available
- List Item:
You are new to briquetting and want a lower-commitment entry point before scaling up
- Alternate List:
- List Item:
Your waste volume regularly exceeds what a 25 kg/hr press can handle — the Falach 50XL (40–60 kg/hr) is likely a better specification
- List Item:
You are running a high-throughput operation where the lower capacity of this machine would create a bottleneck
- List Item:
Your ceiling height or headroom is restricted — the Falach 20 (H 1120 mm) offers the same footprint at a lower overall height and may be worth discussing with IWM
- List Item:
Your waste material frequently exceeds 15% moisture content, in which case pre-drying equipment or a different press specification should be considered
- Key Specifications:
- Specification Name:
Press Capacity, Specification Value:
10–25 kg/hr, Specification Notes:
At the upper end, this equates to roughly 200 g of briquette output per minute — suited to workshops with a steady but modest waste stream rather than high-volume continuous production.
- Specification Name:
Electrical Supply, Specification Value:
3-phase, 16A (single-phase option available), Specification Notes:
The single-phase option uses the same 2.2 kW motor — confirm your workshop supply before ordering and discuss the single-phase variant with IWM if three-phase is not available.
- Specification Name:
Weight, Specification Value:
233 kg
- Specification Name:
Noise Level, Specification Value:
68 dB at operator position, Specification Notes:
68 dB is broadly comparable to a normal conversation — no acoustic enclosure is typically required, though local workshop noise assessments should always be considered.
- Full Specifications:
- Specification Name:
Dimensions (L × W × H), Specification Value:
1250 × 740 × 1450 mm, Specification Notes:
Allow additional clearance around all sides for hopper loading, briquette collection, and operator access — a practical envelope of at least 2.5 × 2 m is advisable.
- Specification Name:
Weight, Specification Value:
233 kg
- Specification Name:
Briquette Size, Specification Value:
30 × 30 × 30 mm
- Specification Name:
Press Capacity, Specification Value:
10–25 kg/hr
- Specification Name:
Hopper Volume, Specification Value:
0.75 m³, Specification Notes:
Confirm this figure with IWM at point of enquiry — discuss your typical waste volume and throughput rate to ensure the hopper suits your workflow.
- Specification Name:
Pump Motor Input, Specification Value:
2.2 kW
- Specification Name:
Power Consumption, Specification Value:
1.1 kW/hr
- Specification Name:
Electrical Supply, Specification Value:
3-phase, 16A (single-phase option available), Specification Notes:
The single-phase option uses the same 2.2 kW motor — confirm requirements with IWM at point of enquiry.
- Specification Name:
Operation, Specification Value:
Continuous, Specification Notes:
The machine runs continuously rather than in batch cycles, meaning it can feed into a consistent workflow without operator intervention between loads.
- Specification Name:
Maximum Moisture Content, Specification Value:
15%, Specification Notes:
Material above 15% moisture will produce inferior briquettes and may cause press issues — if your waste comes from a wet or green process, discuss pre-drying options with IWM.
- Specification Name:
Specific Weight of Briquette, Specification Value:
900–1100 kg/m³, Specification Notes:
This density range is comparable to softwood logs and makes the briquettes viable for most biomass appliances and log burners.
- Specification Name:
Oil Cooler, Specification Value:
No, Specification Notes:
No oil cooler is required at this capacity — the press is designed for continuous operation at its rated output without one.
- Specification Name:
Briquette Collection, Specification Value:
Briquette chute and single bag stand supplied as standard, Specification Notes:
The included chute and bag stand direct output straight into a collection bag — factor in space behind or beside the press outlet when planning your installation.
- Specification Name:
Maximum Noise Level, Specification Value:
68 dB at operator position
- Video Gallery:
- Video Link:
https://www.youtube.com/watch?v=_wtfB4-TlN0
A compact, single-operator hydraulic press that turns dry shavings and dust into usable 30mm cube briquettes — eliminating skip costs without demanding significant floor space or a three-phase supply.
- Chosen By List:
- List Item:
Workshops generating a steady but modest volume of wood dust and shavings who want a straightforward route to briquetting without overspecifying
- List Item:
Businesses where a single-phase supply is not available and a 3-phase 16-amp connection is already in place or practical to install
- List Item:
Operations where floor space is limited and a machine footprint under 2 metres long is a practical requirement
- This Product List:
- List Item:
Your workshop produces enough waste to make briquetting worthwhile, but output of 25–35 kg/hour comfortably covers your needs without overspecifying
- List Item:
You have a 3-phase 16-amp supply available and want to keep running costs modest — at 2.2 kW/hour consumption, operating costs are low
- List Item:
Floor space is at a premium and a machine under 1.9 metres long is a practical fit for your layout
- List Item:
You are comfortable with manual hopper feeding and operator supervision, and do not need automated features to justify the investment
- Alternate List:
- List Item:
You need higher throughput — the Falach 35 (30–40 kg/hour) or Falach 50 (40–60 kg/hour) would be more appropriate if waste volumes are consistently higher, and the Falach 50 also adds an oil cooler and automatic agitator as standard
- List Item:
Your workshop generates lighter, more intermittent waste and a smaller machine would suffice — the Falach Cube 20 (10–25 kg/hour, 30 × 30 mm square briquette) may be worth discussing with us instead
- List Item:
You require an oil cooler for sustained heavy-duty runs or automated features such as an agitator or automatic switch-out to reduce operator involvement — talk to IWM about which Falach models carry these as standard
- Key Specifications:
- Specification Name:
Output, Specification Value:
25–35 kg/hour, Specification Notes:
At full production, a 0.33 m³ hopper will require refilling roughly every 10–15 minutes depending on material bulk density — factor this into operator workflow.
- Specification Name:
Briquette Diameter, Specification Value:
50 mm
- Specification Name:
Noise Level, Specification Value:
68 dB, Specification Notes:
68 dB is broadly comparable to a normal conversation at close range — acoustic enclosure or treatment is unlikely to be required at this level.
- Specification Name:
Power Supply, Specification Value:
3-phase, 16 amp / 4 kW pump motor, Specification Notes:
Confirm your site has a suitable 3-phase 16-amp supply before ordering — this is not a single-phase machine.
- Full Specifications:
- Specification Name:
Capacity, Specification Value:
25–35 kg/hour
- Specification Name:
Briquette Diameter, Specification Value:
50 mm
- Specification Name:
Dimensions (L × W × H), Specification Value:
1860 × 890 × 1100 mm, Specification Notes:
Allow additional clearance around the machine for hopper loading, briquette discharge, and operator access — the working envelope will exceed the machine footprint.
- Specification Name:
Weight, Specification Value:
400 kg, Specification Notes:
At 400 kg, check that your floor loading is adequate before installation — this is particularly relevant in upper-floor or mezzanine workshop situations.
- Specification Name:
Hopper Volume, Specification Value:
0.33 m³
- Specification Name:
Pump Motor Input, Specification Value:
4 kW
- Specification Name:
Power Consumption, Specification Value:
2.2 kW/hour
- Specification Name:
Power Supply, Specification Value:
3-phase, 16 amp, Specification Notes:
Confirm supply availability on site before ordering.
- Specification Name:
Suitable Input Materials, Specification Value:
All types of wood waste — shavings, dust, chippings including MDF, Specification Notes:
Input material must be dry — moisture content should not exceed 15% for consistent briquette formation.
- Specification Name:
Operation, Specification Value:
Continuous
- Specification Name:
Oil Cooler, Specification Value:
No, Specification Notes:
The Falach 30 uses a large-capacity oil tank in place of an active cooler, which is sufficient for continuous operation under normal workshop conditions.
- Specification Name:
Auto Reverse Vertical Agitator, Specification Value:
No, Specification Notes:
Without an agitator, fine or compacted materials may require manual intervention to feed consistently into the press chamber.
- Specification Name:
Automatic Switch-out, Specification Value:
No, Specification Notes:
The machine requires manual supervision and shutdown — it will not stop automatically on completion or fault condition beyond the electrically interlocked lid.
- Specification Name:
Electrically Interlocked Lid, Specification Value:
Yes, Specification Notes:
The press cannot operate with the hopper lid open, which is a standard safety requirement in most workshop environments.
- Specification Name:
Chromed Piston and Press Chamber, Specification Value:
Yes
- Specification Name:
Funnel-shaped Hopper, Specification Value:
Yes
- Specification Name:
Noise Level, Specification Value:
68 dB
- Specification Name:
Warranty, Specification Value:
12 months
- Product Gallery:
- Image:
- Video Gallery:
- Video Link:
https://www.youtube.com/watch?v=_wtfB4-TlN0
A straightforward, low-running-cost hydraulic briquette press for workshops generating a steady volume of wood waste. Handles dust, shavings and chippings — including MDF — and runs on a standard 3-phase 16-amp supply.
- Chosen By List:
- List Item:
Timber and joinery shops looking to offset waste disposal costs by producing saleable or usable briquettes
- List Item:
Workshops with a consistent, moderate flow of dry wood waste who need a machine that runs continuously without operator intervention
- List Item:
Businesses upgrading from a smaller press — such as the Falach 30 — where output has outgrown capacity
- This Product List:
- List Item:
Your workshop generates enough waste to justify continuous operation but 30–40 kg/hour is a realistic match for your actual throughput
- List Item:
You need a larger footprint machine than the Falach 20 or Falach 30 but your output doesn't yet warrant stepping up to the Falach 50 or 50XL
- List Item:
You want a machine with an automatic agitator and auto switch-out to reduce hands-on monitoring during production runs
- List Item:
Your installation has a 3-phase 16A supply and floor space of approximately 1860 × 890 mm plus working clearance
- Alternate List:
- List Item:
Your waste volume is more modest — the <a href="index.php?option=com_content&view=article&id=16&catid=13">Falach 30</a> (25–35 kg/hour) or <a href="index.php?option=com_content&view=article&id=14&catid=13">Falach 20</a> may be a better fit and will take up less floor space
- List Item:
You need higher throughput — the <a href="index.php?option=com_content&view=article&id=18&catid=13">Falach 50</a> or <a href="index.php?option=com_content&view=article&id=19&catid=13">Falach 50XL</a> both offer 40–60 kg/hour and may be worth the step up if you are close to the upper limit of the 35's output
- List Item:
Workshop space is tight — the <a href="index.php?option=com_content&view=article&id=14&catid=13">Falach 20</a> (L 1250 × W 740 mm) and <a href="index.php?option=com_content&view=article&id=15&catid=13">Falach 20XL</a> have a significantly smaller footprint if floor area is a constraint
- List Item:
You anticipate running the machine hard in a warm environment and want built-in oil cooling — the <a href="index.php?option=com_content&view=article&id=18&catid=13">Falach 50</a> and Falach 50XL both include an oil cooler as standard, making either a more suitable choice for high duty-cycle or high-temperature installations
- Key Specifications:
- Specification Name:
Production Output, Specification Value:
30–40 kg/hour, Specification Notes:
At full production rate, the 0.33 m³ hopper will need refilling approximately every 20–30 minutes depending on material bulk density — factor this into your workflow.
- Specification Name:
Briquette Size, Specification Value:
50 mm diameter · 35–50 mm length
- Specification Name:
Power Supply, Specification Value:
3-phase, 16A — Pump Motor 4 kW / Consumption 2.2 kW/h, Specification Notes:
Confirm you have a 3-phase 16A supply available at the installation point before ordering — this is not a single-phase machine.
- Specification Name:
Noise Level, Specification Value:
68 dB, Specification Notes:
68 dB is broadly comparable to a normal conversation — acoustic treatment is unlikely to be required, but check your workshop's overall ambient noise picture.
- Full Specifications:
- Specification Name:
Production Output, Specification Value:
30–40 kg/hour, Specification Notes:
At full production rate, the 0.33 m³ hopper will need refilling approximately every 20–30 minutes depending on material bulk density — factor this into your workflow.
- Specification Name:
Briquette Diameter, Specification Value:
50 mm
- Specification Name:
Briquette Length, Specification Value:
35–50 mm
- Specification Name:
Accepted Materials, Specification Value:
All wood waste — shavings, dust, chippings, MDF, Specification Notes:
Maximum moisture content 15% — wetter material will not press reliably and may damage the machine over time.
- Specification Name:
Dimensions (L × W × H), Specification Value:
1860 × 890 × 1100 mm, Specification Notes:
Allow additional clearance around all sides for material feed, briquette discharge, and operator access — the stated footprint is the machine envelope only.
- Specification Name:
Weight, Specification Value:
400 kg, Specification Notes:
Above the threshold where floor loading should be verified — check your workshop slab rating before installation.
- Specification Name:
Hopper Volume, Specification Value:
0.33 m³
- Specification Name:
Pump Motor Input, Specification Value:
4 kW
- Specification Name:
Power Consumption, Specification Value:
2.2 kW/hour
- Specification Name:
Power Supply, Specification Value:
3-phase, 16A, Specification Notes:
Confirm you have a 3-phase 16A supply available at the installation point before ordering.
- Specification Name:
Operation, Specification Value:
Continuous
- Specification Name:
Oil Cooler, Specification Value:
No, Specification Notes:
Without an oil cooler, sustained high-ambient-temperature environments may affect hydraulic performance — discuss duty cycle and workshop conditions with IWM if this is a concern.
- Specification Name:
Auto Reverse Vertical Agitator, Specification Value:
Yes, Specification Notes:
The agitator prevents material bridging in the hopper, reducing the need for operator intervention during a run.
- Specification Name:
Automatic Switch-out, Specification Value:
Yes, Specification Notes:
The machine will shut down automatically under fault conditions, reducing the risk of unattended damage.
- Specification Name:
Electrically Interlocked Lid, Specification Value:
Yes, Specification Notes:
The machine cannot operate with the lid open, which is a practical safeguard during loading.
- Specification Name:
Chromed Piston and Press Chamber, Specification Value:
Yes, Specification Notes:
Chrome surfaces resist wear and corrosion, which matters for long-term consistency of briquette density and reduced maintenance intervals.
- Specification Name:
Noise Level, Specification Value:
68 dB, Specification Notes:
68 dB is broadly comparable to a normal conversation — acoustic treatment is unlikely to be required.
- Specification Name:
Certification, Specification Value:
UKCA, Specification Notes:
UKCA marking confirms the machine meets UK product safety requirements — relevant if your insurers or premises require certified equipment.
- Specification Name:
Lead Time, Specification Value:
4–6 weeks
- Product Gallery:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Video Gallery:
- Video Link:
https://www.youtube.com/watch?v=PeQw_L283wg
- Video Link:
https://www.youtube.com/watch?v=_wtfB4-TlN0
- Video Link:
https://www.youtube.com/watch?v=cUjTy20lfwk
A continuous-run hydraulic press that turns dry wood waste — shavings, dust, chippings and MDF — into dense 50 mm briquettes at 30–40 kg/hour. Well suited to timber and joinery workshops where waste disposal is a genuine overhead and consistent output matters.
- Chosen By List:
- List Item:
Joinery and timber workshops with consistent daily waste output looking to eliminate or reduce skip collections
- List Item:
Operations that need a machine running unattended for periods, without requiring an operator to monitor it constantly
- List Item:
Businesses wanting to produce briquettes for resale or on-site heating rather than paying to dispose of waste
- This Product List:
- List Item:
Your workshop produces enough waste to justify 40–60 kg/hour output and you want a machine that can run continuously through the day
- List Item:
You need a lower-profile installation — at 1100mm high, this machine sits notably lower than the XL variants and may suit tighter or mezzanine spaces
- List Item:
You want the agitator and automatic switch-out features to reduce hands-on supervision during production runs
- List Item:
Your waste material is primarily fine shavings or dust that benefits from the agitator preventing hopper bridging
- Alternate List:
- List Item:
Your waste output is lower or less consistent — the <a href="index.php?option=com_content&view=article&id=16&catid=13">Falach 30</a> (25–35 kg/hr) or <a href="index.php?option=com_content&view=article&id=17&catid=13">Falach 35</a> (30–40 kg/hr) may be better matched and represent less capital outlay
- List Item:
You need a smaller physical footprint — the <a href="index.php?option=com_content&view=article&id=14&catid=13">Falach 20</a> or <a href="index.php?option=com_content&view=article&id=15&catid=13">Falach 20XL</a> are significantly more compact at 1250mm long versus 1860mm on this machine
- List Item:
You are manually loading from extraction bags and want to reload less frequently — the <a href="index.php?option=com_content&view=article&id=19&catid=13">Falach 50XL</a> carries the same output rate but has a 0.75 m³ hopper (more than double the capacity of this machine) that can accept four full extraction bags at a time, making it the better choice if hopper reloading frequency is your main constraint
- List Item:
Your 3-phase supply is unavailable or uncertain — discuss your electrical situation with us before specifying any machine in this range
- Key Specifications:
- Specification Name:
Production Rate, Specification Value:
40–60 kg/hour, Specification Notes:
At full rate, the 0.33 m³ hopper will need reloading roughly every 20–30 minutes depending on material density — worth considering alongside your feed workflow.
- Specification Name:
Briquette Diameter, Specification Value:
50mm
- Specification Name:
Power Supply, Specification Value:
3-phase, 16A — 5.5 kW pump motor / 3.8 kW/hr consumption, Specification Notes:
Confirm your workshop has a suitable 3-phase 16A supply available at the intended installation point before ordering.
- Specification Name:
Noise Level, Specification Value:
68 dB, Specification Notes:
68 dB is roughly the level of a normal conversation — unlikely to require acoustic treatment in most workshop environments.
- Full Specifications:
- Specification Name:
Production Rate, Specification Value:
40–60 kg/hour
- Specification Name:
Briquette Diameter, Specification Value:
50mm
- Specification Name:
Briquette Density, Specification Value:
700–900 kg/m³, Specification Notes:
Higher density means more energy per bag and better storage efficiency — comparable to solid hardwood logs by weight.
- Specification Name:
Material Compatibility, Specification Value:
All wood waste — shavings, dust, chippings, MDF; max moisture 15%; max chip size 15mm, Specification Notes:
Moisture above 15% will reduce briquette density and can cause binding issues — check your material before running if it has been stored wet.
- Specification Name:
Dimensions (L × W × H), Specification Value:
1860 × 890 × 1100 mm, Specification Notes:
Allow additional clearance around all sides for hopper loading, briquette discharge, and operator access — the footprint alone will not reflect the working space required.
- Specification Name:
Weight, Specification Value:
390 kg
- Specification Name:
Hopper Volume, Specification Value:
0.33 m³
- Specification Name:
Pump Motor Input, Specification Value:
5.5 kW
- Specification Name:
Power Consumption, Specification Value:
3.8 kW/hour
- Specification Name:
Power Supply, Specification Value:
3-phase, 16A, Specification Notes:
Confirm supply availability at the installation point before ordering.
- Specification Name:
Operation, Specification Value:
Continuous
- Specification Name:
Oil Cooler, Specification Value:
Yes, Specification Notes:
The hydraulic cooler helps maintain consistent performance during extended continuous runs, reducing the risk of heat-related slowdowns.
- Specification Name:
Auto Reverse Vertical Agitator, Specification Value:
Yes, Specification Notes:
Prevents material bridging in the hopper, reducing the need for manual intervention when running shavings or fine dust that tend to clump.
- Specification Name:
Automatic Switch-out, Specification Value:
Yes, Specification Notes:
The machine can shut down automatically when conditions require it, allowing safer unattended operation.
- Specification Name:
Electrically Interlocked Lid, Specification Value:
Yes, Specification Notes:
The machine cannot operate with the lid open, which is a practical safety requirement for most workshop risk assessments.
- Specification Name:
Chromed Piston and Press Chamber, Specification Value:
Yes, Specification Notes:
Chrome lining on the piston and chamber improves wear resistance and helps maintain consistent briquette density over time.
- Specification Name:
Noise Level, Specification Value:
68 dB
- Specification Name:
Certification, Specification Value:
UKCA; Clean Air Strategy compliant, Specification Notes:
UKCA is the UK conformity mark required for machinery placed on the GB market post-Brexit; Clean Air Strategy compliance means briquettes produced meet government standards for burning in smoke control areas.
- Product Gallery:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Video Gallery:
- Video Link:
https://www.youtube.com/watch?v=CUSN1WL8yOk
- Video Link:
https://www.youtube.com/watch?v=6YnFhIAlfTI
- Video Link:
https://www.youtube.com/watch?v=U0yqewUNh0Q
- Video Link:
https://www.youtube.com/watch?v=_wtfB4-TlN0
- Video Link:
https://www.youtube.com/watch?v=FbdTYY0BSIc
A continuous-run hydraulic briquetter that converts wood shavings, dust, chippings and MDF waste into dense 50mm fuel briquettes at 40–60 kg/hour. Suited to joinery and timber workshops that produce enough daily waste to make skip disposal an ongoing cost worth eliminating.
- Chosen By List:
- List Item:
Joinery shops and timber yards running dust extraction systems who want to offset waste disposal costs by converting shavings, dust, and chippings — including MDF — into usable briquettes
- List Item:
Workshops with enough daily waste to keep a machine running continuously through a full working day, typically those with extraction running across multiple machines
- List Item:
Operations where a largely hands-off briquetting process is needed, rather than batch pressing — the 50XL is designed to run alongside production without requiring constant attention
- This Product List:
- List Item:
Your workshop generates enough waste to keep a machine running continuously through the working day — the 50XL is sized for sustained production, not occasional batch use
- List Item:
You need the larger 0.80 m³ hopper to reduce how often operators need to attend to the machine during a shift
- List Item:
Floor space is not a limiting factor — the 50XL's footprint (1960 × 1150 mm) is considerably larger than the 20-series machines
- List Item:
You want the oil cooler and continuous-run design to handle extended shifts without thermal shutdown
- Alternate List:
- List Item:
Your waste volumes are lower or more intermittent — the <a href="index.php?option=com_content&view=article&id=15&catid=13">Falach 20XL</a> or <a href="index.php?option=com_content&view=article&id=14&catid=13">Falach 20</a> both run continuously and produce 10–25 kg/hour, making them the better fit for smaller operations
- List Item:
Your workshop has limited floor area; both the <a href="index.php?option=com_content&view=article&id=15&catid=13">Falach 20XL</a> and <a href="index.php?option=com_content&view=article&id=14&catid=13">Falach 20</a> are substantially more compact than the 50XL (1250 × 740 mm footprint)
- List Item:
You are new to briquetting and want to start with a smaller machine to assess output volumes before committing to a larger unit — the 20-series is the more sensible starting point in that case
- Key Specifications:
- Specification Name:
Output, Specification Value:
40–60 kg/hour, Specification Notes:
At the upper end, a typical eight-hour shift would yield approximately 480 kg of briquettes — worth confirming this against your actual waste volume before specifying.
- Specification Name:
Briquette Size, Specification Value:
50 mm diameter · 35–50 mm length (adjustable)
- Specification Name:
Hopper Volume, Specification Value:
0.80 m³, Specification Notes:
The extended funnel-shaped hopper reduces how frequently operators need to reload, which matters if the machine is running alongside other production work.
- Specification Name:
Noise Level, Specification Value:
68 dB, Specification Notes:
68 dB is roughly equivalent to a normal conversation — this machine is unlikely to require acoustic treatment or to dominate the workshop environment.
- Full Specifications:
- Specification Name:
Output, Specification Value:
40–60 kg/hour, Specification Notes:
At the upper end, a typical eight-hour shift would yield approximately 480 kg of briquettes — worth confirming this against your actual waste volume before specifying.
- Specification Name:
Briquette Diameter, Specification Value:
50 mm
- Specification Name:
Briquette Length, Specification Value:
35–50 mm (adjustable), Specification Notes:
Adjustable briquette length lets you tailor output to your storage or packaging requirements without changing tooling.
- Specification Name:
Operation, Specification Value:
Continuous
- Specification Name:
Accepted Waste Types, Specification Value:
All wood waste — shavings, dust, chippings, MDF
- Specification Name:
Hopper Volume, Specification Value:
0.80 m³, Specification Notes:
The extended funnel-shaped hopper reduces how frequently operators need to reload, which matters if the machine is running alongside other production work.
- Specification Name:
Pump Motor Input, Specification Value:
5.5 kW
- Specification Name:
Power Consumption, Specification Value:
3.8 kW/hour
- Specification Name:
Electrical Supply, Specification Value:
3-phase, 16A, Specification Notes:
Three-phase 16A supply is required — confirm your workshop supply is suitable before ordering.
- Specification Name:
Dimensions (L × W × H), Specification Value:
1960 × 1150 × 1350 mm, Specification Notes:
Allow additional clearance around the machine for hopper loading, briquette collection, and operator access — the footprint is notably wider than the smaller models in this range.
- Specification Name:
Weight, Specification Value:
430 kg
- Specification Name:
Noise Level, Specification Value:
68 dB, Specification Notes:
68 dB is roughly equivalent to a normal conversation — this machine is unlikely to require acoustic treatment or to dominate the workshop environment.
- Specification Name:
Certification, Specification Value:
UKCA compliant, Specification Notes:
UKCA marking confirms the machine meets UK product safety requirements — necessary for legal sale and use in Great Britain.
- Specification Name:
Oil Cooler, Specification Value:
Yes, Specification Notes:
The hydraulic cooler allows the machine to run continuously without heat build-up causing shut-downs — important if you intend to run it for extended periods.
- Specification Name:
Auto Reverse Vertical Agitator, Specification Value:
Yes, Specification Notes:
This automatically breaks up bridging material in the hopper so production continues without manual intervention.
- Specification Name:
Automatic Switch-out, Specification Value:
Yes, Specification Notes:
The machine will shut itself down safely when required rather than needing constant operator supervision.
- Specification Name:
Electrical Interlocked Lid, Specification Value:
Yes, Specification Notes:
The machine cannot operate with the lid open, which is a practical safety requirement in a working workshop.
- Specification Name:
Chromed Piston and Press Chamber, Specification Value:
Yes, Specification Notes:
Chromium hardening on the pressing surfaces extends service life in abrasive dust and shaving environments.
- Specification Name:
Vibration Unit, Specification Value:
Yes
- Product Gallery:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Video Gallery:
- Video Link:
https://www.youtube.com/watch?v=dulwjd5kTOg
- Video Link:
https://www.youtube.com/watch?v=_wtfB4-TlN0
A continuous-run hydraulic briquette press for workshops that generate enough wood waste — shavings, dust, chippings, or MDF — to justify dedicated daily production. Converts material that would otherwise cost money to dispose of into usable, saleable fuel briquettes.
- Chosen By List:
- List Item:
Timber merchants and sawmills looking to turn shavings and offcuts into a saleable or self-used fuel product rather than paying for waste removal
- List Item:
Joinery and furniture workshops running multiple shifts who need a machine that operates continuously without manual intervention
- List Item:
Businesses in or supplying smoke control areas who need certified briquettes from virgin wood that comply with the UK Clean Air Strategy
- This Product List:
- List Item:
Your workshop generates enough virgin wood waste to justify continuous-run production at 60–80 kg/hour — typically a medium-to-large sawmill, timber merchant, or busy joinery operation
- List Item:
You need briquettes certified for smoke control areas, whether for your own use or for sale, and your waste stream is virgin wood throughout
- List Item:
You want a largely hands-off process — the auto agitator and automatic switch-out mean the machine can run with minimal supervision
- List Item:
You have confirmed 3-phase electrical supply and adequate floor loading for an 840 kg machine
- Alternate List:
- List Item:
Your waste volumes are lower — the Falach 50XL (40–60 kg/hour) or Falach 35 (30–40 kg/hour) may be a better match and will cost less to run
- List Item:
Your workshop footprint is constrained — the Falach 20 or Falach 20XL have a significantly smaller footprint (1250 × 740 mm base) and may suit tighter spaces
- List Item:
You are a smaller operation or are new to briquetting — the Falach 30 (25–35 kg/hour) is worth discussing with us as a lower-commitment starting point
- List Item:
You do not yet have 3-phase supply and are unsure about upgrading — talk to us before specifying any machine in this range
- Key Specifications:
- Specification Name:
Production Rate, Specification Value:
60–80 kg/hour, Specification Notes:
At full rate, the 0.75 m³ hopper will need recharging roughly every 45–60 minutes — worth factoring into how your waste feed is organised.
- Specification Name:
Briquette Diameter, Specification Value:
70 mm
- Specification Name:
Power Consumption, Specification Value:
4.9 kW/hour, Specification Notes:
The machine requires a 3-phase supply — confirm your workshop's phase and amperage capacity before ordering.
- Specification Name:
Noise Level, Specification Value:
68 dB, Specification Notes:
68 dB is roughly the level of a normal conversation — no acoustic treatment is required under typical workshop conditions.
- Full Specifications:
- Specification Name:
Production Rate, Specification Value:
60–80 kg/hour, Specification Notes:
At full rate, the 0.75 m³ hopper will need recharging roughly every 45–60 minutes — worth factoring into how your waste feed is organised.
- Specification Name:
Briquette Diameter, Specification Value:
70 mm
- Specification Name:
Briquette Length, Specification Value:
40–60 mm
- Specification Name:
Dimensions (L × W × H), Specification Value:
2220 × 1200 × 1510 mm, Specification Notes:
Allow additional clearance around all sides for hopper loading, briquette discharge, and operator access — a footprint area of at least 4 × 3 m is a practical working allowance.
- Specification Name:
Weight, Specification Value:
840 kg, Specification Notes:
At this weight, floor loading should be checked — particularly in older buildings or on suspended floors.
- Specification Name:
Hopper Volume, Specification Value:
0.75 m³
- Specification Name:
Pump Motor Input, Specification Value:
7.5 kW
- Specification Name:
Power Consumption, Specification Value:
4.9 kW/hour, Specification Notes:
The machine requires a 3-phase supply — confirm your workshop's phase and amperage capacity before ordering.
- Specification Name:
Electrical Supply, Specification Value:
3-phase, 32 amp
- Specification Name:
Operation, Specification Value:
Continuous
- Specification Name:
Oil Cooler, Specification Value:
No, Specification Notes:
The machine uses an enlarged hydraulic oil tank in place of an active cooler — adequate for normal continuous operation without additional cooling equipment.
- Specification Name:
Auto Reverse Vertical Agitator, Specification Value:
Yes, Specification Notes:
This prevents material bridging in the hopper and keeps the feed consistent without the operator having to intervene manually.
- Specification Name:
Automatic Switch-out, Specification Value:
Yes, Specification Notes:
The machine will shut itself down safely if a fault condition is detected, reducing the risk of damage or operator error during unattended running.
- Specification Name:
Noise Level, Specification Value:
68 dB, Specification Notes:
68 dB is roughly the level of a normal conversation — no acoustic treatment is required under typical workshop conditions.
- Specification Name:
Briquette Certification, Specification Value:
UK Clean Air Strategy compliant (virgin wood only), Specification Notes:
Certification applies to briquettes produced from virgin (untreated, uncontaminated) wood only — if your waste stream includes treated, painted, or composite timber, talk to us before specifying this machine for certified fuel production.
- Product Gallery:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Image:
- Video Gallery:
- Video Link:
https://www.youtube.com/watch?v=D_CfxXk4qrw
- Video Link:
https://www.youtube.com/watch?v=_wtfB4-TlN0
- Video Link:
https://www.youtube.com/watch?v=-i-W0y__u6k
A continuous-run hydraulic briquetter that turns sawdust and shavings from virgin wood into 70 mm certified briquettes at up to 80 kg/hour — giving medium-to-large timber and joinery operations a saleable or self-used fuel product from waste they would otherwise pay to remove.
- Chosen By List:
- List Item:
Workshops selling bagged briquettes directly to customers or trade buyers who need a consistent, presentable end product
- List Item:
Operations running a Falach press unattended or with minimal staffing, where stopping to bag manually would interrupt production
- List Item:
Businesses looking to move from loose briquette storage to ready-to-sell 20 kg bags without adding complexity or cost to their setup
- This Product List:
- List Item:
You are already running or specifying a Falach press (30, 35, 50, 70 or 100) and want to move to bagged output without adding a separate powered bagging system
- List Item:
Your production volume suits the Falach range — at 50 kg/hour on the Falach 50, five 20–25 kg bags fill in around 2 hours, which works well for small-to-medium batch production
- List Item:
You want a hands-off bagging process that frees up operator time during a press run, or you sell bagged briquettes and need a consistent, presentable bag weight for customers or trade accounts
- Alternate List:
- List Item:
You are not running a Falach press — the standard carousel is designed to be driven by the Falach press itself, though bespoke units can be made to fit other manufacturers' machines; talk to us if that applies to your setup
- List Item:
Your output volume significantly exceeds what the Falach range produces — the Falach 100 tops out at around 100 kg/hour, and at that throughput or above, a higher-capacity bagging solution may suit you better; discuss your requirements with us
- List Item:
You do not need bagged output — if loose briquettes feed directly into a hopper or bulk storage, the carousel adds unnecessary complexity to your setup
- Key Specifications:
- Specification Name:
Bag Capacity, Specification Value:
5 × 20–25 kg bags, Specification Notes:
With a Falach 50 running at 50 kg/hour, all five bags fill in approximately 2 hours — useful for planning how often an operator needs to swap out completed bags.
- Specification Name:
Bag Fill Weight, Specification Value:
Approx. 20–25 kg per bag, Specification Notes:
Final weight varies with material density, so denser hardwood briquettes will typically reach the upper end of this range.
- Specification Name:
External Drive Required, Specification Value:
None — powered by the press, Specification Notes:
The carousel draws its operation directly from the connected Falach press, so no additional electrical supply or motor is needed at the bagging point.
- Specification Name:
Compatible Presses, Specification Value:
Falach 30, 35, 50, 70 and 100, Specification Notes:
Two carousel variants are available — one sized for 50 mm briquettes (Falach 30, 35, 50) and one for 70 mm briquettes (Falach 70, 100) — confirm which applies when specifying.
- Full Specifications:
- Specification Name:
Bag Capacity, Specification Value:
5 × 20–25 kg bags
- Specification Name:
Bag Fill Weight, Specification Value:
Approx. 20–25 kg per bag (material-dependent)
- Specification Name:
External Drive Required, Specification Value:
No — powered directly by the press
- Specification Name:
Fill Method, Specification Value:
Automatic — briquettes drop directly into each bag in sequence
- Specification Name:
Briquette Diameter, Specification Value:
50 mm or 70 mm (two variants available), Specification Notes:
Specify your press model when enquiring so the correct carousel variant is supplied.
- Specification Name:
Weight, Specification Value:
200 kg, Specification Notes:
At 200 kg, floor loading is unlikely to be a concern in most workshop settings, but check if positioning on a raised or suspended floor.
- Specification Name:
Dimensions, Specification Value:
Confirmed during consultation with IWM, Specification Notes:
Contact IWM before installation to confirm floor footprint and clearance requirements for your specific unit and press combination.
- Specification Name:
Compatible Presses, Specification Value:
Falach 30, 35, 50, 70 and 100
- Specification Name:
Bag Supply, Specification Value:
Bags available in boxes of 200 from IWM, Specification Notes:
Sourcing bags direct from IWM ensures the correct size and fitment for the carousel — worth factoring into ongoing running costs.
- Specification Name:
Assembly, Specification Value:
Supplied fully assembled
- Product Gallery:
Turns your Falach press into a hands-off bagging line. Briquettes fill five 20–25 kg bags automatically — no separate motor, no operator standing over it.
- Chosen By List:
- List Item:
Timber merchants and sawmills with high daily waste volumes who need a press that can run continuously without operator intervention
- List Item:
Joinery shops and panel processors looking to offset waste disposal costs by producing a saleable or usable briquette product
- List Item:
Businesses that have outgrown a smaller press and need throughput capacity that keeps pace with production
- This Product List:
- List Item:
Your workshop generates enough waste to justify 90–120 kg/hour of throughput on a sustained basis
- List Item:
You need a press that can run continuously through a shift without requiring an operator to stand over it
- List Item:
You are producing briquettes for resale or regular fuel use and need consistent volume and a uniform 70 mm format
- List Item:
You have already outgrown a mid-range press and need a step up in capacity without moving to an industrial-scale machine
- Alternate List:
- List Item:
Your waste volumes are lower or intermittent — the <a href="index.php?option=com_content&view=article&id=19&catid=13">Falach 50XL</a> (40–60 kg/hour) or <a href="index.php?option=com_content&view=article&id=17&catid=13">Falach 35</a> (30–40 kg/hour) may be better matched to your actual throughput
- List Item:
Floor space is limited — the <a href="index.php?option=com_content&view=article&id=14&catid=13">Falach 20</a> or <a href="index.php?option=com_content&view=article&id=15&catid=13">Falach 20XL</a> has a significantly smaller footprint (L 1250 × W 740 mm) and may suit a tighter workshop layout
- List Item:
You are running a single-phase supply and cannot easily upgrade — the electrical requirement here is 3-phase 32 amp, which some smaller workshops cannot accommodate
- List Item:
Your budget or waste volume does not justify the step up from a smaller Falach model — talk to us and we will help you calculate whether the throughput gain is worth it for your situation
- Key Specifications:
- Specification Name:
Production Output, Specification Value:
90–120 kg/hour, Specification Notes:
At full rate, the 0.75 m³ hopper will empty in roughly 30–50 minutes depending on material density — factor this into how your extraction feeds the press.
- Specification Name:
Briquette Diameter, Specification Value:
70 mm
- Specification Name:
Power Consumption, Specification Value:
8.2 kW/hour, Specification Notes:
The machine requires a 3-phase, 32-amp supply — confirm your workshop supply is adequate before ordering.
- Specification Name:
Noise Level, Specification Value:
62 dB (max, under load), Specification Notes:
62 dB is roughly equivalent to a normal conversation — no acoustic treatment is required under standard workshop conditions.
- Full Specifications:
- Specification Name:
Production Output, Specification Value:
90–120 kg/hour, Specification Notes:
At full rate, the 0.75 m³ hopper will empty in roughly 30–50 minutes depending on material density — factor this into how your extraction feeds the press.
- Specification Name:
Briquette Diameter, Specification Value:
70 mm
- Specification Name:
Briquette Length, Specification Value:
45 mm (adjustable via potentiometer), Specification Notes:
The on-board potentiometer lets you adjust briquette length to suit the density of material being pressed, giving you control over briquette consistency.
- Specification Name:
Briquette Density, Specification Value:
900–1,100 kg/m³
- Specification Name:
Compression Method, Specification Value:
Hydraulic piston, 10 tons per square inch
- Specification Name:
Accepted Materials, Specification Value:
All wood waste types: shavings, dust, chippings, MDF — max 15% moisture content, Specification Notes:
Material above 15% moisture will not compress reliably and may damage the press — check your waste stream before running MDF or green timber offcuts.
- Specification Name:
Dimensions (L × W × H), Specification Value:
2220 × 1200 × 1510 mm, Specification Notes:
Allow additional clearance beyond the footprint for infeed ducting, briquette discharge, and operator access — this is a larger machine and siting should be planned carefully.
- Specification Name:
Weight, Specification Value:
810 kg, Specification Notes:
At this weight, floor loading capacity should be checked with your building surveyor before installation.
- Specification Name:
Hopper Volume, Specification Value:
0.75 m³
- Specification Name:
Pump Motor Input, Specification Value:
11 kW
- Specification Name:
Power Consumption, Specification Value:
8.2 kW/hour, Specification Notes:
The machine requires a 3-phase, 32-amp supply — confirm your workshop supply is adequate before ordering.
- Specification Name:
Electrical Supply, Specification Value:
3-phase, 32 amp
- Specification Name:
Operation, Specification Value:
Continuous, Specification Notes:
The press runs without stopping between cycles, making it suited to workshops where waste is generated at a steady, ongoing rate rather than in batches.
- Specification Name:
Oil Cooler, Specification Value:
Yes, Specification Notes:
Prevents hydraulic oil from overheating during extended continuous runs, which protects the press and reduces unplanned downtime.
- Specification Name:
Auto Reverse Vertical Agitator, Specification Value:
Yes, Specification Notes:
Prevents bridging or blockages in the hopper, reducing the need for manual intervention when processing fine or fluffy materials such as planer shavings.
- Specification Name:
Automatic Switch-out, Specification Value:
Yes, Specification Notes:
The machine can shut itself down safely without an operator present, useful for workshops where the press runs at the end of a shift.
- Specification Name:
Noise Level, Specification Value:
62 dB (max, under load), Specification Notes:
62 dB is roughly equivalent to a normal conversation — no acoustic treatment is required under standard workshop conditions.
- Specification Name:
Certification, Specification Value:
UKCA, Specification Notes:
UKCA marking confirms the machine meets UK product safety requirements post-Brexit — equivalent to CE for the UK market and required for legal sale and use in Great Britain.
- Specification Name:
Lead Time, Specification Value:
Normally 4–6 weeks from receipt of order
- Specification Name:
Installation & Commissioning, Specification Value:
Available at additional cost, Specification Notes:
Cost varies by location — talk to us when enquiring and we will confirm the figure for your site.
- Product Gallery:
- Image:
This machine is SOLD
Other machines arriving on a regular basis, please call for details
We are excited to offer reconditioned Falach 100 briquette machine , currently in stock and ready for sale. Falach is now the Leading Choice of Hydraulic Briquette Machines converting wood waste and other materials into renewable energy briquettes which have been Certified to meet the “Clean Air Strategy” producing same heat as Coal and no Air Pollutants.
This machines comes complete with a 6 month parts warranty.
(Other machines arriving on a regular basis, please call for details)
Shredders handle the first stage of most wood-waste recycling processes, breaking down offcuts, trim, pallets, and general timber waste into a manageable form. The shredded material can be stored more easily, fed into a briquette or pellet press, or used directly as a fuel or biomass feedstock.
Where space and handling are concerns on a busy factory or warehouse floor, shredding makes a practical difference — reducing bulk significantly before any further processing takes place.
If you are putting together a waste-handling system or simply need to deal with a particular type of wood waste more efficiently, talk to us about which shredder configuration would suit your output volumes and material types.
